2026 Pinarello Dogma F Carbon Disc Road Bike Frameset

The Pinarello Dogma F Disc Road Bike Frameset is a race frameset, not a complete bike — it includes the frame, fork, seatpost, headset, thru-axles, derailleur hanger, and small parts kit, with groupset, wheels, and finishing kit left to the rider. It suits racers and fast group-ride riders building a disc-brake road bike around a WorldTour-proven platform rather than buying off the shelf.

For MY26, Pinarello introduced a new M40X carbon fiber lay-up — first developed for its X-Light models and the Ineos Grenadiers' team bikes — to raise the frame's tensile modulus and lateral stiffness. The frame was also redesigned for aerodynamics: a thinner, keel-shaped downtube, a head tube nose narrowed by 8mm, and a slimmer Onda fork, all aimed at reducing frontal drag.

Who It's For

•        Racers and serious group-ride riders who want a WorldTour-level frame platform and plan to spec their own groupset, wheels, and cockpit

•        Riders prioritizing frame stiffness and aerodynamics for racing or fast-paced road riding over all-road versatility

•        Buyers who already have compatible disc-brake components picked out, since this is sold as a frameset only

•        Not a fit for riders who want a ready-to-ride complete bike or help selecting a full component build from scratch

What to Look For

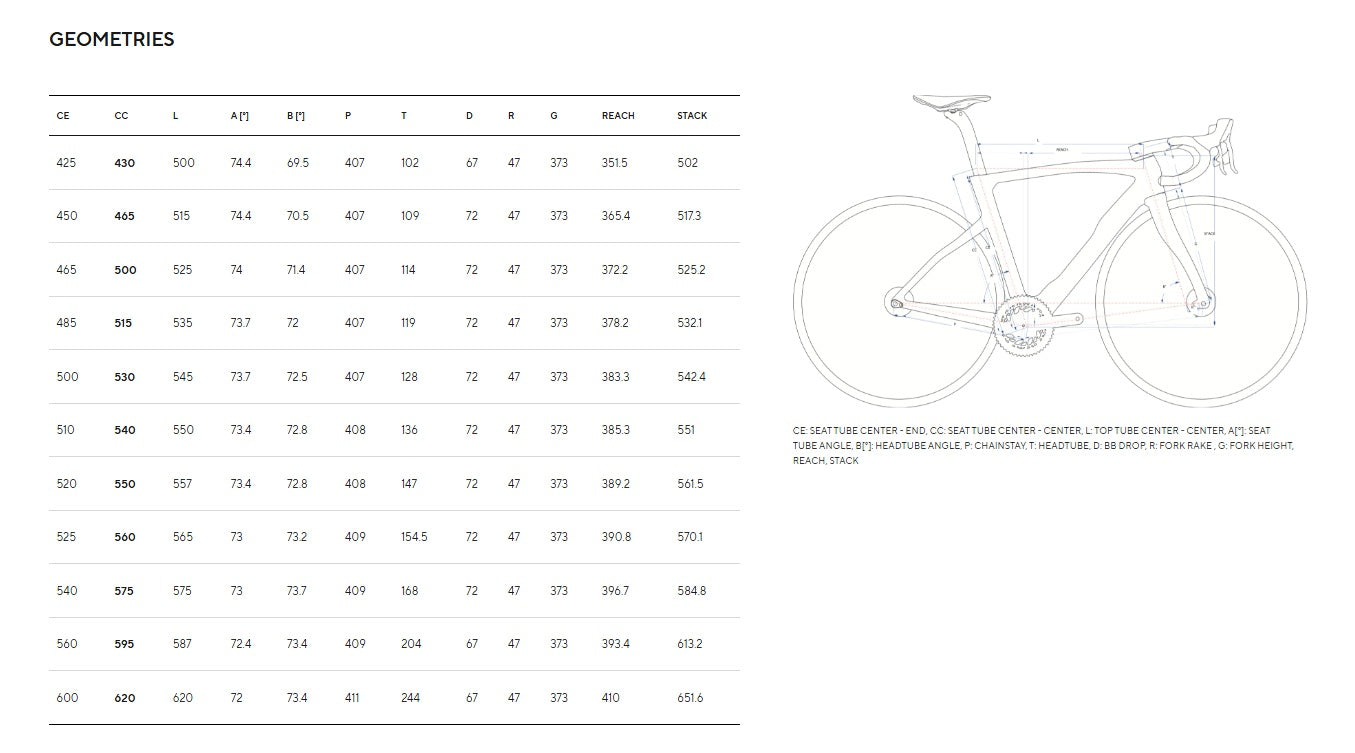

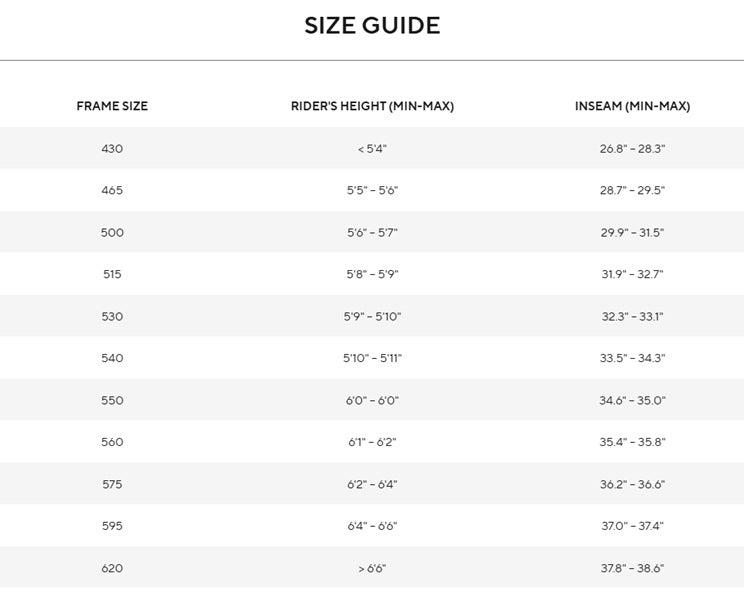

•        Frame size and fit come first: get a professional bike fit before ordering, since geometry can't change once the frame is built up.

•        Component compatibility: confirm your groupset works with the fork's fully integrated eTiCR cable routing, and check fit with the included Pinarello aero carbon seatpost.

•        Disc-brake, thru-axle setup: this frameset ships with front and rear thru-axles, so confirm your calipers, rotors, and wheels suit a thru-axle disc platform.

Key Features

Frame and fork: The Dogma F frame uses Pinarello's new M40X carbon, a lay-up shared with the brand's X-Light models and the Ineos Grenadiers' team bikes for added lateral stiffness. The downtube is rotated 3.5° into a keel shape at the bottom bracket — a 1.2% aero improvement there, per Pinarello — and the head tube nose is narrowed by 8mm to cut frontal drag. The new Onda fork is slimmer than before, holds a 47mm rake, and carries the frame's fully integrated eTiCR cable routing.

Headset: Narrowing the head tube required a new headset built around an elliptical steering tube with differentiated bearing diameters — wider at the bottom, narrower at the top — instead of a standard round steerer.

Seatpost and clamp: The frameset includes Pinarello's aero carbon seatpost and an integrated seatpost clamp with a titanium 3D-printed upper clamp assembly, housed inside the seat tube to keep dust and moisture out of the mechanism.

Included hardware: Front and rear thru-axles, a derailleur hanger, and a small parts kit (frame plugs, cable-routing hardware, and installation pieces) round out what's needed to build up the frame.

Rider Intent Summary

•        Biggest strengths: WorldTour-derived M40X carbon for lateral stiffness, plus a redesigned downtube, head tube, and fork aimed at cutting frontal aero drag.

•        Tradeoffs: Sold as a frameset only — no groupset, wheels, or finishing kit — and best suited to electronic shifting given the integrated eTiCR routing.

•        What makes it different: A purpose-built elliptical headset from the narrowed head tube, and a seatpost clamp fully integrated with a titanium 3D-printed upper assembly rather than an external clamp.

Victory's Take

We treat framesets like this as a bike-fit-first purchase: if you're set on the Dogma F platform, get fit before ordering so the frame size and setup match how you actually ride. It's a frame for riders who already know their build, not one we'd recommend as a first road bike.
