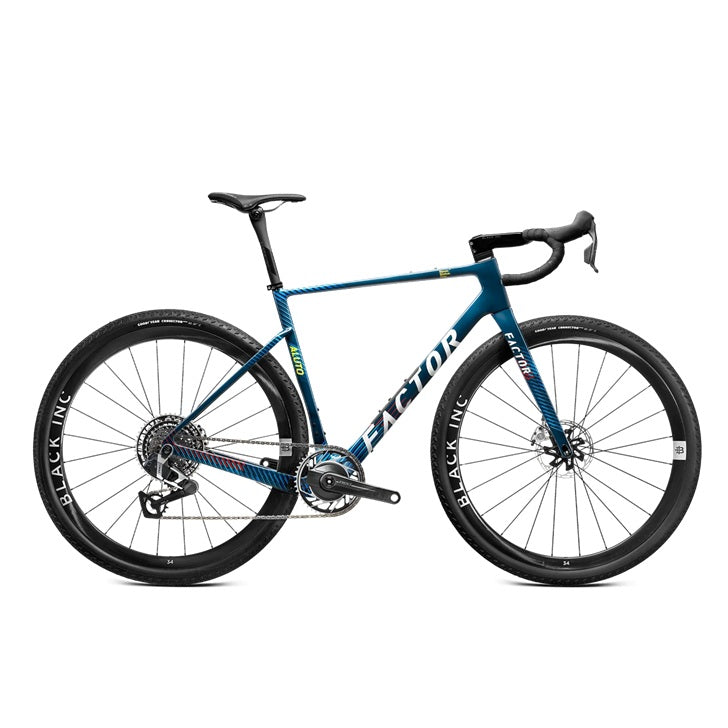

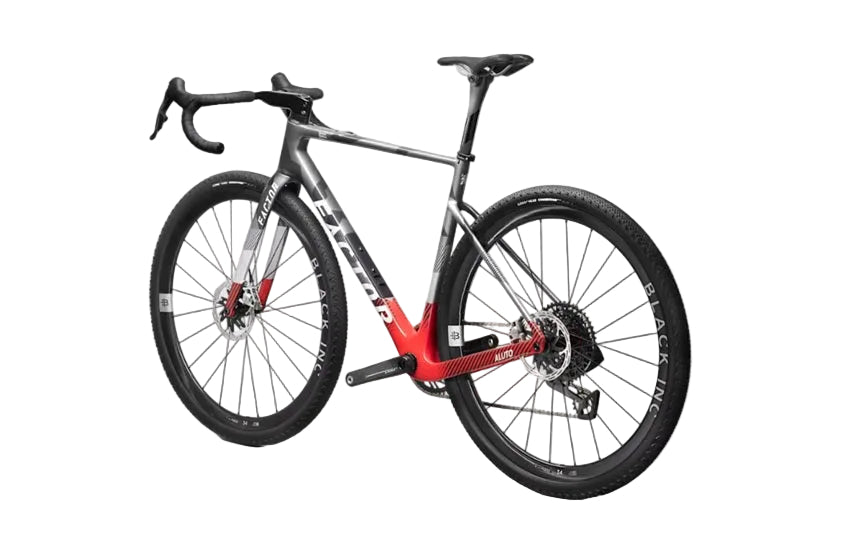

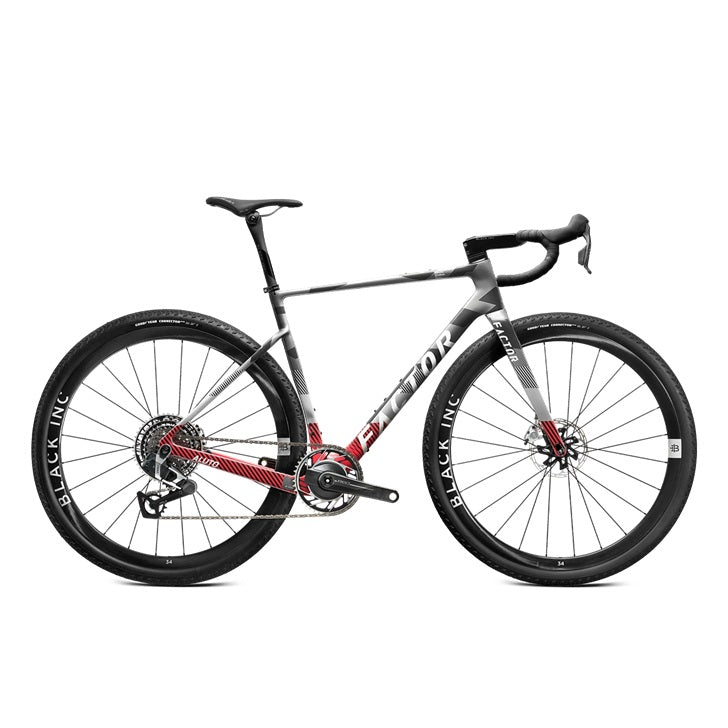

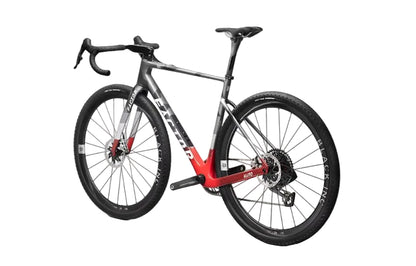

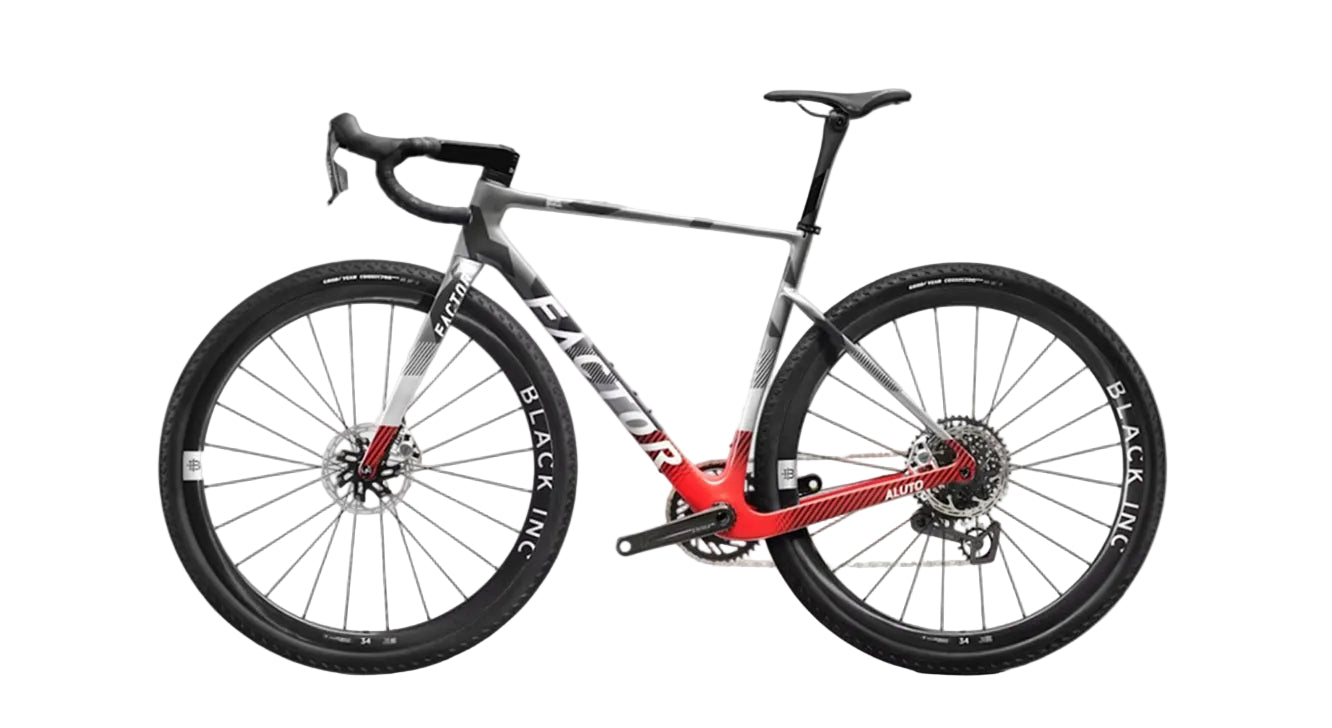

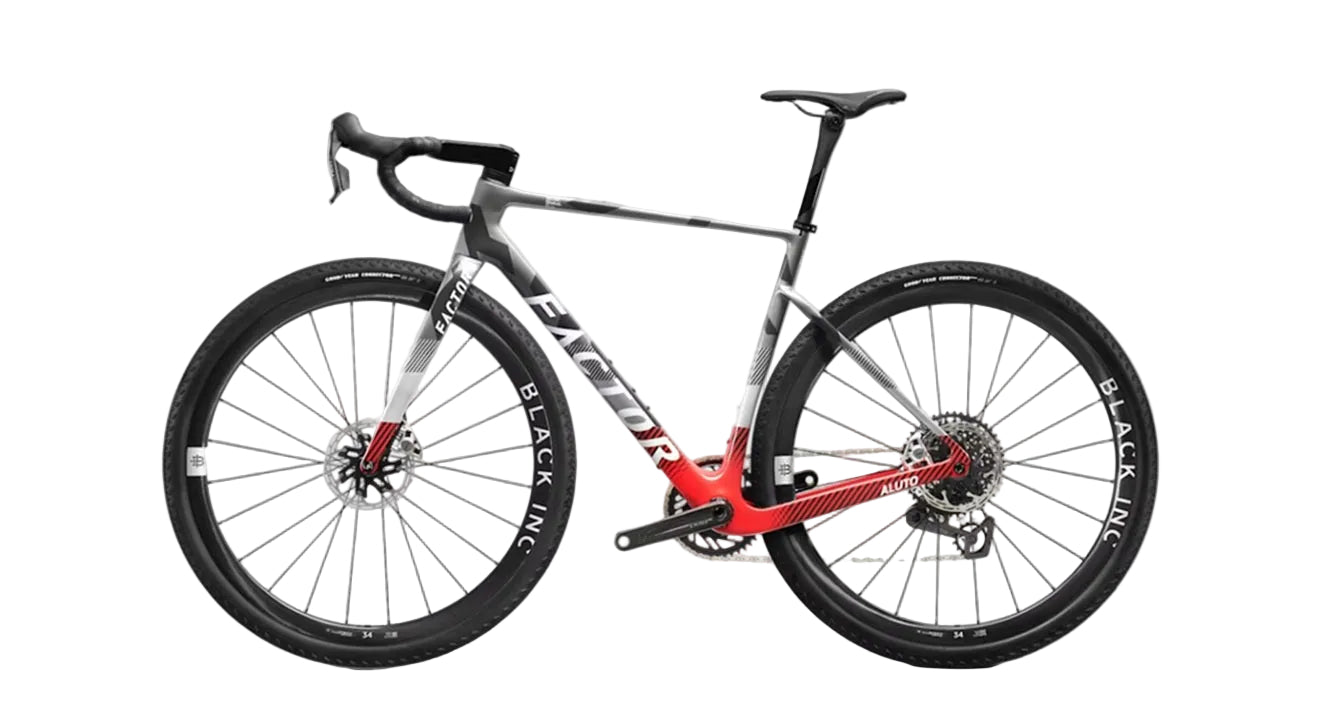

About The Factor Aluto Carbon SRAM Red XPLR AXS Gravel Bike
The Factor Aluto Carbon Red XPLR is a race-oriented gravel bike built to hold its edge across rough tarmac, open gravel, and technical trail sections in the same ride. It's built around a SRAM RED E1 XPLR 1x13-speed groupset and a Toray / Nippon Graphite pan-based carbon frame and fork, with short chainstays, a lowered bottom bracket, and a short wheelbase that keep handling sharp even at maximum tire volume. Geometry is optimized around 45mm tires, with a 47mm measured maximum tire clearance in the rear.
Compared to Factor's Ostro Gravel, the Aluto runs a slightly slacker head tube angle and a taller stack, giving it a more adaptable fit across body types without giving up a race-ready position. Down tube storage replaces a saddle bag or bar bag for tools and a multitool, and the frame accepts only electronic drivetrains paired with hydraulic disc brakes, which simplifies internal cable routing and keeps the frame free of unused ports.
Who It's For
• Riders training or racing gravel events who want a bike that stays composed from rough pavement to technical singletrack
• Riders who want 1x simplicity: SRAM RED E1 XPLR's 44T crank and 10-46T cassette cover wide-range terrain without a front derailleur
• Riders who want integrated storage and clean cable routing for long, unsupported days
• Consider a different bike if you run a mechanical drivetrain — the Aluto frame accepts electronic drivetrains and hydraulic brakes only
What to Look For
• Drivetrain compatibility: this frame is electronic-only; confirm your groupset preference before buying
• Tire and terrain fit: geometry is tuned around 45mm tires, with 47mm measured as the practical maximum
• Fit and cockpit: 1.5" headset and Black Inc integrated barstem come in multiple stem lengths and bar widths, with 0mm and 25mm setback seatpost options
Key Features
Frame and fork: The Aluto's Toray and Nippon Graphite pan-based carbon frame pairs with Factor's Aluto carbon fork, using short chainstays, a lowered bottom bracket, and a short wheelbase to keep the bike agile despite wider tires. A UDH-compatible rear dropout future-proofs drivetrain upgrades.
Groupset and shifting: SRAM RED E1 XPLR delivers 1x13-speed shifting through a 44T crank and 10-46T cassette, giving wide range without a front derailleur to manage on technical terrain.
Braking: Disc brakes with a 160mm max rotor size front and rear provide consistent stopping power across the mixed-terrain riding this bike is built for.
Wheels and tires: The Black Inc THIRTY FOUR wheelset comes in 700c, matched to a 47mm measured max tire clearance for tire choice on rougher terrain.
Storage and integration: Down tube storage holds a tire repair kit and multitool without a saddle or bar bag, and full internal cable routing keeps the cockpit clean while remaining mechanic-friendly.
Rider Intent Summary
• Biggest strength: geometry and carbon layup tuned to stay agile at maximum tire volume, with 1x13 SRAM RED E1 XPLR gearing built for wide-range terrain
• Tradeoff: frame accepts electronic drivetrains and hydraulic brakes only — no mechanical drivetrain compatibility
• What makes it different: down tube storage and a distinct geometry (slacker head tube, taller stack than the Ostro Gravel) built for long days, not just short race efforts
Victory's Take
At Victory Bicycle Studio, we see the Aluto as the gravel bike for riders who want race-day handling without sacrificing comfort on longer days out — the down tube storage and wide-range SRAM RED E1 XPLR groupset make it as capable for a 300km adventure as it is for a Saturday morning gravel race.
What you get

Factor Aluto Carbon SRAM Red XPLR AXS Gravel Bike
