About The Factor One Carbon SRAM Red AXS Road Bike

The Factor ONE Carbon is Factor's WorldTour aero race platform, built here with SRAM RED eTAP AXS w/ Power Meter, a Black Inc SIXTY TWO wheelset, and a frame combining TeXtreme, Toray, and Nippon Graphite pitch-based carbon fiber. It's built for racing and hard training in an aggressive, forward-rotated position — the modern trend toward narrower bars, more forward saddles, and shorter cranks — without giving up handling stability.

What sets the ONE apart is its integrated barstem, which decouples the handlebar mount from the steering axis. That lets riders run an extreme reach position without resorting to an overlong stem, and it lets Factor hold identical steering geometry across every frame size, down to the smallest. Development leaned on CFD modeling and lessons from Factor's HANZŌ Track and OSTRO VAM programs; in an early, unannounced prototype form, the ONE won a stage of the Critérium du Dauphiné.

Who It's For

        Racers and serious riders who hold a forward, low, aggressive position with narrow bars and shorter cranks

        Riders who want SRAM RED eTAP AXS with an integrated power meter and a premium aero wheelset without additional upgrades

        Riders prioritizing aerodynamic speed who still need confident, stable handling at race pace

        Riders who need a fully adjustable stem/bar setup should look elsewhere: the integrated barstem comes only in 380mm width, with five fixed reach options at 80mm reach / 120mm drop

What to Look For

        Cockpit fit first: the barstem's 380mm width and 80mm reach / 120mm drop are fixed, so confirm your position works within the five reach options before ordering

        Frame size via the ONE's 1–5 sizing, which corresponds to stem-length equivalents rather than standard frame sizing

        Bottom bracket setup: comes with CeramicSpeed T47A aluminum cups, with upgraded CeramicSpeed bearings available for DUB and 24mm cranks if you're speccing around a specific crank

Key Features

Frame and fork: The frame uses TeXtreme, Toray, and Nippon Graphite pitch-based carbon fiber, paired with the ONE Wide Stance Fork, developed from research into how airflow spilling off a spinning front tire disrupts air behind it.

Integrated cockpit and geometry: The Factor Integrated Barstem separates the handlebar mount from the steering axis, and bottom bracket drop is tuned to offset the higher center of gravity from shorter cranks and larger tires — steering geometry stays identical across all five frame sizes.

Drivetrain: SRAM RED eTAP AXS with an integrated power meter runs 2x12-speed shifting, with a 48/35T crank and 10-33T cassette, and a max chainring capacity of 54 teeth.

Braking and axles: Disc brakes run 160mm rotors front and rear, with 12x100mm front and 12x142mm rear thru-axles.

Wheels and tire clearance: The Black Inc SIXTY TWO 700c wheelset is included, with up to 34mm of measured tire clearance for riders who want a wider tire on rough tarmac.

Bottom bracket: CeramicSpeed T47A aluminum cups come standard, with CeramicSpeed bearing upgrades available for DUB and 24mm crank spindles.

Rider Intent Summary

        Biggest strength: An integrated aero cockpit that delivers extreme reach without a long stem while keeping steering geometry consistent from the smallest to the largest frame size.

        Tradeoff: The 380mm-only barstem width and fixed reach/drop options mean less on-the-fly fit adjustability than a traditional stem-and-bar setup.

        What makes it different: Built on aerodynamic research from Factor's HANZŌ Track and OSTRO VAM programs, and race-validated when an unannounced prototype won a stage of the Critérium du Dauphiné.

Victory's Take

At Victory Bicycle Studio, we'd point the ONE toward riders who already know their race position cold — the fixed 380mm integrated cockpit rewards a dialed-in fit more than it accommodates one still in progress, so we recommend a professional bike fit before locking in reach and drop.

What you get

  • Groupset - SRAM RED eTAP AXS 12 Speed w/ Power Meter
  • Speed - 2x12 Speed
  • Crank - 48/35T
  • Cassette - 10-33T
  • Rotors - 160mm
  • Wheelset - Black Inc SIXTY TWO Carbon
  • Tire clearance - 700x34c
  • Frame - TeXtreme ®, Toray ®, Nippon Graphite ® Pitch-Based Carbon Fiber

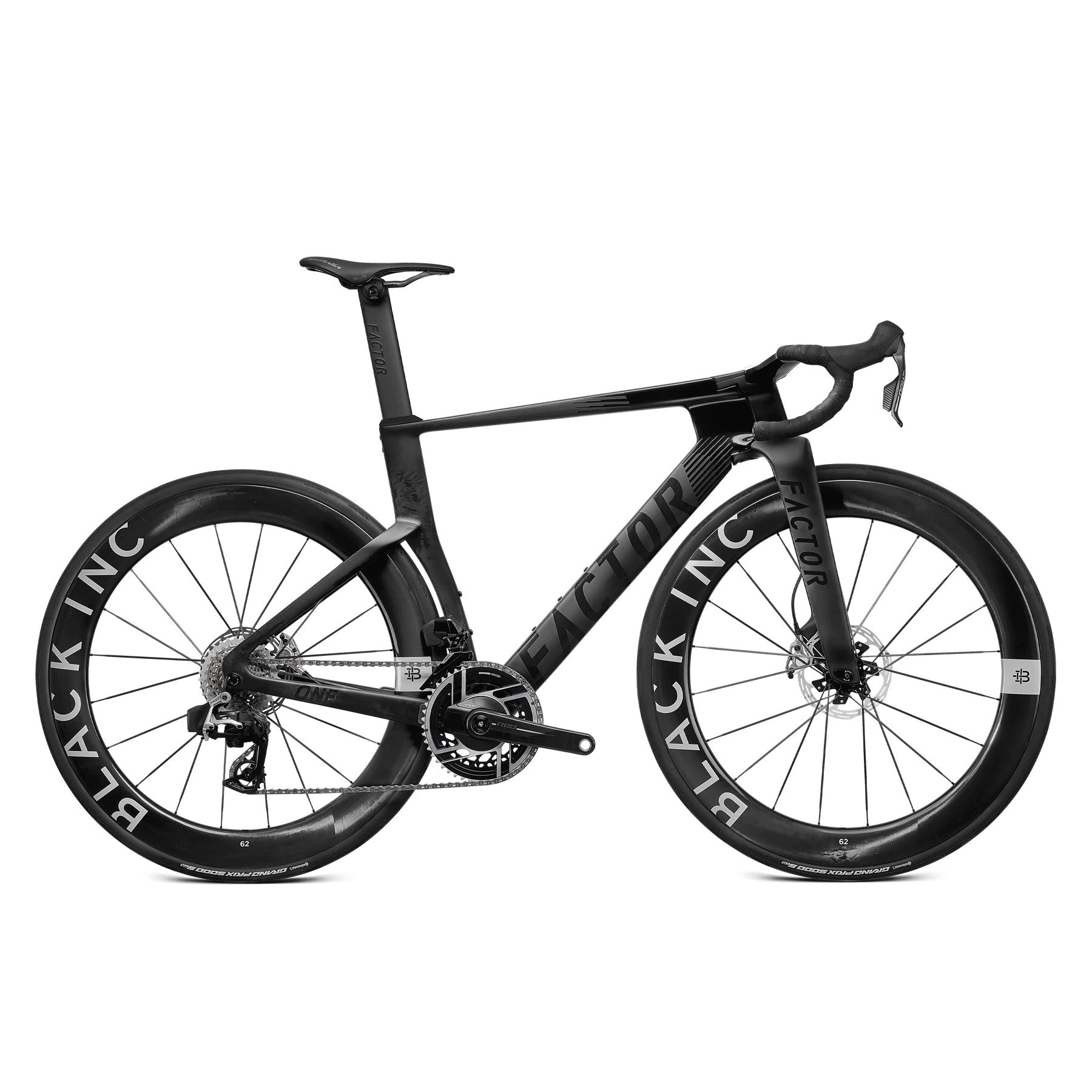

factor one sram red road bike onyx black

Factor

Factor One Carbon SRAM Red AXS Road Bike

Regular price $14,199.00 USD
Sale price $14,199.00 USD Regular price

features

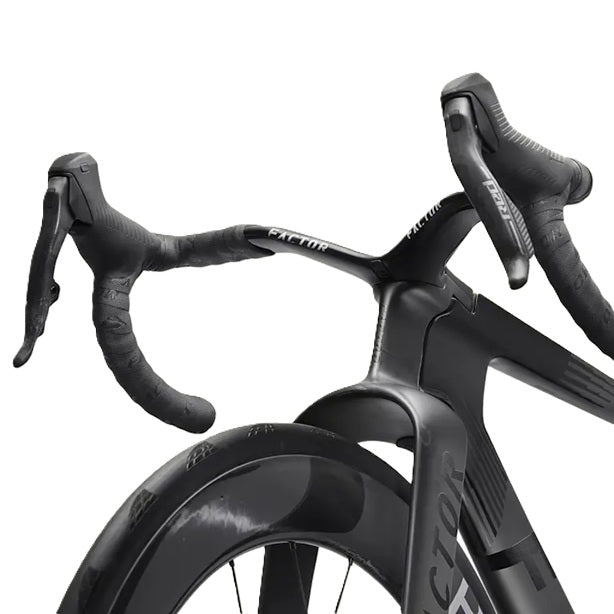

  • Cockpit Redefined

    The ONE uses integrated bar system without a traditional stem. Sizes are designated 1, 2, 3, 4, 5, corresponding to stem equivalents of 110 through 150 mm with three high rise options offering additional 20mm of stack.

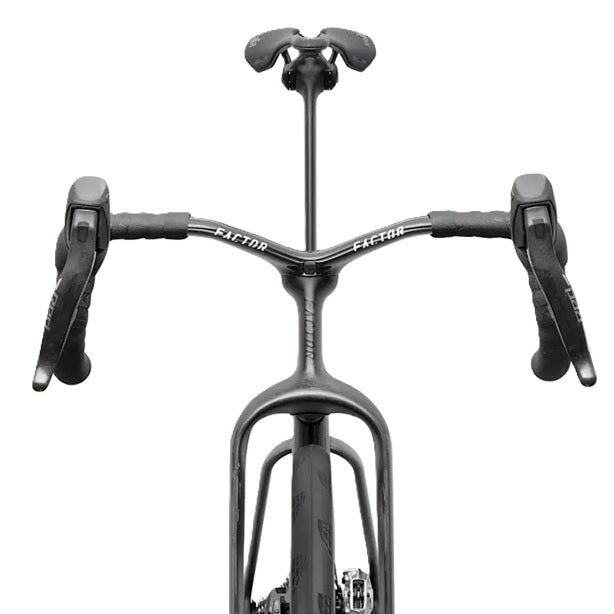

  • Bar Adjustability

    Up to 15 mm of spacers can be added per bike. When combined with the selection of the high- and low-rise bar, this gives riders 35 mm of shifter stack height range.

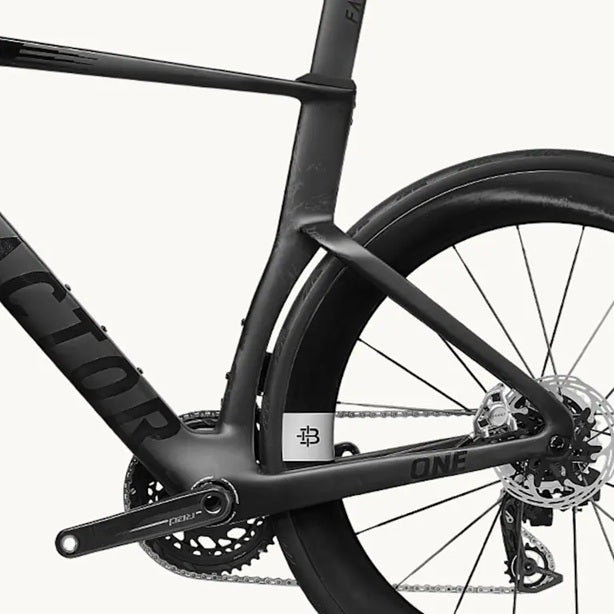

  • Aero Optimized Tire Clearance

    Frame and fork optimised for up to 34 mm tyre width, as measured. Designed to smooth out airflow around the wheels and reduce the drag.

Specifications

Frameset
Frame

TeXtreme®, Toray®, Nippon Graphite® Pitch-Based Fiber, Internal Cable Routing

Fork

Factor ONE Wide Stance Fork

Drivetrain and Brakes
Groupset

SRAM Red eTap AXS with Power Meter, Electronic, 2x12-Speed

Cockpit
Seatpost

0 and 30mm setback available

Drivetrain and Brakes
Crankset

SRAM Red AXS Power Meter Crankset, 48/35T

Cassette

SRAM Red, XG-1290, 10-33T

Bottom Bracket

CeramicSpeed T47A Aluminium cups, CeramicSpeed bearings available for DUB and 24mm.

Cockpit
Handlebar/Stem

Factor Integrated HandleBar and Stem Reach 80mm, drop 120mm. 380 barwidth only with 5 reach options.

Frameset
Head Tube Diameter

1-1/8" upper and lower

Headset

FSA 1-1/8" upper and lower bearings

Drivetrain and Brakes
Brake Type

Disc

Max Rotor Size

160mm front & rear

Wheels
Wheelset

Black Inc Sixty Two Carbon Wheelset

Front Axle

12 x 100mm thru-axle

Rear Axle

12 x 142mm thru-axle

Wheel Size

700c

Max Tire Clearance

34mm Measured

Additional Information
Included Accessories

Black Inc Aero Integrated Bottle Cages, Computer Mount

Manufacturer Warranty

Limited Lifetime Warranty

**Specifications subject to change without notice

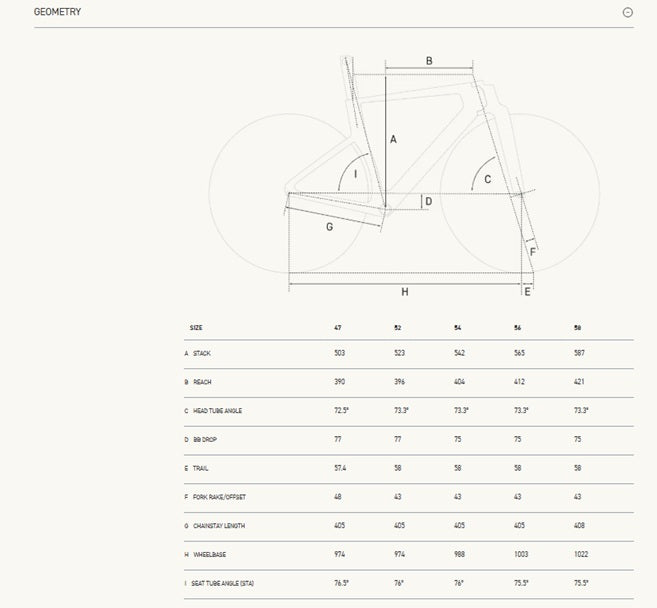

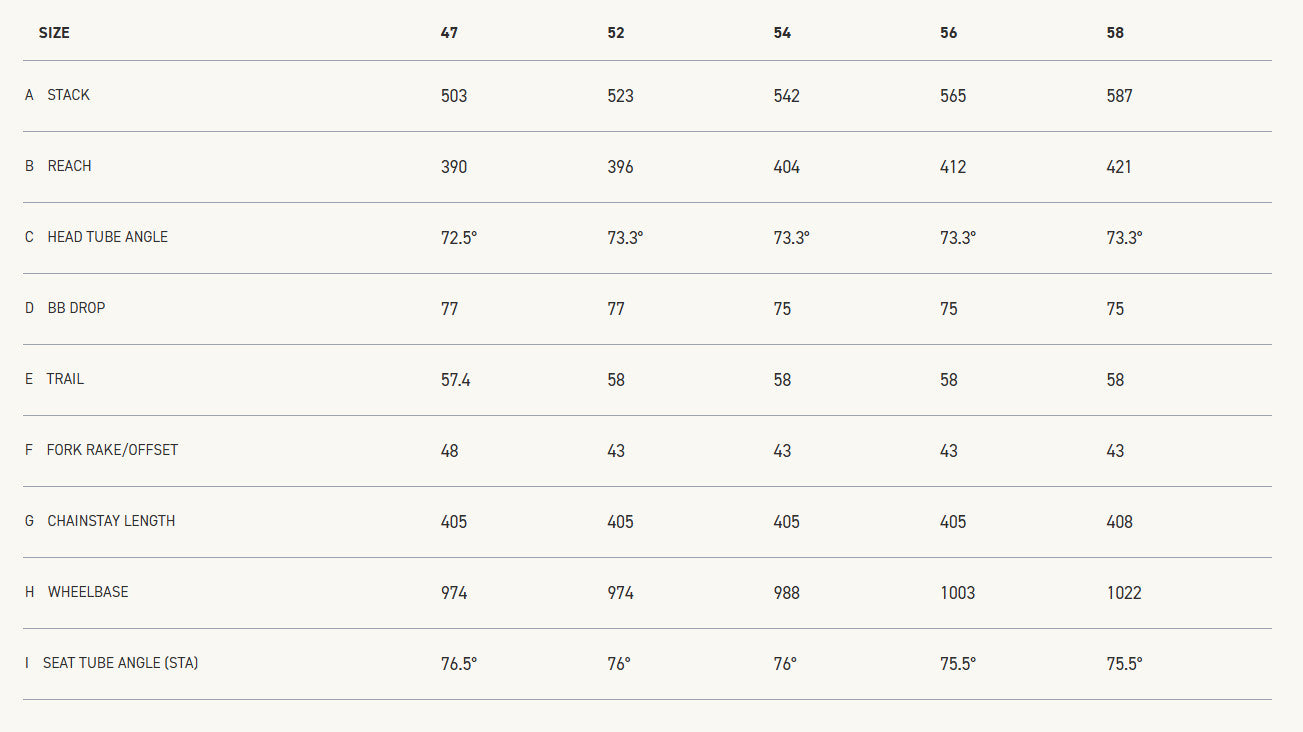

Geometry

Frame Size 47 52 54 56 58
(A) Frame Stack 503 523 542 565 587
(B) Reach 390 396 404 412 421
(C) Head Tube Angle 72.5° 73.3° 73.3° 73.3° 73.3°
(D) BB Drop 77 77 75 75 75
(E) Trail 57.4 58 58 58 58
(F) Fork Rake/Offset 48 43 43 43 43
(G) Chainstay Length 405 405 405 405 408
(H) Wheelbase 974 974 988 1003 1022
(I) Seat Tube Angle(STA) 76.5° 76° 76° 75.5° 75.5°
Frame Size 47 52 54 56 58
(A) Frame Stack 19.8" 20.6" 21.3" 22.2" 23.1"
(B) Reach 15.4" 15.6" 15.9" 16.2" 16.6"
(C) Head Tube Angle 72.5° 73.3° 73.3° 73.3° 73.3°
(D) BB Drop 3.0" 3.0" 3.0" 3.0" 3.0"
(E) Trail 2.3" 2.3" 2.3" 2.3" 2.3"
(F) Fork Rake/Offset 1.9" 1.7" 1.7" 1.7" 1.7"
(G) Chainstay Length 15.9" 15.9" 15.9" 15.9" 16.1"
(H) Wheelbase 38.3" 38.3" 38.9" 39.5" 40.2"
(I) Seat Tube Angle(STA) 76.5° 76° 76° 75.5° 75.5°
