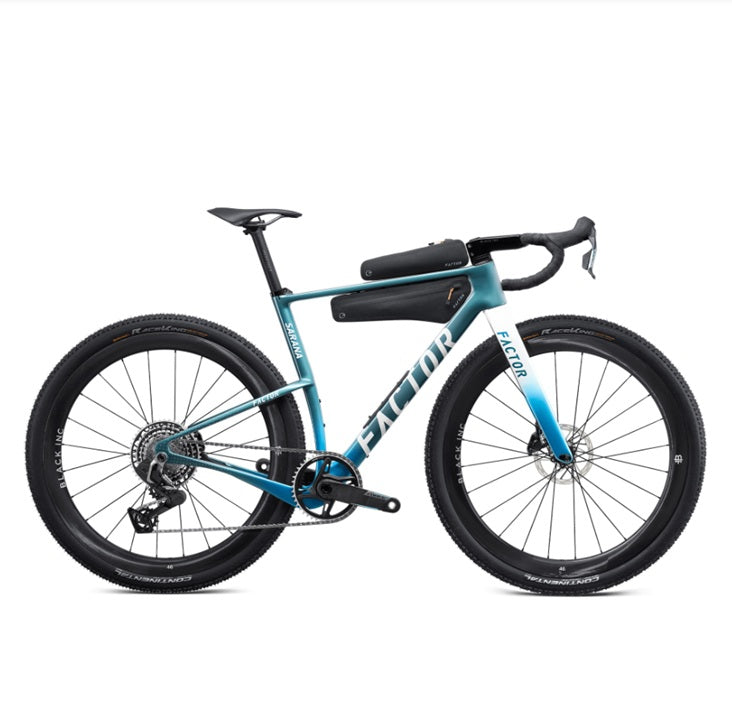

About The Factor Sarana Carbon Sram Force XPLR With Power Meter Gravel Bike

The Factor Sarana Carbon is a dedicated ultra-distance gravel race bike, built for self-supported events measured in days rather than hours. This build pairs the frame with SRAM Force E1 XPLR, a 1x13-speed electronic groupset with integrated power meter, so riders can pace multi-day efforts on data rather than feel alone.

Factor developed the Sarana directly with Canadian ultra racer Rob Britton, the 2025 Unbound XL champion, testing prototypes through the rough, variable terrain of British Columbia. The result is a leaf-spring seat-stay system — dropped stays combined with an offset seat tube — that flexes in-plane to absorb rough-road vibration while preserving power transfer, and that lets Factor hold 425mm chainstays across every frame size.

Who It's For

  • Riders training for or racing multi-day, self-supported gravel events, where the bike needs to hold composure over sustained hours in the saddle, not just a single hard effort.

  • Riders who want electronic 1x13-speed shifting with onboard power data built in, rather than retrofitting a power meter later.

  • Riders who plan to carry their own tools, food, and layers via frame-integrated storage, not aftermarket bolt-on bags.

  • Riders chasing short, technical, single-track-heavy gravel races may be better served by a shorter, more aggressive gravel platform than this endurance-tuned ultra racer.

What to Look For

  • Cockpit fit: the Black Inc integrated barstem comes in multiple stem lengths and bar widths, with this spec at 75mm reach and 116mm drop — get measured before ordering, since reach and drop are set by the bar/stem combination.

  • Tire clearance: 57mm measured clearance covers gravel slicks through more aggressive off-road tread; confirm it matches the terrain you're racing or riding.

  • Bottom bracket compatibility: the CeramicSpeed T47A wide cups accept both DUB and 24mm spindle bearings — check which your current crankset uses if you're transferring components.

Key Features

The frame uses Toray, Nippon Graphite pan-based carbon fiber paired with a Factor Sarana carbon fork, and a 1.5" headset front and rear for steering precision at speed. Stack and reach are tuned to maintain control through fatigue, so posture holds up late in long efforts rather than collapsing.

SRAM Force E1 XPLR drives the rear wheel through a 44T crank and 10-46T cassette, a single-ring setup built for simplicity and reliability over long, unsupported distances; the frame is also rated to accept chainrings up to 52T for riders who want to tune gearing differently. The groupset's integrated power meter means pacing data is built into the drivetrain from the start.

Braking is disc, with 160mm rotors front and rear, matched to 12x100mm front and 12x142mm rear thru-axles for a secure, consistent wheel interface. The Black Inc 46 wheelset in 700c is matched to 57mm max tire clearance, giving riders room to size tires up for rougher terrain without changing frames. Internal cable routing keeps the electronic drivetrain's wiring protected from trail debris, and the bike ships with a downtube storage bag, top tube pack, and frame pack built into the design rather than added on.

Rider Intent Summary

  • Biggest strengths: purpose-built ultra-distance geometry, integrated frame storage, and an electronic 1x13 drivetrain with onboard power data.

  • Tradeoffs: a single-chainring drivetrain trades the gear range of a 2x setup for simplicity and reliability, offset by the wide 10-46T cassette and up-to-52T chainring compatibility.

  • What makes it different: a leaf-spring seat-stay system and 425mm chainstays held constant across every size, developed and field-tested with 2025 Unbound XL champion Rob Britton.

Victory's Take

We see the Sarana as a tool built for a specific job — ultra-distance, self-supported gravel racing — rather than a general-purpose gravel bike wearing a race number. If you're considering one, we'd want to get you properly fit to the Black Inc cockpit before you put real miles on it.

What you get

  • Frame - Toray®, Nippon Graphite® Pan-Based Fiber
  • Fork - Factor SARANA carbon
  • Barstem - Black Inc Integrated Carbon Barstem
Factor Sarana Carbon Sram Force XPLR With Power Meter Gravel Bike

Factor

Factor Sarana Carbon Sram Force XPLR With Power Meter Gravel Bike

Regular price $8,699.00 USD
Sale price $8,699.00 USD Regular price

features

  • Black Inc Gravel Wheels

    Black Inc FORTY SIX gravel wheels with 27 mm inner rim width offer a 46 mm deep profile and aerodynamically shaped steel spokes for speed and durability.

  • Dropper Post Compatible

    By opting for a 30.9 seat post with an external clamp, the SARANA can accommodate a lighter weight dropper post that offers more drop with less insertion.

  • Black Inc Cockpit

    The SARANA comes equipped with the Black Inc HB05 Integrated Barstem specifically designed for aggressive gravel riding with a short drop and wide flare for assured handling.

Specifications

Frameset
Frame

Toray®, Nippon Graphite® Pan-Based Fiber

Fork

Factor SARANA carbon

Wheels
Wheelset

Black Inc Forty Six carbon wheelset, TLR, Centerlock, 12x100, 12x142

Max Tire Clearance

57mm (measured)

Drivetrain and Brakes
Rear Derailleur

Sram Force XPLR 13-Speed, full Mount (UDH-compatible only)

Cassette

Sram Force XPLR, 10-46T

Crankset

Sram Force XPLR, 44T

Brakes

Sram Force XPLR, hydraulic disc

Cockpit
Handlebars

Black Inc Integrated Barstem, Carbon, 75mm reach

Seatpost

FSA SL-K SB0 Seatpost

**Specifications subject to change without notice

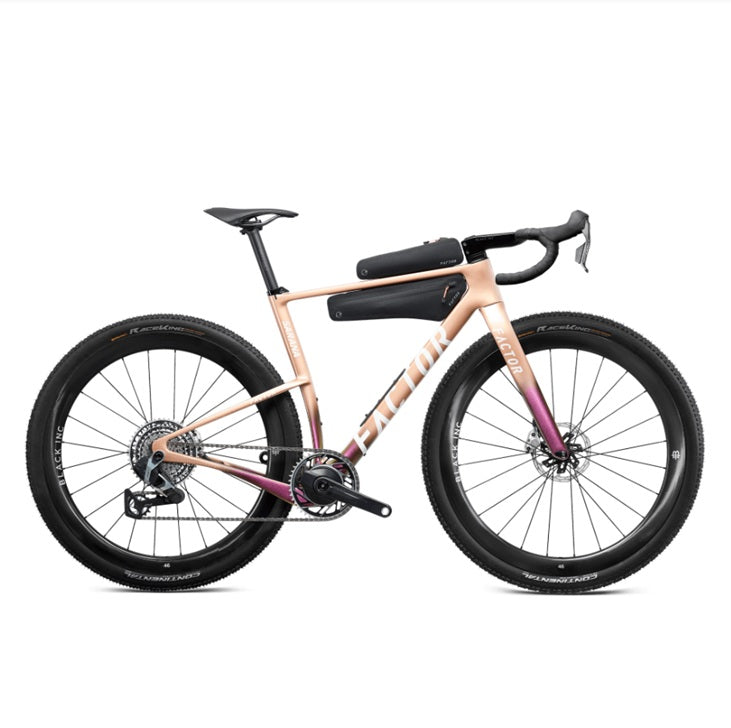

*Images listed are for sole purpose of displaying the color of the bike. Some images may have a different groupset than the description on the page. This Factor Sarana is equipped with Sram Force XPLR 13-Speed components and power meter.
