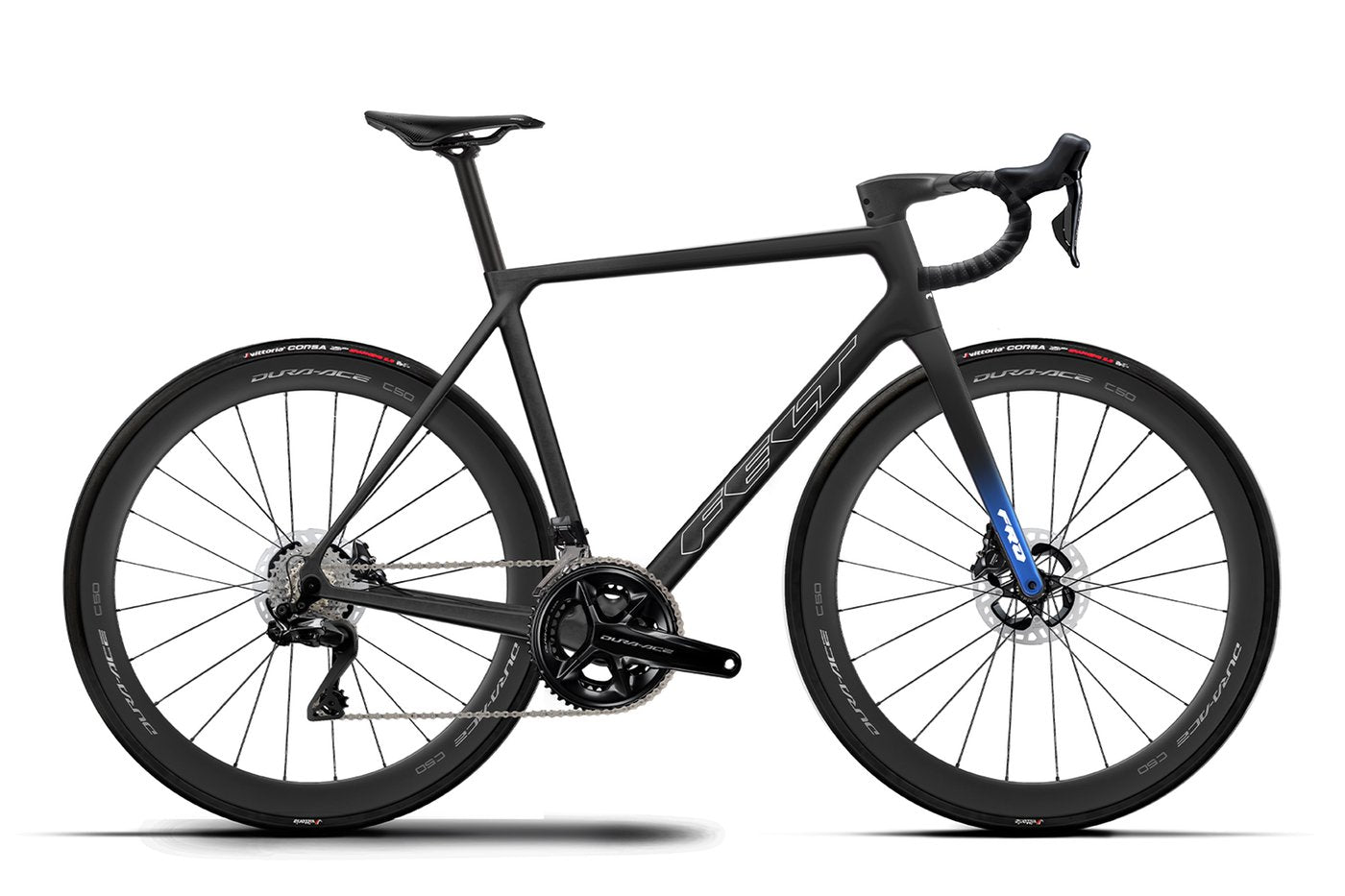

About The Felt FR FRD Carbon Shimano Dura-Ace Di2 Road Bike

The Felt FR FRD Carbon Dura Ace Di2 12 Speed Race Road Bike pairs an FR 4.0 UHC Advanced Carbon frame and fork with a full Shimano Dura-Ace Di2 12-speed electronic groupset, built for riders who move between steep climbs and technical descents in the same ride. At 7.2 kg (size M), the frame sits at the lighter end of the race category, and the build is set up to reward efficient pedaling on sustained climbs while staying composed on fast, technical terrain.

What sets this build apart is the combination of a one-piece integrated Vision Metron 5D ACR carbon cockpit, a Shimano Dura-Ace C50 tubeless-ready aero wheelset, and Shimano's 2-piston hydraulic disc brakes with Center Lock rotors. Together, these components give the FR FRD aero-oriented road-race positioning, electronic shifting precision, and consistent braking control in one build, without carrying components the rider doesn't need.

Who It's For

        Competitive and performance-oriented road riders who want a lightweight frame paired with a full Shimano Dura-Ace Di2 electronic groupset.

        Riders who climb and descend in the same ride and want one bike that handles both.

        Riders comfortable with a fully integrated carbon cockpit and internal routing, which limits aftermarket fit adjustments after purchase.

        Riders and fully loaded setups need to stay under the bike's 120 kg permissible total weight limit.

What to Look For

        Cockpit sizing is fixed by frame size: XXS/XS/S/M ships with a 400x100 Vision Metron 5D ACR bar/stem, L/XL/XXL ships with 420x100. Confirm fit before ordering, since the integrated design isn't adjustable after purchase.

        The stock Vittoria Corsa N.EXT tires come set up in 700x26c; consider whether that width suits the roads and cornering feel you're after.

        The Dura-Ace CS-R9200 11-30T cassette paired with a 52/36T crankset sets your gearing range, so check it against the climbs and terrain you ride most.

Key Features

The FR 4.0 UHC Advanced Carbon frame and fork form the structural base of the bike, built to keep weight down (7.2 kg at size M) while supporting race-oriented handling. Shifting runs through a Shimano Dura-Ace Di2 RD-R9250 and FD-R9250 2x12-speed electronic system with ST-R9270 shifters, for consistent gear changes under load. Braking comes from Shimano BR-R9270 2-piston hydraulic disc calipers matched to 160mm MT900 Center Lock rotors front and rear, for controlled stopping power in mixed conditions. The Shimano Dura-Ace C50 WH-R9270 wheelset is tubeless-ready and paired with 700x26c Vittoria Corsa N.EXT tires, balancing aerodynamics with real-world grip. The one-piece Vision Metron 5D ACR carbon cockpit integrates the bar and stem with internal cable routing, cleaning up the front end, while the PRO Vibe Carbon seatpost (20mm offset) rounds out the carbon contact-point package.

Rider Intent Summary

        Biggest strengths: a full Shimano Dura-Ace Di2 groupset, a 7.2 kg build weight (size M), and an integrated aero cockpit in one bike.

        Tradeoffs: the integrated cockpit fixes bar/stem sizing to frame size, and the electronic groupset adds a component system to keep charged and maintained.

        What makes it different: Dura-Ace-level electronic shifting, a tubeless aero wheelset, and a one-piece cockpit are specified together on this build, rather than mixed across tiers.

Victory's Take

We see the FR FRD as a direct route to a Dura-Ace Di2 build without upgrading your way there piece by piece. At Victory Bicycle Studio, we'd still want you in for a fit session first, since so much of the front end is fixed by frame size.

What you get

  • Frame - FR 4.0 - UHC ADVANCED CARBON FRAME
  • Fork - FR 4.0 - UHC ADVANCED CARBON FORK
  • Component Group - Shimano Dura-Ace Di2 12 Speed (Electronic)
  • Wheelset - SHIMANO DURA-ACE C50 WH-R9270-C50-TL
  • Tires - VITTORIA CORSA N. EXT, 700x26c
  • Cockpit (Handlebar and Stem) - 1-PIECE INTEGRATED COCKPIT VISION METRON 5D ACR CARBON
Felt FR FRD Carbon Shimano Dura-Ace Di2 Road Bike

Felt

Felt FR FRD Carbon Shimano Dura-Ace Di2 Road Bike

Regular price $5,599.99 USD
Sale price $5,599.99 USD Regular price $11,999.00 USD

Specifications

Frameset
Frame

FR 4.0 UHC Advanced Carbon Frame

Fork

FR 4.0 UHC Advanced Carbon Fork

Drivetrain and Brakes
Brakes

Shimano, BR-R9270, 2-Piston, Hydraulic Disc Brake

Brake Rotors

Shimano, RT-MT900, Centerlock, 160mm

Rear Derailleur

Shimano Dura-Ace Di2, RD-R9250, 2x12-Speed

Front Derailleur

Shimano Dura-Ace Di2, FD-R9250

Cassette

Shimano Dura-Ace, CS-R9200, 11-30T

Chain

Shimano, CN-M9100, HG 12-Speed

Crankset

Shimano Dura-Ace, FC-R9200, 52/36T

Shifters

Shimano Dura-Ace Di2, ST-R9270

Wheels
Wheelset

Shimano Dura-Ace C50, WH-R9270-C50-TL

Tires

Vittoria Corsa N.EXT, 700x26c

Cockpit
Handlebar/Stem (Integrated)

Vision Metron 5D ACR Carbon 1-Piece Integrated Cockpit

- Size XXS, XS, S, M: 400mm x 100mm stem

- Size L, XL, XXL: 420mm x 100mm stem

Seat Post

Pro Vibe Carbon, 20mm offset

Additional Information
Bike Weight (Based on Size M)

7.2kg (15.87lbs)

Permissible Total Weight

120kg (265 lbs)

**Specifications subject to change without notice

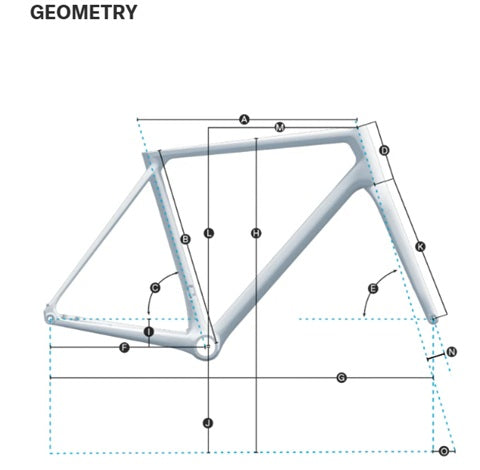

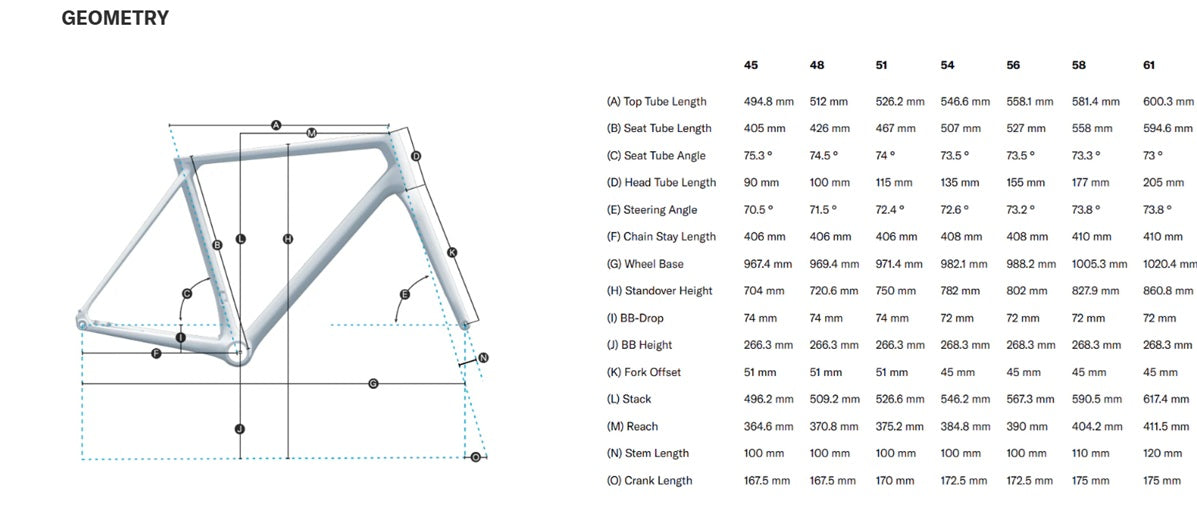

Geometry

Frame Size 45 48 51 54 56 58 61
(A) Top Tube Length 494.8mm 512mm 526.2mm 546.6mm 558.1mm 581.4mm 600.3mm
(B) Seat Tube Length 405mm 426mm 467mm 507mm 527mm 558mm 594.6mm
(C) Seat Tube Angle 75.3° 74.5° 74° 73.5° 73.5° 73.3° 73°
(D) Head Tube Length 90mm 100mm 115mm 135mm 155mm 177mm 205mm
(E) Steering Angle 70.5° 71.5° 72.4° 72.6° 73.2° 73.8° 73.8°
(F) Chain Stay Length 406mm 406mm 406mm 408mm 408mm 410mm 410mm
(G) Wheel Base 967.4mm 969.4mm 971..4mm 982.1mm 988.2mm 1005.3mm 1020.4mm
(H) Standover Height 704mm 720.6mm 750mm 782mm 802mm 827.9mm 860.8mm
(I) BB-Drop 74mm 74mm 74mm 72mm 72mm 72mm 72mm
(J) BB Height 266.3mm 266.3mm 266.3mm 268.3mm 268.3mm 268.3mm 268.3mm
(K) Fork Offset 51mm 51mm 51mm 45mm 45mm 45mm 45mm
(L) Stack 496.2mm 590.2mm 526.6mm 546.2mm 567.3mm 590.5mm 617.4mm
(M) Reach 364.6mm 370.8mm 375.2mm 384.8mm 390mm 404.2mm 411.5mm
(N) Stem Length 100mm 100mm 100mm 100mm 100mm 110mm 120mm
(O) Crank Length 167.5mm 167.5mm 170mm 172.5mm 172.5mm 175mm 175mm
Frame Size 45 48 51 54 56 58 61
(A) Top Tube Length 19.4" 20.2" 20.7" 21.5" 22.0" 22.9" 23.6"
(B) Seat Tube Length 15.9" 16.8" 18.4" 20.0" 20.7" 22.0" 23.4"
(C) Seat Tube Angle 75.3° 74.5° 74° 73.5° 73.5° 73.3° 73°
(D) Head Tube Length 3.5" 3.9" 4.5" 5.3" 6.1" 7.0" 8.1"
(E) Steering Angle 70.5° 71.5° 72.4° 72.6° 73.2° 73.8° 73.8°
(F) Chain Stay Length 16.0" 16.0" 16.0" 16.1" 16.1" 16.1" 16.1"
(G) Wheel Base 38.1" 38.1" 38.2" 38.7" 38.9" 39.6" 40.2"
(H) Standover Height 27.7" 28.3" 29.5" 30.8" 31.6" 32.6" 33.9"
(I) BB-Drop 2.9" 2.9" 2.9" 2.8" 2.8" 2.8" 2.8"
(J) BB Height 10.5" 10.5" 10.5" 10.6" 10.6" 10.6" 10.6"
(K) Fork Offset 2.0" 2.0" 2.0" 1.8" 1.8" 1.8" 1.8"
(L) Stack 19.5" 23.2" 20.7" 21.5" 22.3" 23.2" 24.3"
(M) Reach 14.3" 14.6" 14.8" 15.1" 15.4" 15.9" 16.2"
(N) Stem Length 3.9" 3.9" 3.9" 3.9" 3.9" 4.3" 4.7"
(O) Crank Length 6.6" 6.6" 6.7" 6.8" 6.8" 6.9" 6.9"
Geometry
