About The FELT NEXAR Expert Carbon Ultegra Di2 Disc Road Bike

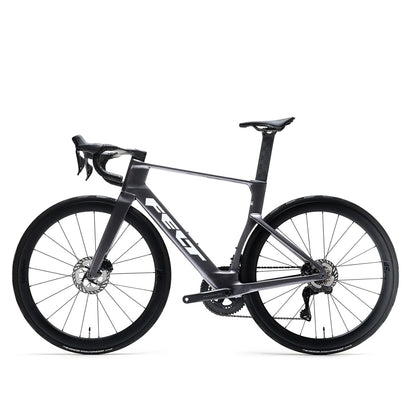

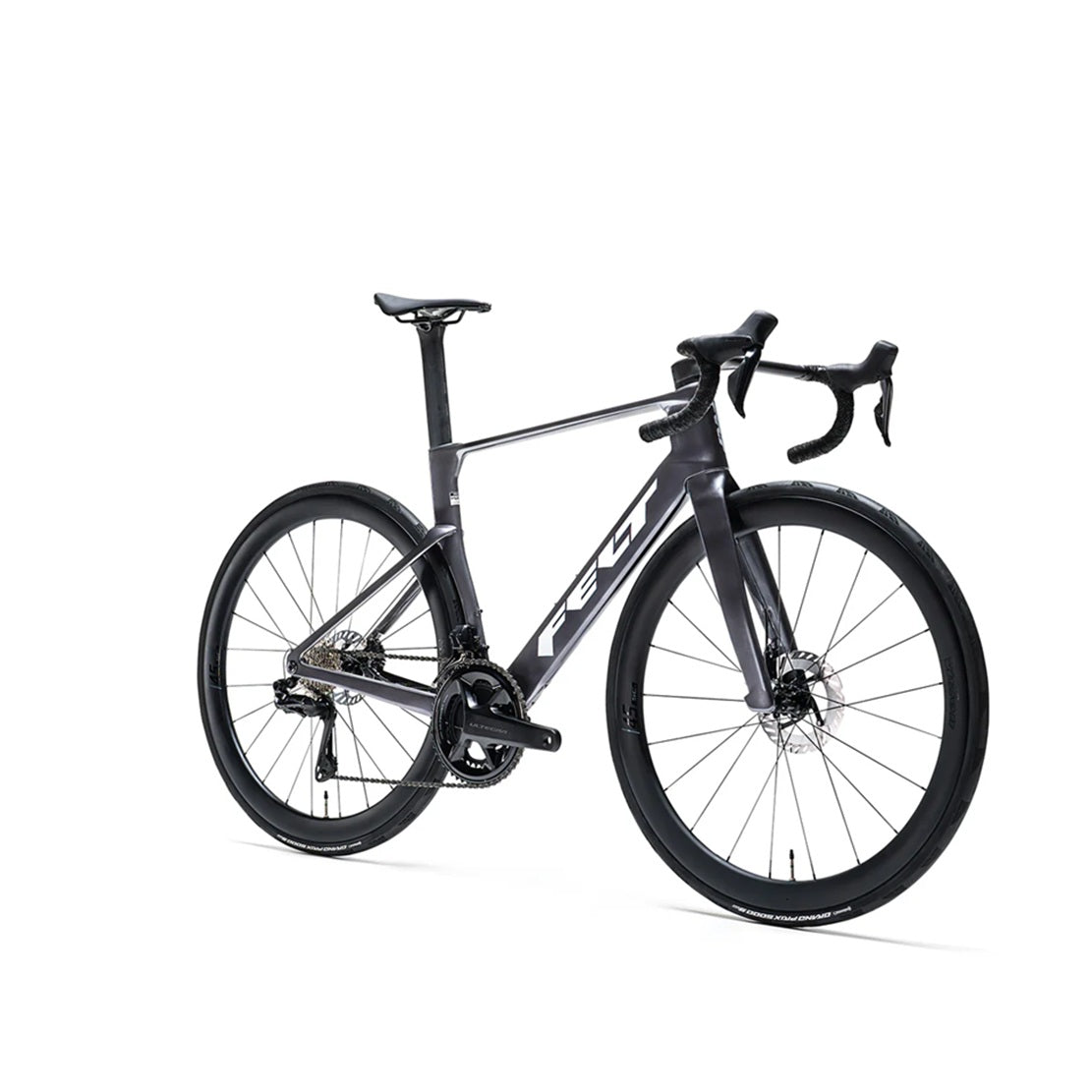

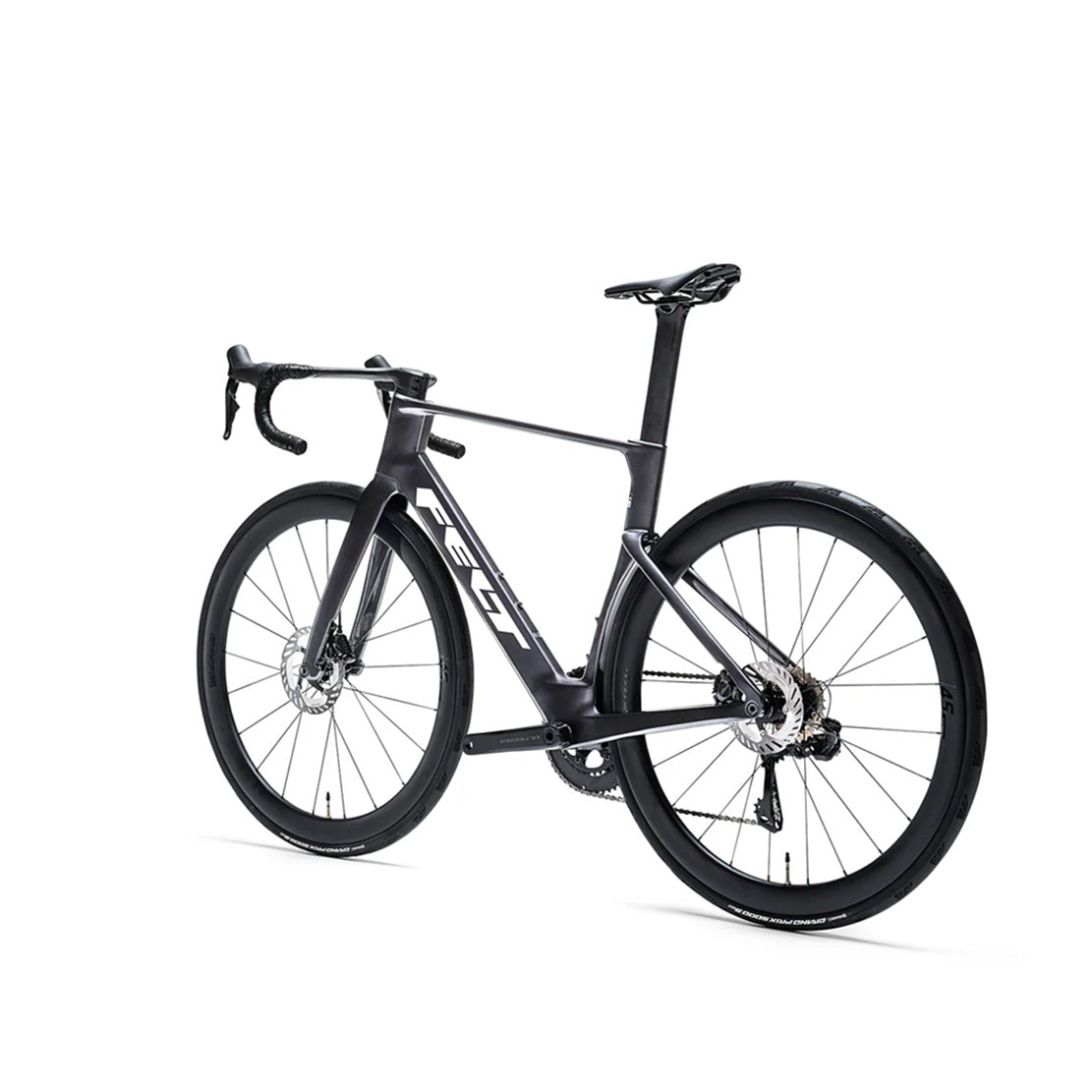

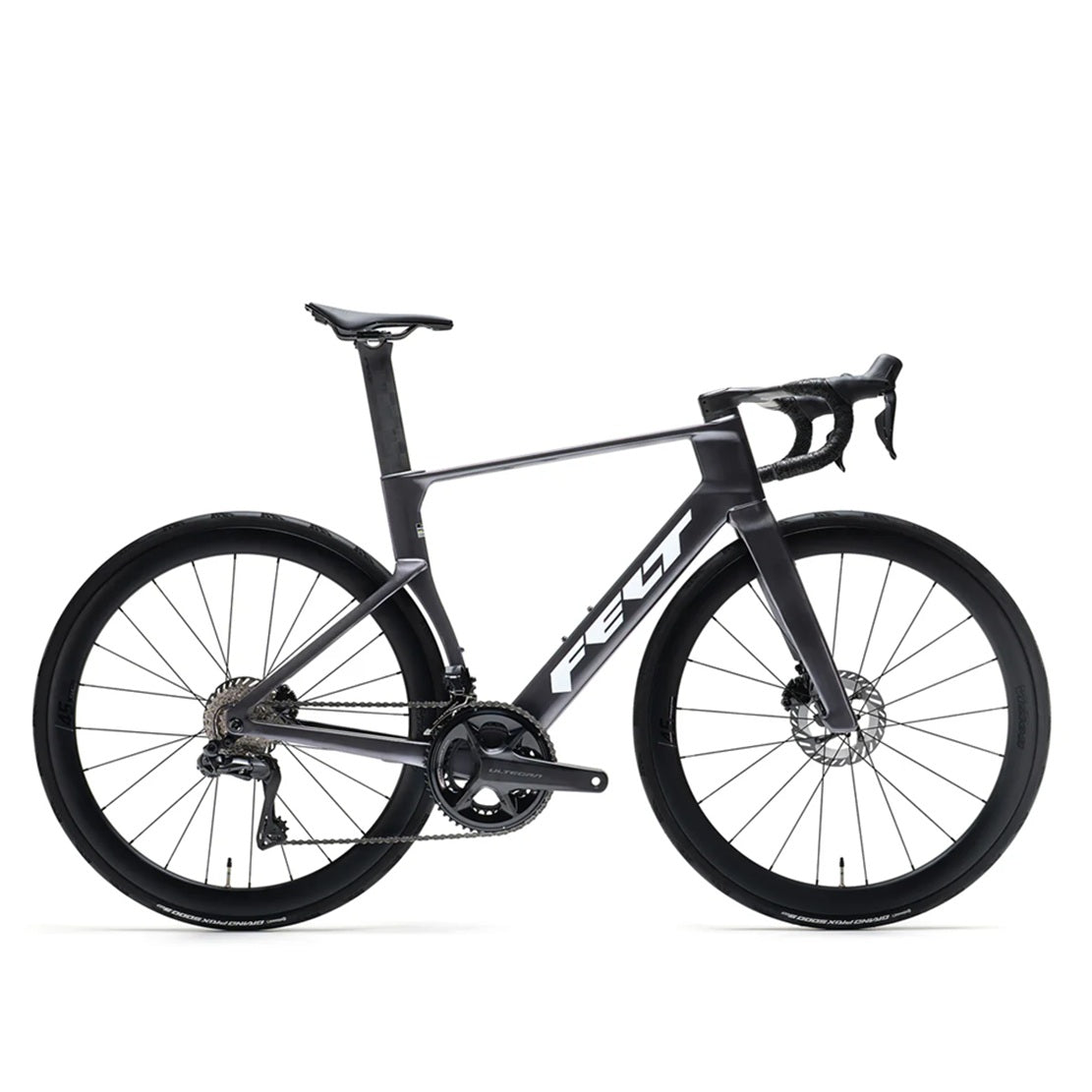

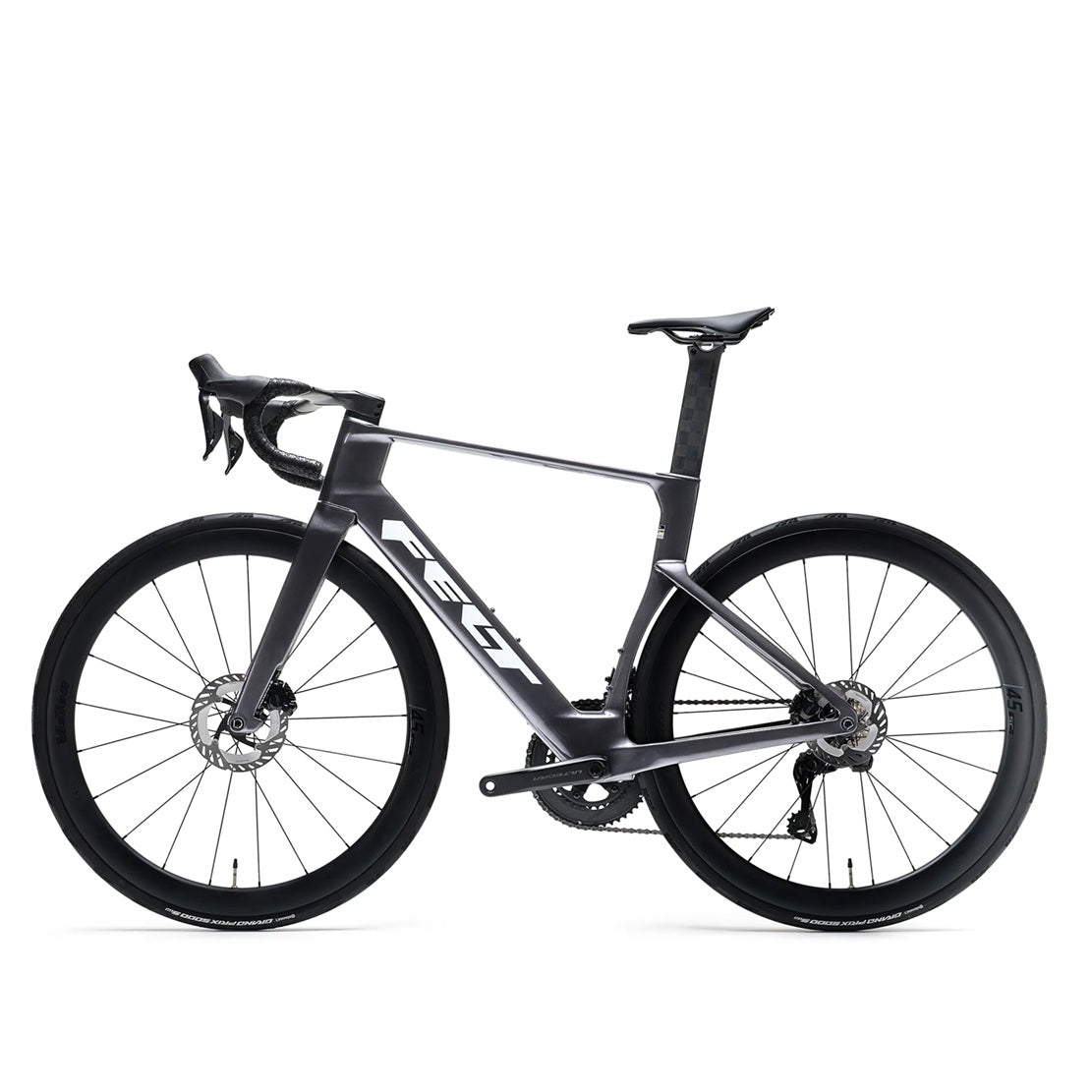

The Felt Nexar Expert Carbon Ultegra Di2 is a full-carbon aero road bike built around Shimano's 12-speed Ultegra Di2 electronic drivetrain, designed for riders who want race-grade aerodynamics without stepping up to a top-tier carbon layup. The NEXAR platform replaces Felt's AR series with a claimed 5% drag reduction over its predecessor, a revised geometry developed with professional bike fitters, and a complete build that doesn't require aftermarket substitutions out of the box.

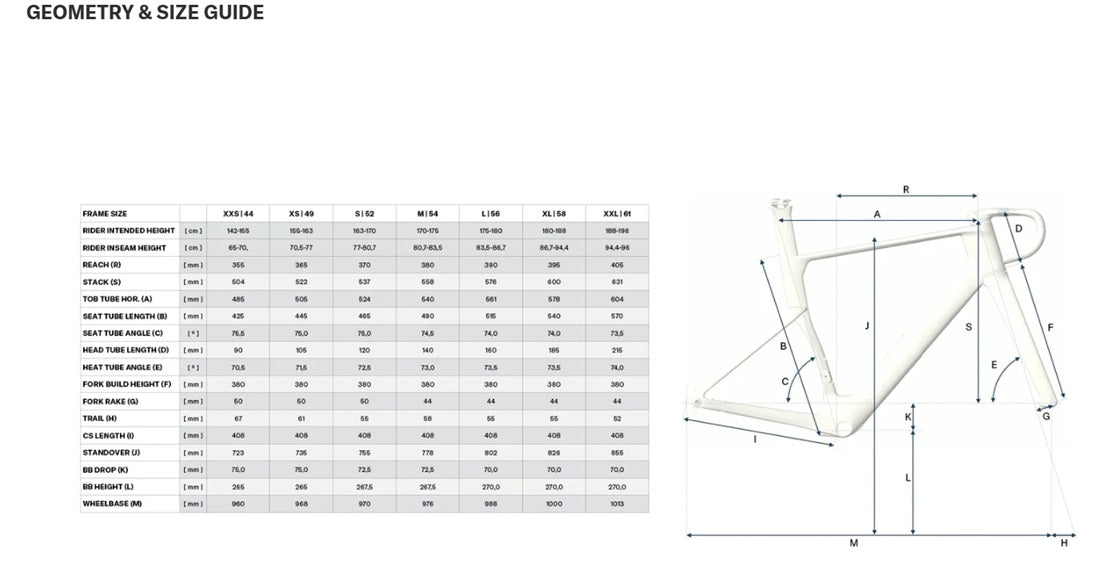

The geometry changes are the most rider-relevant update on this platform: a higher stack height reduces spacer use while maintaining front-end aerodynamics, a slightly shorter reach improves position sustainability over longer rides, and a steeper seat tube angle places the rider more efficiently over the bottom bracket for better power transfer. The 1-piece integrated carbon cockpit is sized specifically to each frame size — a detail that matters for pre-purchase fit planning. At 7.5 kg complete, this build competes directly with other aero bikes at this price point without compromise on drivetrain or wheels.
Who It's For
- Riders ready to move from an endurance bike to a dedicated aero race platform
- Club racers, criterium competitors, and fast gran fondo riders who spend significant time in aero position
- Riders who want electronic shifting reliability without paying for Dura-Ace
- Buyers who want a complete, race-ready build — frame, groupset, cockpit, and wheels — without speccing it up post-purchase
Consider a different bike if you primarily ride rough roads or gravel, need a more upright geometry, or prioritize light weight for climbing over aerodynamic speed.
What to Look For
- Cockpit adjustability is limited after purchase. The integrated 1-piece carbon bar and stem ships matched to frame size. Confirm your handlebar width and stem length before buying — swapping this component is not a simple adjustment.
- The 11-30T cassette covers most terrain but may feel short for riders tackling sustained climbs. Consider your local riding profile before committing to this gearing.
- Tubeless setup is worth doing. The bike ships with Continental Grand Prix 5000 S TR tires — tubeless-compatible — on 32mm-max-clearance frames. Running tubeless improves rolling resistance and reduces flat risk with minimal weight penalty.
Key Features

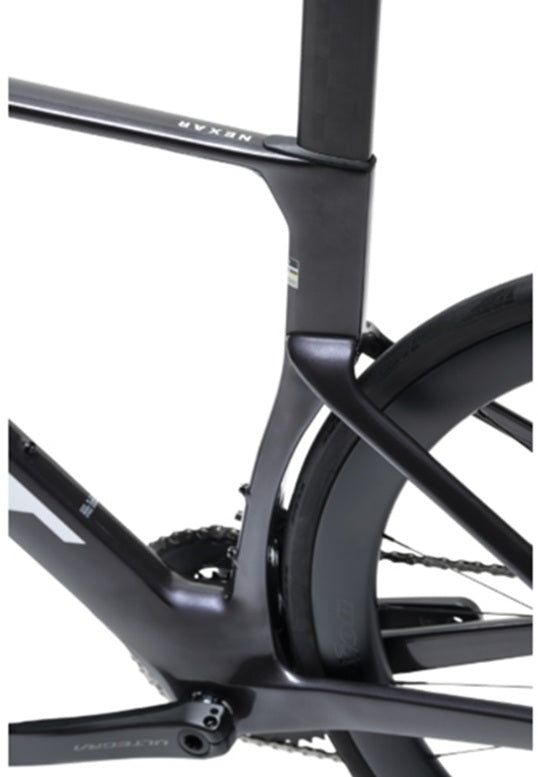

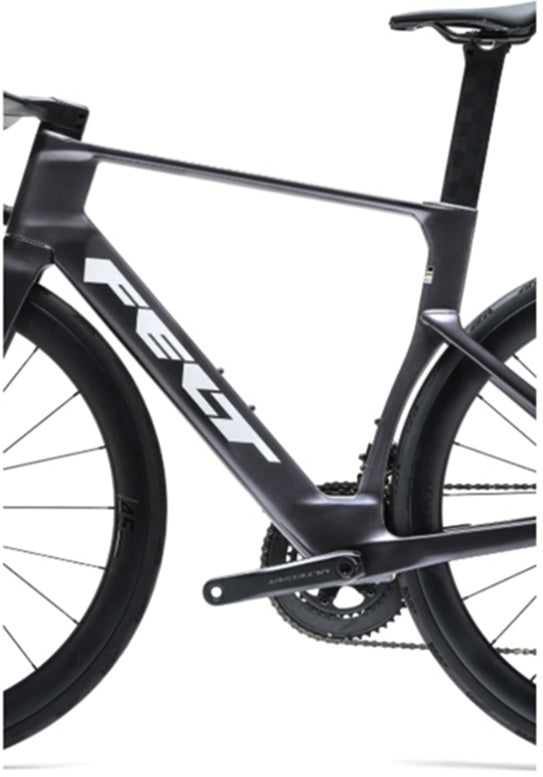

Frame and Fork The NEXAR UD Carbon Standard frame uses a T700/T800 carbon fiber blend with slightly thicker plies than Felt's FRD flagship, prioritizing durability for training and racing over absolute weight savings. The aerodynamic tube profiles are shared across the NEXAR platform, so the Expert carries the same shaping as the higher-tier builds. Lowered seat stays and a tuned rear carbon triangle reduce road vibration for long-ride comfort — a functional design choice, not a marketing claim. Tire clearance runs to 32mm, giving options beyond the stock 28c.
Groupset Shimano Ultegra Di2 R8100 is a 12-speed electronic system that delivers precise, consistent shifting under load — in sprint finishes, in crosswinds, and at the end of long rides when mechanical shifting fatigue becomes a factor. The 52/36T crankset with 11-30T cassette covers aggressive flat terrain and moderate climbing. Shifting is battery-powered and fully integrated with clean internal cable routing through the cockpit.

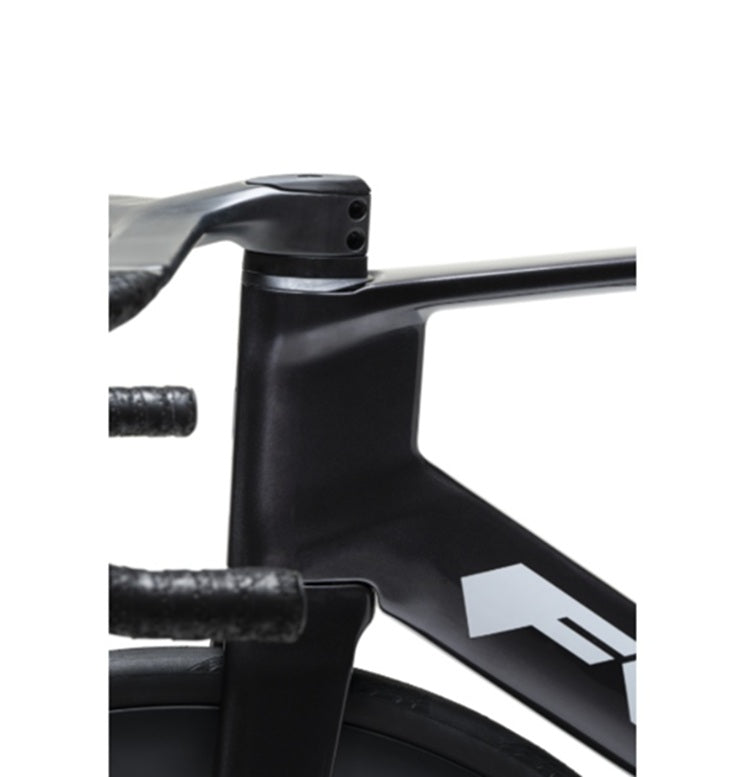

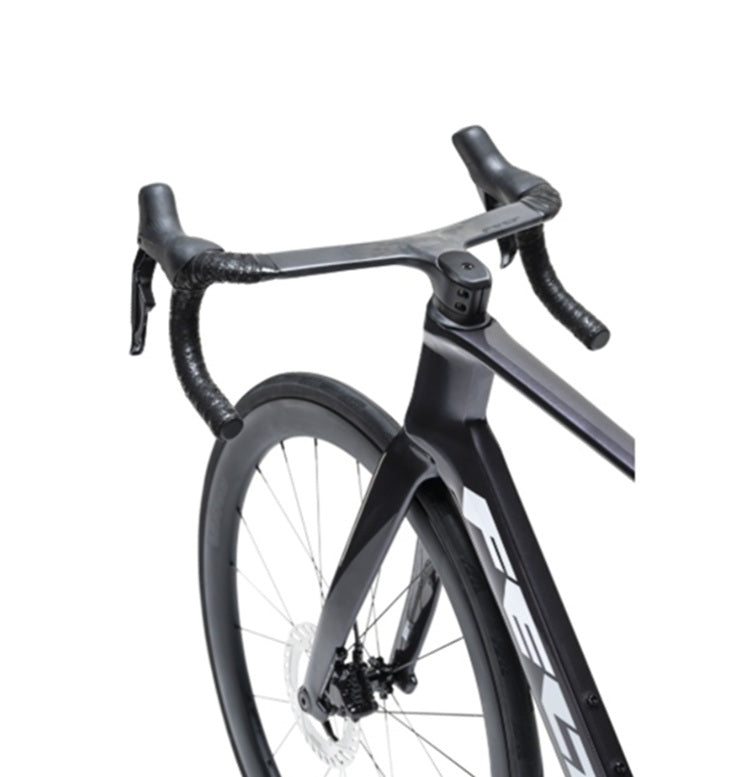

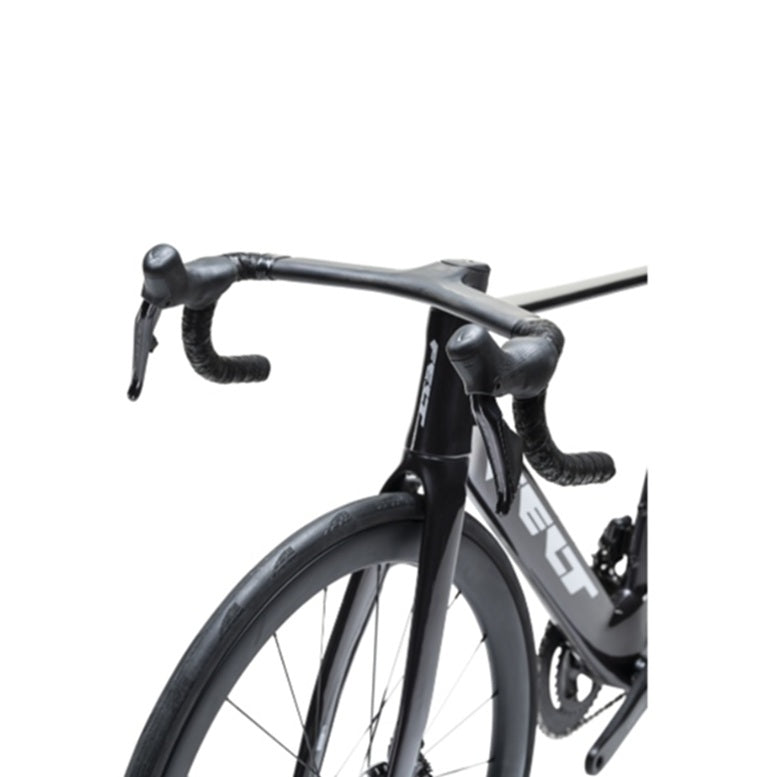

Integrated Cockpit The FELT Road 1-Piece Integrated Carbon Cockpit routes all cables internally for a clean, aero-optimized front end. Shared with the Felt Breed platform, which simplifies future servicing. Cockpit sizing is matched to frame size at purchase.
Wheels and Tires Vision SC45 45mm carbon clincher wheels hit a practical balance between aerodynamic efficiency and crosswind manageability — deeper than a climbing wheel, shallower than a dedicated TT setup. Paired with Continental Grand Prix 5000 S TR 700×28c tires, this is a fast, tubeless-ready rolling package.
Rider Intent Summary
- Biggest strengths: Full Ultegra Di2 electronic drivetrain, integrated aero carbon cockpit sized to frame, Vision SC45 carbon wheels, and GP5000 S TR tires — a complete race-ready build with no budget components
- Tradeoffs: Integrated cockpit limits post-purchase fit adjustment; UD carbon layup is heavier than FRD; 11-30T gearing may be limiting on hilly courses
- What makes it different: Geometry developed specifically with professional bike fitters to sustain aero positioning over real ride durations, not just optimize for wind tunnel conditions
Victory's Take
At Victory Bicycle Studio, we think the Nexar Expert is the most practical way to get into a genuine aero race bike with electronic shifting — the build spec is complete without compromise, and the geometry work Felt put into this platform makes it a bike you can actually hold position on for hours. If you're unsure about cockpit sizing before you buy, come in for a professional bike fit first.
What you get

FELT NEXAR Expert Carbon Ultegra Di2 Disc Road Bike
