About The Trek Checkpoint+ SL 5 E-Bike

The Trek Checkpoint+ SL 5 is an electric gravel bike built on a 500 Series OCLV Carbon frame with Trek's IsoSpeed rear compliance system. The TQ-HPR60 motor — 60Nm, 250W continuous, 350W peak — provides whisper-quiet assist up to 28 mph through a harmonic pin ring mechanism that produces a notably natural pedaling feel. A 360Wh integrated battery pairs with an optional 160Wh range extender for up to 44% additional range. Tire clearance to 50mm and a full carbon fork with triple rack mounts make this a credible all-day adventure bike.

The 12-speed Shimano GRX drivetrain (RX820 shifter, RX822 derailleur, XT M8200 10-51 cassette) handles the wide gear range needed for loaded gravel climbing and fast descending. Bontrager Paradigm Comp 25 tubeless-ready wheels with Bontrager Girona Pro 700x42mm tires provide a confident baseline; the 50mm tire clearance allows further customization. IsoSpeed isolates the seatpost from the rear triangle to reduce road vibration, which matters on long gravel days. The frame includes mounts for front and rear racks, fenders, and frame bags.

Who It's For

  • All-day gravel riders who want electric assist without visible motor hardware or motor noise on the trail
  • Riders who plan loaded bikepacking routes where range extension matters
  • Road or gravel cyclists who want assist that doesn't fundamentally change how the bike handles
  • Riders who prioritize range-extender compatibility for longer efforts

What to Look For

  • TQ motor character: The HPR60 produces less raw torque than Bosch or Shimano EP8 systems (60Nm vs. 85Nm) but integrates more cleanly, runs quieter, and produces a more natural assist curve
  • Battery capacity: 360Wh is smaller than most e-bikes; in Eco mode on flat terrain, 50 miles is achievable. The optional 160Wh range extender is a bottle cage mount — straightforward to add
  • Tire clearance: 50mm measured clearance is genuinely wide for a gravel e-bike in this category

Key Features

Frame — 500 Series OCLV Carbon: IsoSpeed, internal routing, TQ drive system integration, flat mount disc, fender mounts, UDH, 142x12mm thru axle. Carbon fork with triple rack mounts and 12x100mm thru axle.

Motor/Battery — TQ-HPR60: 60Nm, 250W continuous, 350W peak. TQ 360Wh integrated battery with TQ color LED display (Bluetooth and ANT+). TQ 4A charger. Optional 160Wh range extender for up to 44% more range.

Drivetrain — Shimano GRX 12-speed: RX820 shifters and RX822 rear derailleur (51T max cog), Shimano XT M8200 10-51 cassette, Praxis alloy cranks at 165mm. Shimano Ultegra/XT M8100 chain.

Brakes — Shimano GRX RX820: Hydraulic disc, flat mount. Shimano CL800 centerlock 160mm rotors front and rear.

Rider Intent Summary

  • Biggest strengths: TQ motor's quiet, natural assist; OCLV Carbon frame with IsoSpeed; 50mm tire clearance; optional range extender; extensive mounting options
  • Tradeoffs: 360Wh base battery limits range without the extender; TQ system is less widely serviced than Bosch; 60Nm torque is lower than full-power e-MTB motors
  • What makes it different: Among electric gravel bikes, the Checkpoint+ SL 5 offers the most gravel-credible spec at an accessible carbon price point — IsoSpeed, wide tire clearance, and rack mounts together

Victory's Take

At Victory Bicycle Studio, the Checkpoint+ SL 5 is the entry point into Trek's carbon electric gravel line — we recommend it to riders who want a bike that rides like a gravel bike first and happens to have assist, not an e-bike that tolerates gravel riding.

What you get

  • Frame - 500 Series OCLV Carbon, IsoSpeed, 50mm clearance
  • Motor - TQ-HPR60, 60Nm, 28 mph assist
  • Battery - TQ 360Wh integrated, range extender compatible
  • Drivetrain - Shimano GRX 12-speed, 10-51 cassette
  • Brakes - Shimano GRX RX820 hydraulic disc, 160mm

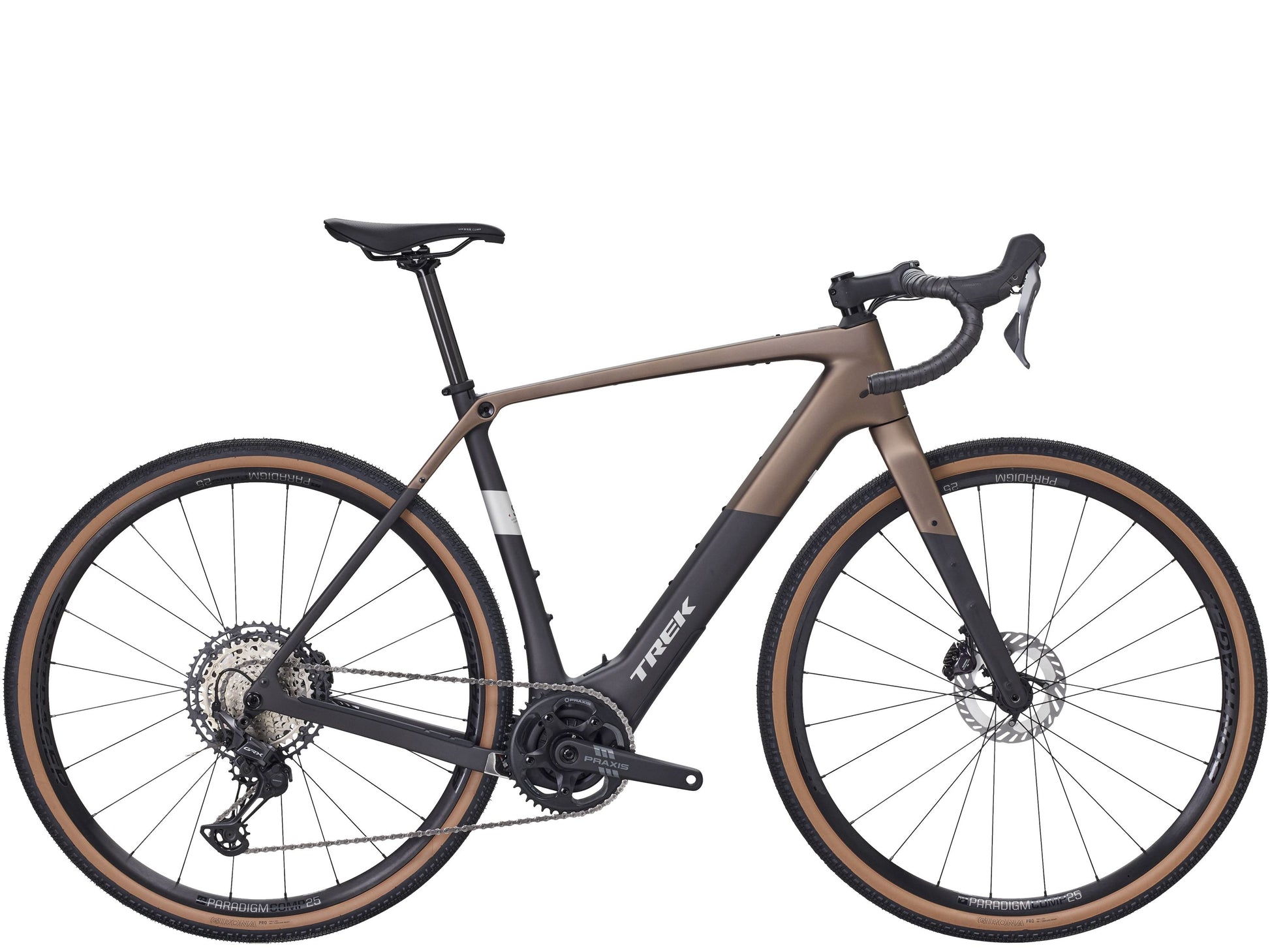

Checkpoint+ SL 5 US S Matte Bronze Age/Dark Web

Trek

Trek Checkpoint+ SL 5 E-Bike

Regular price $5,999.99 USD
Sale price $5,999.99 USD Regular price $5,999.99 USD

Specifications

Frameset
Frame

500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat mount disc, fender mounts, UDH, 142x12mm chamfered thru axle

Fork

Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle

Weight

ML - 13.81 kg / 30.45 lbs (with TLR sealant, no tubes)

Wheels
Front Wheel

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle

Rear Wheel

Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, Shimano Micro Spline freehub, 142x12 thru axle

Tire

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Max Tire Size

50mm without fenders, 42mm with fenders

Drivetrain and Brakes
Shifter

Shimano GRX RX820, 12 speed

Rear Derailleur

Shimano GRX RX822, 51T max cog

Crank

Praxis Alloy

- Size: XS, S - 165mm

- Size: M, ML - 170mm

- Size: L, XL - 172.5mm

Cassette

Shimano XT M8100, 10-51, 12 speed

Chain

Shimano Ultegra/XT M8100

Brake Lever

Shimano GRX RX820, 12 speed

Brake Rotor

Shimano CL800, centerlock, 160mm

Max Rotor Size

180mm front & rear

Cockpit
Saddle

Verse Short Comp, steel rails, 145mm width

Seatpost

Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Handlebar

Bontrager Elite Gravel, alloy

- Size: XS, S - 40cm width

- Size: M, ML - 42cm width

- Size: L - 44cm width

- Size: XL - 46cm width

Handlebar Tape

Bontrager Supertack Perf tape

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree

- Size: XS - 70mm

- Size: S, M - 80mm

- Size: ML, L - 90mm

- Size: XL - 100mm

Additional Information
Motor

TQ-HPR60, 60 Nm, 250W continuous / 350W peak

Battery

TQ 360Wh

Charger

TQ 4A charger

Controller

TQ color LED display with Bluetooth & ANT+ connectivity

E-bike Class

Class 3
