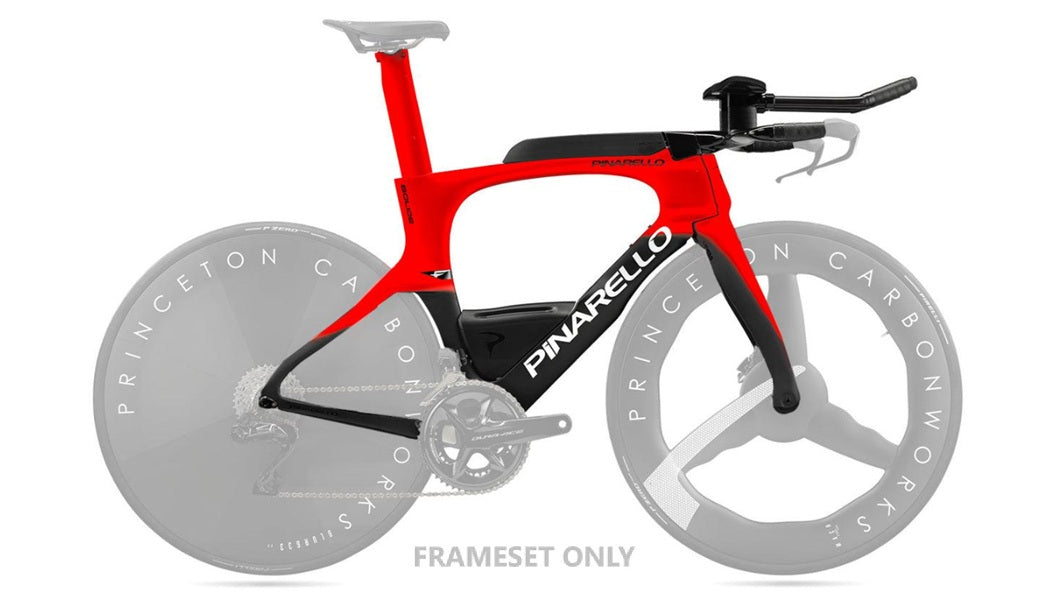

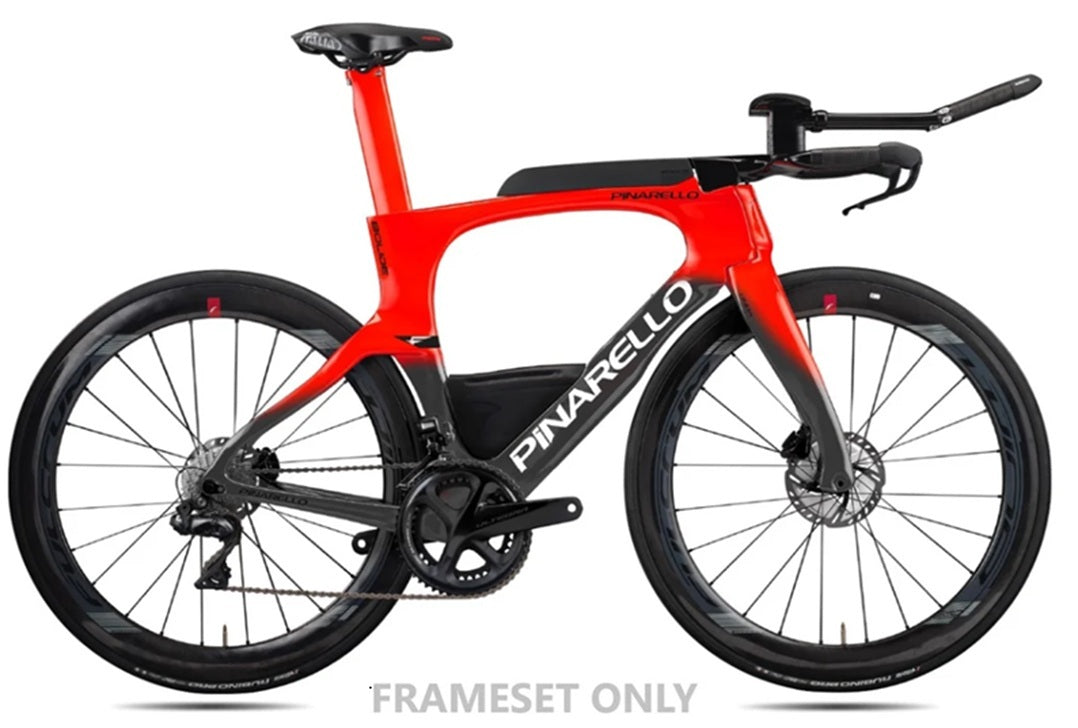

Pinarello Bolide TR Carbon Triathlon Bike Frameset

The Pinarello Bolide TR Carbon Triathlon Bike Frameset is a purpose-built no-draft racing platform, not a road bike adapted for triathlon. It's built around an integrated triathlon cockpit, a disc brake-specific frame design, and tube profiles shaped for time in the aero position rather than for group riding. Pinarello developed this platform with Cameron Wurf, who debuted it at Kona and set a course record on the bike leg — a reflection of the frame's focus on sustained aerodynamic efficiency over long, steady efforts rather than sharp handling or low weight.

Performance comes from a combination of a flat back, truncated aerofoil profile built to the 3:1 UCI ratio, an Onda ForkFlap that shields the front disc caliper while reducing drag, and fully internal cable routing (ICR) that keeps the front end clean. Tire clearance up to 700×28mm and thru-axles front and rear (100×12mm / 142×12mm) give it more real-world versatility than a pure track-day aero frame, without giving up the aerodynamic intent of the design.

Who It's For

• Triathletes and time trialists racing no-draft events who want a frameset dedicated to sustained aero position, not a multi-purpose road bike

• Riders who want an integrated cockpit and aero seatpost built into the frame design, rather than adapted from a road setup

• Riders comfortable building up a frameset with their own groupset, wheels, and cockpit fit, since this is sold as a frame, fork, and seatpost — not a complete bike

• Riders who primarily need a road/gravel-capable bike for mixed-terrain riding should look elsewhere; tire clearance and geometry here are dedicated to no-draft racing

What to Look For

• Fit first: the integrated cockpit is central to this frame's aero position, so get a proper triathlon-specific bike fit before finalizing cockpit dimensions

• Disc-only, thru-axle only: confirm your wheelset and brake components match the RAD disc brake system and 100×12mm/142×12mm thru-axle spacing

• Frameset, not complete build: budget for groupset, wheels, and cockpit components, and confirm compatibility with the Italian threaded bottom bracket

Key Features

The frame is built from Torayca T700 UD carbon, shaped into deep aerodynamic tube profiles and a flat back, truncated aerofoil section that meets the UCI's 3:1 ratio rule for competition legality. The Onda ForkFlap on the fork protects the front disc caliper from airflow disruption while also cutting drag, a detail specific to disc-brake triathlon forks. Braking runs through Pinarello's RAD disc brake system paired with 100×12mm front and 142×12mm rear thru-axles for a secure, consistent wheel interface. Power transfer runs through an Italian threaded bottom bracket, a mounting standard Pinarello has stuck with for its reliability under repeated high-torque efforts. The integrated triathlon cockpit and aero rear-clamp seatpost are built into the frame's aero strategy rather than bolted on, and fully internal cable routing (ICR) keeps the front end aerodynamically clean. Maximum tire clearance is 700×28mm.

Rider Intent Summary

• Biggest strength: a frameset engineered specifically for sustained aero efficiency in no-draft racing, validated at Kona

• Tradeoff: sold as a frameset only, so riders need to source and fit a full groupset, wheels, and cockpit build

• What makes it different: the ForkFlap, flat back profile, and integrated cockpit are designed together as one aero system, not assembled from separate off-the-shelf parts

Victory's Take

We'd point this frameset at athletes who are serious about no-draft racing and want a dedicated aero platform, not a road bike pressed into triathlon duty. At Victory Bicycle Studio, we'd pair it with a proper triathlon fit before locking in cockpit position, since that's where this frame's performance is won or lost.
