About The Pinarello F3 Carbon Shimano 105 di2 Road Bike

The Pinarello F3 is a carbon race bike built around Torayca T700 UD carbon and Pinarello's asymmetric, UCI-approved Competition Geometry, paired with a full Shimano 105 Di2 R7100 2x12-speed electronic groupset. It's an all-round road bike, engineered to hold its own on climbs and descents rather than being optimized for one or the other, the core idea behind Pinarello's F-series.

What separates the F3 from a typical 105-level disc bike is how much of Pinarello's higher-tier frame engineering carries down into it. The ONDA carbon fork uses a 47mm rake tuned with pro rider feedback for descending stability, the E-TICR headset routes cables fully internally through a narrower, elliptical steering tube, and the Aero KEEL bottom bracket shares design language with Pinarello's Dogma F. Shimano 105 hydraulic disc brakes and up to 32mm tire clearance round out a bike built for mixed road conditions, not just closed-course racing.

Who It's For

        Riders who want electronic shifting from Shimano 105 Di2 and hydraulic disc brakes on a race-geometry frame without moving up to Pinarello's flagship Dogma tier

        Riders who ride varied terrain, climbs, descents, and rougher pavement, and want a frame built for all of it

        Riders who want the option to run wider tires, up to 32mm, without changing frames

        Riders chasing the lowest frame weight or maximum stiffness may want to compare against the Dogma F, which the manufacturer notes has a larger-volume bottom bracket shell than the F3's Aero KEEL design

What to Look For

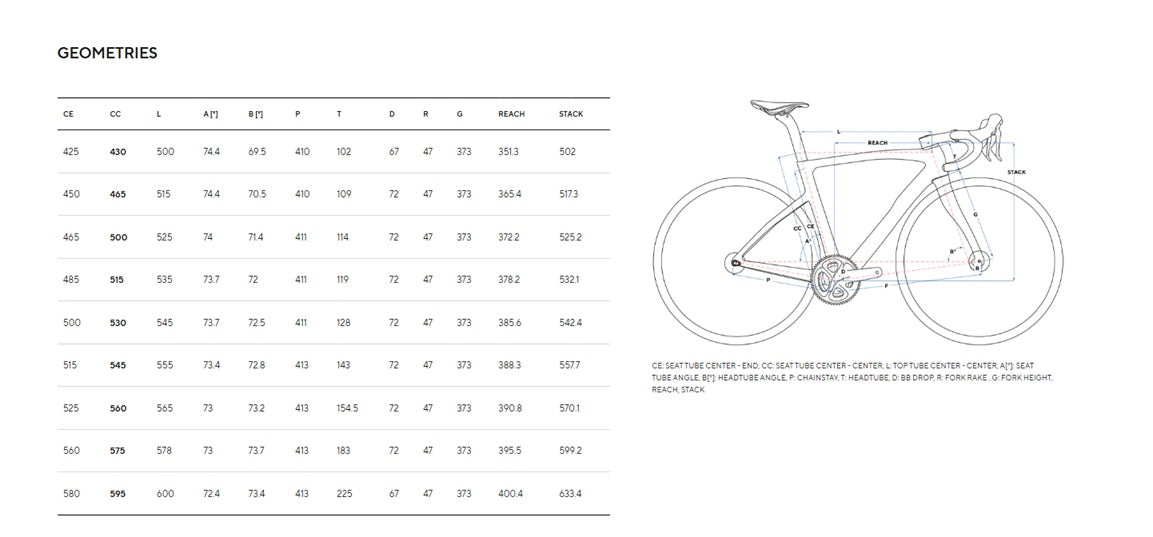

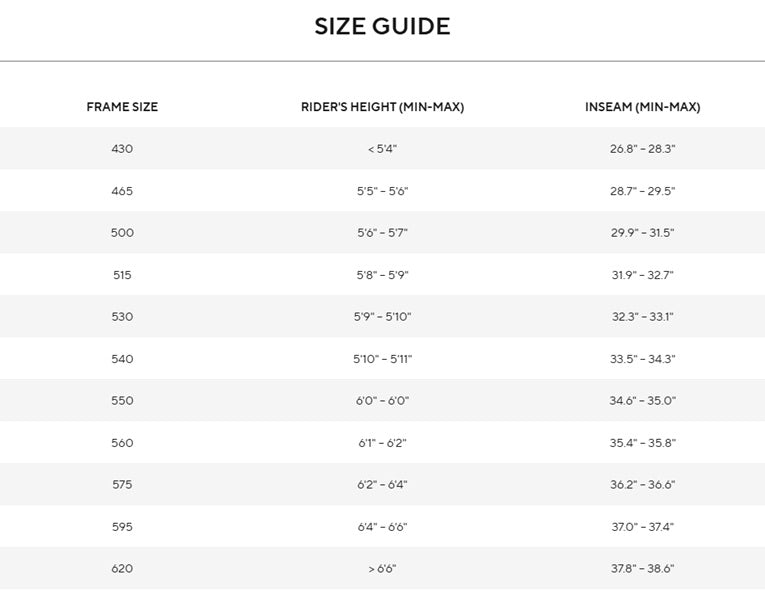

        Geometry fit: Competition Geometry is race-oriented; confirm your position and flexibility suit an aggressive fit

        Groupset tier: Shimano 105 Di2 is Shimano's entry point into electronic shifting; the 50/34T crank and 11-34T cassette favor climbing over top-end speed

        Finishing kit: the handlebar, stem, bar tape, and saddle are Pinarello's in-house MOST brand rather than third-party components

Key Features

Frame and fork technology center on Torayca T700 UD carbon with an asymmetric layup and Competition Geometry, both UCI-approved. Aero-focused downtube and headtube shaping pairs with an Aero KEEL bottom bracket that reduces shell volume versus the Dogma F for a cleaner look and improved stiffness. The ONDA fork's 47mm rake and slimmer profile were tuned with pro rider input for descending handling, and its ForkFlap detail is unique to this fork.

The Shimano 105 Di2 R7100 groupset is a complete 2x12-speed electronic system: ST-R7170 shifters, FD/RD-R7150 derailleurs, a 50/34T crankset, and an 11-34T cassette. Electronic shifting gives consistent, push-button shifts under load, and the compact crank with wide-range cassette suits climbing-heavy routes.

Braking is Shimano 105 hydraulic disc with 160mm rotors front and rear, for consistent stopping power in wet or dry conditions.

The DT Swiss A1800 30 DB wheelset comes fitted with MOST 30 tires, and 32mm maximum tire clearance leaves room to size up. MOST Ultra Light thru-axles, 12x100mm front and 12x142mm rear, secure the wheels.

Cable routing runs fully internal through the E-TICR headset, which uses an elliptical steering tube and two different-diameter bearings, wider at the bottom and narrower at the top, to narrow the headtube and move routing to the front of the steerer. The aero carbon seatpost's integrated frontal seat clamp keeps the seat area clean and shields it from road grit and sweat.

Rider Intent Summary

        Biggest strengths: a full Shimano 105 Di2 electronic groupset, hydraulic disc brakes, and Dogma-derived frame technology at a sub-flagship price point

        Tradeoffs: MOST-brand finishing kit instead of third-party components, and Competition Geometry favoring an aggressive position over all-day comfort

        What makes it different: the E-TICR internal-routing headset and Aero KEEL bottom bracket, combined with 32mm tire clearance on a race-geometry bike

Victory's Take

We see the F3 as a clear entry point into Pinarello's race-bike engineering, Dogma F-level aero thinking and Di2 shifting without the flagship price. At Victory Bicycle Studio, we'd size and fit this one carefully given its race-oriented geometry, but for a rider who wants a genuine Pinarello with electronic shifting and disc brakes, it's a straightforward recommendation.

What you get

  • Frame - Torayca T700 UD carbon fiber
  • Fork - ONDA fork
  • Component Group Set - Shimano 105 Di2, 12-speed
  • Wheels - DT Swiss A1800 Aluminum Wheelset

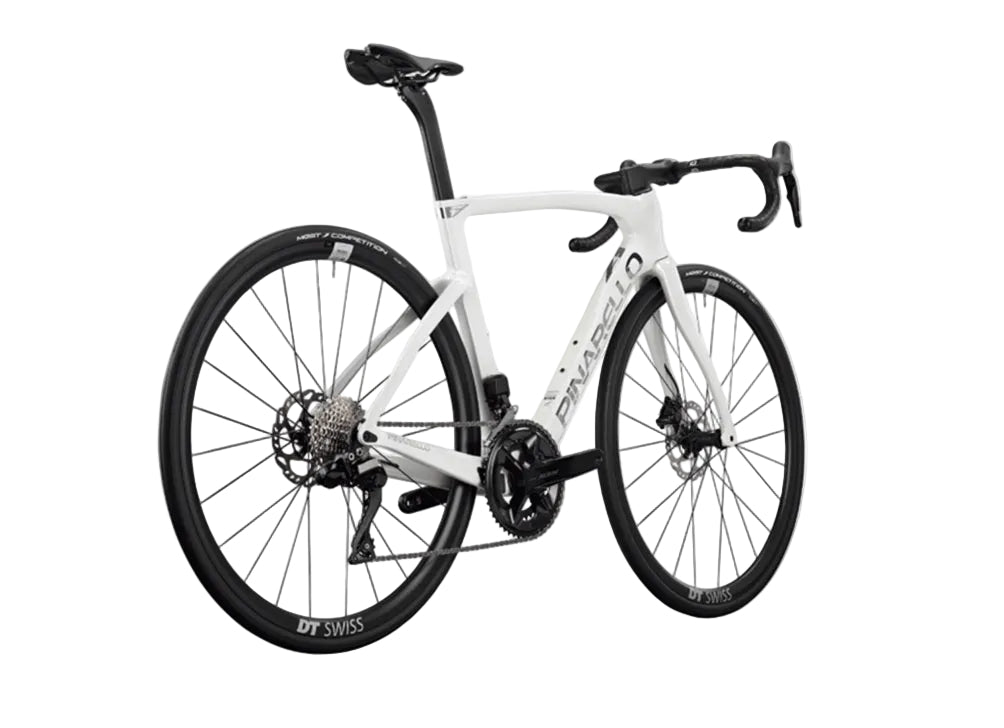

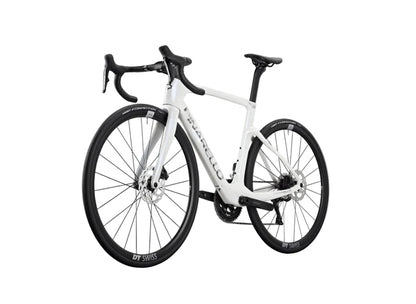

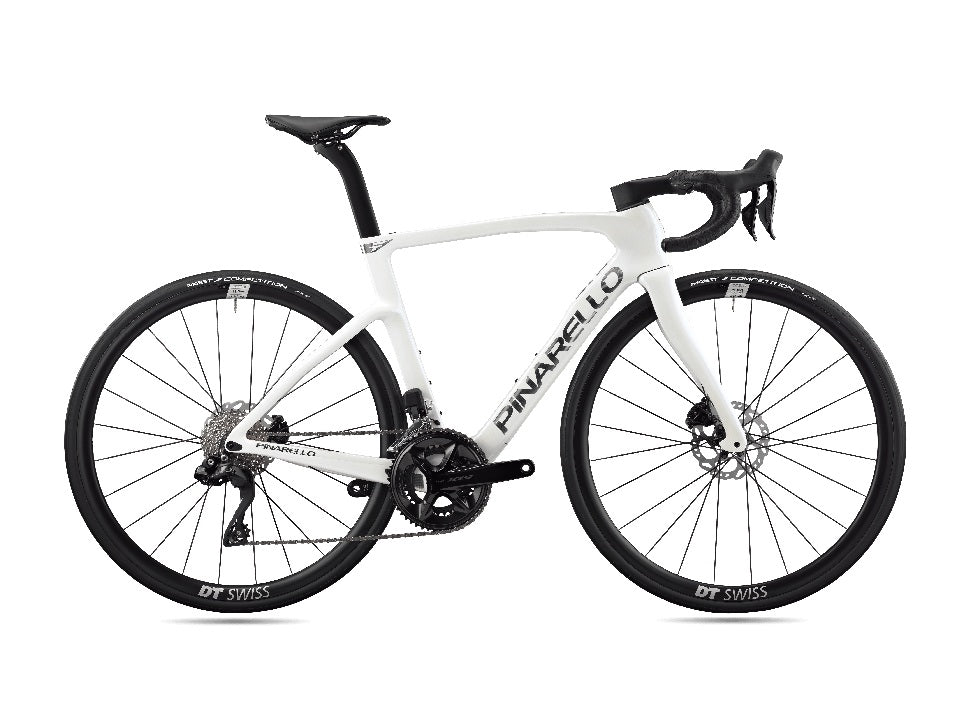

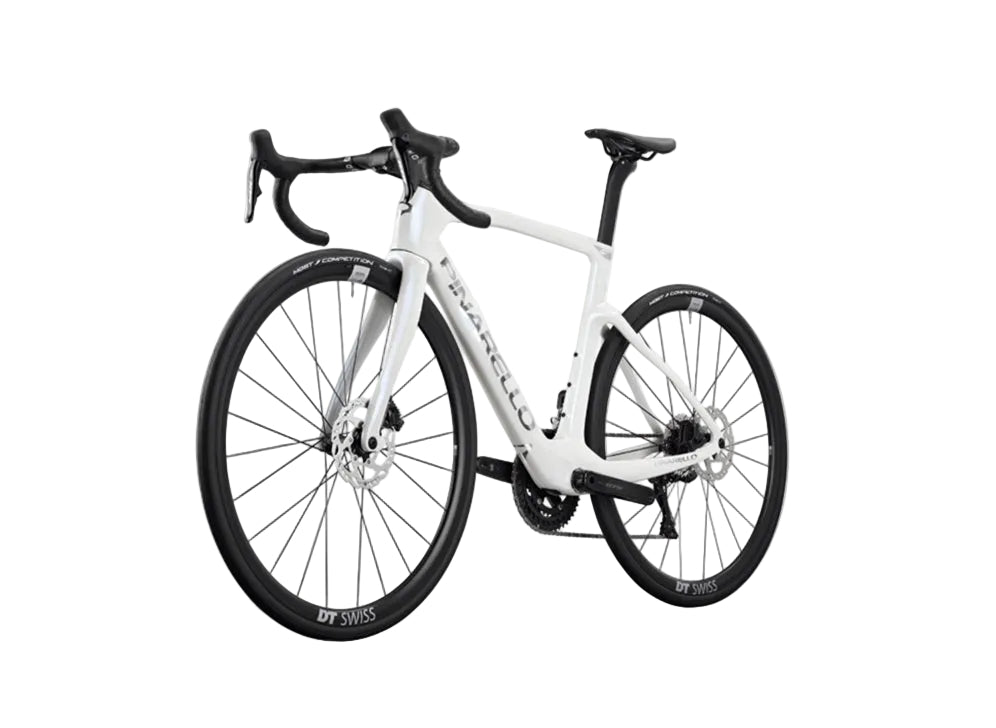

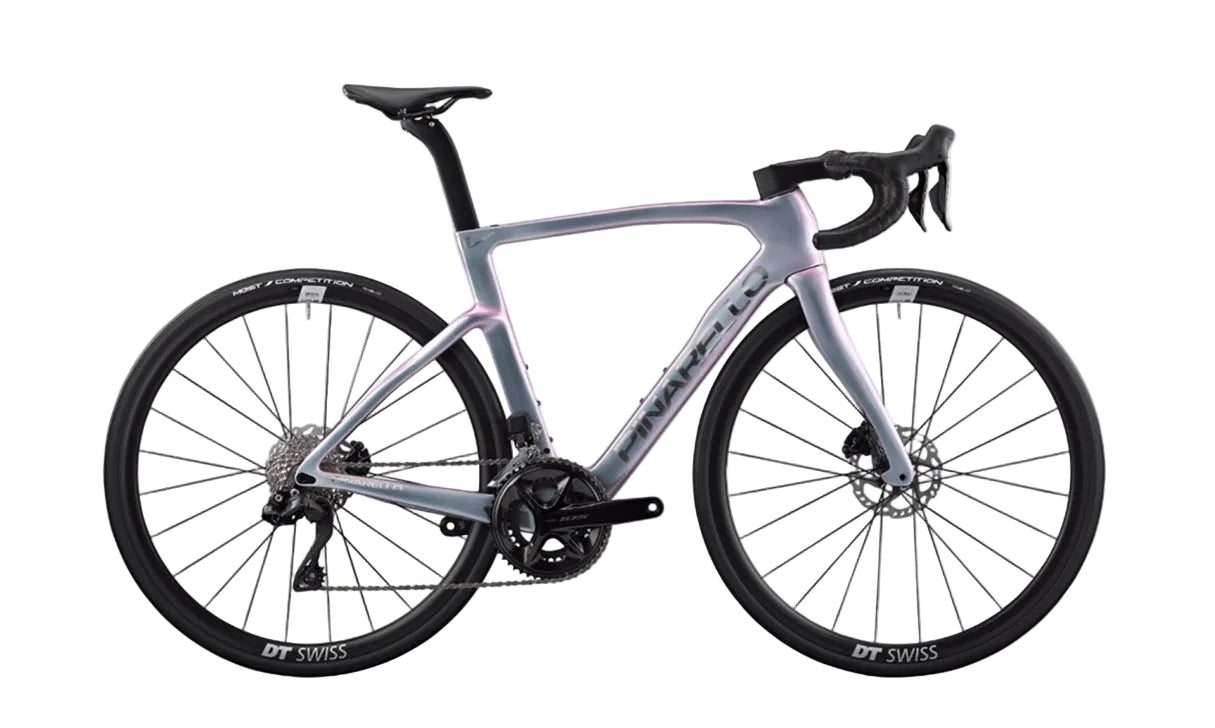

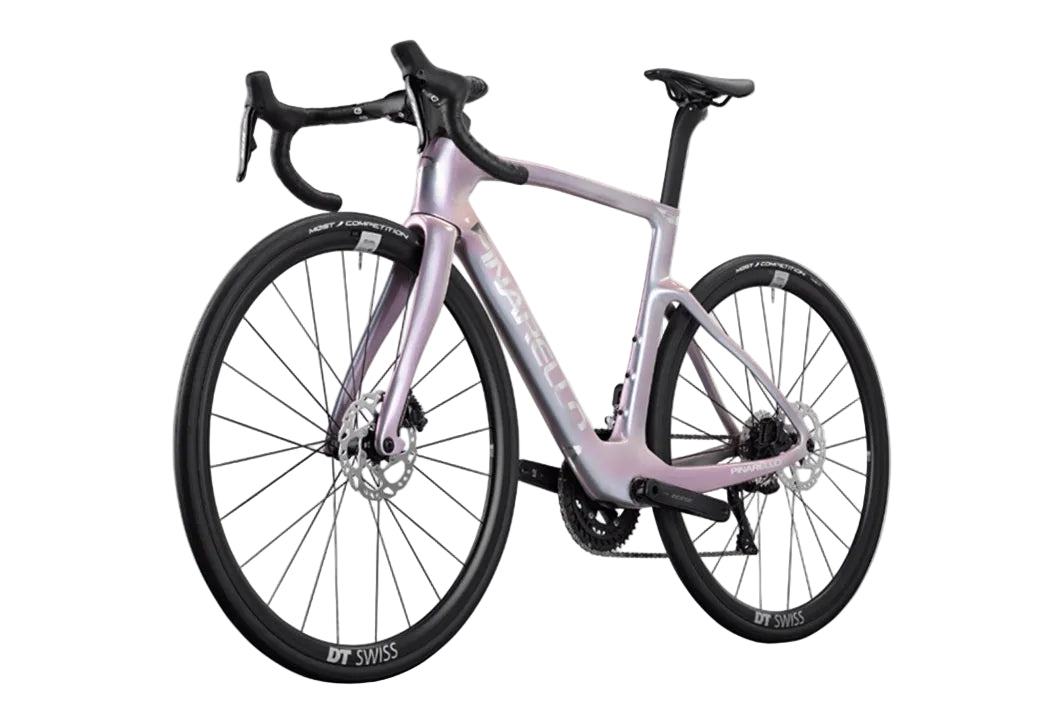

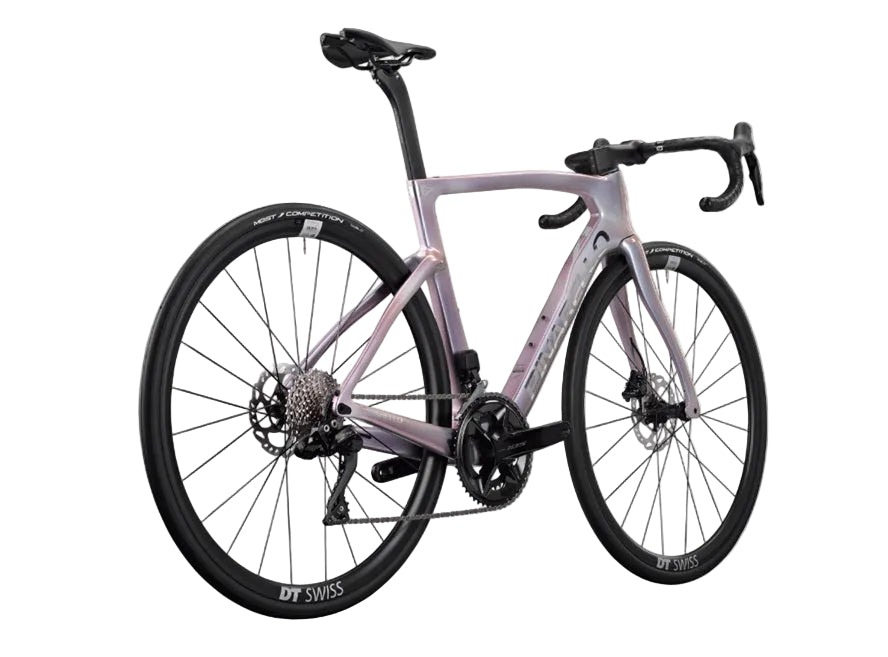

Pinarello F3 Carbon Shimano 105 di2 Road Bike

Pinarello

Pinarello F3 Carbon Shimano 105 di2 Road Bike

Regular price $5,200.00 USD
Sale price $5,200.00 USD Regular price

Specifications

Frameset
Frame

Torayca T700 UD Carbon

Fork

Pinarello ONDA Carbon Fork with ForkFlap

Wheels
Wheelset

DT Swiss A1800 Aluminum Wheelset, TLR, Centerlock, 12x100, 12x142

Drivetrain and Brakes
Rear Derailleur

Shimano 105 Di2 RD-R7150, 36T max cog

Front Derailleur

Shimano 105 Di2 FD-R7150, braze-on

Crankset

Shimano 105 Di2, FC-R7100, 50/34T

Cassette

Shimano 105 CS-R7101, 11-34T

Brakes

Shimano 105, hydraulic disc

Cockpit
Handlebars

Most Jaguar Claw Ultra Aluminum

Stem

Most Claw Ultra Aero Aluminum

**Specifications subject to change without notice
