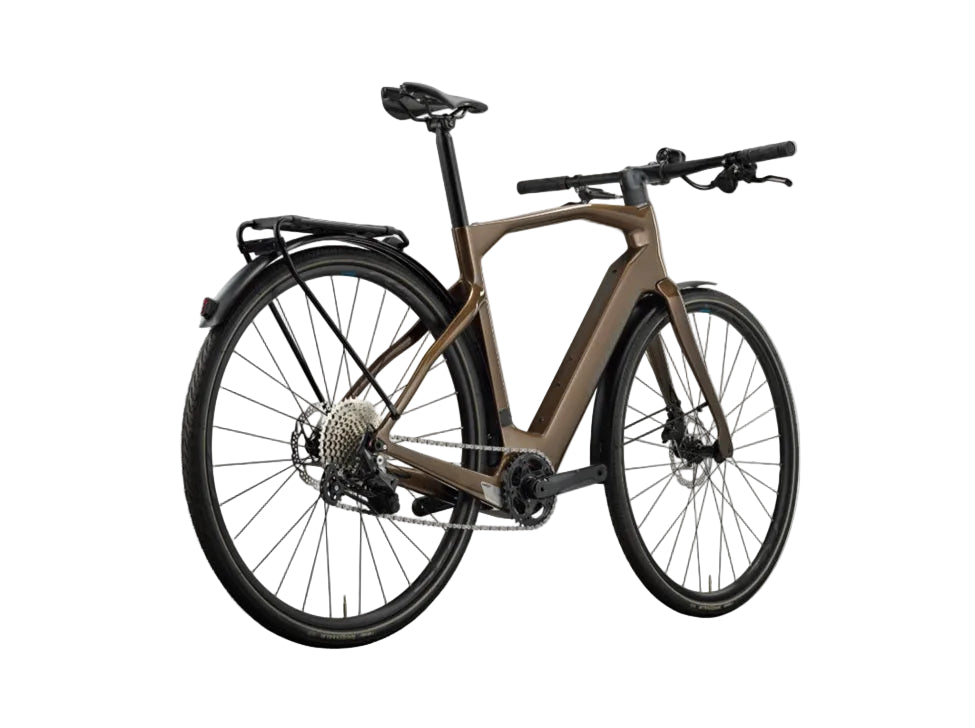

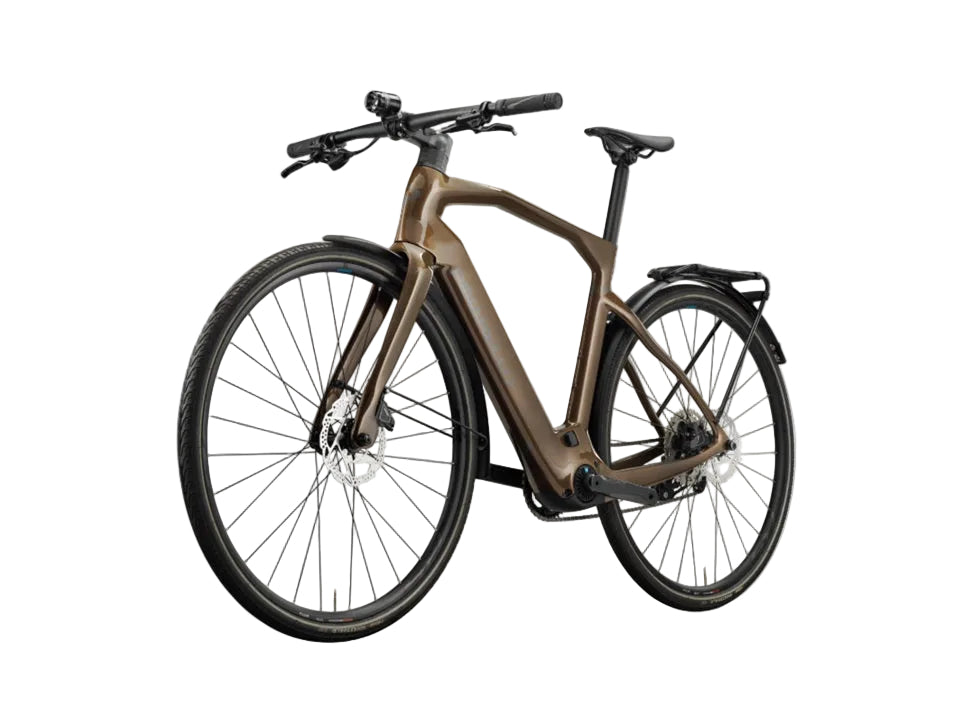

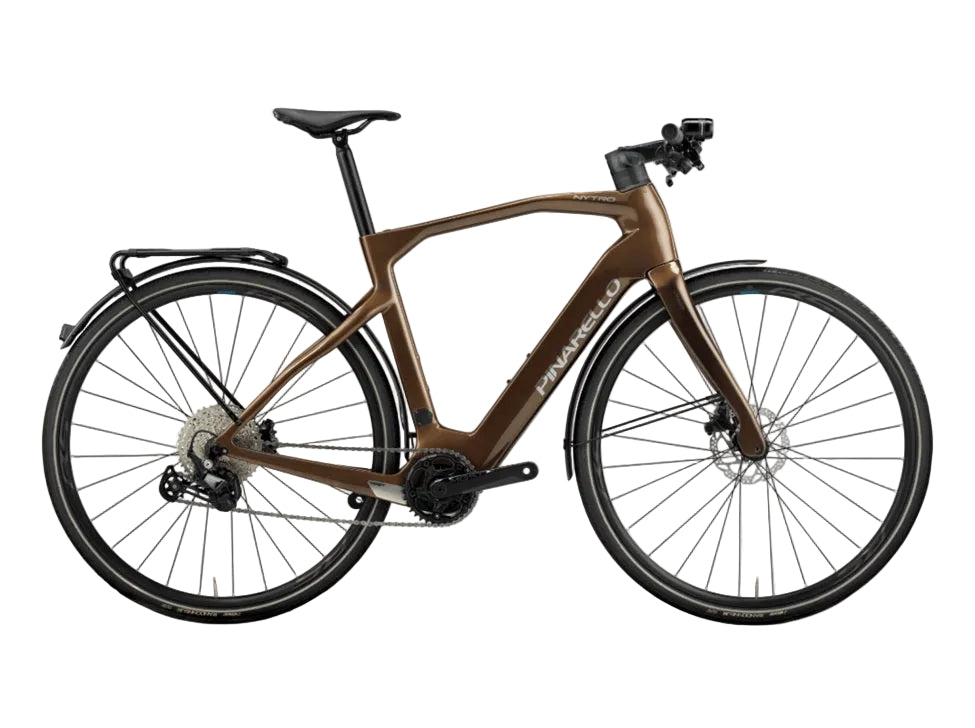

About The Pinarello MY24 Nytro E5 Carbon Shimano Deore All-Road E-Bike
The Pinarello Nytro E5 is a carbon all-road e-bike built for riders who want the extra reach of pedal assist without giving up the feel of a proper road bike underneath them. Its Torayca T700 UD carbon frame integrates a 360Wh battery and full internal cable routing, paired with a TQ-HPR50 drive unit — a motor built by the same engineering group that develops drive systems for robotics and aerospace applications. The result is a bike meant to extend range and confidence on long rides and steep, Alpine-style climbs, not to replace the mechanics of pedaling with something that rides like a moped.
What sets it apart in the all-road e-bike category is how much of Pinarello's road-bike engineering carries over unchanged: an asymmetric frame that compensates for uneven chain-side pedaling forces, and the Nytro Onda carbon fork, a Pinarello design in use since 2000 for its precise steering and shock absorption. A Shimano Deore 1x11 drivetrain, 2-piston hydraulic disc brakes, and 40mm all-road tires round out a build meant for mixed terrain — pavement, gravel, and everything between.
Who It's For
- Riders who want extra range on long rides or group pace without losing road-bike geometry and handling
- Long-distance touring or Alpine-climb riders who want pedal assist in reserve, not as the primary power source
- Riders who prefer an integrated look — hidden battery, internal routing — over a visibly "e-bike" build
- Riders who want a simple, low-maintenance 1x11 drivetrain over a wide-range 2x setup
- Consider a different bike if you need a wider gear range or a larger battery for all-day unsupported riding
What to Look For
- Fit: Pinarello's geometry is proportion-specific, and assist power exaggerates any compromise in a poor fit — get professionally fit before you buy
- Component tier: Shimano Deore 1x11 trades gear range for fewer components and simpler maintenance versus a 2x setup
- Terrain: 40mm Randonneur tires on a Shimano RS wheelset suit paved and light all-road use; weigh tire and wheel durability against rougher gravel routes
Key Features
Frame and fork: The Torayca T700 UD carbon frame houses the 360Wh battery and cable routing internally, with a 12x142 thru-axle rear end for stiffness. The Nytro Onda carbon fork, built with ForkFlap and a tapered head tube, is tuned specifically for this bike's handling.

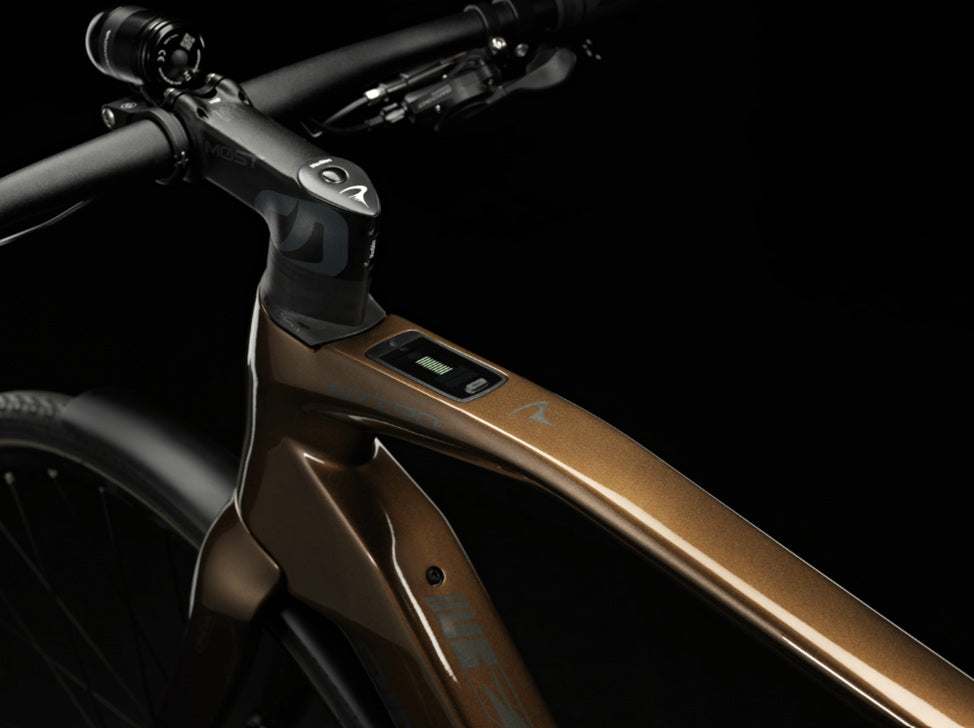

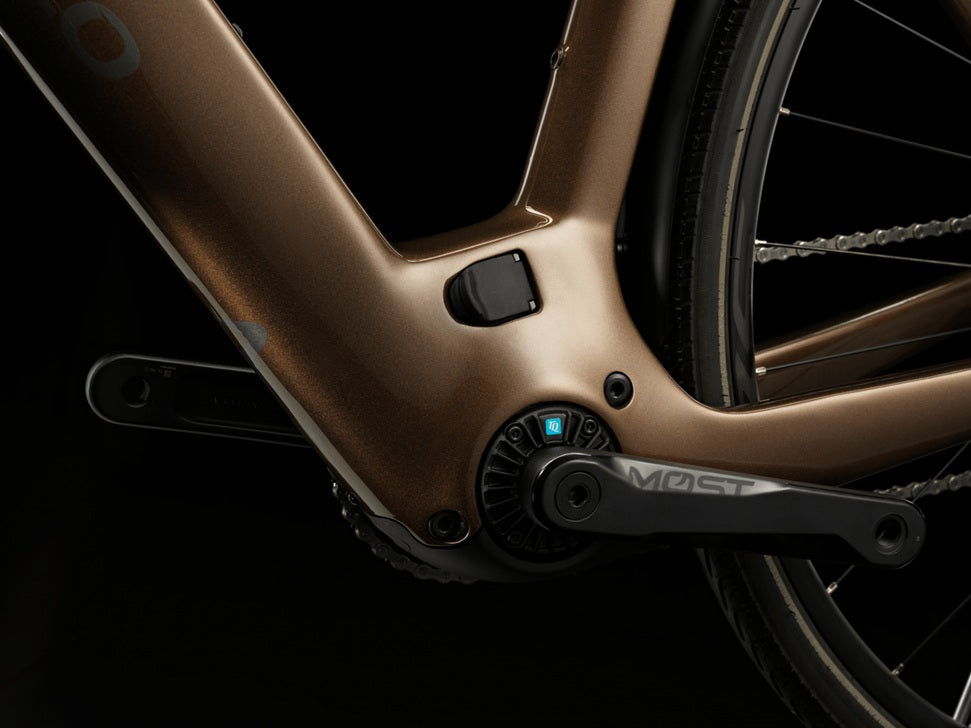

Motor and battery: The TQ-HPR50 drive unit uses a Harmonic Pin Ring (HPR) transmission, drawing on TQ's engineering background in robotics and aerospace motors. It runs on the frame-integrated 360Wh battery, with a display built into the top tube that's compatible with ANT+ bike computers.

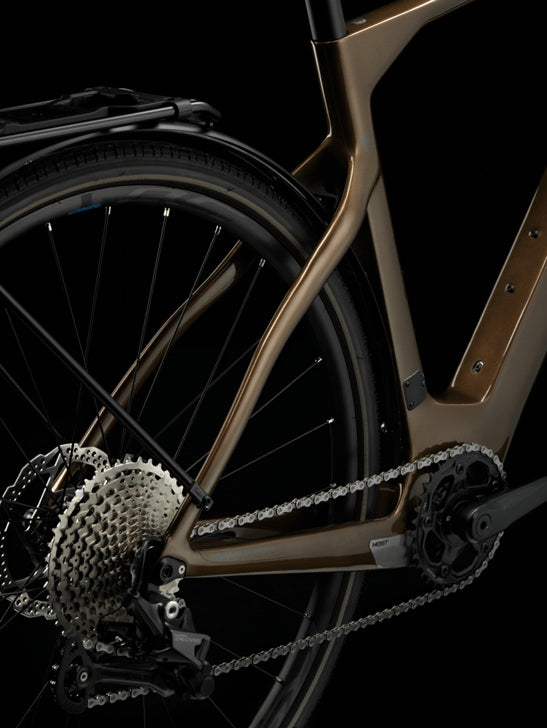

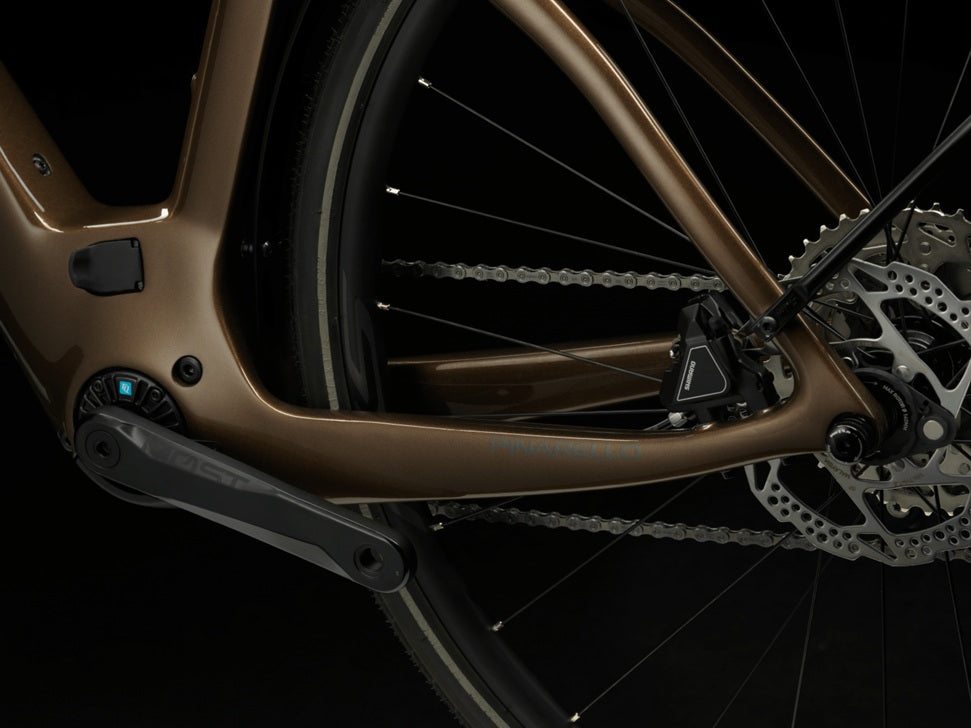

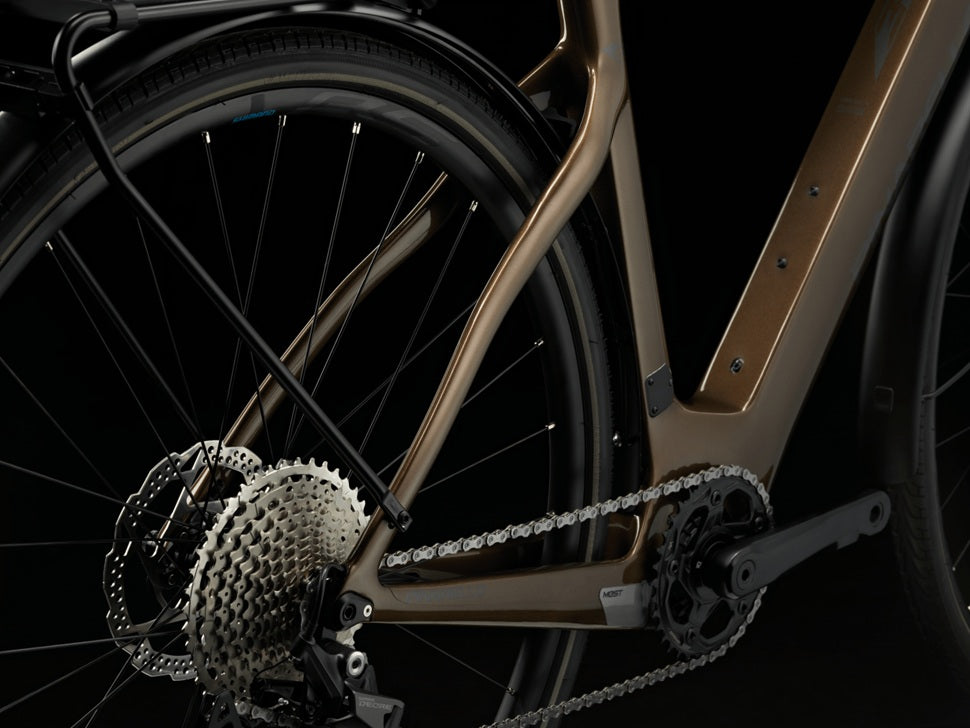

Drivetrain and brakes: Shimano Deore 11-speed 1x shifts through a single chainring with an 11-speed cassette, chain, and rear derailleur — simple and low-maintenance rather than wide-range. Shimano Deore 2-piston hydraulic disc brakes front and rear, both on 160mm rotors, handle the added weight of motor and battery.

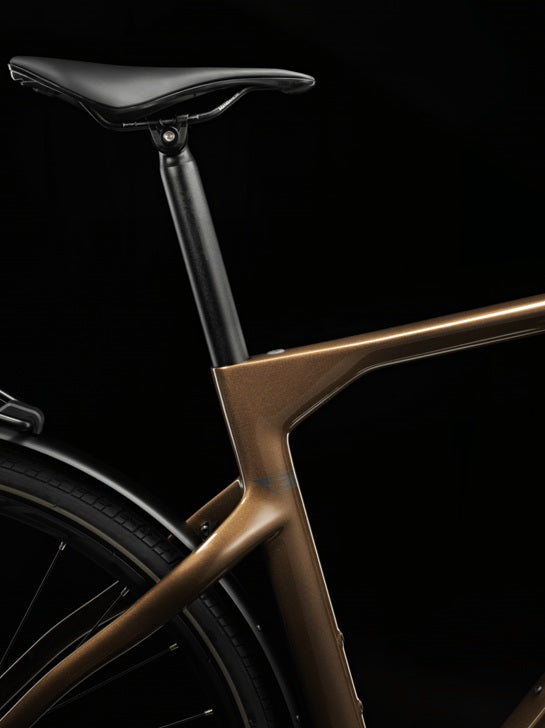

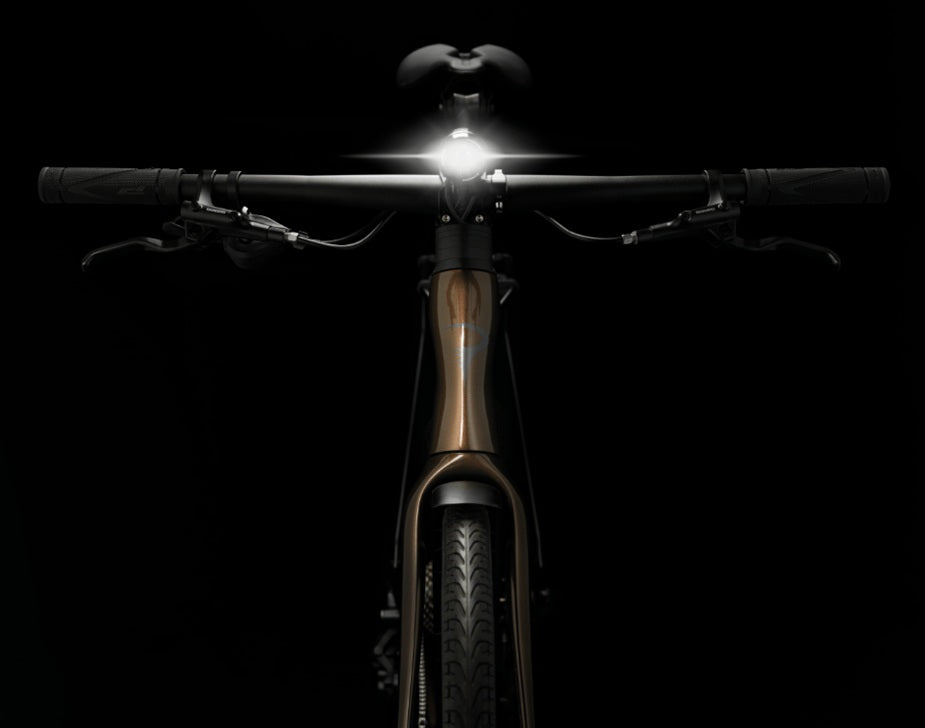

Wheels, tires, and cockpit: A Shimano RS wheelset carries 40mm Randonneur tires in a rigid, reflective build for stability and visibility over outright speed. Tool-free 12x100/12x142 thru-axles simplify wheel removal, and the cockpit — MOST flat handlebar, stem, and comfort grips — is finished with an external seat clamp and a Supernova V1280 integrated front light.
Rider Intent Summary
- Biggest strengths: An integrated, road-bike-proportioned build — hidden battery, asymmetric frame, Onda fork — paired with an aerospace-derived motor system
- Tradeoffs: A 360Wh battery and 1x11 drivetrain mean less range and gear spread than higher-capacity or 2x-equipped all-road e-bikes
- What makes it different: Pinarello's road-bike design carried into an e-bike, rather than an e-bike frame with road parts added on
Victory's Take
We see the Nytro E5 as the right call for a rider who wants their e-bike to disappear into the ride the way a well-fit road bike does, not one chasing maximum range. If that's you, talk to our fit team before you buy — sizing on a bike this integrated isn't something to guess at.
What you get

Pinarello MY24 Nytro E5 Carbon Shimano Deore All-Road E-Bike
