About The Pinarello MY27 Grevil F5 Carbon Sram Rival XPLR Gravel Bike
The Pinarello Grevil F5 SRAM Rival XPLR AXS is a carbon gravel race bike built for long, self-supported events. The MY27 Grevil F is designed around solo aerodynamics. The down tube is shaped to stay efficient with 750 ml bottles fitted, and it has its own storage for a tool bag that you can reach without removing the bottle cage. That removes the need for a saddle bag. Pinarello also designed a set of aero accessories for the frame: gravel TT bars, a magnetic Fidlock frame bag, a racing bento, a tool bag and a rack bag for ultra distances.

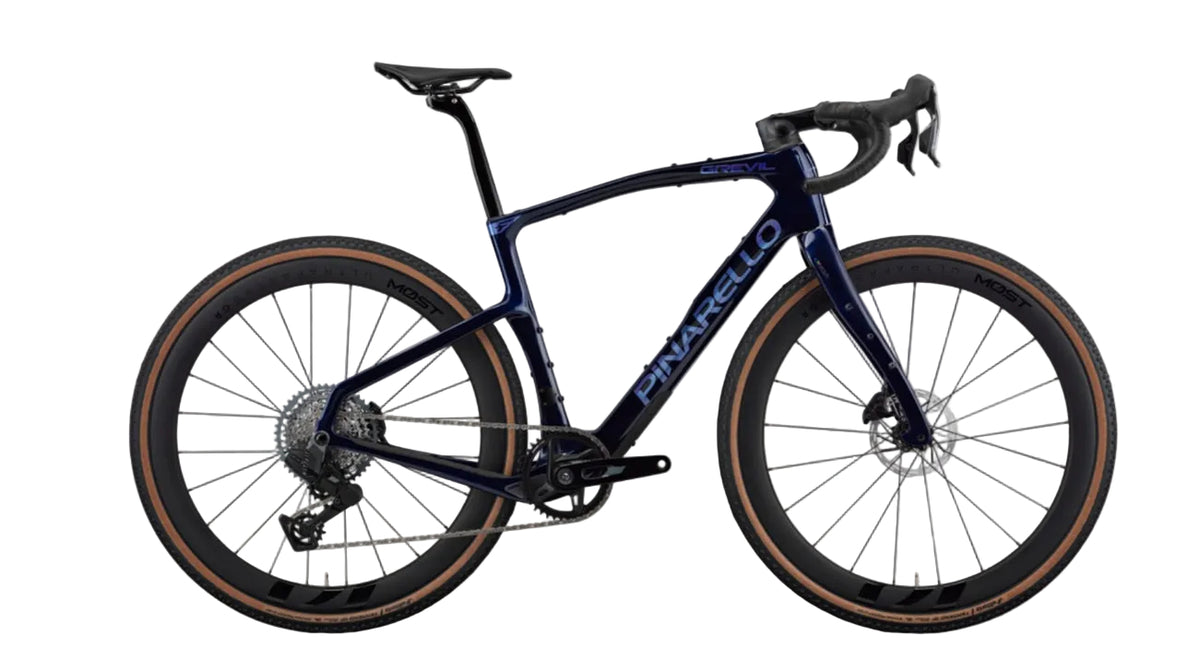

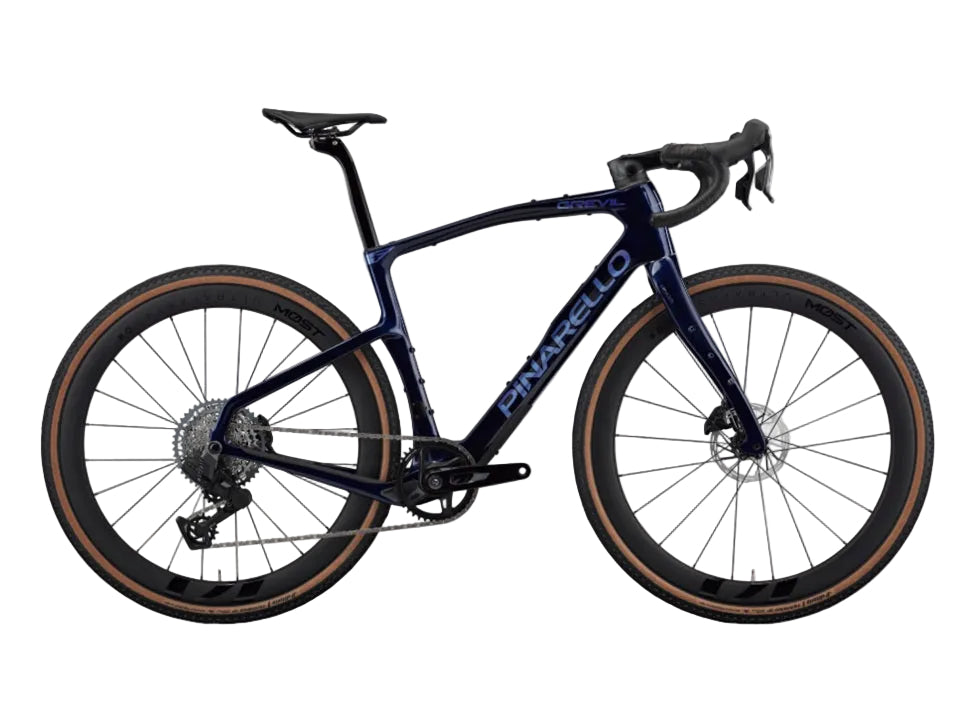

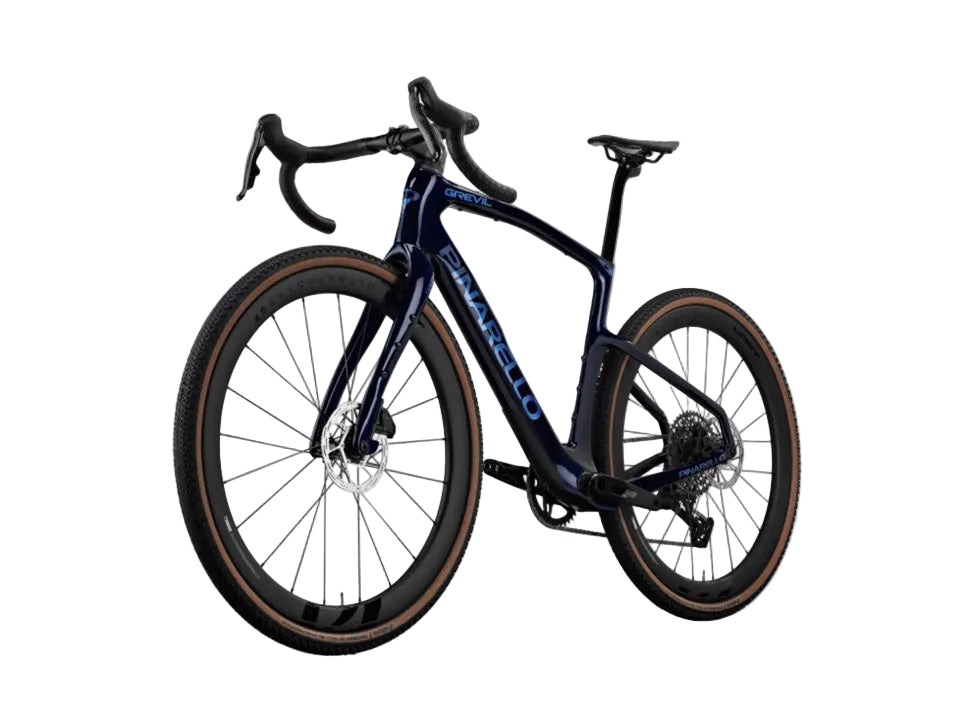

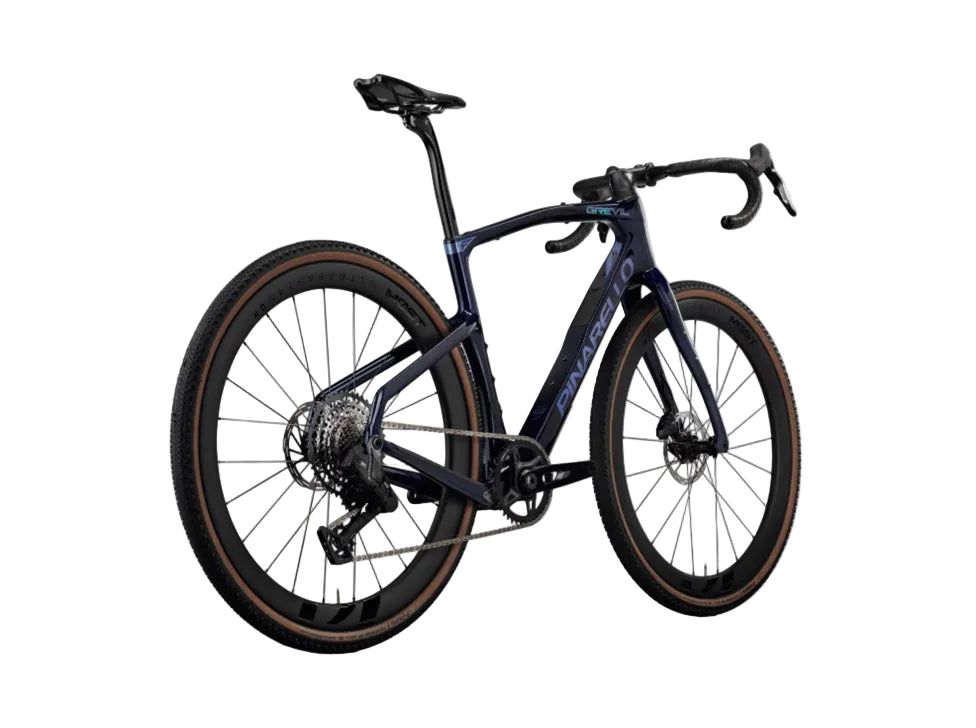

This build pairs a Toray T700 UD carbon frame with the new Onda fork with ForkFlap™, SRAM Rival XPLR AXS 1x13 wireless shifting, and 45 mm Vittoria Terreno T50 tires on MOST Ultrafast 45 GR wheels. Pinarello says the new fork is lighter than the previous Grevil F’s, which improves handling, and that its shape adds compliance. A D-shaped adaptive seatpost with 10 mm of longitudinal flex takes vibration out at the rear. The result is a bike for gravel races and long days where you carry what you need and spend hours in one position.
Who It’s For
-
Gravel racers training for long-distance or ultra-distance events
-
Solo and self-supported riders who want aero storage instead of a saddle bag
-
Riders who want electronic 1x shifting with a wide, simple gear setup
-
Consider a different bike if you mostly ride fast paved group rides that call for the tighter gear steps of a 2x drivetrain, or if you want a relaxed, upright touring position
What to Look For
-
Fit and position: Long solo events are where aero gains and comfort add up. If you plan to add the TT extensions, plan your stack and reach around them from the start.
-
Gearing: A 1x13 drivetrain makes shifting simpler and leaves fewer parts to manage in mud. Check that the cassette range covers both your steepest climbs and your fastest flat sections.
-
Storage strategy: Decide early which accessories you’ll run. The frame is built to work with Pinarello’s own bag system.
Key Features

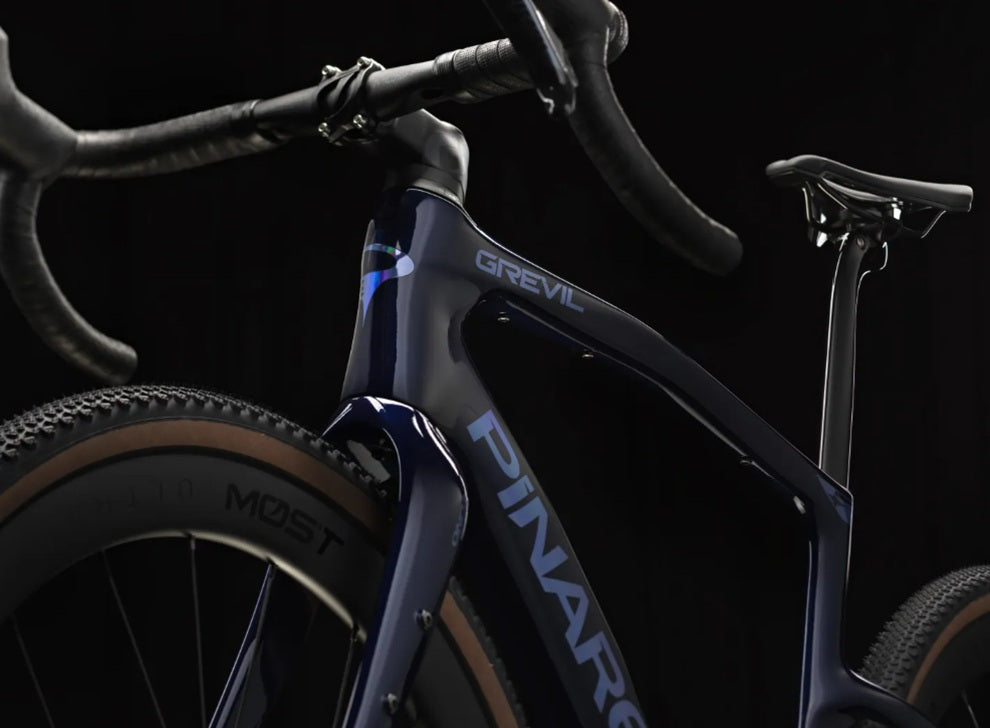

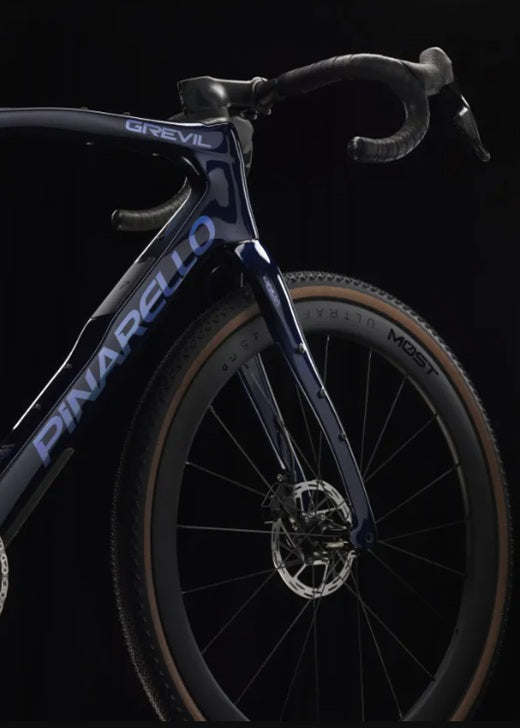

Frame and fork: The Toray T700 UD carbon frame uses a down tube shaped for aero efficiency with large 750 ml bottles. It also has built-in tool storage you can reach with the cage still mounted. The Onda fork’s curved profile adds compliance, and its lower weight compared with the previous Grevil F sharpens handling. The head tube is tapered.

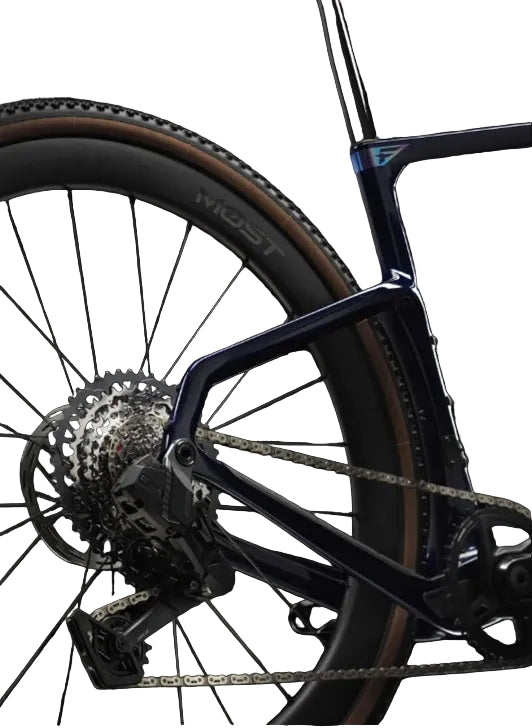

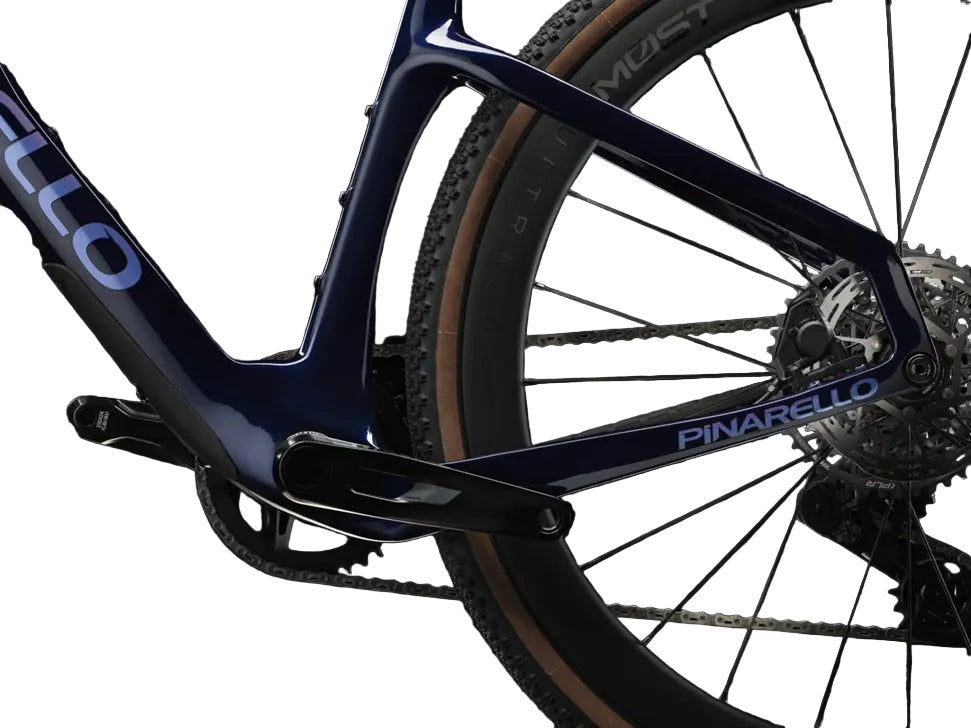

Drivetrain: SRAM Rival XPLR AXS 1x13 is wireless electronic shifting, so there are no derailleur cables to route or adjust. Thirteen cogs on a single chainring give you more steps than a 1x12 setup with no front derailleur. The frame uses a threaded Italian 70 mm bottom bracket (SRAM DUB Road Wide).
Brakes: SRAM Rival two-piston hydraulic disc brakes use 160 mm rotors front and rear, which gives you consistent control on long descents and loose surfaces.
Wheels and tires: MOST Ultrafast 45 GR wheels have a 25 mm internal hooked rim that supports the 45 mm Vittoria Terreno T50 tires. Wide tires on a wide rim give more grip and comfort at lower pressures. The MOST Ultra Light axles (12x100 front, 12x142 rear) come out without tools for faster wheel changes and flat repairs.

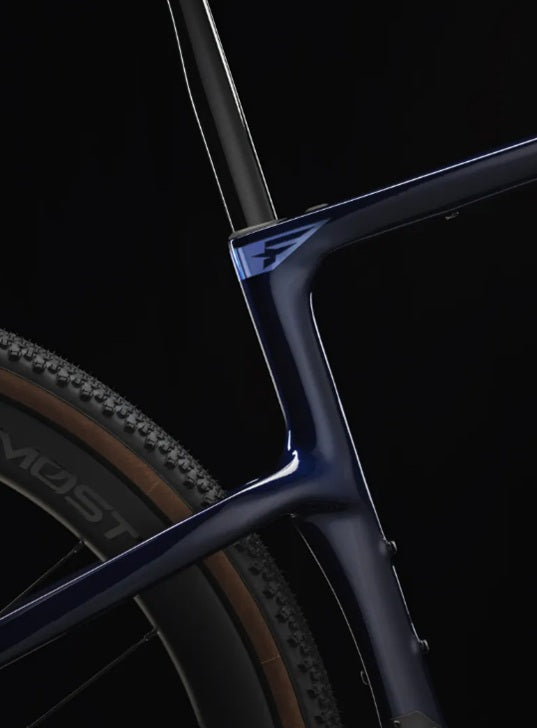

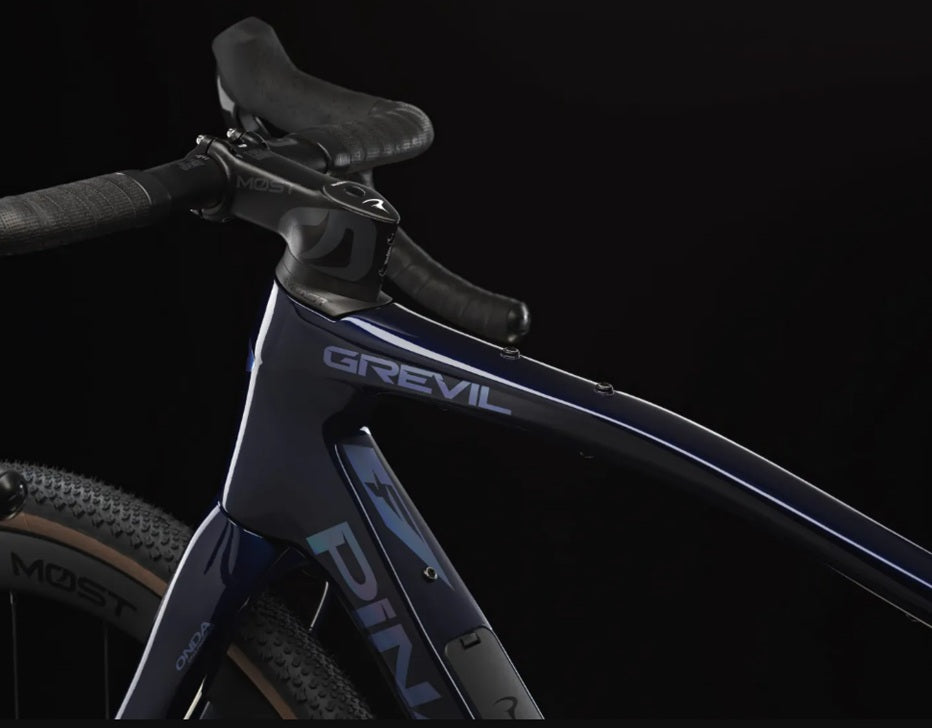

Cockpit and comfort: The Jaguar XA GR handlebar is the base for Pinarello’s clamp-on gravel TT bars (sold separately), which adjust for reach, stack and tilt and have an integrated computer mount. The adaptive seatpost’s 10 mm of flex reduces fatigue over long distances. A MOST Lynx saddle and 3 mm MOST Ultragrip Evo tape complete the build.
Rider Intent Summary
-
Biggest strengths: Aero-focused storage for solo racing, wireless 1x13 shifting, 45 mm tires on wide hooked rims, and tool-free axles
-
Tradeoffs: 1x gearing has bigger jumps between gears than 2x on fast road sections, and the race-focused design isn’t built for relaxed touring
-
What makes it different: Built-in down tube tool storage and a dedicated aero accessory system made for long solo races
Victory’s Take
At Victory Bicycle Studio, we see the Grevil F5 as a well-built gravel race bike for riders whose events are measured in hours, not minutes. Its real advantage shows when you plan your fit and storage around it from day one.
What you get

Pinarello MY27 Grevil F5 Carbon Sram Rival XPLR Gravel Bike
