About The Pinarello Nytro Road E5 Carbon Shimano 105 Di2 E-Road Bike

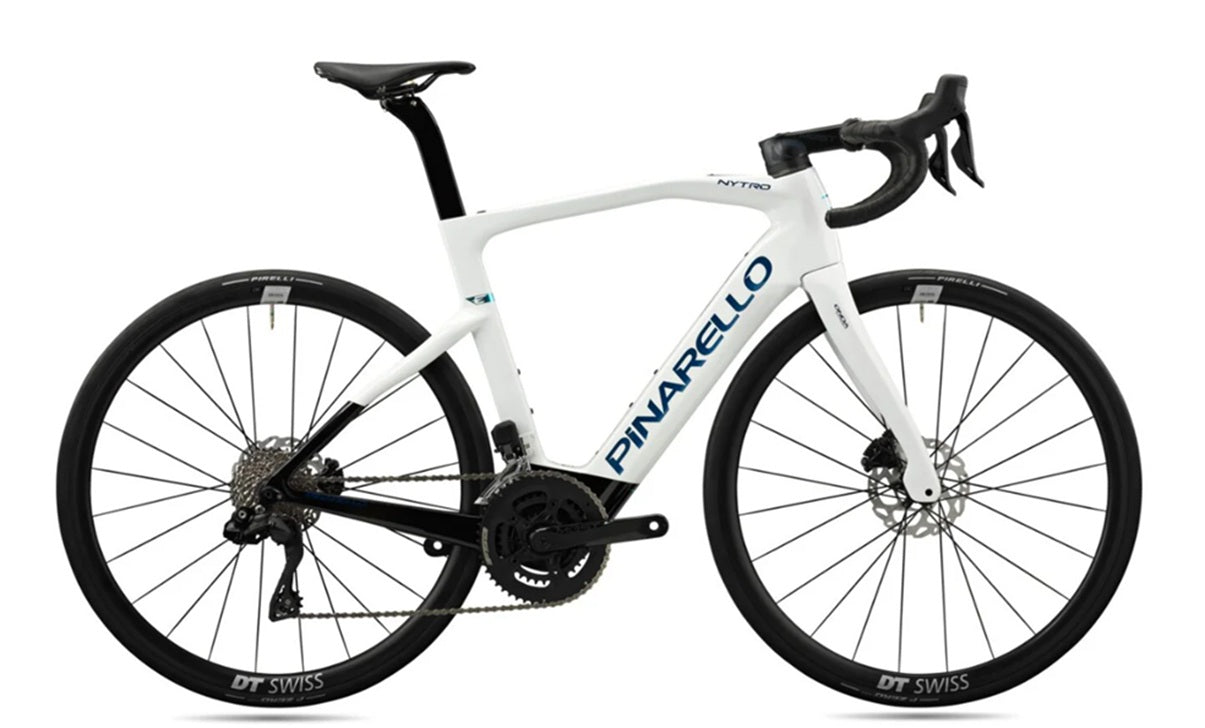

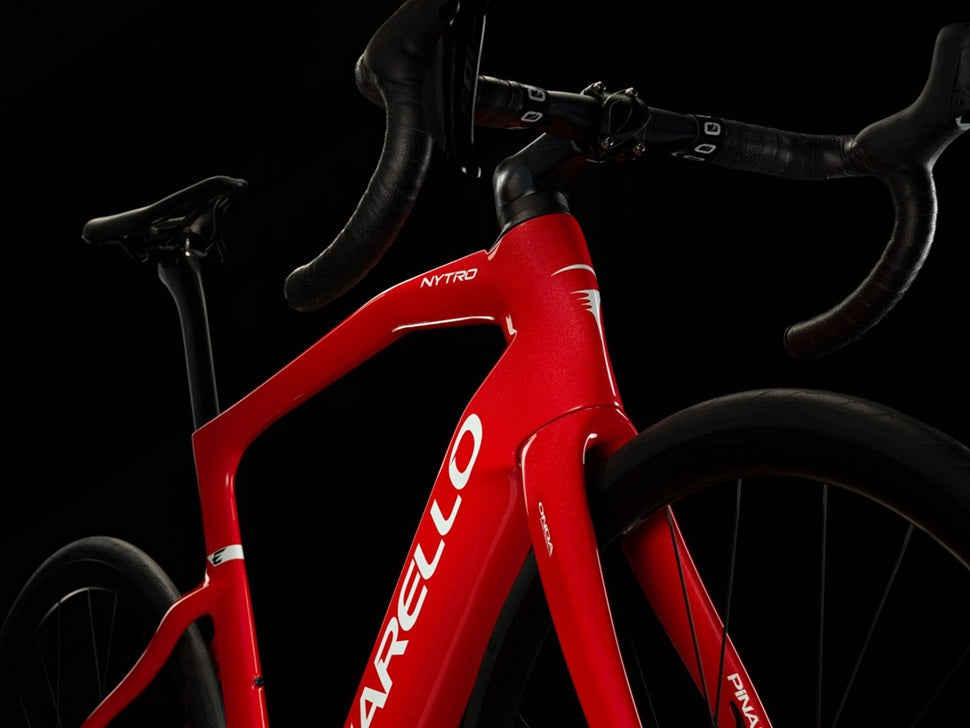

The Pinarello Nytro Road E5 is a carbon e-road bike built around Shimano 105 Di2 electronic shifting and a TQ HPR50 motor system integrated at the bottom bracket. The T700 UD carbon frame uses internal cable routing (TiCR) and pairs with the Nytro Onda tapered carbon fork, keeping the bike's profile close to a standard road bike rather than a bulkier dedicated e-bike frame.

Power comes from the TQ HPR50 motor and a 360Wh battery, controlled through a bar-mounted TQ BW Display, giving riders assistance on longer rides and sustained climbs. Paired with 105 Di2's 12-speed electronic drivetrain and RT-CL800 160mm disc brakes, the Nytro E5 is built for riders who want road bike handling with motor assist available for the days or routes where it matters.

Who It's For

        Road riders who want to extend their range on longer routes or take on sustained climbs without switching to a heavier e-bike category

        Riders returning to cycling after time off, or managing fitness or health limitations, who still want road bike geometry and handling

        Cyclists tackling mixed or mountainous terrain who want motor assist in reserve rather than a fully motor-dependent ride

        Not a fit for riders who want a traditional, motor-free road bike, or who need battery capacity beyond 360Wh for very long unsupported rides

What to Look For

        Motor placement and weight: the TQ HPR50 is a bottom-bracket-integrated motor, keeping weight distribution closer to a standard road bike than hub-drive or larger mid-drive systems

        Battery capacity: 360Wh suits long rides and climbing assistance, not multi-day unsupported touring — match this to typical ride distance before buying

        Drivetrain and tire fit: 105 Di2 electronic shifting and 30mm tubeless-ready tires (MOST 30-622 TLR) suit mixed-surface road riding — confirm this matches intended terrain

Key Features

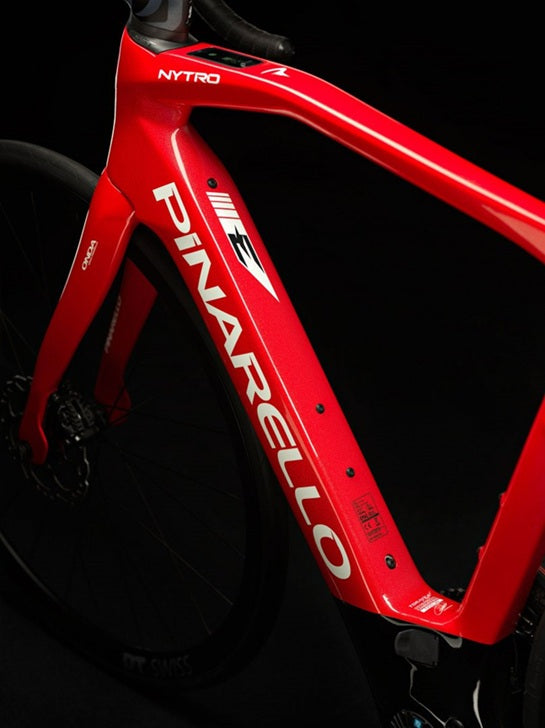

Frame and fork: The T700 UD carbon frame and Nytro Onda tapered carbon fork use internal routing (TiCR), keeping cabling integrated even with the added motor and display wiring an e-bike requires.

Drivetrain: Shimano 105 Di2 (FD-R7150 front derailleur, RD-R7150 rear derailleur) provides 12-speed electronic shifting through the CS-R7100 cassette and CN-M8100 chain, with a MOST crankset completing the drivetrain.

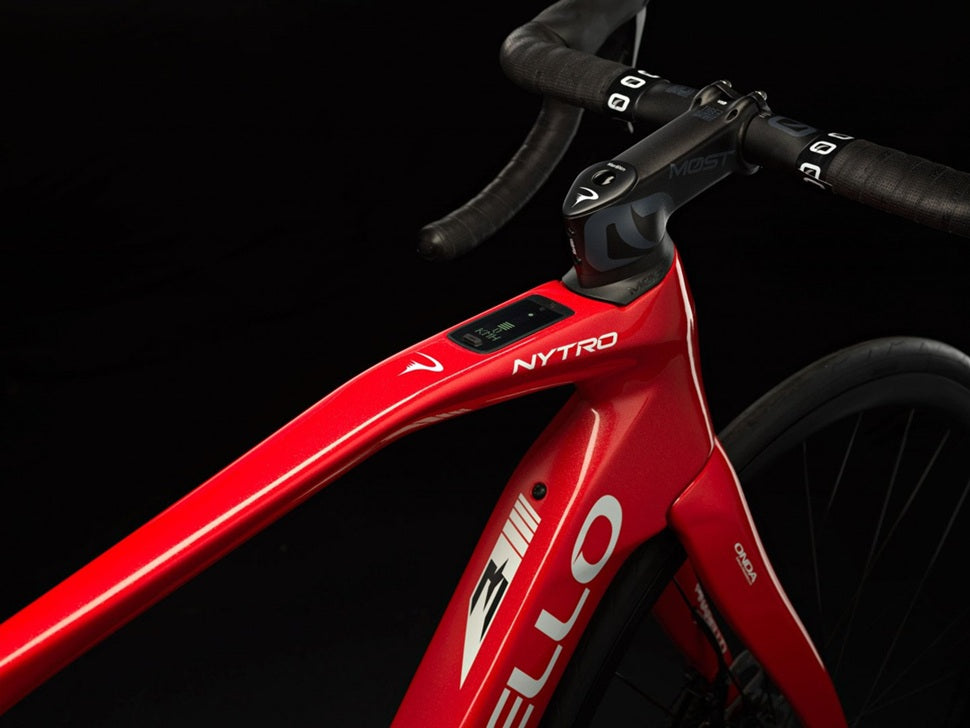

Motor and battery: The TQ HPR50 motor draws from a 360Wh battery, with status shown on the bar-mounted TQ BW Display. The system carries UL certifications covering the electrical system (UL 2849), battery (UL 2054, UL 2849), and charger (UL 1012, UL 1310, UL/IEC 60335-2-29, UL/IEC 60950-1, UL/IEC 62368-1).

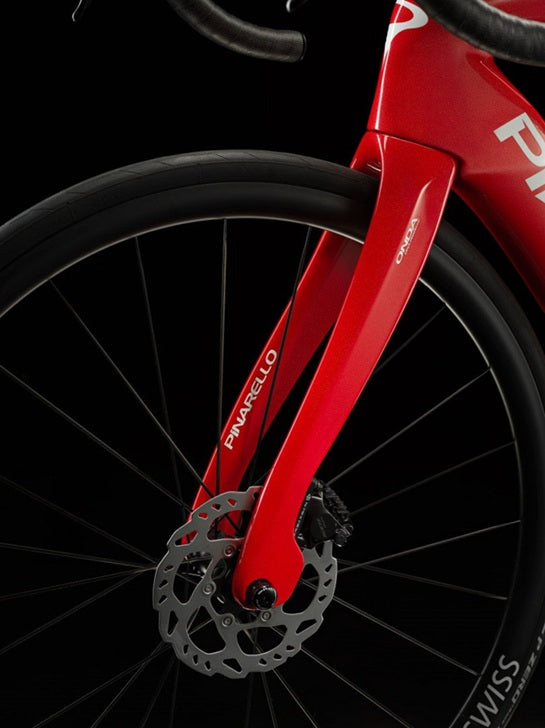

Brakes and wheels: RT-CL800 160mm disc rotors handle braking, paired with a DT Swiss A1800 disc wheelset and MOST 30-622 TLR tubeless-ready tires. Tool-free MOST Ultra Light Custom Axles (12x100 front, 12x142 rear) simplify wheel removal.

Cockpit: MOST Jaguar XA TiCR handlebar and MOST Tiger Aero Alu TiCR stem, MOST Ultragrip Evo 3mm bar tape, and a MOST Lynx Ultra Superflow saddle complete the finishing kit, secured with an FSC Frontal Seat Clamp.

Rider Intent Summary

        Biggest strengths: bottom-bracket-integrated TQ HPR50 motor, 105 Di2 electronic shifting, full carbon T700 UD frame and fork

        Tradeoffs: 360Wh battery capacity is smaller than larger e-bike battery systems, positioning this as a ride-extending assist system rather than a full-power e-bike

        What makes it different: retains road bike geometry and weight distribution rather than adopting a dedicated, heavier e-bike frame platform

Victory's Take

We see the Nytro E5 as a fit for riders who want their road bike to go a little further or climb a little longer, not for anyone looking for a full electric-assist experience. At Victory Bicycle Studio, we'd talk through typical ride distance and terrain during a fit to confirm the 360Wh battery matches how a rider actually plans to use it.

What you get

  • Frame - T700 Carbon UD, Ticr Internal Cable Routing
  • Fork - Pinarello Nytro Onda Carbon, ForkFlap Tapered
  • Component Groupset - Shimano 105 Di2, 12-speed
  • Wheels - DT Swiss A1800 aluminum wheelset

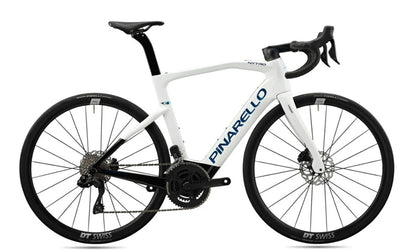

Pinarello Nytro Road E5 Carbon Shimano 105 Di2 E-Road Bike

Pinarello

Pinarello Nytro Road E5 Carbon Shimano 105 Di2 E-Road Bike

Regular price $7,800.00 USD
Sale price $7,800.00 USD Regular price

Specifications

Frameset
Frame

T700 Carbon, UD, Ticr Internal Cable Routing

Fork

Pinarello Nytro Onda Carbon, ForkFlap Tapered

Wheels
Wheelset

DT Swiss A1800 Aluminum Wheelset, TLR, Centerlock, 12x100, 12x142

Tires

700x32mm (Brand and model vary by market)

Drivetrain and Brakes
Rear Derailleur

Shimano 105 Di2 RD-R7150

Front Derailleur

Shimano 105 Di2 FD-R7150

Crankset

Shimano 105 FC-R7100, 50/34T

Cassette

Shimano 105 11–34T, 12-speed

Brakes

Shimano 105, hydraulic disc

Cockpit
Handlebars

MOST Jaguar XA TiCR

Stem

MOST Tiger Aero Alu TiCR

Drivetrain and Brakes
Battery

TQ 360 Wh

**Specifications subject to change without notice
