About The Pinarello XC 100 Carbon SRAM GX Eagle AXS Full Suspension Mountain Bike

The Pinarello XC 100 is a full-suspension cross-country race bike built on Pinarello's Dogma XC platform — the same frame concept developed with INEOS Grenadiers riders Tom Pidcock and Pauline Ferrand-Prévot, who won world titles on it in 2023. The frame is built from Toray T900 UD carbon and is designed for XC racing and fast, technical trail riding, where low weight, pedaling efficiency, and precise handling matter more than outright travel.

Two details set this frame apart from a standard XC race bike. An adjustable shock mount lets the rear suspension's connection point move under the top tube, so different rear shocks and travel options can be fitted to match the terrain. An asymmetric rear triangle reinforces the drivetrain side of the frame to counterbalance the higher forces generated there, improving energy transfer and traction. Power reaches the rear wheel through a SRAM GX Eagle AXS wireless electronic drivetrain, with Fox suspension front and rear and a dropper post for descents.

Who It's For

        XC racers and fast trail riders who value climbing efficiency and low weight over long-travel descending capability

        Riders who want wireless SRAM GX Eagle AXS shifting and race-tuned Fox suspension

        Riders planning to use the adjustable shock mount to tune travel for specific terrain

        Riders looking for a long-travel descender or enduro geometry should consider a different bike, since this frame is built around XC race demands

What to Look For

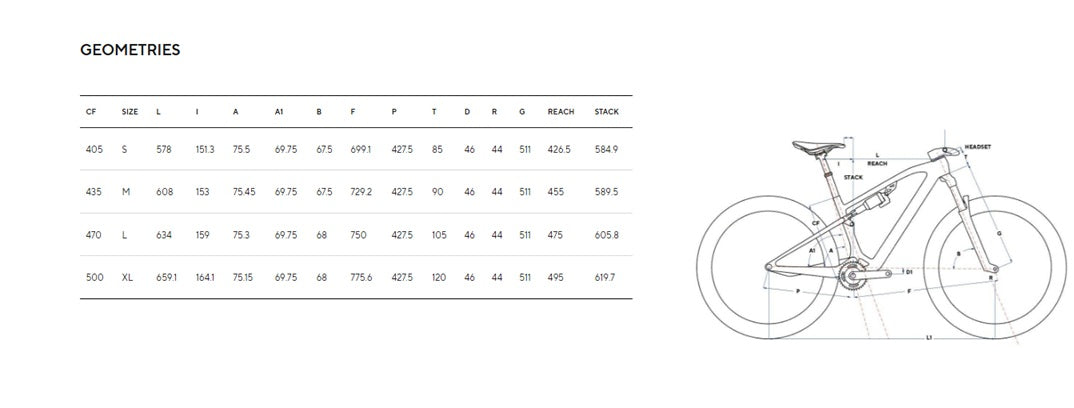

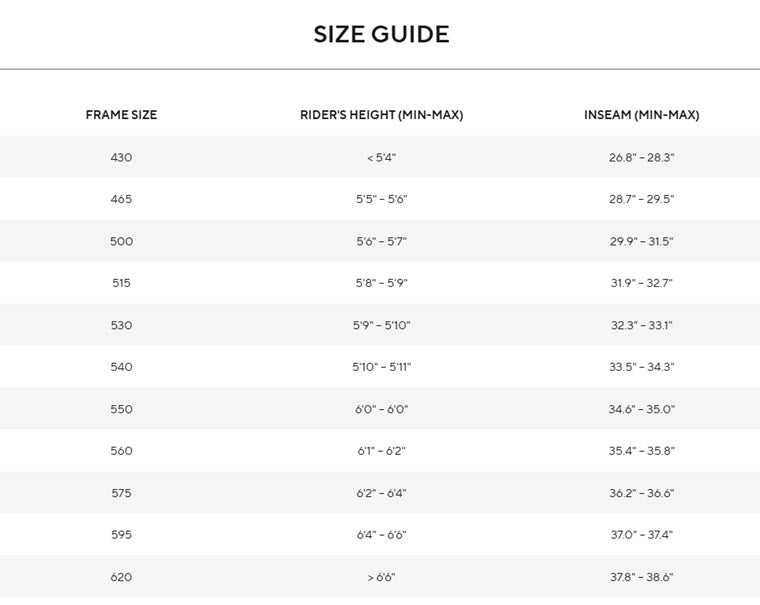

        Confirm frame size and fit — XC race geometry is more aggressive than trail-oriented full-suspension bikes

        Rear travel comes from the Fox Float SL Performance Elite 190x45 shock; factor in how the adjustable mount point changes suspension feel across settings

        Component tier is mixed: a Shimano Deore XT front brake paired with SRAM's electronic GX Eagle AXS drivetrain, worth understanding for maintenance and future upgrades

Key Features

The Toray T900 UD carbon frame uses an asymmetric rear triangle, reinforced on the drivetrain side to counter the higher forces generated there and improve energy transfer and traction. Just three pivot points combine with flex stays to generate rear wheel travel while saving weight and improving the connection between rider input and the rear wheel. Pivot points use a mixed bearing and bushing system — bushings absorb high-impact, low-rotation loads, and bearings handle low-impact, high-rotation loads — reducing energy loss and adding durability. An oversized bearing and pivot point add stiffness to the rear triangle and bottom bracket.

Suspension comes from Fox: a Fox 32 Performance Elite SC fork with 100mm of travel up front, and a Fox Float SL Performance Elite shock (190x45) at the rear. A Fox Transfer SL Performance Elite dropper post (100mm, D30 9mm) adds saddle-height control on descents.

The front brake is a Shimano Deore XT disc brake with a 160mm rotor.

The Talon Ultra XC integrated handlebar saves weight compared with a two-piece bar/stem setup, and the frame's headset includes an internal stopper to prevent the handlebar from over-rotating in a crash. Tires are Maxxis Rekon Race, 29.5x2.25 with EXO TR casing and 120TPI construction, a fast-rolling, race-oriented tread and casing combination.

Rider Intent Summary

        Biggest strengths: race-proven Dogma XC frame design, wireless SRAM GX Eagle AXS shifting, and an adjustable rear shock mount

        Tradeoffs: XC-focused geometry and travel (100mm front, 190x45 rear shock) mean less capability on long, rough descents than a trail or enduro bike

        What makes it different: the asymmetric rear triangle and flex-stay suspension design, refined through World Championship-winning race use

Victory's Take

At Victory Bicycle Studio, we see the XC 100 as a serious race bike for riders who want to climb efficiently and still descend with control, without carrying extra weight. We recommend a professional fit session before racing or riding it hard, since XC race geometry rewards precise setup.

What you get

  • Frame - Toray T900 UD carbon full-suspension frame
  • Fork - Fox 32 Performance Elite Step-Cast, 100 mm travel
  • Component Groupset - Sram GX Eagle AXS, 12-speed
  • Wheels - DT Swiss XR 1700 Spline aluminum
Pinarello XC 100 Carbon SRAM GX Eagle AXS Full Suspension Mountain Bike

Pinarello

Pinarello XC 100 Carbon SRAM GX Eagle AXS Full Suspension Mountain Bike

Regular price $7,606.00 USD
Sale price $7,606.00 USD Regular price

Specifications

Frameset
Frame

Toray T900 UD carbon full-suspension frame

Fork

Fox 32 Performance Elite Step-Cast, 100 mm travel

Rear Suspension

Fox Float SL Performance Elite

Wheels
Wheelset

DT Swiss XR 1700 Spline aluminum, TLR, Centerlock, 15×110, 12×148

Tires

Maxis Rekon Race, 29X2.25"

Drivetrain and Brakes
Rear Derailleur

Sram GX Eagle AXS, 12-speed

Crankset

Sram GX Eagle AXS

Cassette

Sram GX Eagle AXS, XS-1275, 10-52T

Cockpit
Handlebars

Talon Ultra XC integrated cockpit

Saddle

Most Lynx 2.0 XC, carbon rails

**Specifications subject to change without notice
