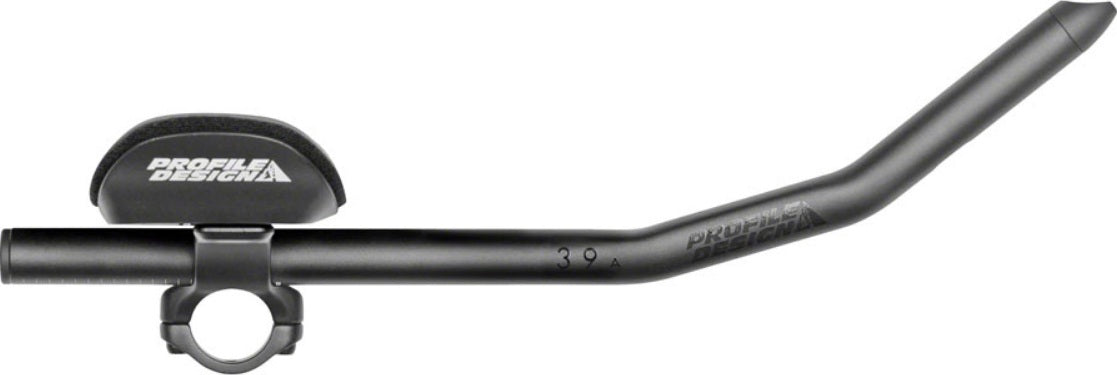

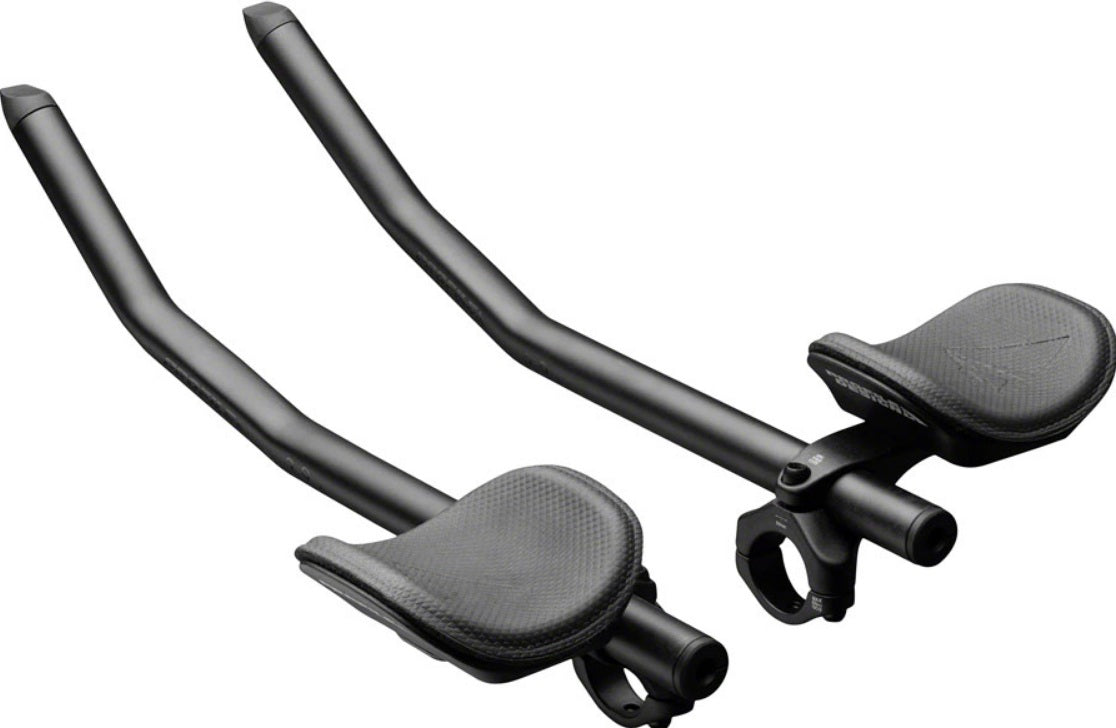

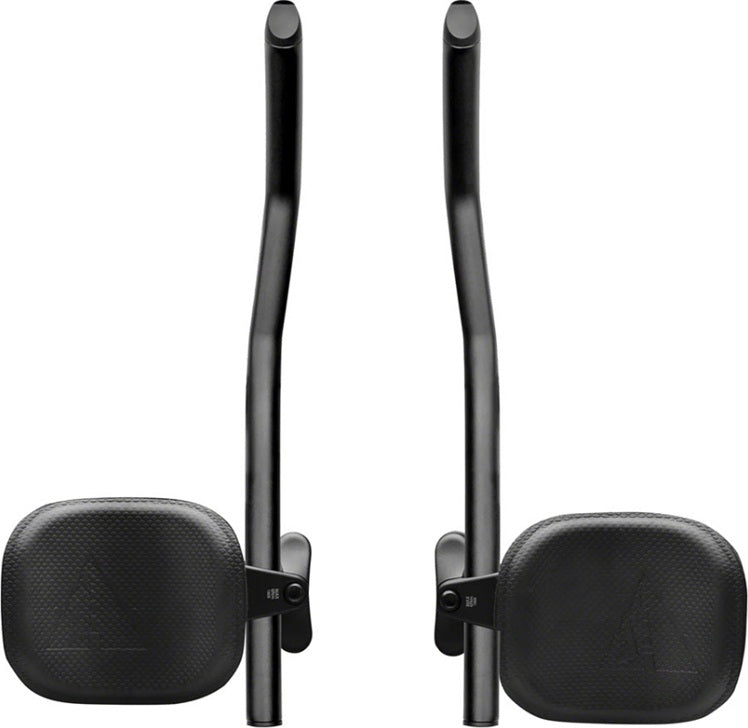

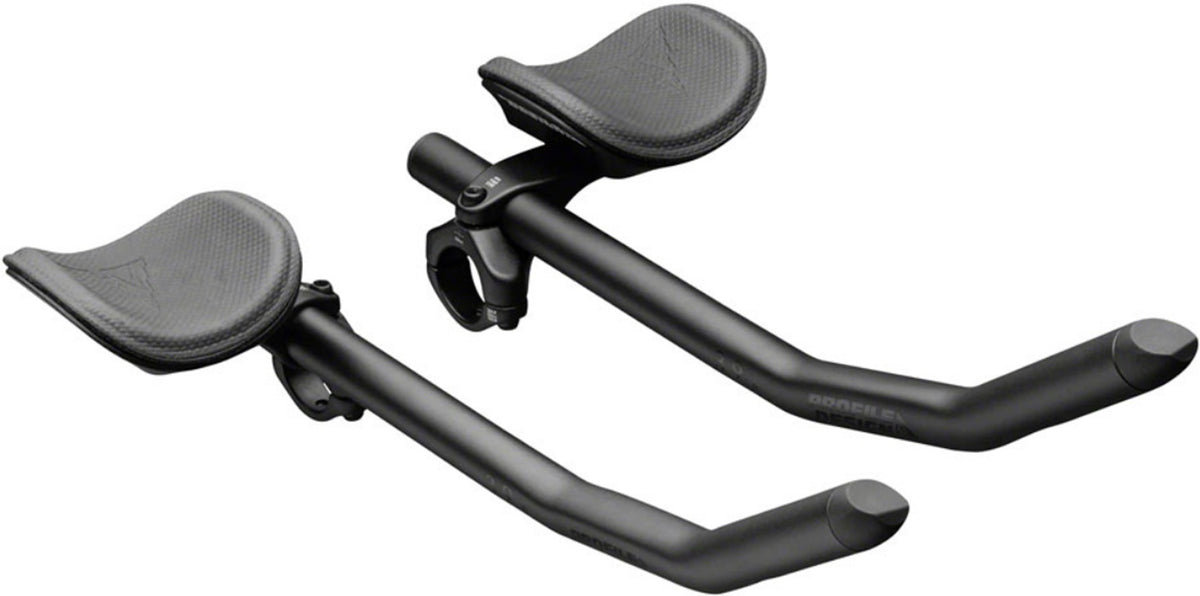

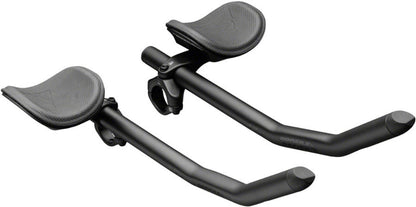

About The Profile Design Sonic/Ergo 39a Aerobar

The Profile Design Sonic/Ergo 39a Aerobars are designed to present minimal frontal area to create as little aerodynamic drag as possible. The main purpose of an aerobar is, of course, to get the rider into a fast position despite a fairly minimalist appearance the Sonic/Ergo offers a comprehensive fit range for exactly this purpose. The Sonic bracket offers an extensive fit range, low weight and easy adjustment along with minimal frontal area. Combining this with the Ergo armrest creates an aerobar that will aid most riders in optimizing their position for both speed and comfort.

  • The 39a extensions have a 39 degree angle for the grip. The rider can choose whether to hold high for the shrugged position or low for a more open, head up position
  • 100 distinct position options achievable just by moving the armrest pads to fine-tune rider fit and maximize comfort
  • 6061-T6 aluminum construction, pre-drilled for bar-end shifter cable routing
  • Compatible with electronic or mechanical shifters

What you get

  • Clamp Diameter - 31.8mm
  • Armrest - Ergo / 10mm pads
  • Aerobar Extension Length - 400mm
Profile Design Sonic/Ergo 39a Aerobar

Profile Design

Profile Design Sonic/Ergo 39a Aerobar

Regular price $199.99 USD
Sale price $199.99 USD Regular price $209.00 USD

Specifications

Bracket

Sonic

Clamp Diameter

31.8mm or (26.0 with Shim Kit - Shim Kit is sold separately)

Armrest

Ergo / 10mm Pads

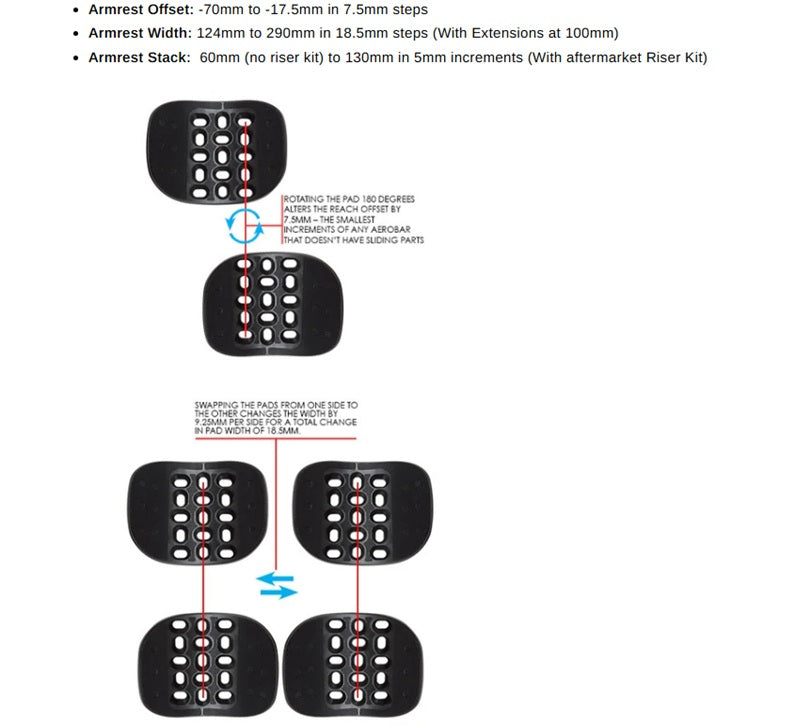

Armrest Width

124mm to 290mm in 18.5mm steps (with Extensions at 100mm)

Armrest Offset

-70mm to -17.5mm in 7.5mm steps

Armrest Stack

Minimum stack is 60mm with 70mm of spacers additional (max of 130mm)

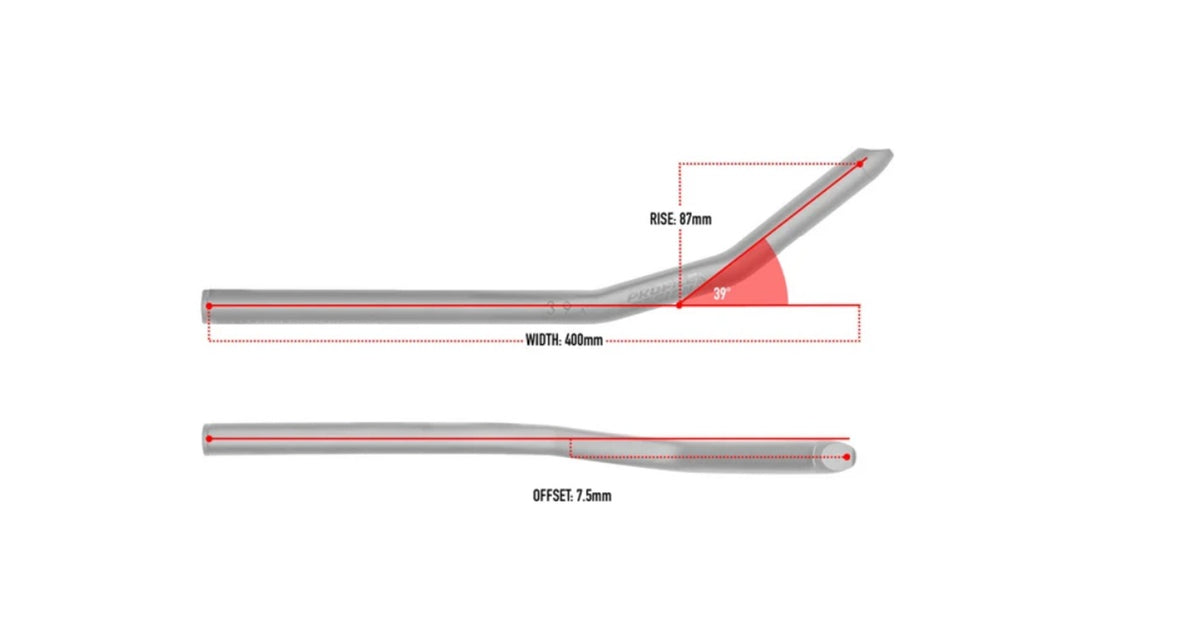

Aerobar Extension Length

400mm

Aerobar Extension Angle

39 degrees

Aerobar Extension Rise

87mm (bottom to top)

Extension Offset

15mm total

Outer Diameter

22.2mm

Inner Diameter

19.2mm

Shifter Compatibility

Electronic or mechanical

Weight

564 grams

Torque Settings

All bolts are M6

Bar Clamp

6Nm (53 inlbf)

Extension Clamp

6Nm (53 inlbf)

Armrest

130 grams

Extensions

222 grams / pair
