About The Scott Lumen 920 Full Suspension Mountain E-Bike

The Scott Lumen eRide 920 is Scott's trail-focused full-suspension electric mountain bike — a platform built around the philosophy of keeping an e-MTB as light and trail-capable as possible rather than simply adding a motor to a conventional frame. The Lumen eRide uses a Shimano EP8 motor system (85 Nm of torque) integrated into a purpose-designed alloy frame with full suspension, delivering power-assisted climbing without the bulk of a heavier, cargo-oriented e-bike design. The result is a bike that handles on trail in a manner much closer to a conventional mountain bike than most e-MTBs, particularly through corners and on technical descents where weight distribution matters.

The rear suspension provides trail-appropriate travel while the front fork delivers additional control on rough terrain. The Shimano EP8 motor is compact and centrally positioned, keeping weight low and centered in the frame, which directly improves handling at speed and on off-camber sections. A high-capacity battery supports extended trail sessions — typical real-world range varies significantly with assist mode, terrain, and rider output, so the bike is best understood as a range-extender for ambitious trail objectives rather than a replacement for fitness. Shimano drivetrain components provide reliable, serviceable shifting, and hydraulic disc brakes deliver consistent stopping power across the full range of trail conditions.

Who It's For

  • Mountain bikers who want to ride longer, climb farther, or access terrain that would otherwise require shuttling
  • Experienced trail riders who want assistance without sacrificing trail handling feel
  • Riders returning from injury or managing fitness limitations who want to keep riding technical terrain
  • Adventure-oriented riders planning big-day mountain objectives with significant climbing
  • Not ideal for: beginners who haven't developed basic mountain bike skills — this is a capable, fast bike that rewards rider input; also not a first choice for purely flat or paved riding

What to Look For

  • Motor mode management: The Shimano EP8 has multiple assist modes — managing them actively will significantly extend your range. Get familiar with the app and mode settings before your first big ride.
  • Weight vs. non-assisted bikes: Full-suspension e-MTBs are heavier than conventional bikes and require more planning around transportation and storage.
  • Service needs: The electrical system adds a maintenance layer beyond standard drivetrain and suspension service — factor this into your ownership plan.

Key Features

Frame and Suspension: Alloy full-suspension frame designed around the Shimano EP8 motor with trail-oriented geometry. The suspension layout is tuned for pedaling efficiency under power while remaining active and compliant on technical descents. Scott's Lumen eRide platform prioritizes handling agility over maximum travel.

Motor: Shimano EP8 drive unit — 85 Nm of torque, compact design with low Q-factor to preserve natural pedaling mechanics. The EP8 is one of the most trail-focused motors available, offering smooth power delivery and a natural feel compared to higher-output systems that can overwhelm traction.

Battery: High-capacity integrated battery providing extended range for trail use. Battery is frame-integrated for clean aesthetics and protection; consult the specific build spec for exact capacity in Wh.

Brakes and Drivetrain: Hydraulic disc brakes provide consistent, modulated stopping power under the additional speeds and weight an e-MTB generates on descents. Shimano drivetrain delivers reliable, serviceable shifting across the gear range.

Rider Intent Summary

  • Biggest strengths: Shimano EP8 motor delivers trail-oriented power in one of the lighter and more handling-focused full-suspension e-MTB platforms on the market
  • Tradeoffs: Heavier than a conventional mountain bike; electrical system adds service complexity; range is terrain and assist-mode dependent
  • What makes it different: The Lumen eRide platform was designed from the ground up around the EP8 motor rather than adapted from a conventional frame, which produces a more balanced weight distribution and better handling than conversion-style e-MTB designs

Victory's Take

At Victory Bicycle Studio, we recommend the Lumen eRide 920 to experienced trail riders who want to meaningfully extend their riding range and elevation without giving up the trail dynamics they are accustomed to — it is not a beginner bike, but in the right hands it opens up a genuinely different category of adventure.

What you get

  • Frame - Carbon HMF Main Frame / Alloy SST-CST
  • Fork - RockShox Recon Gold RL Solo Air
  • Rear Shock - X-Fusion NUDE 5 RLX Trunnion
  • Rims - Syncros X-30S / 32H / 30mm / Tubeless ready
  • Front Tire - Schwalbe Wicked Will 29×2.4″ EVO / Super Race / TLE / 67EPI / Addix Speed Soft
  • Rear Tire - Schwalbe Wicked Will 29×2.4″ EVO / Super Race / TLE / 67EPI / Addix Speed Grip

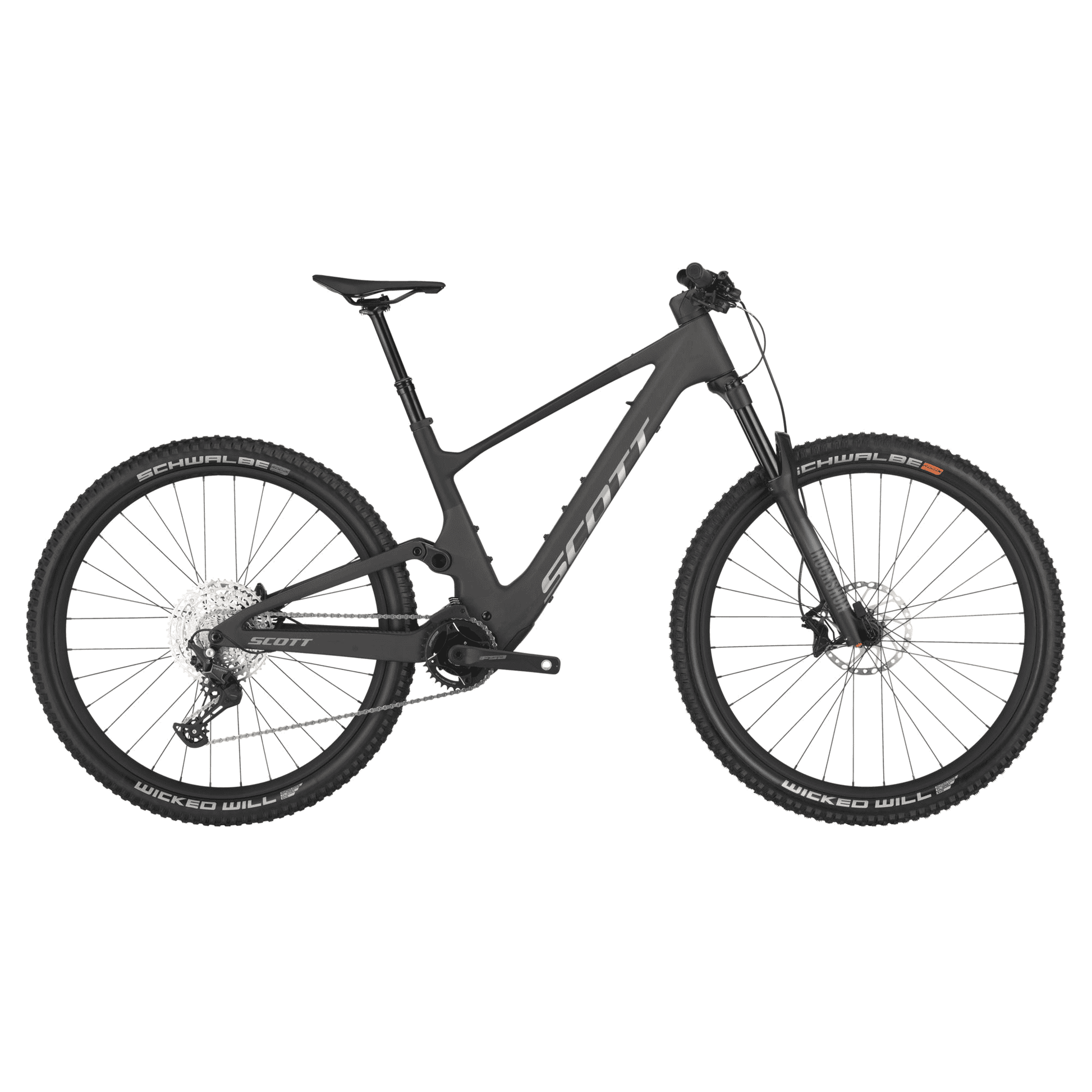

Scott Lumen 920 Full Suspension Mountain E-Bike

Scott

Scott Lumen 920 Full Suspension Mountain E-Bike

Regular price $4,499.99 USD
Sale price $4,499.99 USD Regular price $5,999.99 USD

Specifications

Frameset
Frame

Carbon HMF Main Frame / Alloy SST-CST

- Integrated Suspension Technology

- Flex Pivot / Adjustable head angle

- Syncros Cable Integration System

- TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

Travel

Front Suspension - 140mm, Rear: 130mm

Fork

RockShox Recon Gold RL Solo Air

-2-Modes / 15x110mm axle / tapered steerer

- 42mm offset / Reb. Adj. / Lockout / 140mm travel

Rear Shock

X-Fusion NUDE 5 RLX Trunnion

- SCOTT custom w. travel / geo adj.

- 3 modes: Lockout-Traction Control-Descend Reb. Adj.

- Travel – 130-90-Lockout / T165X45mm

Headset

Syncros – Acros Angle adjust & Cable Routing HS System

- +-0.6° head angle adjustment

- ZS56/28.6 – ZS56/40 MTB

Wheels
Rims

Syncros X-30S

- 32H

- 30mm

- Tubeless ready

Front Hub

Formula CL-811, 15x110mm

Rear Hub

Formula CL-148M, 12x148mm

Spokes

Stainless Black 15G, 1.8mm

Front Tire

Schwalbe Wicked Will 29×2.4″ EVO

- Super Race

- TLE

- 67EPI

- Addix Speed Soft

Rear Tire

Schwalbe Wicked Will 29×2.4″ EVO

- Super Race

- TLE

- 67EPI

- Addix Speed Grip

E-System
Remote System

SCOTT TwinLoc 2 Technology

- Suspension & Dropper Remote

- 3 Suspension modes

E-Drive System

TQ HPR50

Drive Unit

TQ HPR50 Mid Motor drive 50Nm max Torque

- EU: 25kmh

- US: 20mph

Battery

TQ Internal 360Wh

Drivetrain and Brakes
Rear Derailleur

Shimano Deore RD-M6100 SGS

Crankset

FSA Alloy

Chainguide

e*thirteen, e*spec Slider

Chainring

SCOTT custom spider, FSA 12Speed 34T chainring

Chain

Shimano CN-M6100

Cassette

Shimano CS-M6100, 10-51

Brakes

Shimano MT520 4 Piston Disc

Brake Rotors

Front: SM-RT64 CL 180mm, Rear: RT-EM600 CL 180mm

Cockpit
Handlebars

Syncros Fraser 2.0 DC Alloy 6061 D.B.

- mini Rise / back sweep 8° / 760mm

- Syncros Performance XC lock-on grips

H'Stem

Syncros DC 2.0

- Syncros Cable Integration System

- 0° rise / 6061 Alloy / 31.8mm / 1 1/8″

Seatpost

Syncros Duncan Dropper Post 2.0 - 31.6mm

- S & M size 125mm

- L size 150mm

- XL size 170mm

Saddle

Syncros Tofino 2.0 Regular, CRMO rails

Additional Information
Max. System Weight

128kg, 282 lbs

E-Bike Certification

Bike is UL 2849 certified and we are able to provide documentation on request.

*Specifications subject to change without notice
