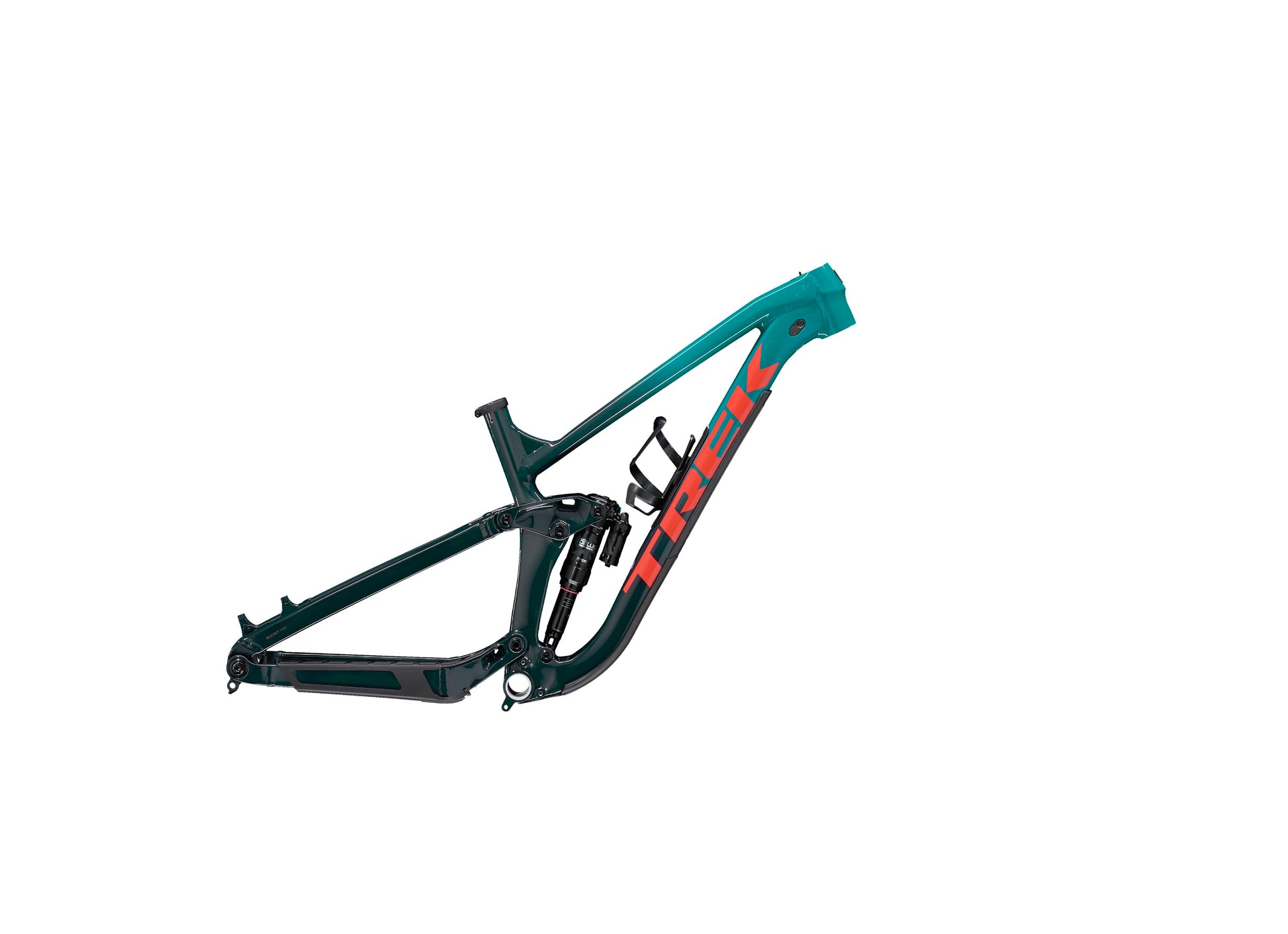

Trek Slash AL Gen 5 Aluminum Mountain Bike Frameset

The Trek Slash AL is an aluminum enduro and all-mountain frameset built for riders who want to spec their own component build around a proven platform. The Alpha Platinum Aluminum frame carries 160mm of rear travel via an included RockShox Super Deluxe Select+ RT shock, with Active Braking Pivot (ABP) suspension that allows rear travel behavior to be tuned independently of braking forces. Knock Block 2.0 integrated headset provides a wider steering angle while protecting cables and hoses from fork-to-frame contact.

Mino Link geometry adjustment lets you shift between high and low positions — changing head tube angle, bottom bracket height, and reach — without replacing any components. A 64.6-degree head angle in the high position and a long wheelbase position this frame as a capable enduro platform. Internal downtube storage handles tools and supplies for longer days, while a removable downtube guard and shuttle guard protect the frame during transport. ISCG 05 tabs provide chain guide mounting options, and the magnesium rocker link reduces unsprung weight at the suspension pivot.

Who It's For

• Experienced builders who want to spec their own enduro or trail build around a proven Trek Slash platform
• Riders upgrading specific components while maintaining Slash geometry and aluminum construction
• Those who want control over fork, shock, and drivetrain choices not available in complete bike configurations
• Cyclists building a purpose-specific setup for enduro events or aggressive trail riding
• Not ideal for: riders who want a ready-to-ride bike or are newer to full-suspension mountain bikes

What to Look For

• Frameset only: no fork, drivetrain, wheels, or cockpit — budget for a complete component build on top of the frameset price; the RockShox Super Deluxe Select+ RT shock (230x62.5mm) is included
• Mino Link positions: understand the head angle and bottom bracket height tradeoffs between high and low settings before determining your preferred geometry for your riding style
• ISCG 05 tabs: plan for a chain guide in your build budget — it is a recommended addition for enduro-style riding

Key Features

Frame — Alpha Platinum Aluminum, 160mm Travel: Internal downtube storage, tapered head tube, Knock Block 2.0 integrated headset, Control Freak internal routing, removable downtube guard, shuttle guard, threaded BB shell, ISCG 05 tabs, 34.9mm seat tube, magnesium rocker link, Mino Link geometry, ABP rear suspension, and Boost148 rear spacing.

Shock — RockShox Super Deluxe Select+ RT, 230x62.5mm: Included with the frameset. Rebound and compression adjustment with a lockout for XC-style efficiency when needed.

Headset — Knock Block 2.0 Integrated: 72-degree steering radius with infinite-radius chip included. Sealed cartridge bearings, 1-1/8-inch top and 1.5-inch bottom for a stiff, durable front end interface.

Hardware: Bontrager Switch thru axle with removable lever at the rear. Bontrager Elite 35mm stem (45mm length, 0-degree) included as a finishing kit component.

Rider Intent Summary

• Biggest strengths: Proven Slash enduro geometry in an aluminum frameset with an included shock, Mino Link adjustability, ISCG 05 chain guide tabs, and internal storage — a capable and flexible custom build platform
• Tradeoffs: Frameset-only purchase requires significant additional component investment; aluminum is heavier than the carbon Slash variants
• What makes it different: The Slash AL provides the enduro-focused ABP suspension platform and Mino Link geometry without locking you into a stock component specification

Victory's Take

At Victory Bicycle Studio, we stock the Slash AL for riders who know exactly what they want to build — if you have specific preferences for fork, drivetrain, or wheels, this is the right starting point for a custom Slash build, and we are happy to put together a complete build quote.
