About The Trek 920 Frameset

The Trek 920 Frameset is a 100 Series Alpha Aluminum adventure touring frame designed for loaded expeditions on any surface. It comes equipped with a matching alloy disc adventure fork, front and rear thru axles, headset, headset spacers, cable guides, seat collar, and thru-axle skewers — more complete than most competing framesets — so you can start building without hunting down hardware. If you want to ride around the world, this is a sensible platform to start with.

The geometry is balanced for stability under load: a 71.3° head angle and 110mm wheelbase (58cm) provide predictable handling when the racks are full. The 73mm threaded bottom bracket shell and 142x12mm thru axle rear end use widely available, serviceable standards — important on a frame meant for long-distance use where you may need to find parts far from home.

Who It's For

  • Riders building a loaded touring or bikepacking bike for long-distance or multi-month travel
  • Cyclists who want a capable alloy platform with rack, fender, and cage mounts built in
  • Builders who prefer widely serviceable standards (threaded BB, standard axle spacing) over proprietary specs
  • Not ideal for: performance gravel racing, riders who don't need extensive load-carrying infrastructure

What to Look For

  • BB standard: 73mm threaded — wide compatibility with most cranksets; straightforward to service anywhere in the world
  • Fork: Included 920 alloy disc fork with 15mm thru axle front; no need to source a fork separately
  • Racks: Front and rear 920 racks (sold separately) support up to 55 lbs rear and 26 lbs front — plan load distribution carefully
  • Tire clearance: 29" wheel compatible; build for volume and durability rather than race-weight tires

Key Features

Frame — 100 Series Alpha Aluminum: A capable mid-tier alloy construction with rack and fender mounts integrated front and rear. Designed for durability and repairability, not minimum weight. Made with Trek's low-emission aluminum process starting in 2024.

Fork — 920 Alloy Disc Adventure: Included in the frameset. Runs a 15mm thru axle, disc-ready, with rack and fender mounts. Paired correctly to the frame's load-carrying intent.

Compatibility — 73mm Threaded BB / 142x12mm: The threaded BB is the right call for a touring frame — it won't creak, it's easy to service, and replacement parts are available globally. The 12mm thru axle rear end provides stiffness without sacrificing repairability.

Routing & Mounts: Multiple water bottle mounts including one on the underside of the down tube. Front and rear rack mounts. Fender mounts. This is one of the most accessory-ready frames Trek makes.

Rider Intent Summary

  • Biggest strengths: Comes with fork included, globally serviceable standards, extensive mount infrastructure, balanced loaded geometry
  • Tradeoffs: Alloy weight is higher than carbon alternatives; not optimized for speed or racing; racks sold separately
  • What makes it different: The inclusion of the fork plus headset hardware makes this a more turnkey starting point than most framesets; the threaded BB is a deliberate, practical choice for long-distance use

Victory's Take

At Victory Bicycle Studio, we appreciate that the 920 Frameset prioritizes practicality and serviceability over trend-chasing — if you're building a bike you plan to ride across a country or two, these are exactly the right tradeoffs to make.

What you get

  • Frame - 100 Series Alpha Aluminum, touring geometry
  • Fork - 920 alloy disc adventure fork included
  • BB - 73mm threaded
  • Tires - 29" wheel compatible
  • Axle - 142x12mm thru axle

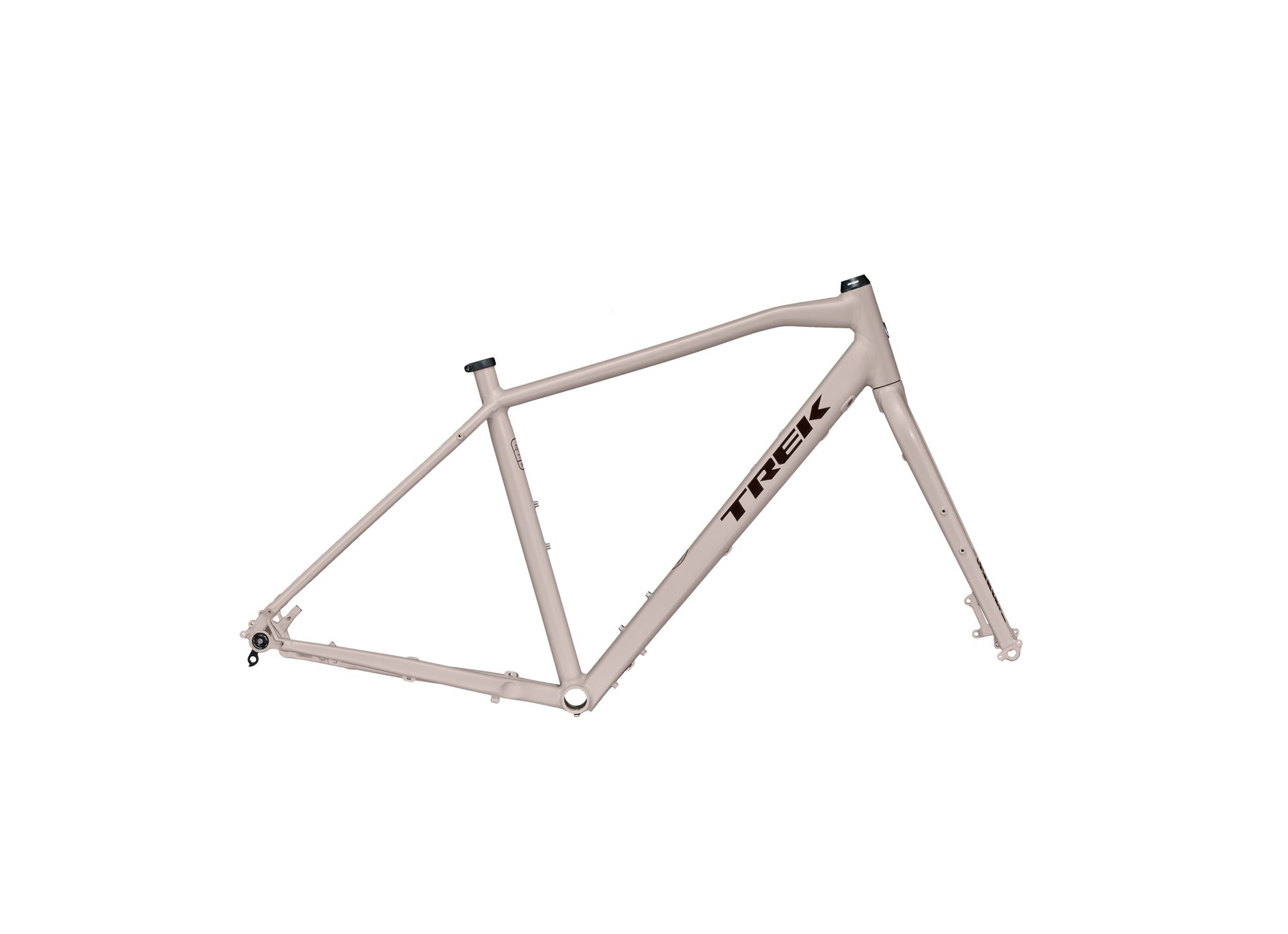

920 F/S 58 Matte Sandstorm

Trek

Trek 920 Frameset

Regular price $989.99 USD
Sale price $989.99 USD Regular price $989.99 USD

Specifications

Frameset
Frame

100 Series Alpha Aluminum (low-emission process), rack and fender mounts front and rear, multiple water bottle mounts (including downtube underside), 73mm threaded BB, 142x12mm thru axle, 71.3 deg head angle, 29in wheel compatible

Fork

920 alloy disc adventure fork (included), 15mm thru axle, rack and fender mounts, disc-ready

Wheels
Front Axle

15mm thru axle

Rear Axle

142x12mm thru axle

Drivetrain and Brakes
BB Standard

73mm threaded — globally serviceable standard

Additional Information
Headset

Included

Rack Capacity

920 racks (sold separately) — up to 55 lbs rear / 26 lbs front
