About The Trek Check-OUT SL 7 AXS Gravel Bike

The Trek Check-OUT SL 7 AXS is the premium build in Trek's full-suspension gravel lineup, designed for riders who want to push farther into technical terrain without giving up the drop-bar experience. The 500 Series OCLV Carbon frame delivers 55mm of rear travel via a RockShox SIDluxe Ultimate 3P shock, while the RockShox Rudy XL Ultimate fork adds 60mm of travel up front with a Charger Race Day 2 damper for precise, tunable control. Up to 56mm of tire clearance extends your range well into singletrack territory.

Where the SL 7 AXS separates itself is in the component build: SRAM Force AXS E1 wireless shifting drives an X0 Eagle AXS T-Type rear derailleur across a 10-52 cassette, and the RockShox Reverb AXS wireless dropper post is operated without a cable or remote clutter. Bontrager Aeolus Pro 3V OCLV Carbon wheels keep the rotating weight down while adding stiffness and aerodynamic profile. An integrated rear rack, Adjustable Multi-Mounts, and 18 frame mounts (ML and up) make serious bikepacking load-outs entirely practical.

Who It's For

  • Experienced gravel and adventure riders who want the most capable build on the Check-OUT platform
  • Riders who've outgrown rigid gravel bikes and want suspension without switching to a mountain bike
  • Bikepacking enthusiasts who also want a bike that performs well on technical singletrack and remote roads
  • Riders focused purely on race-pace gravel on smooth courses — a lighter, rigid carbon bike will serve them better

What to Look For

  • Wireless vs. mechanical: The SRAM AXS drivetrain requires battery management; charging the shifters and dropper post is part of the routine
  • Size and rack mounts: Integrated rack and 18-mount capacity are only available on ML and larger frames
  • Carbon wheels: The Aeolus Pro 3V wheels are a meaningful upgrade over alloy — lighter, stiffer, and faster rolling — but require more care on rocky terrain

Key Features

Frame and Fork: 500 Series OCLV Carbon frame with 55mm rear travel; RockShox Rudy XL Ultimate fork with 60mm of travel. Gravel Adventure geometry prioritizes stability and comfort on long, mixed-surface days. The integrated rear rack is suspension-compatible, moving with the bike rather than fighting it.

Drivetrain: SRAM Force AXS E1 wireless shifters operate an X0 Eagle AXS T-Type rear derailleur and a 10-52 Eagle cassette. The 38T SRAM Force 1 XPLR crank keeps the system clean and mechanically simple while delivering wide-range gearing for any grade.

Brakes: SRAM hydraulic disc brakes with 160mm SRAM Paceline X rotors provide strong, consistent stopping across wet and muddy terrain. The wireless dropper remote integrates into the brake lever cluster without extra clutter.

Wheels and Tires: Bontrager Aeolus Pro 3V OCLV Carbon tubeless-ready wheels are shod with 700x55mm Bontrager Betasso RSL tires. The carbon wheelset trims rotational weight meaningfully compared to the alloy spec on the SL 5, and the wide tire volume keeps the whole system forgiving on rough surfaces.

Rider Intent Summary

  • Biggest strengths: The most complete full-suspension gravel build available — wireless electronics, carbon wheels, and a wireless dropper post on a proven adventure platform
  • Tradeoffs: Premium price and battery-dependent systems require more rider attention than a simpler mechanical setup
  • What makes it different: Combines mountain bike-level suspension capability with gravel-specific geometry, massive storage capacity, and top-tier wireless components in a single package

Victory's Take

The Check-OUT SL 7 AXS is the bike we'd reach for when the route map involves gravel, two-track, singletrack, and a few nights out — it handles all of it without compromise. At Victory Bicycle Studio, we see this as the right choice for serious adventure riders who want one bike that does everything well.

What you get

  • Frame - 500 Series OCLV Carbon, 55mm IsoStrut rear travel
  • Fork - RockShox Rudy XL Ultimate, 60mm travel
  • Drivetrain - SRAM Force AXS E1 / X0 Eagle AXS wireless
  • Brakes - SRAM hydraulic disc, 160mm
  • Wheels - Bontrager Aeolus Pro 3V OCLV Carbon

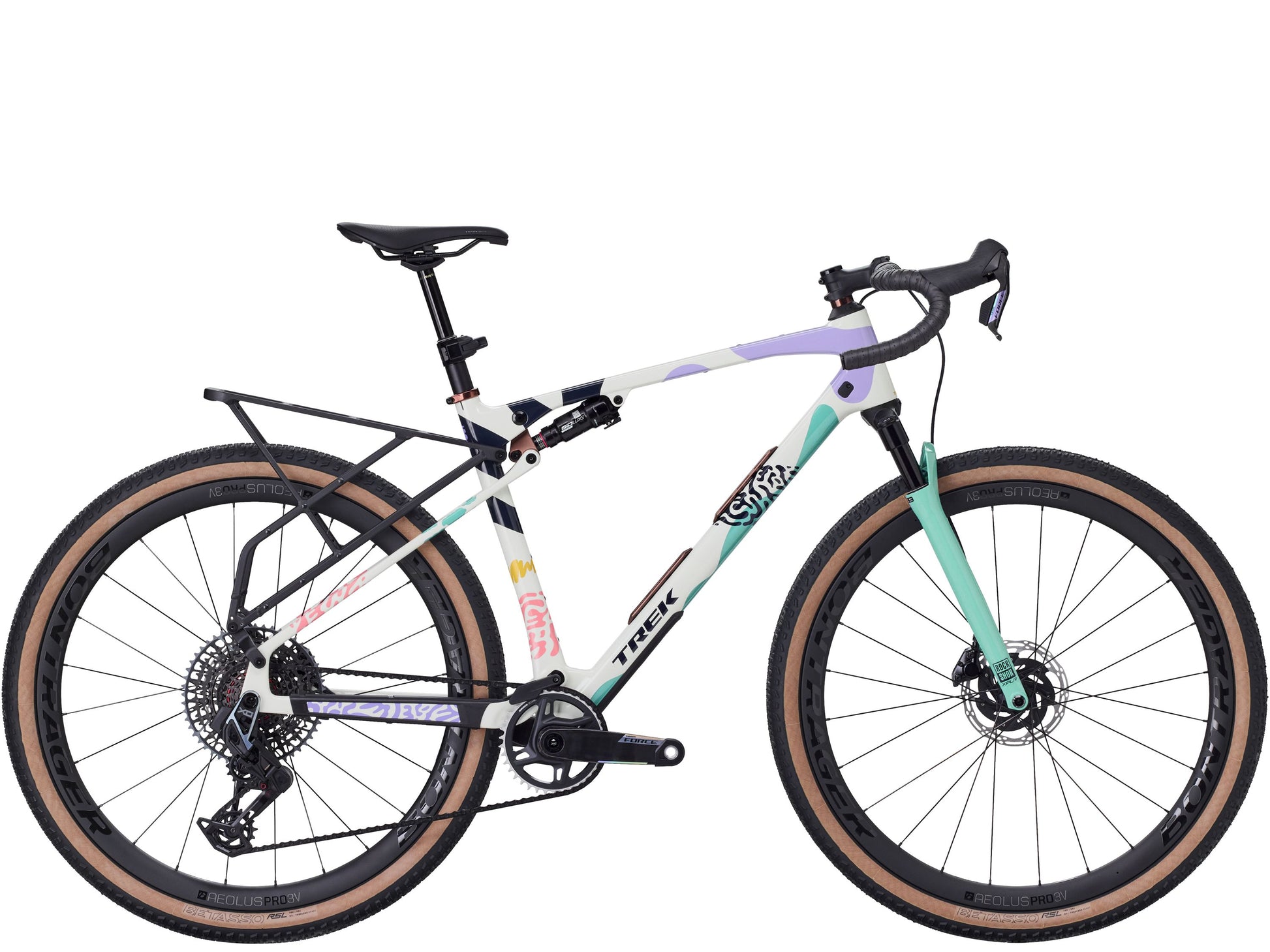

Checkout SL 7 AXS ML Era White/Blue Sage

Trek

Trek Check-OUT SL 7 AXS Gravel Bike

Regular price $8,999.99 USD
Sale price $8,999.99 USD Regular price $8,999.99 USD

Specifications

Frameset
Frame

500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12mm chamfered thru axle, 55mm travel

Fork

RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45mm offset, 12x100mm thru axle, 60mm travel

Rear Shock

RockShox SIDluxe Ultimate 3P, 170x27.5mm

Weight

ML - 11.28 kg / 24.87 lbs (with TLR sealant, no tubes, excluding rear rack)

Wheels
Front Wheel

Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 100x12mm thru axle

Rear Wheel

Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25mm rim width, 142x12mm thru axle

Tire

Bontrager Betasso RSL GX, Tubeless Ready, aramid bead, 60 tpi, 700x55mm

Max Tire Size

56mm / 2.20"

Drivetrain and Brakes
AXS Battery

SRAM AXS battery pack (with charger)

Shifter

SRAM Force AXS E1

Rear Derailleur

SRAM X0 Eagle AXS, T-Type

Crank

SRAM Force 1 XPLR E1, 38T, DUB Wide

- Size: S - 165mm

- Size: M, ML - 170mm

- Size: L, XL - 172.5mm

Bottom Bracket

SRAM DUB Wide, T47 threaded, internal bearing

Cassette

SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

Chain

SRAM X0 Eagle, T-Type, 12 speed

Brake Rotor

SRAM Paceline X, rounded, centerlock, 160mm

Max Rotor Size

180mm front & rear

Cockpit
Saddle

Verse Short Elite, hollow magnesium rails, 145mm width

Seatpost

RockShox Reverb AXS, 100mm travel, wireless, 31.6mm, 337mm length

Handlebar

Bontrager GR Checkout

- Size: S - 42cm

- Size: M - 44cm

- Size: ML, L - 46cm

- Size: XL - 48cm

Handlebar Tape

Bontrager Supertack Perf tape

Stem

Bontrager Pro, 31.8mm, Blendr compatible, 7 degree

- Size: S, M - 60mm

- Size: ML, L - 70mm

- Size: XL - 80mm

Additional Information
Included Accessory

Checkout rear rack, Trek Adjustable Multi-Mount
