About The Trek Checkpoint ALR Frameset

The Trek Checkpoint ALR Frameset is an aluminum gravel frame built on Gravel Endurance geometry, designed for riders who want all-day comfort and versatility without moving to carbon. Constructed from 300 Series Alpha Aluminum using Trek's low-emission process, the frame comes with a full carbon Checkpoint fork — giving you the weight and compliance benefits of carbon up front while keeping the overall build cost accessible.

The Gravel Endurance geometry runs a higher stack and shorter reach than a race-oriented frame, keeping you comfortable over long hours without sacrificing control on descents. Tire clearance up to 50mm (or 29x2.0, as measured) handles mixed terrain confidently, and the frame is suspension fork and dropper post compatible — rare features on an aluminum gravel frame that meaningfully expand what you can do with it. The rear runs T47, UDH, and a flat mount disc with a chamfered 142x12mm thru axle.

Who It's For

  • Riders who want a capable all-day gravel frame at an alloy price point, with real upgrade potential
  • Bikepacking builders who need rack, fender, and bag mounts across frame and fork
  • Riders who may want to run a suspension fork for more technical terrain (all sizes except XS)
  • Not ideal for: carbon-only builds, riders prioritizing minimum weight above all else

What to Look For

  • Fork: Trek Checkpoint full carbon fork included with rack mounts, fender mounts, flat mount disc, and 12x100mm thru axle — a meaningful addition to the alloy frameset value
  • Suspension fork compatibility: Available on all sizes except XS; confirm fork travel and axle-to-crown specs fit the geometry
  • BB standard: T47 — thread-in reliability, widely compatible
  • Tire clearance: Up to 50mm or 29x2.0 as measured — plenty of room for gravel and light singletrack tires

Key Features

Frame — 300 Series Alpha Aluminum: Mid-tier aluminum construction with internal cable routing, 3S chain keeper, flat mount disc, and low-emission manufacturing. Tapered head tube accepts any tapered steerer fork. Rack and fender mounts integrated throughout.

Fork — Trek Checkpoint Full Carbon: Included. Tapered carbon steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle. Adds compliance and saves weight compared to an alloy fork pairing.

Compatibility — T47 / UDH / 142x12mm: T47 bottom bracket, Universal Derailleur Hanger, chamfered thru axle rear end. Removable front derailleur hanger. Dropper post compatible across all sizes.

Routing & Mounts: Internal cable routing, integrated frame bag mounts, rack and fender mounts on frame and fork, adventure bag compatibility. Designed to carry everything you need for long rides or multi-day trips.

Rider Intent Summary

  • Biggest strengths: Versatile alloy platform with carbon fork included, suspension fork compatible, 50mm tire clearance, extensive mount infrastructure, T47 and UDH standards
  • Tradeoffs: Alloy weight is higher than carbon alternatives; no IsoSpeed compliance built into the frame; XS size not suspension fork compatible
  • What makes it different: Suspension fork and dropper post compatibility on an aluminum gravel frame is genuinely unusual — it lets this build grow significantly beyond what a typical alloy gravel frame can do

Victory's Take

At Victory Bicycle Studio, the Checkpoint ALR is the frame we recommend when riders want a capable, versatile gravel platform without the carbon price tag — the carbon fork inclusion and suspension fork compatibility make this a stronger value than it might initially appear.

What you get

  • Frame - 300 Series Alpha Aluminum, Gravel Endurance
  • Fork - Checkpoint full carbon included
  • BB - T47 threaded
  • Tires - 50mm tire clearance
  • Axle - 142x12mm thru axle

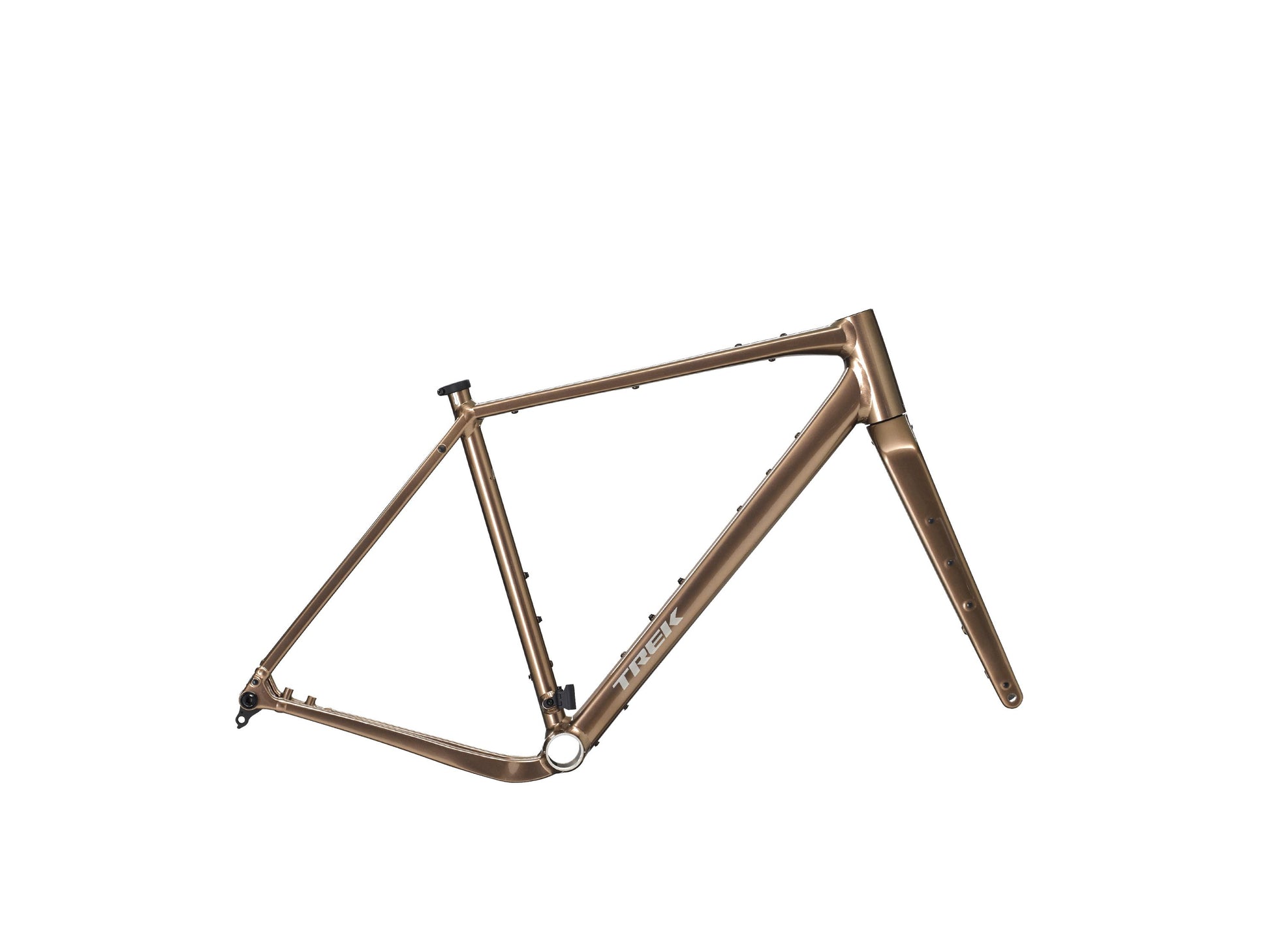

Checkpoint ALR F/S S Bronze Age

Trek

Trek Checkpoint ALR Frameset

Regular price $1,049.99 USD
Sale price $1,049.99 USD Regular price $1,049.99 USD

Specifications

Frameset
Frame

300 Series Alpha Aluminum, internal cable routing, 3S chain keeper, T47 BB, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle

Fork

Trek Checkpoint full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Wheels
Front Thru Axle

Bontrager Switch chamfered thru axle, 12x100mm

Rear Thru Axle

Bontrager Switch chamfered thru axle, removable lever, 12x142mm

Max Tire Size

50mm without fenders, 42mm with fenders

Drivetrain and Brakes
Max Chainring Size

1x: 44T, 2x: 46/30

Max Brake Rotor Size

180mm front & rear, flat mount

Additional Information
Weight

1878g - M frame (painted), 525g fork (painted)

Weight Limit

275 lbs (125 kg)
