About The Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike

The Trek Checkpoint SL 7 AXS Gen 3 is where the Checkpoint SL lineup transitions from capable gravel bike to genuinely fast one. Built on the same 500 Series OCLV Carbon frame with IsoSpeed as the SL 5 and SL 6, it steps up to Bontrager Aeolus Elite 35V OCLV Carbon wheels and a SRAM Force AXS E1 wireless 13-speed drivetrain — the two upgrades that matter most for riders who want to ride harder and faster without moving to a race-specific platform. Gravel Endurance geometry keeps you in a comfortable, stable position for long days, and 50mm tire clearance (as measured) extends your terrain options well beyond paved roads.

The Bontrager Aeolus Elite 35V carbon wheels with 35mm rim depth bring a meaningful reduction in rotational weight and aerodynamic improvement over alloy wheels — noticeable across long gravel sections where small speed gains compound. SRAM Force XPLR AXS shifts across a 13-speed 10-46 cassette with clean wireless precision. A carbon Bontrager seatpost works alongside IsoSpeed to absorb vibration, and 700x42mm Bontrager Girona Pro tires round out the build on tubeless-ready rims.

Who It's For

  • Serious gravel riders who want carbon wheels and Force-level wireless shifting on a comfort-oriented endurance platform
  • Cyclists who ride long events like Gravel Worlds or RAGBRAI and want gear that performs without pushing them into a race-specific position
  • Riders who've identified carbon wheels as their priority upgrade and want a complete build around them
  • Riders focused on bikepacking with heavy loads may prefer the SL 5 or 6 to save budget for gear; the SL 7's carbon wheels are more vulnerable to trail hazards

What to Look For

  • Carbon wheel care: The Aeolus Elite 35V wheels perform best on roads and packed gravel; very rocky or technical terrain introduces more rim strike risk than alloy wheels would face
  • Force vs. RED: SRAM Force AXS is the right choice for most riders — RED AXS saves more grams at significantly higher cost, and the shifting feel difference is marginal in real-world riding
  • IsoSpeed tuning: The compliance system is adjustable; get a bike fit dialed in first, then tune IsoSpeed to match your weight and ride preference

Key Features

Frame and Fork: 500 Series OCLV Carbon with IsoSpeed compliance, downtube storage door, rack and fender mounts, integrated frame bag mounts, invisible cable routing, and UDH. Trek Checkpoint full carbon fork with rack and fender mounts. Gravel Endurance geometry optimized for all-day comfort and control on mixed surfaces.

Drivetrain: SRAM Force AXS E1 13-speed wireless shifters operate a SRAM Force XPLR AXS rear derailleur across a 10-46 XPLR cassette. The 40T DUB Wide crank is efficient and gravel-specific. Force AXS offers precise, reliable wireless shifting with excellent battery life.

Brakes: SRAM Force AXS hydraulic disc brakes with 160mm SRAM CenterLine X and Paceline X centerlock rotors. Strong stopping performance matched to the wheel and tire setup for confident control on fast descents.

Wheels and Tires: Bontrager Aeolus Elite 35V OCLV Carbon tubeless-ready wheels at 35mm rim depth with 700x42mm Bontrager Girona Pro tires. Carbon rims reduce rotational weight meaningfully compared to alloy — the biggest single performance differentiator between this and the SL 5 or SL 6.

Rider Intent Summary

  • Biggest strengths: Carbon Aeolus Elite 35V wheels and SRAM Force XPLR AXS drivetrain on a proven IsoSpeed carbon platform — the complete package for a fast, comfortable gravel experience
  • Tradeoffs: Premium price reflects the carbon wheel upgrade; riders who don't need carbon wheels get better value at the SL 5 or SL 6 level
  • What makes it different: The carbon wheel and Force AXS combination at the SL 7 price point is competitive in the gravel market — most bikes at this spec cost more

Victory's Take

The Checkpoint SL 7 AXS is the version we'd buy if we were building one gravel bike to do everything — the carbon wheels make a real difference on long days, and the Force AXS drivetrain is as good as it needs to be for any gravel event we can think of. At Victory Bicycle Studio, this is one of our favorite builds in the entire gravel category.

What you get

  • Frame - 500 Series OCLV Carbon, IsoSpeed, 50mm clearance
  • Fork - Checkpoint full carbon, rack + fender mounts
  • Drivetrain - SRAM Force AXS E1 wireless 13-speed
  • Brakes - SRAM Force AXS hydraulic disc, 160mm
  • Wheels - Bontrager Aeolus Elite 35V OCLV Carbon

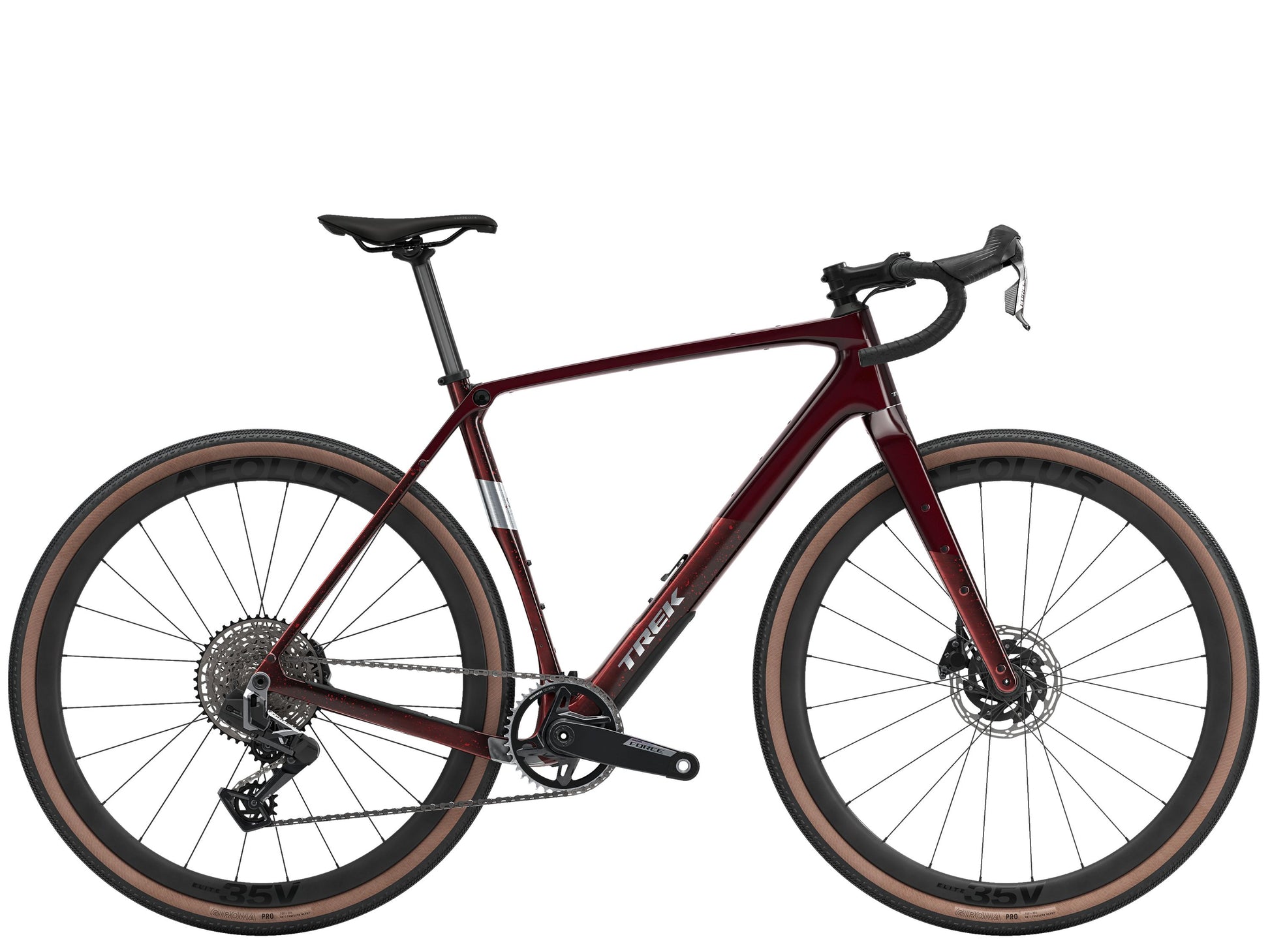

Checkpoint SL 7 AXS ML Dark Red/Carbon Red Smoke Splatter

Trek

Trek Checkpoint SL 7 AXS Gen 3 Gravel Bike

Regular price $6,499.99 USD
Sale price $6,499.99 USD Regular price $6,499.99 USD

Specifications

Frameset
Frame

500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

Fork

Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Weight

ML - 9.33 kg / 20.57 lbs (with TLR sealant, no tubes)

Wheels
Front Wheel

Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle

Rear Wheel

Bontrager Aeolus Elite 35V, OCLV Carbon, Tubeless Ready, 35mm rim depth, SRAM XDR driver, 142x12mm thru axle

Tire

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Max Tire Size

50mm without fenders, 42mm with fenders

Drivetrain and Brakes
AXS Battery

SRAM AXS battery pack (with charger)

Shifter

SRAM Force AXS E1

Rear Derailleur

SRAM Force XPLR AXS, 46T max cog

Crank

SRAM Force XPLR, 40T, DUB Wide

- Size: XS, S, ML - 165mm

- Size: M - 170mm

- Size: L - 172.5mm

- Size: XL - 175mm

Bottom Bracket

SRAM DUB Wide, T47 threaded, internal bearing

Cassette

SRAM Force XPLR XG-1371, 10-46, 13 speed

Chain

SRAM Force E1, 12/13 speed

Brake

SRAM Force AXS hydraulic disc, flat mount

Brake Rotor

SRAM CenterLine X, centerlock, round edge, 160mm

Max Rotor Size

180mm front & rear

Cockpit
Saddle

Verse Short Elite, hollow magnesium rails, 145mm width

Seatpost

Bontrager carbon, 27.2mm, 8mm offset, 330mm length

Handlebar

Bontrager Pro Gravel

- Size: XS, S - 40cm width

- Size: M, ML - 42cm width

- Size: L - 44cm width

- Size: XL - 46cm width

Handlebar Tape

Bontrager Supertack Perf tape

Stem

Bontrager Pro, 31.8mm, Blendr compatible, 7 degree

- Size: XS - 70mm

- Size: S, M - 80mm

- Size: ML, L - 90mm

- Size: XL - 100mm

Additional Information
Included Accessory

Bontrager BITS Internal Frame Storage Bag
