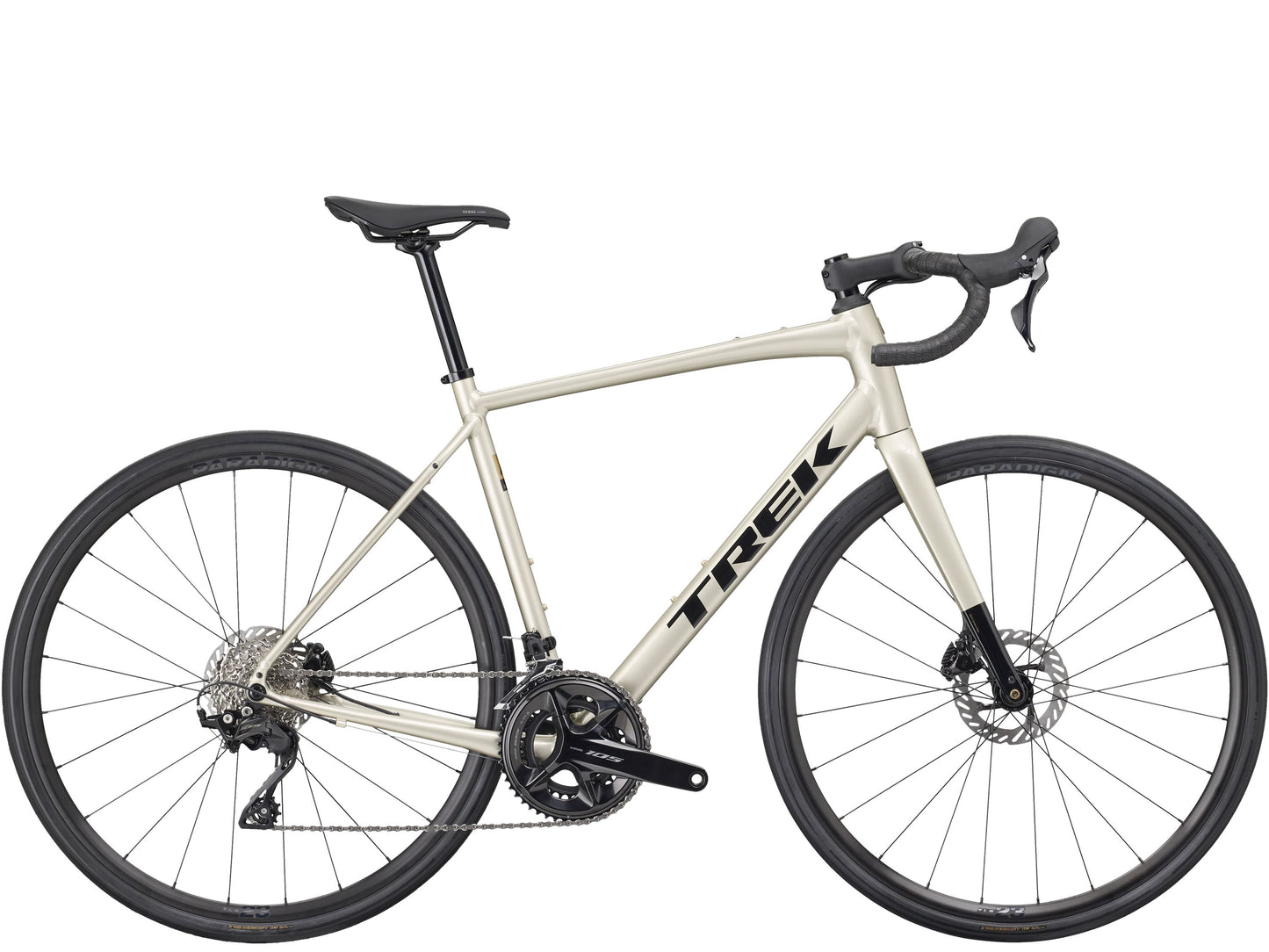

About The Trek Domane AL 5 Gen 4 Aluminum Shimano 105 Road Bike
The Trek Domane AL 5 Gen 4 is the top aluminum build in Trek's Gen 4 Domane AL line, pairing the 100 Series Alpha Aluminum frame and carbon fork with 12-speed Shimano 105 R7120 — the first generation of 105 to offer 12-speed performance at an aluminum bike price. The 12-speed cassette (11-34) provides a tight, even gear progression that meaningfully improves cadence control compared to the 8- and 11-speed tiers below it. Available in sizes 44–61cm across three colorways.
The AL 5 uses Bontrager alloy hubs with sealed bearings and centerlock disc mounts, paired with Shimano CL700 centerlock 160mm rotors. Shimano 105 R7120 shifters and R7100 rear derailleur (36T max cog) deliver the clean, predictable action 105 is known for. Tubeless-ready Paradigm 23 rims with Kwaremont Comp 700x32mm tires are shared across the AL lineup. Blendr-compatible Bontrager Elite stem and hidden cable routing are standard.
Who It's For
- Road cyclists who want 12-speed Shimano 105 on an aluminum frame
- Riders who do longer, more demanding road rides and will notice the difference in shifting quality and gear density
- Those ready to step into a groupset with strong long-term parts availability and service support
- Consider carbon: if weight is a priority — the Domane SLR offers a meaningful ride quality difference at a higher price
What to Look For
- 12-speed Shimano 105 R7120: Tightest gear steps available on an aluminum Domane; the upgrade over 8- and 11-speed is noticeable on hilly rides
- Centerlock disc: Centerlock rotors are more convenient to swap and more precisely centered than 6-bolt alternatives
- Frame platform: Same carbon fork and aluminum frame as the AL 2 and AL 4 — the investment here is in the drivetrain
Key Features
Frame & Fork — 100 Series Alpha Aluminum + carbon: UDH, 142x12mm thru axle, internal routing, fender mounts, flat mount disc. Domane AL carbon fork with fender mounts and 12x100mm thru axle.
Drivetrain — Shimano 105 R7120 12-speed: R7120 shifters, R7100 front derailleur (down swing), R7100 rear derailleur (36T max cog). 50/34 crank at 165mm, Shimano 105 7101 11-34 cassette. Shimano SLX M7100 chain.
Brakes — Shimano CL700 centerlock disc: 160mm rotors front and rear. Significantly better modulation and wet-weather performance than mechanical disc. Easier rotor centering than 6-bolt.
Wheels & Tires — Bontrager Paradigm 23 tubeless-ready: Sealed-bearing Bontrager alloy hubs (centerlock). Kwaremont Comp Hard-Case Lite 700x32mm. Ready for tubeless conversion.
Rider Intent Summary
- Biggest strengths: 12-speed Shimano 105 on aluminum; centerlock hydraulic disc; tubeless-ready wheels; Blendr stem; UDH for drivetrain upgrades
- Tradeoffs: Aluminum frame carries more weight than carbon alternatives at a similar or higher price; 700x32mm stock tires are road-focused
- What makes it different: The Domane AL 5 Gen 4 delivers 12-speed 105 shifting at an aluminum price — the practical upgrade ceiling for this chassis before moving to carbon
Victory's Take
At Victory Bicycle Studio, the Domane AL 5 is the bike we fit most often for riders who take road cycling seriously and want a proper groupset without a carbon frame. The 12-speed 105 drivetrain is an upgrade you'll notice on every ride.
What you get

Trek Domane AL 5 Gen 4 Aluminum Shimano 105 Road Bike
