About The Ventum ES1-G Carbon 12 Speed Electric Gravel Bike

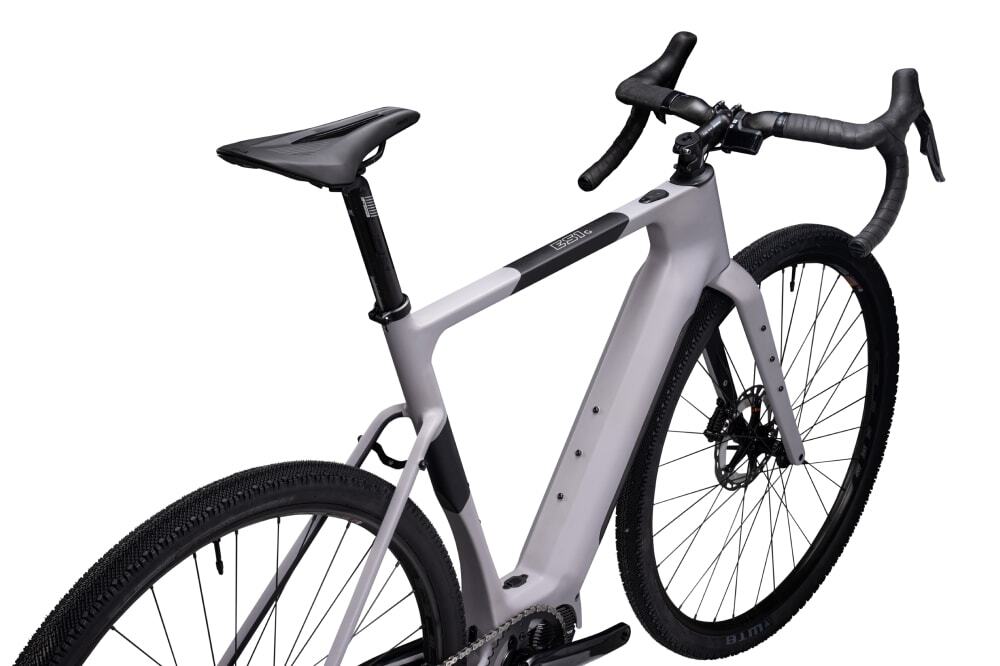

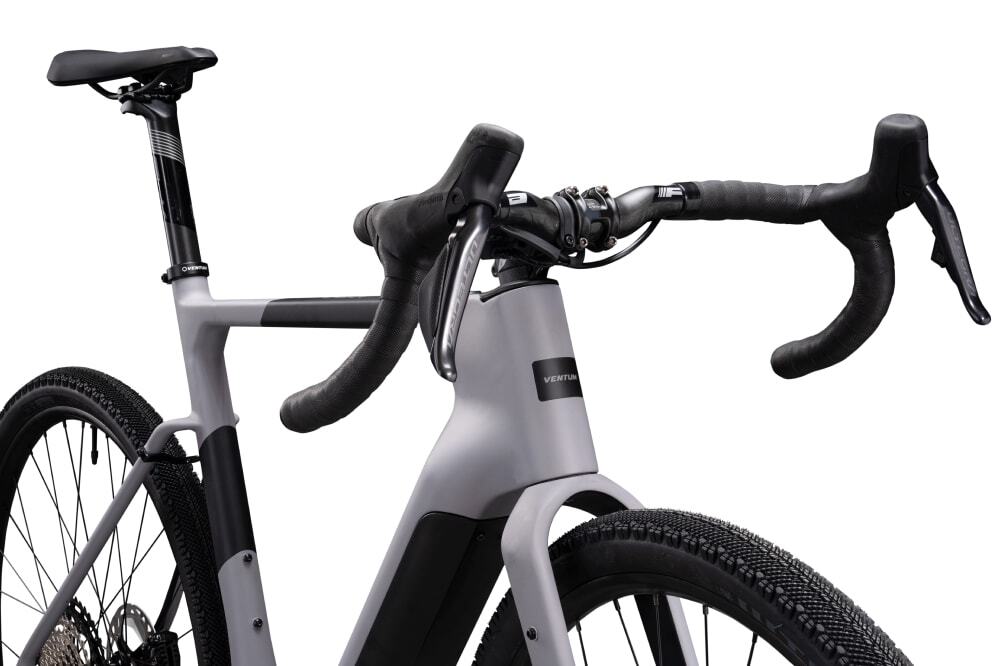

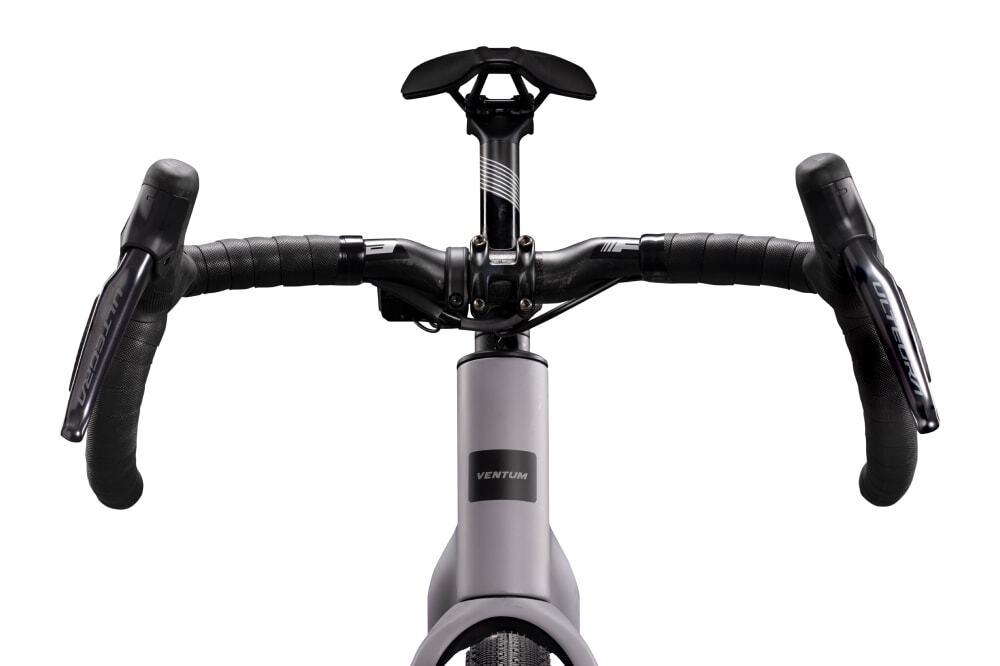

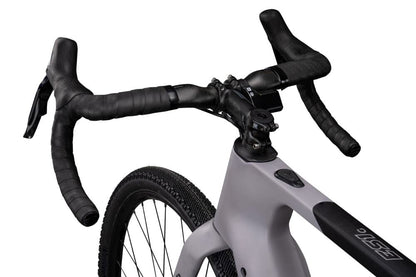

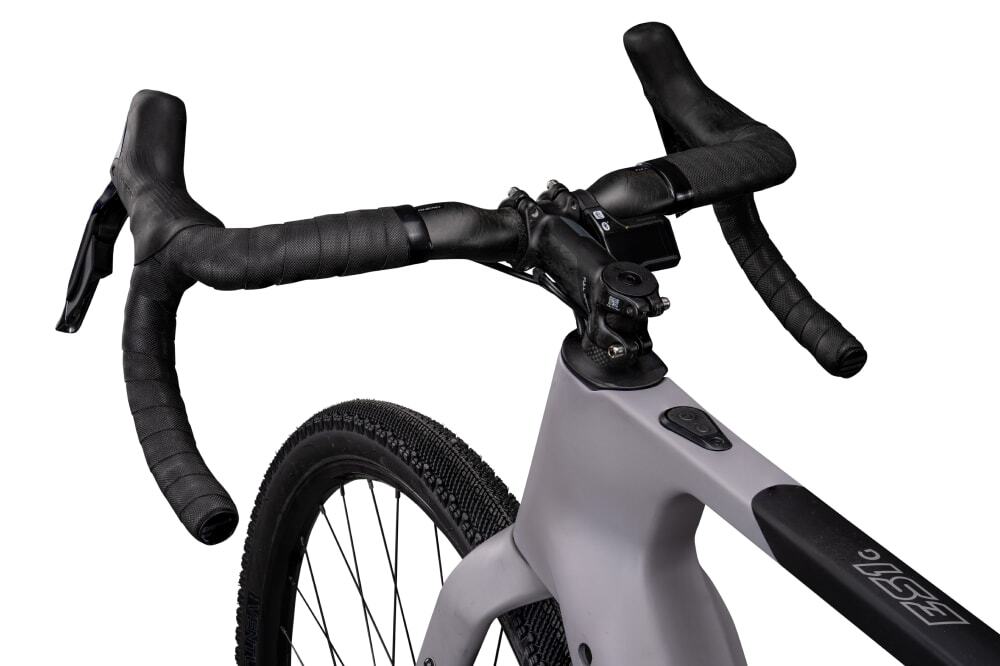

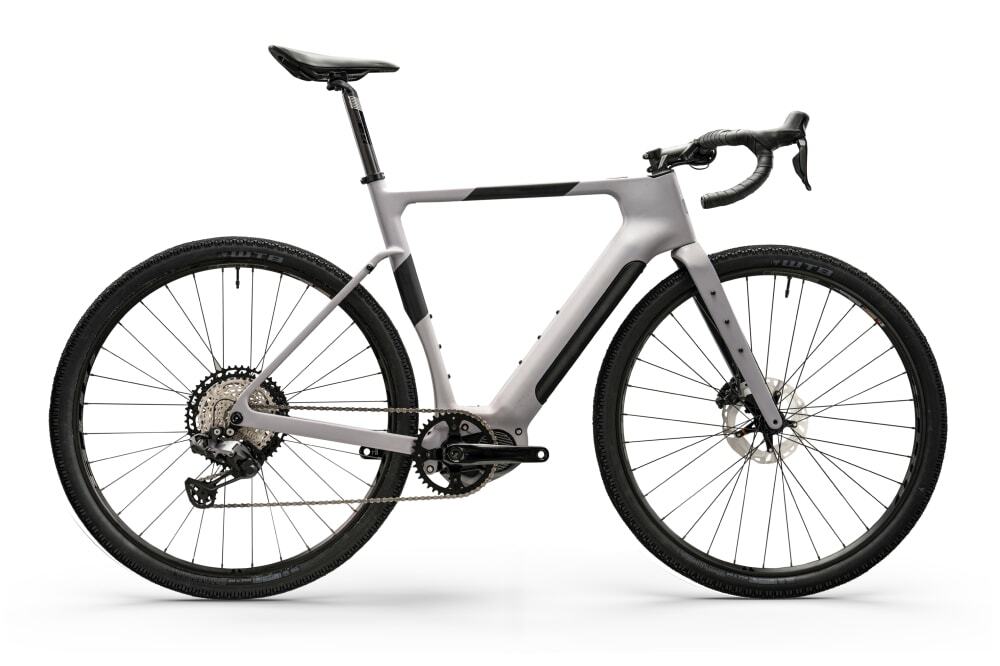

The Ventum ES1-G is a full-carbon electric gravel bike built around the Shimano EP801 drive system — 250w and 85Nm of torque with Class 3 pedal assist up to 28 mph. It shares its architecture with Ventum's GS1 gravel platform, bringing over the same carbon frame with internal cable routing and a UDH dropout, while integrating a 504Wh internal, removable battery that keeps the silhouette clean and the handling familiar.
Three assist modes — eco, trail, and boost — let riders tune output to terrain and conserve range on long days. A mixed Shimano Di2 drivetrain (Ultegra shifters and brakes, XT Di2 rear derailleur, XT 10-51T cassette), WTB Speedterra i23 tubeless wheels, and 700x50c WTB Venture tires round out a spec that covers commuting, bikepacking, and supported gravel events. Rack and accessory mounts are included.
Who It's For
- Gravel riders who want motor assistance for long days, loaded bikepacking routes, or sustained climbing without giving up a road-derived position
- Cyclists managing physical limitations or returning from injury who still want to cover serious terrain
- Mixed-use commuters who need range across pavement and unpaved surfaces
- Group-ride and event riders targeting pace — Class 3 assist keeps you in the draft
Consider a non-assisted gravel bike if you're racing in non-e-bike-permitted events, prioritize minimum weight, or want to avoid the maintenance overhead of an e-drive system.
What to Look For
- Geometry and fit: The ES1-G is sized as a gravel bike, not an e-MTB — confirm the geometry matches your preferred riding position before purchase; a professional fit is recommended
- Battery range vs. terrain: 504Wh provides meaningful range in eco mode, but real-world range depends heavily on elevation, rider weight, and assist level — map your target routes accordingly
- Tire ceiling: The 700x50c maximum is already installed; riders wanting wider tires or lighter trail use should confirm this limit works for their riding
Key Features

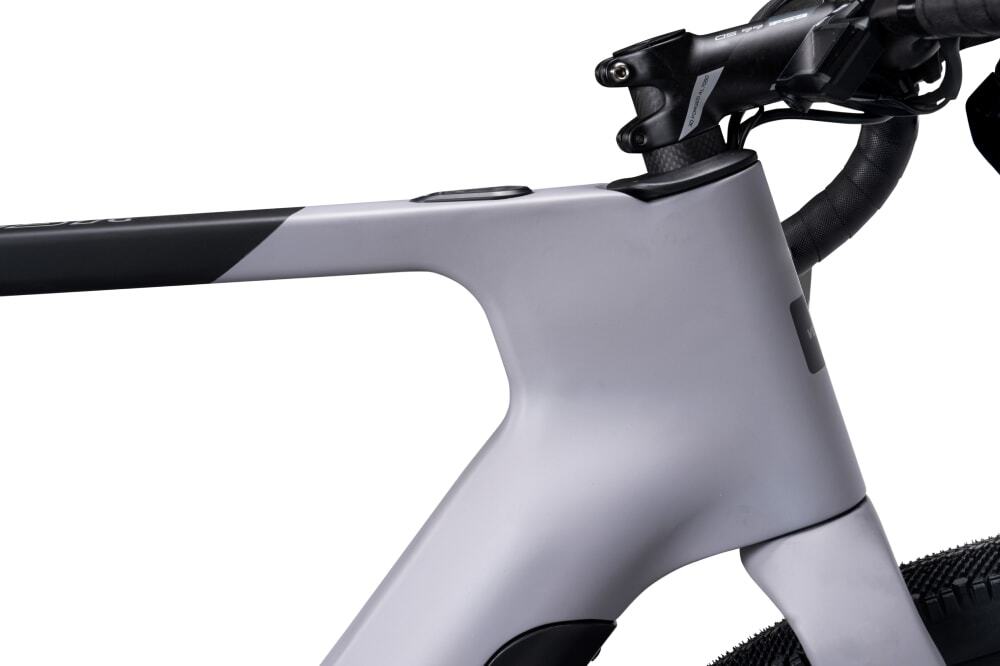

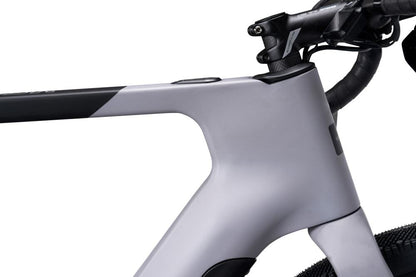

Frame and Fork: Full carbon construction with a tapered carbon steerer, carbon dropouts, and internal cable and brake routing throughout. The UDH dropout provides broad compatibility with current and future rear derailleurs and dropper posts.
Drive System: The Shimano EP801 motor (85Nm torque) pairs with a Shimano STEPS SC-EN600 handlebar display for mode and battery monitoring. The 504Wh battery is internal and removable — a practical distinction for charging away from the bike and storage security.
Drivetrain: A 1x12 Shimano Di2 setup combines Ultegra shift levers with an XT Di2 rear derailleur and 10-51T cassette — a wide-range combination suited to loaded climbing with assist. Electronic shifting eliminates cable tension management across the full gear range.
Braking: Shimano Ultegra hydraulic disc brakes with XT Centerlock rotors (180mm front, 160mm rear) deliver consistent stopping power across wet and muddy conditions without fade.
Wheels and Tires: WTB Speedterra i23 tubeless-ready wheels run Center Lock interfaces front and rear; the rear uses a Shimano MicroSpline freehub compatible with the XT cassette. Pre-installed WTB Venture 700x50c tires offer a wide contact patch for mixed-surface traction.
Rider Intent Summary
- Biggest strengths: High-torque Class 3 assist on a purpose-built gravel carbon platform with a mature, reliable Shimano Di2 drivetrain
- Tradeoffs: E-drive weight and complexity; 700x50c tire clearance ceiling limits trail versatility
- What makes it different: Gravel-specific geometry in a full-carbon e-bike frame — closer to a race-derived platform than most e-gravel bikes at this spec level
Victory's Take
At Victory Bicycle Studio, we consider the ES1-G the right choice for riders who want to extend their range into harder, longer gravel terrain without compromising the feel of a well-built carbon bike. The EP801 system is mature and well-supported, and the Di2 integration makes it one of the cleaner e-gravel builds available.
What you get

Ventum ES1-G Carbon 12 Speed Electric Gravel Bike
