About The Trek Émonda SLR H2 Frameset

The Trek Émonda SLR H2 Frameset is an ultralight climbing machine built from 700 Series OCLV Carbon using a ride-tuned layup that optimizes the frame for both minimum weight and maximum ride quality. The H2 geometry positions riders with a higher stack and longer reach than the aggressive H1, making this version accessible to a wider range of body types while still delivering the responsive, lightweight feel that defines the Émonda SLR. This is an older-generation frameset with rim brake and quick-release standards.

The frame uses a Ride Tuned seatmast design rather than a standard seatpost — seatpost is not included and must be sourced separately. The BB90 press-fit bottom bracket and 130x5mm quick-release axle standards are important build considerations for anyone speccing this frame in the current market. The Émonda SLR full carbon fork with direct mount rim brake is included.

Who It's For

  • Climbing-focused riders who want the lightest possible road frame and are comfortable with older component standards
  • Riders who prefer the H2 geometry fit (higher stack, longer reach vs. H1) in the SLR carbon platform
  • Builders with existing BB90 and QR components, or who are sourcing period-correct parts
  • Not ideal for: riders who need disc brakes, modern thru-axle standards, or current drivetrain compatibility

What to Look For

  • BB standard: BB90 press-fit — requires careful bearing and crankset selection; not universally compatible with all modern cranksets
  • Axle standard: 130x5mm quick-release rear — older standard; wheel selection must match
  • Brake standard: Direct mount rim brake — not disc; brakes not included
  • Seatpost: Ride Tuned seatmast — not included; must be sourced separately

Key Features

Frame — 700 Series OCLV Carbon with Ride Tuned Optimization: Trek's highest-tier carbon in this generation, with tube optimization specific to the Émonda SLR's climbing and ride quality targets. Control Freak internal routing for clean cable management. DuoTrap S compatible. Tapered head tube.

Fork — Émonda SLR Full Carbon: Included. Tapered carbon steerer, direct mount rim brake, carbon dropouts, 5x100mm QR. Weight-optimized to match the SLR frame's climbing intent.

Compatibility — BB90 / 130x5mm QR / Direct Mount Rim Brake: Older Trek proprietary standards — BB90 press-fit, 130x5mm quick-release rear axle, direct mount rim brakes. These specs require careful component planning for a current build.

Routing & Mounts: Control Freak internal cable routing. Standard road mounting; no rack or fender mounts. DuoTrap S speed/cadence sensor compatible.

Rider Intent Summary

  • Biggest strengths: Ultralight 700 Series OCLV carbon, Ride Tuned frame optimization, H2 geometry accessibility, fork included
  • Tradeoffs: Older platform standards (BB90, QR axle, rim brake) require specific component choices and limit modern drivetrain compatibility; seatpost not included
  • What makes it different: The 700 Series OCLV carbon with Ride Tuned optimization is genuinely elite — the weight and ride quality are still competitive, but the older standards require a knowledgeable build approach

Victory's Take

At Victory Bicycle Studio, the Émonda SLR H2 is a frame for experienced builders who understand the platform and want the climbing performance of 700 Series carbon — we recommend discussing compatibility requirements in detail before committing to a build on these older standards.

What you get

  • Frame - 700 Series OCLV Carbon, Ride Tuned, H2 geometry
  • Fork - Emonda SLR full carbon included
  • BB - BB90 press-fit
  • Tires - Rim brake
  • Axle - 130x5mm quick-release

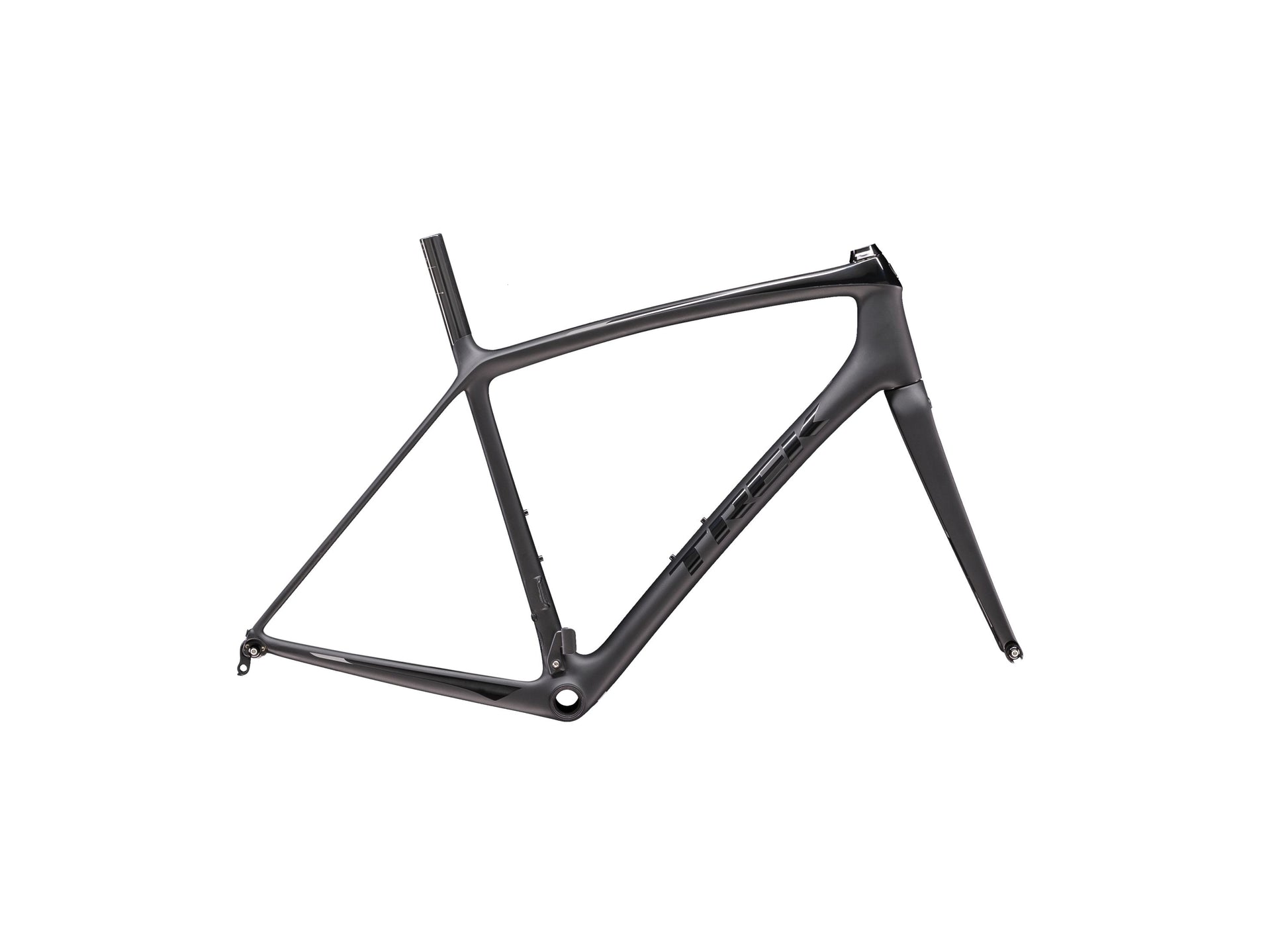

Emonda SLR H2 F/S 47 Matte/Gloss Black

Trek

Trek Émonda SLR H2 Frameset

Regular price $1,599.93 USD
Sale price $1,599.93 USD Regular price $3,799.99 USD

Specifications

Frameset
Frame

700 Series OCLV Carbon, Ride Tuned layup, H2 geometry (higher stack / longer reach), Control Freak internal routing, DuoTrap S compatible, tapered head tube, Ride Tuned seatmast

Fork

Emonda SLR full carbon (included), tapered carbon steerer, direct mount rim brake, carbon dropouts, 5x100mm QR

Wheels
Front Axle

5x100mm quick-release

Rear Axle

130x5mm quick-release

Drivetrain and Brakes
BB Standard

BB90 press-fit

Brake Mount

Direct mount rim brake (no disc)

Additional Information
Seatpost

Not included — Ride Tuned seatmast requires specific seatpost sourced separately

DuoTrap

DuoTrap S speed/cadence sensor compatible
