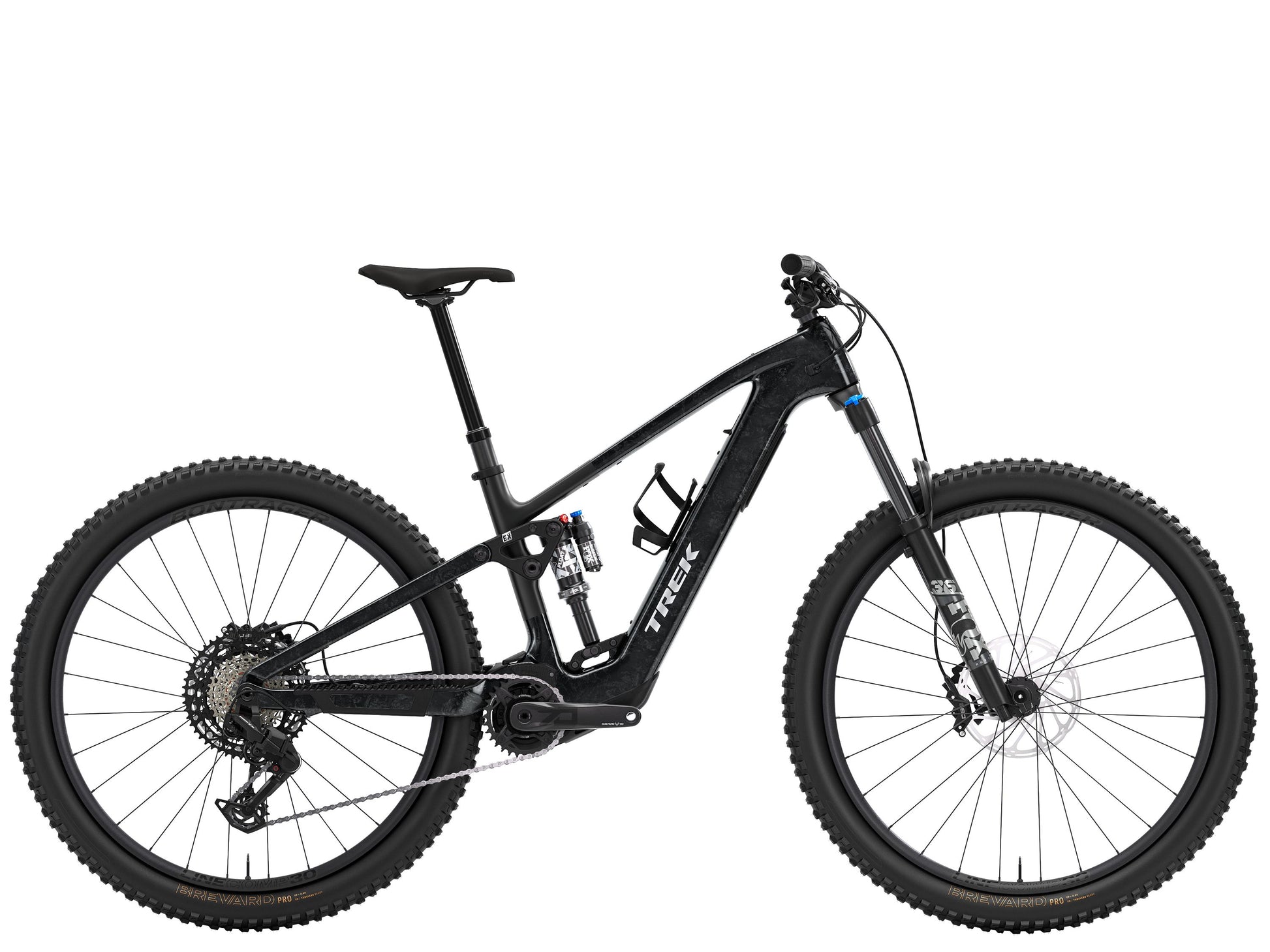

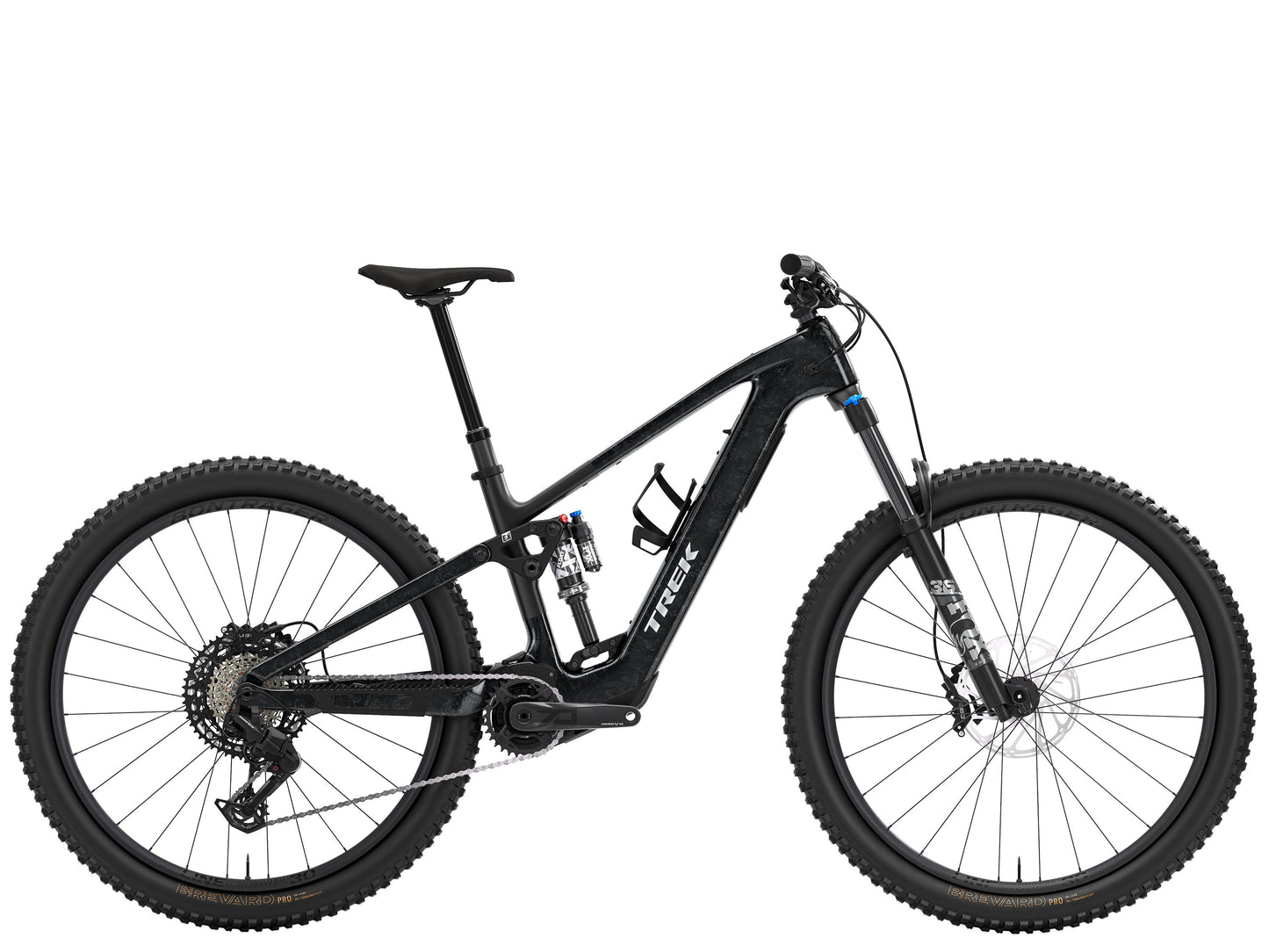

About The Trek Fuel+ EX 9.7 Gen 2 Mountain E-Bike

The Trek Fuel+ EX 9.7 Gen 2 is the entry-level carbon model in the Fuel+ EX lineup, bringing the OCLV Mountain Carbon frame to the same Fox Rhythm 36 / Fox Performance Float X suspension and SRAM Eagle 70 T-Type drivetrain spec as the aluminum EX 8. Powered by the TQ-HPR60 motor (60Nm, 250W continuous, 350W peak) with a 580Wh removable battery, it delivers natural-feeling assist to 28 mph on trails. The carbon frame carries all Fuel+ Gen 2 features: adjustable leverage rate, interchangeable rocker link and lower shock mount, ZS headset, downtube guard, shuttle guard, and ABP linkage.

The Fox Rhythm 36 fork (Float EVOL, GRIP damper, 150mm travel) and Fox Performance Float X shock (205x60mm, 2-position) handle trail terrain. SRAM Eagle 70 T-Type 12-speed drivetrain with 10-52 cassette provides wide-range shifting with T-Type chain management. SRAM DB 8 4-piston brakes with 200mm Centerline rotors provide stopping power. Bontrager Line TLR 30 tubeless-ready wheels with Bontrager Brevard Pro XR 29x2.50" dual compound tires and a Bontrager Line Dropper post (200mm, MaxFlow) are included. The Race Face Turbine alloy handlebar (780mm, 40mm rise) completes the spec.

Who It's For

  • Trail riders who want the weight savings of OCLV Mountain Carbon without paying for the top-tier Fox Factory suspension of the 9.8 XT
  • Riders who want Fox suspension and SRAM T-Type on a carbon platform at the most accessible carbon price
  • Those who want the full Fuel+ Gen 2 frame architecture (adjustable leverage, interchangeable components) in carbon
  • Riders planning varied trail use where the carbon frame's stiffness-to-weight ratio matters over long days

What to Look For

  • Carbon vs. aluminum EX 8: The EX 9.7 shares the same suspension and drivetrain spec as the aluminum EX 8 but on an OCLV Mountain Carbon frame — the primary upgrade is frame material and weight
  • Fox Rhythm 36 vs. Factory 36: The Rhythm uses the GRIP damper vs. GRIP X2 on the Factory; the X2 provides more damper adjustability and better high-speed damping control
  • 580Wh battery: Same capacity across all EX Gen 2 models

Key Features

Frame — OCLV Mountain Carbon: ABP, UDH, Boost148, adjustable leverage rate, interchangeable rocker link, ZS headset, downtube guard, shuttle guard. Adaptable travel 145-160mm.

Motor/Battery — TQ-HPR60: 60Nm, 250W continuous, 350W peak. TQ 580Wh removable battery. TQ 4A charger.

Drivetrain — SRAM Eagle 70 T-Type 12-speed: Eagle 70 shifter and T-Type rear derailleur, SRAM Eagle XS-1270 10-52 cassette, Eagle 70 T-Type chain. SRAM Eagle 70 cranks at 160mm with 32T T-Type alloy chainring.

Brakes — SRAM DB 8 4-piston hydraulic disc: Centerline 2.0 6-bolt 200mm rotors front and rear.

Rider Intent Summary

  • Biggest strengths: OCLV Mountain Carbon frame with full Fuel+ Gen 2 architecture; Fox Rhythm 36 and Float X suspension; SRAM Eagle 70 T-Type; 580Wh battery; Brevard Pro XR tires
  • Tradeoffs: Fox Rhythm damper is a step below Factory quality; SRAM Eagle 70 is below GX in the SRAM hierarchy; no wireless shifting at this spec level
  • What makes it different: The most affordable way into the OCLV Mountain Carbon Fuel+ frame — the carbon benefit is most tangible for riders who feel weight differences on long technical climbs

Victory's Take

At Victory Bicycle Studio, the Fuel+ EX 9.7 is the version for riders who specifically want the carbon frame and are comfortable with Rhythm-level suspension — if the Fox Factory damper quality matters more than frame material, the aluminum EX 8 is worth comparing directly.

What you get

  • Frame - OCLV Mountain Carbon, ABP, 145mm travel
  • Fork - Fox Rhythm 36, 150mm, GRIP damper
  • Motor - TQ-HPR60, 60Nm, 350W peak
  • Drivetrain - SRAM Eagle 70 T-Type wireless 12-speed
  • Brakes - SRAM DB 8 4-piston hydraulic disc, 200mm

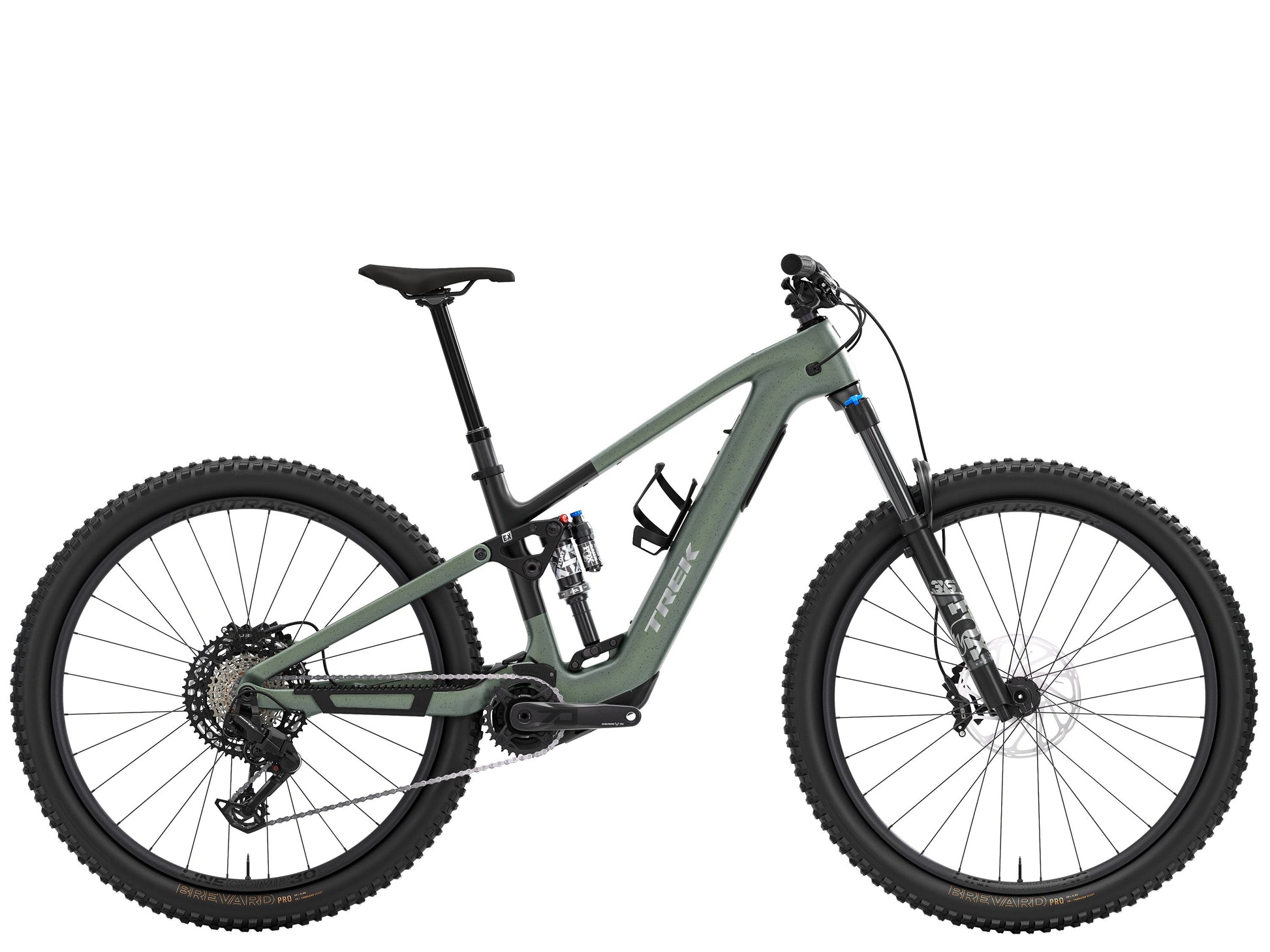

FUEL+ EX 9.7 US XL Lichen Green/Keswick Green Splatter

Trek

Trek Fuel+ EX 9.7 Gen 2 Mountain E-Bike

Regular price $8,699.99 USD
Sale price $8,699.99 USD Regular price $8,699.99 USD

Specifications

Frameset
Frame

OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm

Fork

Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt X axle, 150mm travel

Rear Shock

Fox Performance Float X, 2-position damper, 205x60mm

Weight

M - 19.73 kg / 43.50 lbs (with TLR sealant, no tubes)

Wheels
Hub Front

Bontrager alloy, sealed bearing, 6-bolt, Boost110, 15mm thru axle

Hub Rear

Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12mm thru axle

Rim

Bontrager Line TLR 30, Tubeless Ready, 28-hole

Tire

Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi

- Size: S - 27.5x2.50"

- Size: M, L, XL, XXL - 29x2.50"

Max Tire Size

Frame: 29x2.50", Fork: see manufacturer

Drivetrain and Brakes
Shifter

SRAM Eagle 70, 12 speed

Rear Derailleur

SRAM Eagle 70, T-Type

Crank

SRAM Eagle 70, 160mm length

Chainring

SRAM T-Type, 32T, alloy

Cassette

SRAM Eagle XS-1270, T-Type, 10-52, 12 speed

Chain

SRAM Eagle 70, T-Type, 12 speed

Brake

SRAM DB 8, 4-piston hydraulic disc

Brake Rotor

SRAM Centerline 2.0, 6-bolt, 200mm

Cockpit
Saddle

Bontrager Verse P3, chromoly rails

Seatpost

Bontrager Line Dropper, MaxFlow, internal routing, 34.9mm

- Size: S - 150mm travel, 410mm length

- Size: M - 170mm travel, 450mm length

- Size: L, XL, XXL - 200mm travel, 515mm length

Handlebar

Race Face Turbine, alloy, 35mm, 40mm rise, 780mm width

Grips

Trek Line Elite, lock-on

Stem

Bontrager Elite, 35mm, 0 degree, 45mm length

Headset

FSA Orbit, sealed cartridge bearing, 1-1/8" top, 1.5" bottom

Additional Information
Motor

TQ-HPR60, 60 Nm, 250W continuous / 350W peak

Battery

TQ 580Wh

Charger

TQ 4A charger

Controller

TQ LED display with Bluetooth & ANT+ connectivity

E-bike Class

Class 1
