About The Trek Fuel EX C Gen 6 Frameset

The Trek Fuel EX C Gen 6 Frameset is a full-suspension carbon trail frame with 140mm of rear travel built from OCLV Mountain Carbon — Trek's mountain-specific carbon layup that prioritizes both light weight and trail toughness. The carbon construction damps vibration and trail chatter that alloy transmits, keeping your hands and body fresher on long technical descents. Progressive trail geometry, a magnesium rocker link, and six adjustable geometry positions make this a highly adaptable platform for serious trail builders.

Like the alloy Fuel EX AL Gen 6, the frame is mullet-ready — run Mino Link in the high position with a 160mm fork for a 27.5" rear wheel setup. Angle-adjust headset cups (sold separately) allow you to tune the 64.5° head angle a full degree steeper or slacker without affecting bottom bracket height. The frame runs BSA 73mm threaded BB, Boost148, and UDH. A Fox Factory Float X shock is included — upgraded from the Performance level shock on the alloy version.

Who It's For

  • Trail riders who want the compliance and weight savings of carbon in a versatile full-suspension platform
  • Riders who spend long days on technical terrain and want the vibration damping that carbon provides
  • Builders putting together a high-end trail build who want the frame to last and perform for years
  • Not ideal for: budget-focused builds, riders who are fine with alloy and don't need carbon benefits

What to Look For

  • Shock: Fox Factory Float X 2-position damper (185x55mm) included — Factory-level tuning vs. Performance on the alloy version
  • Geometry adjustability: Six configurations via Mino Link high/low and angle-adjust headset cups (sold separately)
  • Mullet setup: Mino Link high + 160mm fork for 27.5" rear wheel compatibility
  • BB standard: BSA 73mm threaded — easy to service, widely compatible

Key Features

Frame — OCLV Mountain Carbon, 140mm Travel: Trek's trail-specific carbon with unique materials and layup testing standards above what road carbon sees. Internal storage, angle-adjust headset compatibility, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, ISCG 05, and ABP.

Fork — Not Included: Fox Factory Float X rear shock included; plan for a 150mm fork in the standard EX configuration, or 160mm for a mullet setup.

Compatibility — BSA 73 / Boost148 / 55mm Chainline / UDH: Threaded BB, Boost148 rear spacing, 55mm chainline, ISCG 05. Downtube guard and shuttle guard included.

Routing & Mounts: Guided internal cable routing, internal frame storage with door, internal dropper post routing. ISCG 05 chain guide tabs.

Rider Intent Summary

  • Biggest strengths: OCLV Mountain Carbon compliance and weight savings, Fox Factory shock included, six-position geometry adjustability, mullet compatible, BSA threaded BB, internal storage
  • Tradeoffs: Premium pricing over the alloy Gen 6; angle-adjust headset cups sold separately; carbon requires more care in crashes than alloy
  • What makes it different: The Fox Factory shock upgrade over the alloy version's Performance shock is a meaningful differentiator — the carbon frame and Factory damper together make this a significantly more refined ride

Victory's Take

At Victory Bicycle Studio, the Fuel EX C Gen 6 is the trail frame we point to when a rider is ready to invest in carbon and wants a platform they won't outgrow — the OCLV construction, Factory shock, and extensive geometry adjustability make it a strong long-term build foundation.

What you get

  • Frame - OCLV Mountain Carbon, ABP, 140mm travel
  • Shock - Fox Factory Float X included
  • BB - BSA 73mm threaded
  • Tires - 29" / mullet-ready clearance
  • Axle - Boost148 12mm thru axle

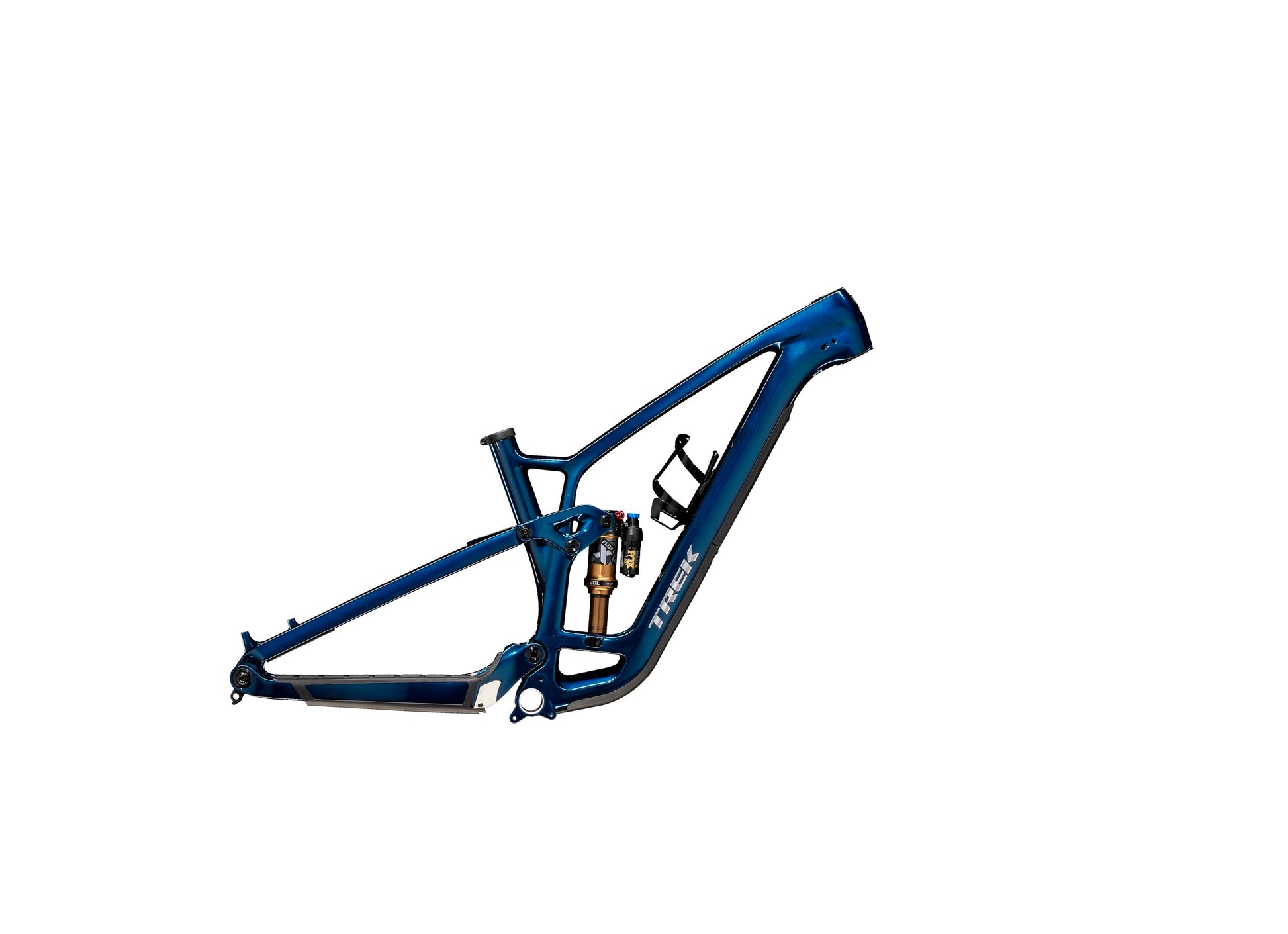

Fuel EX C F/S S 29 Mulsanne Blue

Trek

Trek Fuel EX C Gen 6 Frameset

Regular price $3,499.97 USD
Sale price $3,499.97 USD Regular price $4,299.99 USD

Specifications

Frameset
Frame

OCLV Mountain Carbon, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel

Rear Shock

Fox Factory Float X, 2-position damper, 185mm x 55mm

Headset

Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible

Rear Thru Axle

Bontrager Switch thru axle, removable lever

Wheels
Max Tire Size

Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer

Drivetrain and Brakes
Max Chainring Size

1x: 34T round, 32T oval, min 28T

Additional Information
Included Accessory

Bontrager BITS Internal Frame Storage Bag

Max Rotor Size

Frame: 203mm, Fork: see fork manufacturer

Weight

M - 3.40 kg / 7.5 lbs

Weight Limit

300 lbs (136 kg) maximum total weight (rider, bicycle, and cargo)
