About The Trek FX+ 1S Midstep E-Bike

The Trek FX+ 1S Midstep is a Class 3 urban e-bike with pedal assist up to 28 mph in a low-standover midstep frame that makes mounting and dismounting easy regardless of clothing or mobility. The Alpha Gold Aluminum midstep frame integrates the same hub-drive motor (60Nm, 500W peak), 520Wh battery, integrated turn signals, rear brake light, and UL 2849 certification as the standard FX+ 1S — with a lower step-over height for convenience. The throttle operates to 20 mph consistent with Class 3 regulations in most jurisdictions.

The drivetrain is Shimano ESSA 8-speed, optimized for e-bike use. Tires are Bontrager GR0 650x50mm for surface versatility across pavement and packed gravel. A rear rack and fenders come standard. The midstep frame provides the same functional commuter capability as the standard FX+ 1S with reduced standover for easier on/off. Riders should confirm local regulations regarding Class 3 e-bike use on shared paths before purchasing — Class 3 is often restricted from multi-use paths where Class 1 and 2 are permitted.

Who It's For

  • Commuters who want 28 mph Class 3 assist speed and a midstep frame for easier mounting and dismounting
  • Riders who prefer lower standover whether due to preference, clothing, or flexibility, and want the faster Class 3 assist ceiling
  • Those who plan to use the bike primarily on roadways or protected lanes where Class 3 is permitted
  • Riders who want integrated turn signals, brake light, and UL certification on a Class 3 midstep e-bike

What to Look For

  • Class 3 path restrictions: Class 3 e-bikes are restricted from many shared-use paths where Class 1 and 2 are permitted — confirm your local regulations before choosing Class 3
  • Midstep vs. standard frame: Lower standover for easier mounting; all other specs are identical to the standard FX+ 1S
  • FX+ 1S Midstep vs. FX+ 1 Midstep: Same frame style; the 1S provides Class 3 28 mph assist vs. Class 2 20 mph on the FX+ 1 Midstep

Key Features

Frame — Alpha Gold Aluminum Midstep: Low standover, integrated battery, rack and fender mounts, internal cable routing.

Motor/Battery — Hub drive: 60Nm, 500W peak. 520Wh integrated battery. Class 3: pedal assist to 28 mph + throttle to 20 mph. UL 2849 certified.

Drivetrain — Shimano ESSA 8-speed: E-bike optimized groupset with 8-speed rear cassette.

Brakes — Hydraulic disc: Integrated rear brake light activates on braking. Integrated front and rear turn signals.

Rider Intent Summary

  • Biggest strengths: Low midstep standover; Class 3 pedal assist to 28 mph; integrated turn signals and brake light; UL 2849 certified; 650x50mm tires; included rack and fenders; 520Wh battery
  • Tradeoffs: Class 3 path restrictions; midstep frame slightly less stiff than standard diamond; hub drive less efficient on steep grades; 28 mph assist requires pedaling
  • What makes it different: Combines the FX+ 1S's Class 3 assist speed with the midstep frame's accessibility — the most accessible Class 3 option in the FX+ lineup

Victory's Take

At Victory Bicycle Studio, the FX+ 1S Midstep suits the commuter who wants faster Class 3 assist speeds and finds the midstep frame easier to live with daily — check your local Class 3 access rules before choosing it over the FX+ 1 Midstep.

What you get

  • Frame - Alpha Gold Aluminum, midstep low-standover
  • Motor - Hub drive, 60Nm, 500W peak, Class 3
  • Battery - 520Wh, pedal assist to 28 mph
  • Drivetrain - Shimano ESSA 8-speed
  • Brakes - Hydraulic disc, integrated turn signals

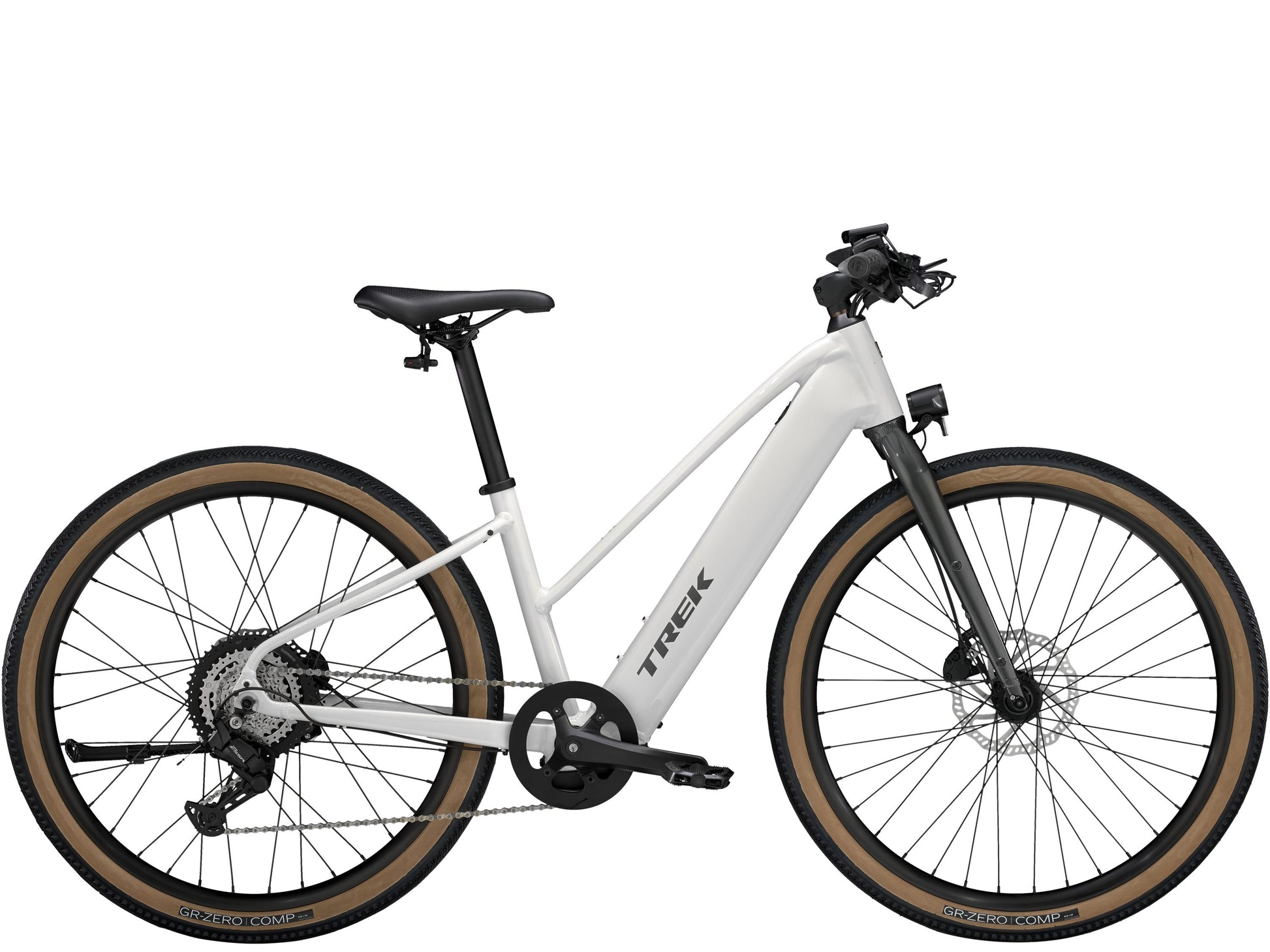

FX+ 1S All Road MS Trt M Era White

Trek

Trek FX+ 1S Midstep E-Bike

Regular price $2,199.99 USD
Sale price $2,199.99 USD Regular price $2,199.99 USD

Specifications

Frameset
Frame

Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing

Fork

Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Weight

M - 22.00 kg / 48.51 lbs

Wheels
Front Hub

Alloy low-flange, 6-bolt disc, 36h, QR

Front Skewer

132x5mm QR, ThruSkew

Rim

Alloy double wall, 36h

Tire

Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm

Max Tire Size

650x50mm

Drivetrain and Brakes
Shifter

Shimano M315, 8 speed

Rear Derailleur

Shimano ESSA U2000

Crank

Alloy, 40T steel chainring, 170mm length

Cassette

Shimano HG400, 11-45, 8 speed

Chain

KMC Z8.3

Pedals

Bontrager City

Brake

Rush BH-286 hydraulic disc

Brake Rotor

180mm front & rear (max)

Cockpit
Saddle

Bontrager Sport Women's

Seatpost

Bontrager alloy, 31.6mm, 12mm offset

- Size: S, M - 330mm length

- Size: L - 400mm length

Handlebar

Bontrager alloy, 31.8mm, 15mm rise

- Size: S, M - 690mm width

- Size: L - 720mm width

Grips

Bontrager XR Endurance Comp, lock-on

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree

- Size: S, M - 80mm length

- Size: L - 90mm length

Additional Information
Motor

Hub drive motor, 60 Nm, 500W

Battery

520Wh, integrated in down tube

Charger

Trek Easy Mag charger, 2.7A, 54.9V output, 100-240V AC input

Controller

LCD display

E-bike Class

Class 2/3 hybrid

Kickstand

Adjustable length alloy kickstand
