About The Trek Madone SL 5 Gen 8 Road Bike

The Trek Madone SL 5 is an aero road bike built on 500 Series OCLV Carbon with the Gen 8 Madone's Full System Foil tube shaping—the same aerodynamic tube profiles used across the Madone line, from SL to SLR. It's the entry point into the current Madone platform, and it brings the frame's core aero engineering to riders who want race-oriented performance without a flagship price.

The SL 5 runs Shimano 105 2x12 mechanical shifting—a current-generation group with wide cassette range (11-34) and precise indexing. The IsoFlow seat tube cutout, RCS Headset System, and removable aero chain keeper are all Gen 8 Madone features carried over at this tier. Bontrager Paradigm 23 alloy wheels are tubeless ready; Bontrager Aeolus Pro TLR 700x28mm tires are a quality stock spec for an aero road build. There are no rack or fender mounts—this is a race-geometry bike designed specifically for performance riding.

Who It's For

  • Riders who want the Gen 8 Madone's aero platform with mechanical 105 shifting at an accessible carbon price
  • Road cyclists who race or chase personal bests and want an aero frame without stepping to Di2 pricing
  • Riders moving from an endurance bike to a more aggressive, purpose-built aero platform

What to Look For

  • Race geometry: The Madone uses a lower, more aggressive position than the Domane. Make sure you've been fit on a race-geometry frame before committing—if your flexibility is limited, the Domane may suit you better.
  • No fender or rack mounts: The Madone is designed for performance riding. If you need commuter versatility, this is not the right frame.
  • Alloy wheels: Paradigm 23 rims are tubeless ready but alloy. Upgrading to carbon wheels later is a straightforward performance gain on this frame.
  • IsoFlow seat tube: The cutout in the seat tube disrupts airflow and reduces drag at the rear of the frame—an aero feature specific to the Gen 8 Madone.

Key Features

Frame — 500 Series OCLV Carbon: Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, removable aero chain keeper, T47 bottom bracket, flat mount disc, UDH, 142x12mm thru axle. Full Gen 8 aero architecture at the SL tier.

Fork — Madone Gen 8 Carbon: Full carbon, tapered carbon steerer, flat mount disc, 12x100mm thru axle. Designed to integrate with the Madone's Full System Foil tube profile.

Drivetrain — Shimano 105 2x12: 105 R7120 shifters, 105 R7100 front derailleur (braze-on), 105 R7100 rear derailleur (36T max), 105 R7100 50/34 crank, 105 7101 11-34 cassette. Current-generation mechanical shifting with wide range.

Brakes — Shimano 105 Hydraulic Disc: Flat mount, CL700 centerlock 160mm rotors. Consistent hydraulic braking with 105-spec hardware.

Rider Intent Summary

  • Biggest strengths: Gen 8 Madone aero frame with Full System Foil shaping and IsoFlow, current 105 12-speed, tubeless-ready wheels, T47 bottom bracket
  • Tradeoffs: Mechanical drivetrain; alloy wheels; race geometry requires appropriate flexibility and fit
  • What makes it different: The Gen 8 Madone frame's aero architecture is the same across all SL and SLR tiers—the SL 5 gets you into that platform at the lowest price point

Victory's Take

At Victory Bicycle Studio, the Madone SL 5 is where we point riders who are serious about aero road performance and want to be on the current Madone platform without paying for electronic shifting or carbon wheels. The frame is the real asset here—it's the same design DNA as the SLR 9.

What you get

  • Frame - 500 Series OCLV Carbon, Full System Foil
  • Fork - Madone Gen 8 Carbon
  • Groupset - Shimano 105 2x12 (Mechanical)
  • Brakes - Shimano 105 Hydraulic Disc, 160mm
  • Wheels - Bontrager Paradigm 23 Tubeless Ready

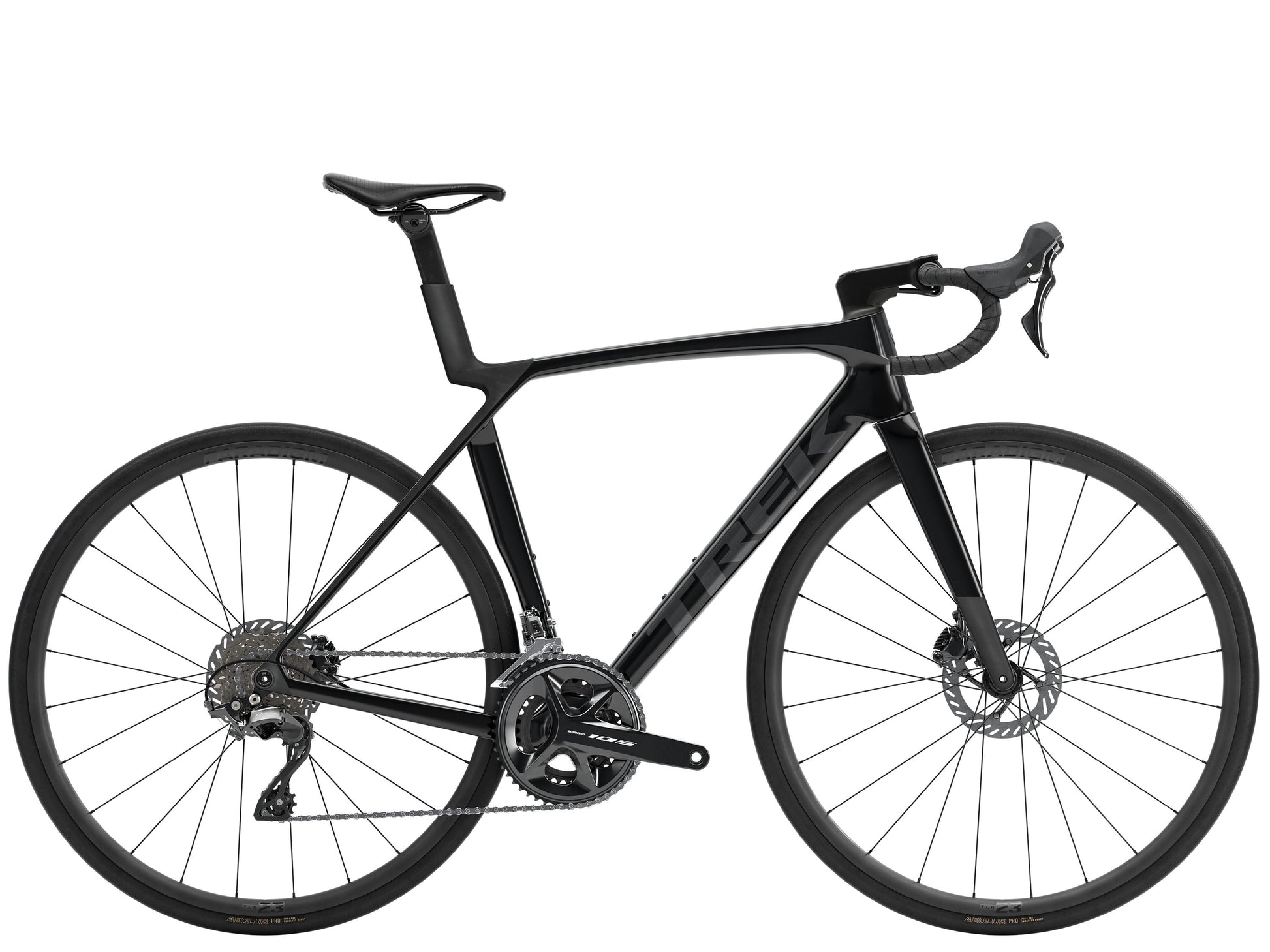

Madone SL 5 ML Gloss Dark Star/Matte Deep Smoke

Trek

Trek Madone SL 5 Gen 8 Road Bike

Regular price $3,499.99 USD
Sale price $3,499.99 USD Regular price $3,499.99 USD

Specifications

Frameset
Frame

500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle

Fork

Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels
Front Hub

Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Rim

Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width

Tire

Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28mm

Max Tire Size

32mm

Drivetrain and Brakes
Shifter

Shimano 105 R7120, 12 speed

Front Derailleur

Shimano 105 R7100, braze-on, down swing

Rear Derailleur

Shimano 105 R7100, 36T max cog

Crank

Shimano 105 R7100, 50/34

- Size: XS, S - 165mm

- Size: M, ML - 170mm

- Size: L, XL - 172.5mm

Bottom Bracket

Praxis, T47 threaded, internal bearing

Cassette

Shimano 105 R7101, 11-34, 12 speed

Chain

Shimano SLX M7100, 12 speed

Brake

Shimano 105 hydraulic disc, flat mount

Brake Rotor

Shimano CL700, centerlock, 160mm (180mm front max)

Cockpit
Saddle

Bontrager Aeolus Elite, austenite rails, 145mm width

Seatpost

Madone aero carbon, 0mm offset, short length

Handlebar

Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop

- Size: XS - 36cm control / 40cm drop

- Size: S, M - 38cm control / 42cm drop

- Size: ML, L - 40cm control / 44cm drop

- Size: XL - 42cm control / 46cm drop

Stem

Trek RCS Pro, -7 degree

- Size: XS - 80mm

- Size: S, M - 90mm

- Size: ML, L - 100mm

- Size: XL - 110mm

Additional Information
Weight

ML - 8.64 kg / 19.05 lbs (with tubes)

Weight Limit

275 lbs (125 kg)
