About The Trek Madone SLR 7 AXS Gen 8 Carbon 12 Speed Road Bike

The Trek Madone SLR 7 AXS Gen 8 is a full-carbon aero road bike built for racing and fast road riding, weighing 7.22 kg (15.92 lbs) in size ML with tubeless sealant installed. The 900 Series OCLV Carbon frame uses Full System Foil tube shaping throughout, and the IsoFlow seat tube — an opening in the seat tube unique to the Madone Gen 8 platform — reduces aerodynamic drag while adding vertical compliance on longer efforts.

The drivetrain is SRAM Force AXS E1 12-speed wireless with power meter cranks standard across all sizes, paired with Bontrager Aeolus Pro 51 OCLV Carbon tubeless-ready wheels and a Trek Aero RSL one-piece integrated carbon bar/stem. This build requires no immediate component upgrades for competitive riding.

Who It's For

  • Competitive road riders and gran fondo racers who want a full-aero carbon platform without stepping up to Red AXS pricing
  • Riders who need integrated power meter data from day one — the Force AXS crank with power meter is included at this build level
  • Athletes who prioritize aerodynamics and low weight and want disc brake reliability and tubeless-ready wheels
  • Consider a different bike if you need significant cockpit adjustability — the Trek Aero RSL integrated bar/stem is size-specific with fixed drop and reach dimensions, and a professional fit before purchase is strongly recommended

What to Look For

  • Fit first. The Aero RSL integrated bar/stem has a fixed 124mm drop and 80mm reach across all sizes, with no spacer-based height adjustment. Confirm your position works within this geometry before ordering.
  • Groupset tier. Force AXS delivers full wireless shifting one tier below Red AXS. The 48/35 chainring and 10-33 cassette suit flat and rolling terrain well; riders with regular steep climbing should evaluate whether the range is adequate.
  • Tire setup. The bike ships with two tire options — both tubeless-ready at 700x28mm. Max tire clearance is 32mm.

Key Features

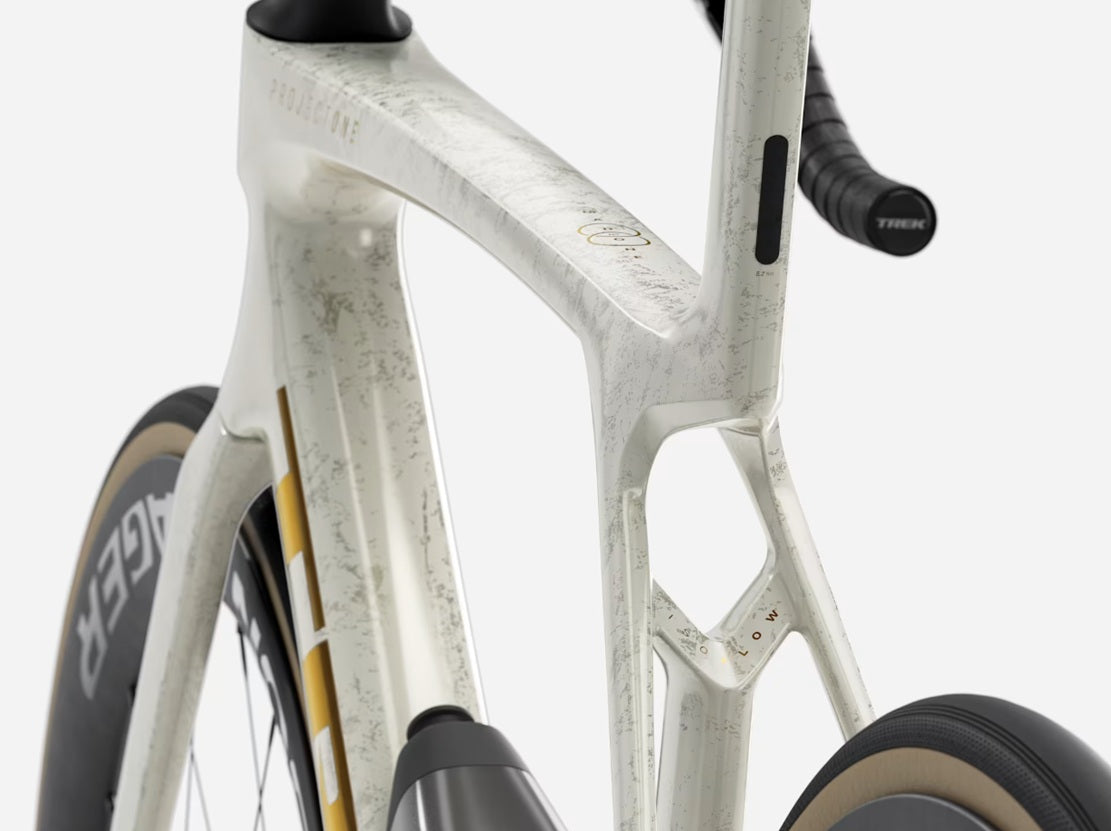

Frame & Fork: The 900 Series OCLV Carbon uses Full System Foil tube shaping at every tube junction, not just the down tube. The IsoFlow opening in the seat tube is Madone-specific and simultaneously reduces aerodynamic drag and increases vertical compliance — two competing performance goals addressed in a single design feature. The T47 threaded bottom bracket and UDH rear dropout ensure broad drivetrain compatibility going forward.

Groupset: SRAM Force AXS E1 is a fully wireless 12-speed groupset with a 10-33 cassette and 48/35 chainring. Power meter cranks are standard at this build — no separate purchase required. Crank arm length is factory-matched to frame size, ranging from 160mm (XS/S) to 172.5mm (L/XL).

Wheels & Tires: Bontrager Aeolus Pro 51 OCLV Carbon wheels are tubeless-ready with a 51mm rim depth. Both included tire options run 700x28mm tubeless: the Bontrager Aeolus RSL RD (170 tpi, cotton construction) and the Pirelli P Zero Race TLR RS (120 tpi).

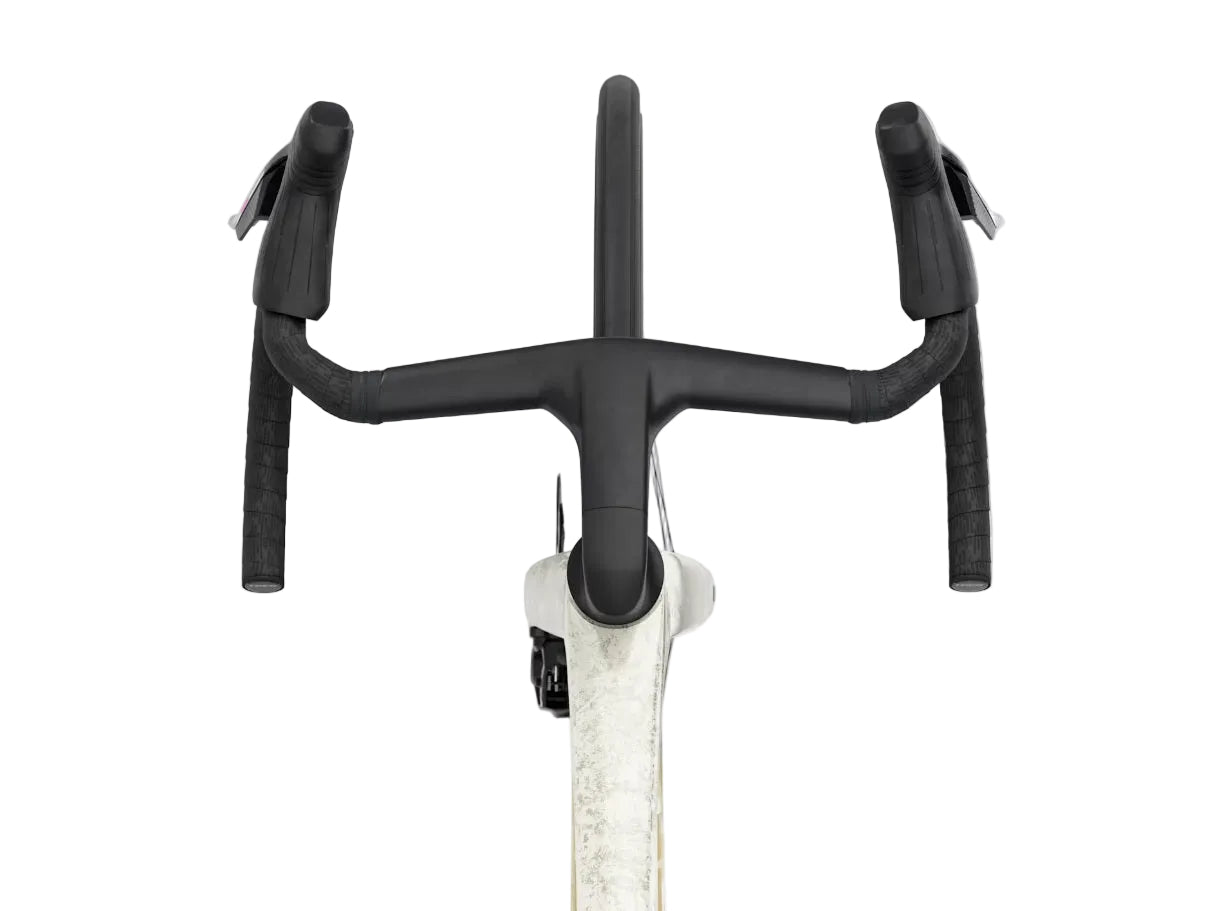

Cockpit: The Trek Aero RSL one-piece integrated carbon bar/stem runs size-specific control widths from 35–41cm and stem lengths from 80–110mm. All routing is fully internal with no external housing.

Braking: SRAM Force AXS hydraulic disc brakes with 160mm SRAM CenterLine X rotors. Max rotor size is 180mm front / 160mm rear.

Rider Intent Summary

  • Biggest strengths: Full-system aero carbon frame, wireless groupset with power meter included standard, deep-section carbon wheels — competitive spec out of the box
  • Tradeoffs: Integrated bar/stem limits fit adjustability; Force AXS sits one tier below Red AXS in weight and shifting refinement
  • What makes it different: IsoFlow seat tube is Madone-specific technology that addresses aerodynamics and compliance simultaneously — no equivalent on a competing platform

Victory's Take

At Victory Bicycle Studio, we see the Madone SLR 7 AXS as one of the more complete race builds available at this price point — the inclusion of power meter cranks and deep-section carbon wheels removes upgrades most riders make within the first season. Given the fixed geometry of the integrated cockpit, we strongly recommend scheduling a professional fit with us before placing your order.

What you get

  • Frame - 900 Series OCLV Carbon
  • Fork - Madone Gen 8 one-piece carbon, tapered carbon steerer
  • Groupset - SRAM Force AXS 12 Speed (Electronic)
  • Wheels - Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready
  • Integrated Handlebars / Stem - Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit

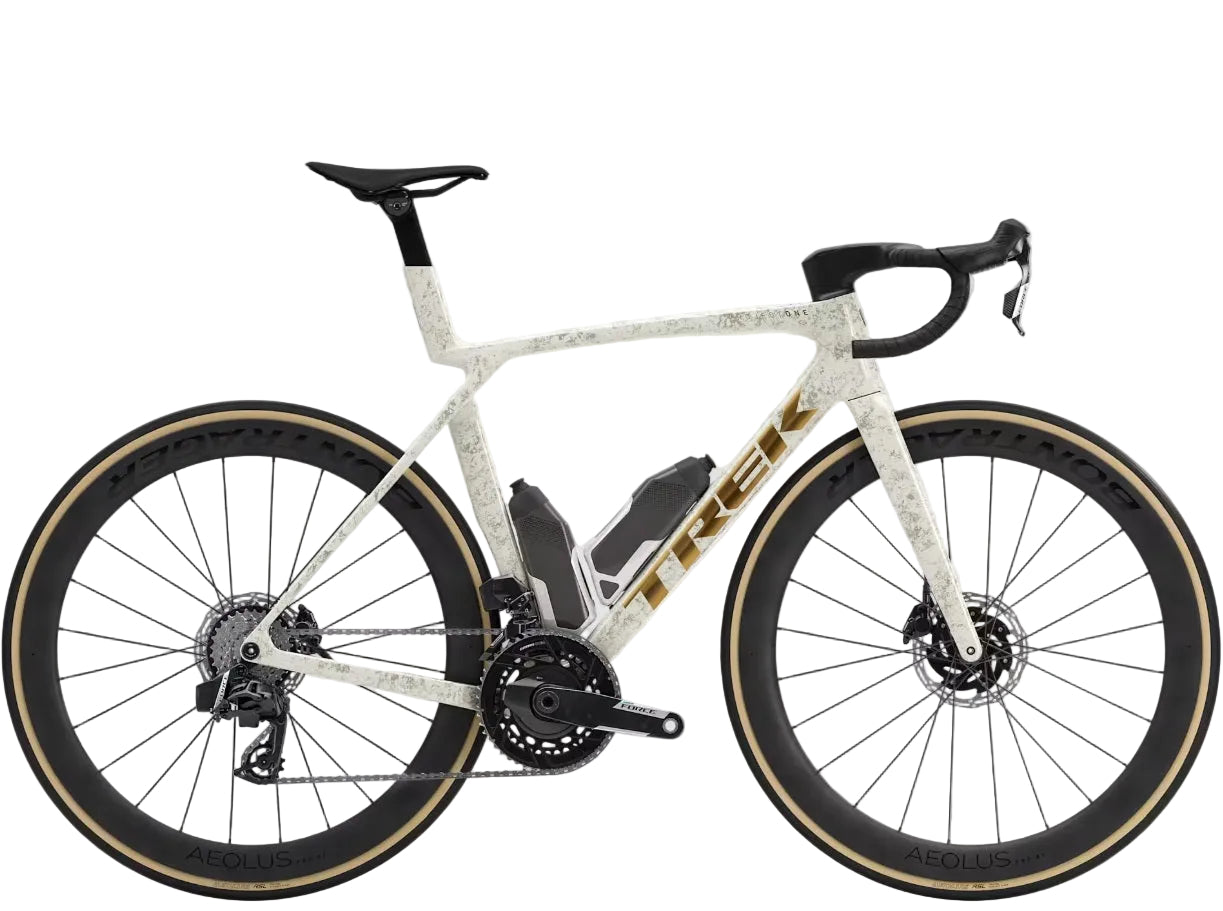

trek madone slr 7 axs gen 8 road bike main right side

Trek

Trek Madone SLR 7 AXS Gen 8 Carbon 12 Speed Road Bike

Regular price $9,499.99 USD
Sale price $9,499.99 USD Regular price $9,499.99 USD

Specifications

Frameset
Frame

900 Series OCLV Carbon

- Full System Foil tube shaping

- IsoFlow seat tube

- RCS Headset System

- Electronic-only routing

- Removable aero chainkeeper

- T47 BB

- Flat mount disc

- UDH

- 142x12mm thru axle

Fork

Madone Gen 8 one-piece carbon

- Tapered carbon steerer

- Internal brake routing

- Flat mount disc

- 12x100mm chamfered thru axle

Wheels
Front Wheel

Bontrager Aeolus Pro 51

- OCLV Carbon, Tubeless Ready

- 100x12mm thru axle

Rear Wheel

Bontrager Aeolus Pro 51

- OCLV Carbon

- Tubeless Ready

- SRAM XD-R driver

- 142x12mm thru axle

Front Skewer

Bontrager Switch chamfered thru axle

Rear Skewer

Bontrager Switch chamfered thru axle, removable lever

Tires

700x28 (Depending on availability, may be Pirelli or Bontrager)

Max Tie Size

32mm (as measured, see manual for details)

Drivetrain and Brakes
Rear Derailleur

SRAM Force AXS, 36T max cog

Front Derailleur

SRAM Force AXS, braze-on

Shifters

SRAM Force AXS E1

Bottom Bracket

SRAM DUB, T47 threaded, internal bearing

Cassette

SRAM Force XG-1270, 10-33, 12 speed

Chain

SRAM Force E1, 12/13 speed

Max Chainring Size

1x: 54T, 2x: 56/43

Brakes

SRAM Force AXS hydraulic disc, flat mount

Max Rotor Size

180mm front, 160mm rear

Brake Rotors

SRAM CenterLine X, centerlock, round edge, 160mm

Cockpit
Handlebar/stem (integrated)

Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop

- Size: XS - 35cm control width, 38cm drop width, 80mm stem length

- Size: S - 37cm control width, 40cm drop width, 90mm stem length

- Size: M - 39cm control width, 42cm drop width, 90mm stem length

- Size: ML, L - 39cm control width, 42cm drop width, 100mm stem length

- Size: XL - 41cm control width, 44cm drop width, 110mm stem length

Handlebar Tape

Trek EcoTack

Saddle

Bontrager Aeolus Pro, carbon rails, 145mm width

Seat Post

Madone aero carbon seatpost, 0mm offset, short length

Accessories
Battery

SRAM AXS battery pack (with charger)

**Specifications subject to change without notice
