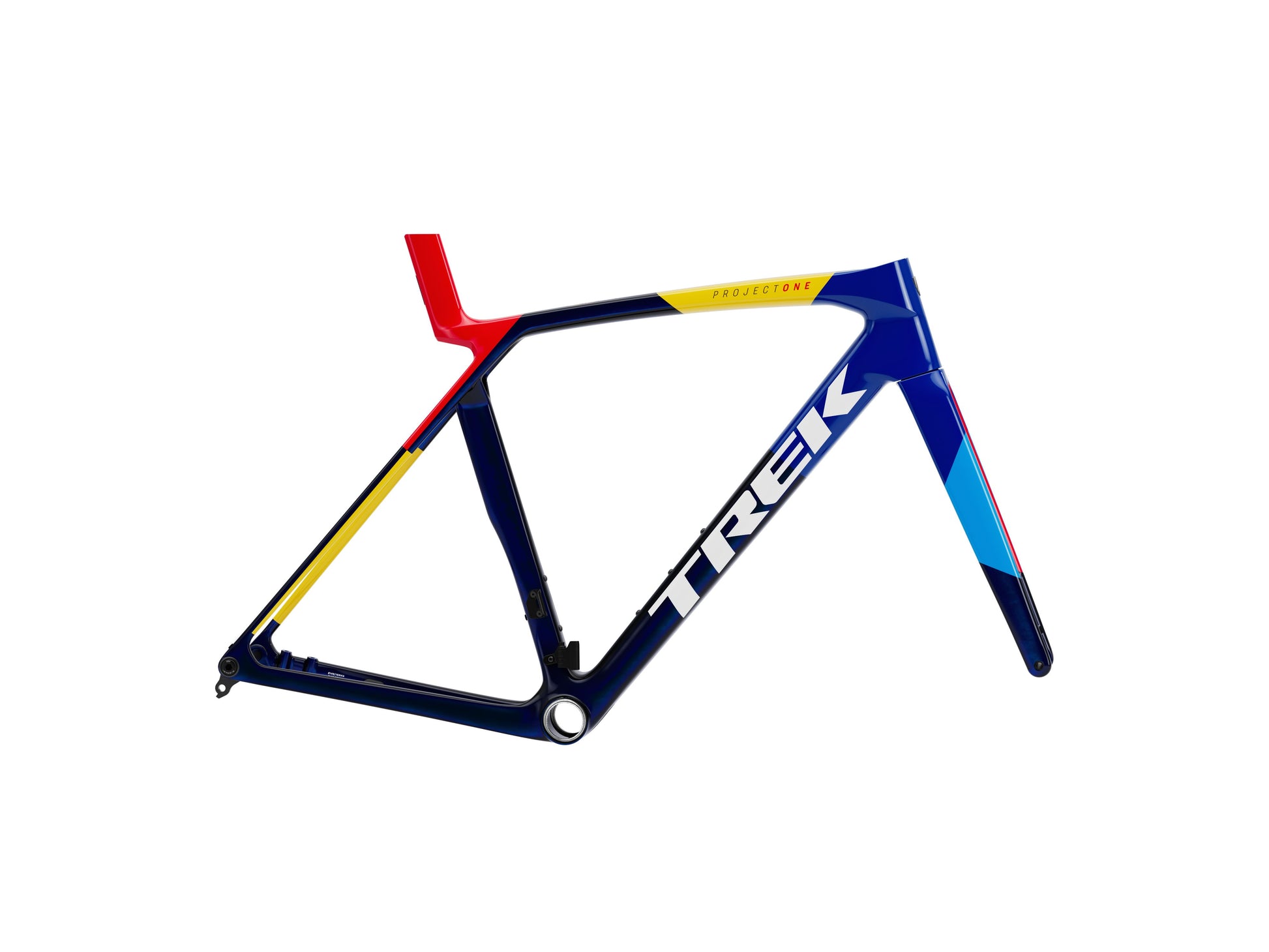

About The Trek Madone SLR Gen 8 Frameset

The Trek Madone SLR Gen 8 Frameset is the pinnacle of Trek's road race lineup — built from 900 Series OCLV Carbon, their highest-modulus carbon layup, and matching the weight of the Émonda SLR while delivering the aerodynamic performance of a dedicated aero race bike. Full System Foil tube shapes and IsoFlow compliance technology combine in a frame that's as light as it is fast, designed in close collaboration with Lidl-Trek's professional road racers who win sprints and summit climbs on this exact platform.

The Gen 8 redesign brought significant aerodynamic improvements through Full System Foil geometry, and the IsoFlow vertical compliance technology was refined to deliver 80% more vertical compliance than previous Madone generations. The one-piece carbon Madone Gen 8 fork is included, and the frame is designed for RSL Aero Bottles and Cages for complete system-level aero optimization. Chamfered 12mm thru axles, flat mount disc brakes, and fully integrated routing complete a race-ready spec sheet.

Who It's For

  • Elite road racers and serious enthusiasts who want the absolute best aero road frame Trek makes
  • Riders who want pro-race specification — the same frame Lidl-Trek's best riders race on
  • Builders investing in a long-term, premium build where nothing is compromised
  • Not ideal for: endurance or comfort-focused riders, gravel or mixed-surface riding, budget-conscious builds

What to Look For

  • Fork: Madone Gen 8 one-piece carbon fork included — tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle
  • IsoFlow: Seat tube/stay compliance affects seatpost selection — plan cockpit and seatpost before building
  • RSL Aero Bottles: Frame designed for RSL Aero Bottles and Cages (sold separately) for complete system aerodynamics
  • Carbon tier: 900 Series is Trek's highest modulus — stiffer per gram than 500 or 800 Series; the performance difference is measurable

Key Features

Frame — 900 Series OCLV Carbon with IsoFlow: Trek's highest-grade carbon. Full System Foil aero tube shapes throughout. IsoFlow compliance at the seat tube junction refined for 80% more vertical travel than previous Madone. Trek's lightest Madone Disc frameset ever at weights comparable to the Émonda SLR.

Fork — Madone Gen 8 One-Piece Carbon: Included. Tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle. One-piece monocoque construction for maximum stiffness and minimal aerodynamic disruption.

Compatibility — Flat Mount Disc / 12mm Chamfered Thru Axle: Front and rear flat mount disc, chamfered 12mm thru axles. Fully integrated cable and brake routing.

Routing & Mounts: Fully integrated internal routing for a completely clean aerodynamic profile. RSL Aero Bottle and Cage integration. Race-only design — no rack or fender mounts.

Rider Intent Summary

  • Biggest strengths: 900 Series OCLV — the lightest and stiffest carbon Trek makes, Full System Foil aero, IsoFlow compliance, one-piece carbon fork, RSL Aero Bottle integration, pro-race specification
  • Tradeoffs: Premium pricing reflects 900 Series specification; IsoFlow affects seatpost compatibility; race-only feature set with no versatility outside road racing
  • What makes it different: This is the only frame in Trek's lineup that combines 900 Series carbon with Full System Foil aero and IsoFlow compliance — three technologies that together produce the fastest, most comfortable aero race bike Trek has ever made

Victory's Take

At Victory Bicycle Studio, the Madone SLR Gen 8 is the frame we build for riders who have decided the best matters and are ready to invest accordingly — the 900 Series carbon, aero shaping, and compliance together represent the state of the art in road race frames as of this generation.

What you get

  • Frame - 900 Series OCLV Carbon, Full System Foil aero
  • Fork - Madone Gen 8 one-piece carbon included
  • BB - Flat mount disc
  • Tires - Road tire clearance
  • Axle - 12mm chamfered thru axle

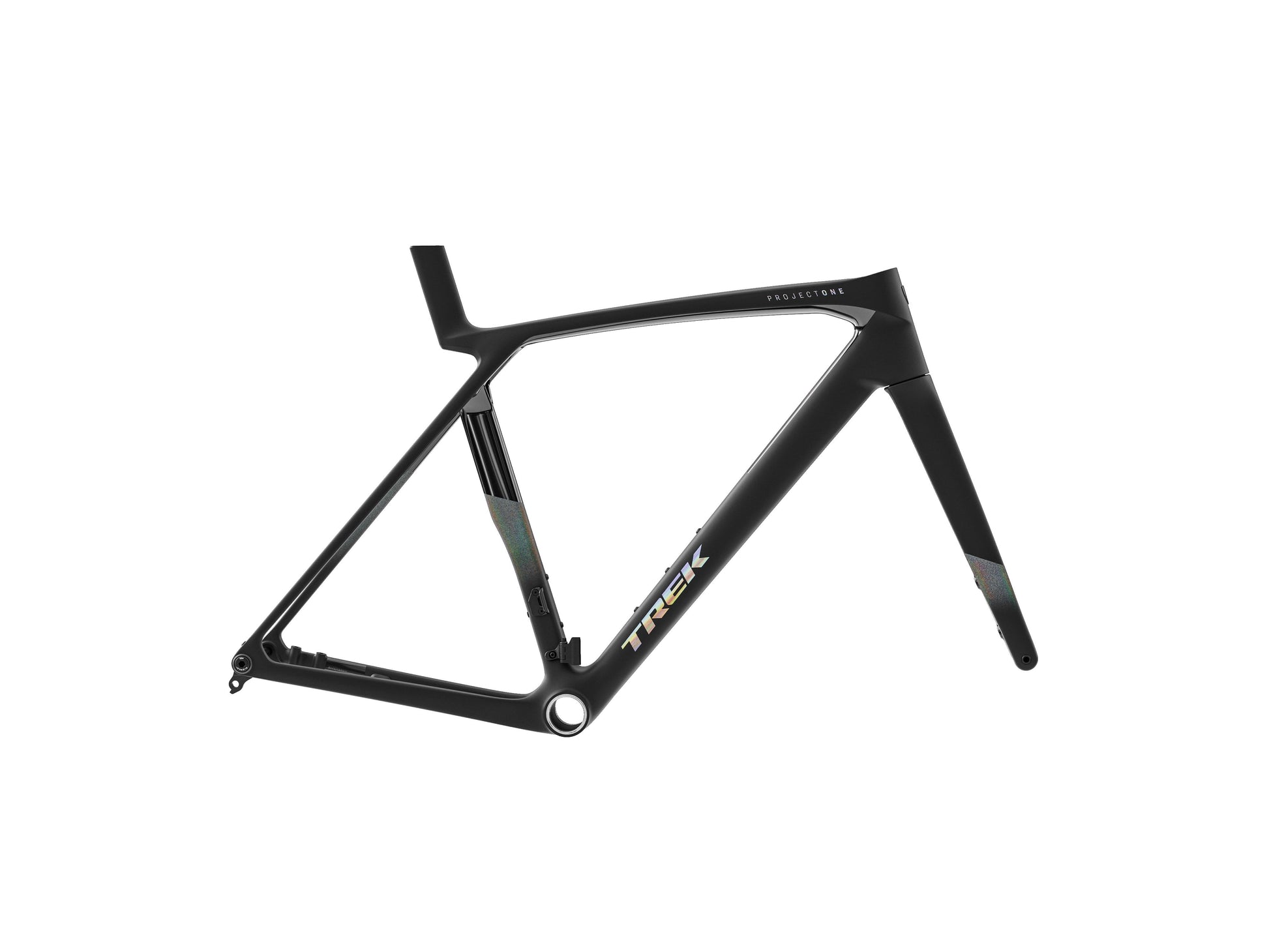

Madone SLR Disc F/S L Matte Carbon Smoke/Prismatic Pearl

Trek

Trek Madone SLR Gen 8 Frameset

Regular price $5,499.99 USD
Sale price $5,499.99 USD Regular price $5,499.99 USD

Specifications

Frameset
Frame

900 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic-only routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle

Fork

Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels
Front Thru Axle

Bontrager Switch chamfered thru axle, 12x100mm

Rear Thru Axle

Bontrager Switch chamfered thru axle, removable lever, 12x142mm

Max Tire Size

32mm

Drivetrain and Brakes
Max Chainring Size

1x: 54T, 2x: 56/43

Max Brake Rotor Size

180mm front, 160mm rear, flat mount

Additional Information
Weight

796g - ML (frame-only, painted), 350g (fork-only, painted)

Weight Limit

275 lbs (125 kg)
