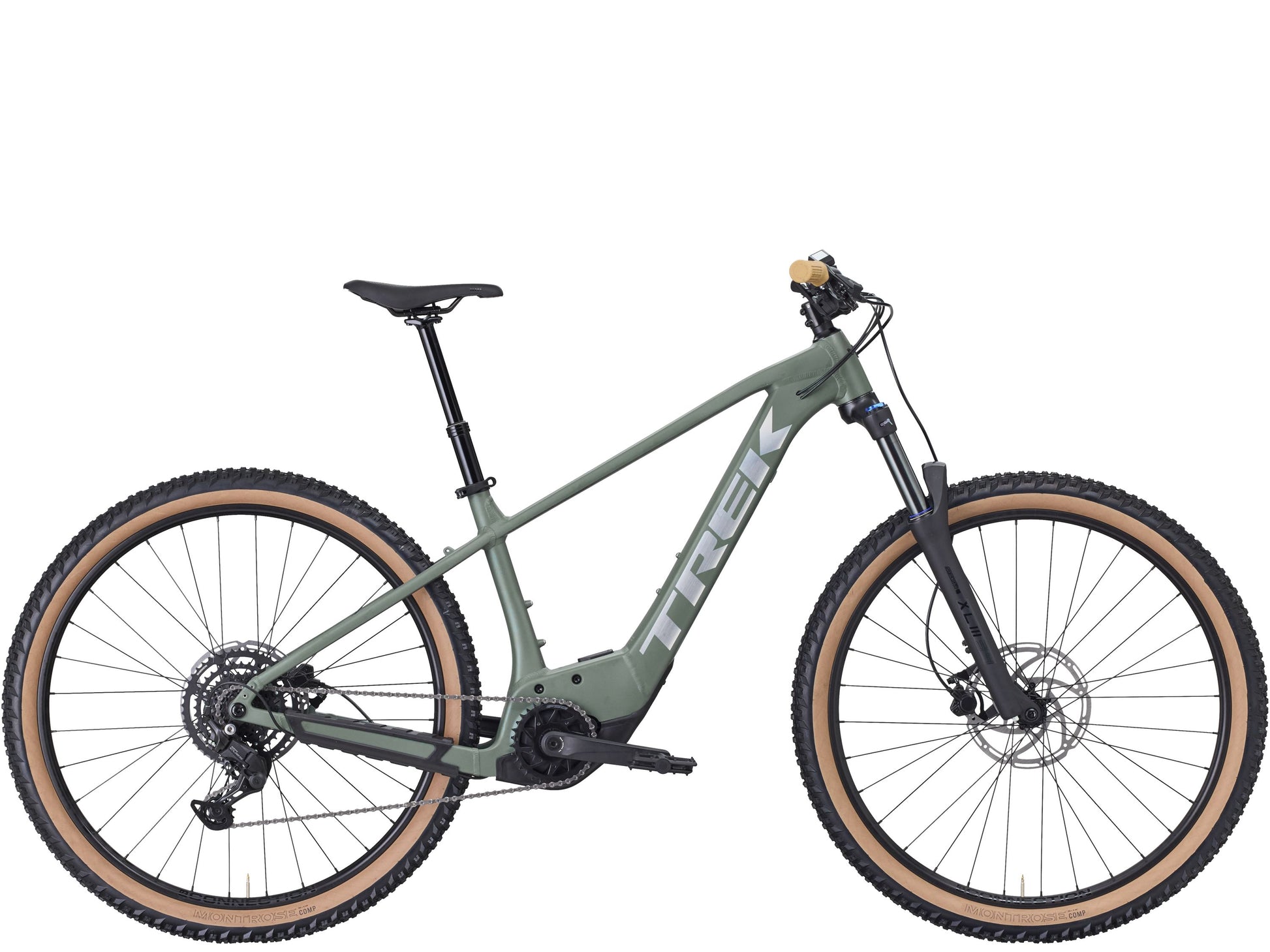

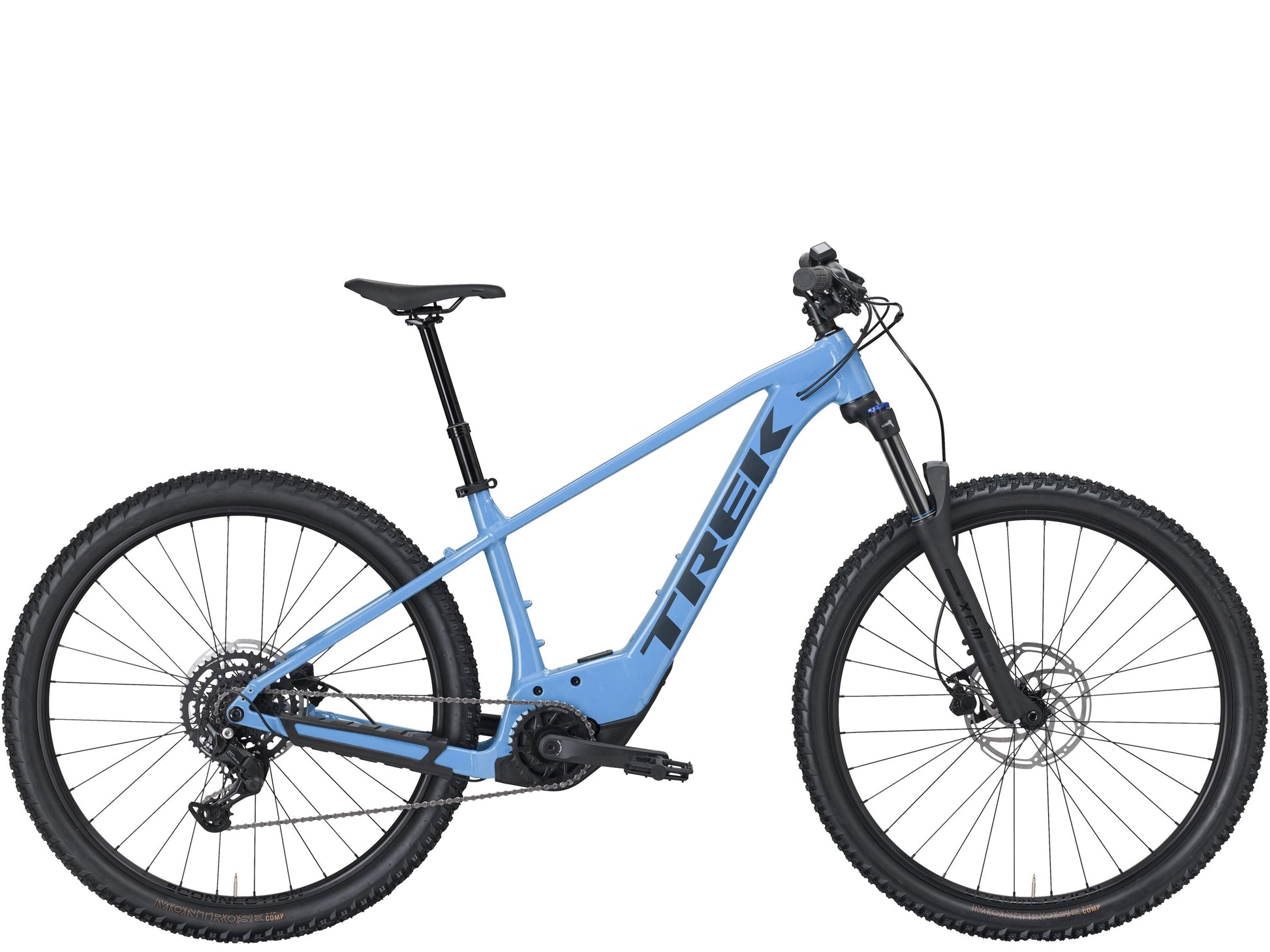

About The Trek Marlin+ 6 Mountain E-Bike
The Trek Marlin+ 6 is a Bosch Active Line Plus powered e-MTB built on a proven aluminum trail platform. The motor delivers 50Nm of torque with AUTO mode adaptive support that adjusts assistance based on terrain, and the 400Wh CompactTube battery keeps the system compact without sacrificing range. The frame is PowerMore range extender compatible, giving you the option to add capacity when you need it, and the entire e-system is UL certified.
On the trail, a 120mm SR Suntour XCM 34 air fork handles rocks, roots, and rough terrain, while the 9-speed Shimano CUES drivetrain provides dependable, low-maintenance shifting across a wide 11-46 cassette range. The Alpha Gold Aluminum frame includes rack, fender, and kickstand mounts, a dropper post with 150mm travel, and internal cable routing — making this a capable trail bike that also works off the trail.
Who It's For
- Riders new to e-MTB who want a complete, trail-ready package without excess complexity
- Commuters and mixed-use riders who need rack, fender, and kickstand compatibility
- Trail riders on moderate terrain who want pedal assist and a reliable drivetrain
- Riders who want a dropper post included from the factory
What to Look For
- The 400Wh battery suits most day rides; consider how often you'd use the PowerMore extender option for longer efforts
- The 9-speed Shimano CUES drivetrain is purpose-built for durability — a good fit if you prioritize low maintenance over top-end performance
- 29x2.40" tires offer a solid contact patch; worth comparing to the Marlin+ 8's wider tubeless-ready setup if traction is a priority
Key Features
Frame: Alpha Gold Aluminum with tapered head tube, internal routing, UDH derailleur hanger, Boost148 rear spacing, and 12mm thru axle. Rack, fender, and kickstand mounts are built in.
Motor & Battery: Bosch Active Line Plus motor with 50Nm torque and AUTO adaptive mode. Bosch CompactTube 400Wh battery with standard 2A smart charger. PowerMore range extender compatible. UL certified e-system.
Fork: SR Suntour XCM 34 with air spring, lockout, tapered steerer, 44mm offset, Boost110 front spacing, 15mm thru axle, and 120mm travel.
Drivetrain: Shimano CUES U4000 9-speed rear derailleur, Shimano U4000 shifter, Shimano LINKGLIDE LG300 11-46 cassette, Shimano LG500 chain, and 32T FSA steel chainring. LINKGLIDE is designed for durability and smooth shifting under load.
Brakes: Tektro hydraulic disc brakes with 203mm centerlock rotors front and rear.
Wheels: 29" wheels with Bontrager Connection double-wall 32-hole rims (20mm inner width), Shimano TC500 centerlock hubs with Boost spacing, and Bontrager Montrose Comp 29x2.40" wire bead tires.
Rider Intent Summary
- Biggest strengths: Complete trail-ready package with dropper post, motor assist, wide-range gearing, and practical mounts for commuting and mixed use
- Tradeoffs: Wire bead tires (not tubeless), 9-speed drivetrain, and SR Suntour fork are functional but leave room for upgrade over time
- What makes it different: Bosch Smart System integration with AUTO mode and PowerMore compatibility on an accessible price point
Victory's Take
We recommend the Marlin+ 6 for riders who want a well-rounded e-MTB that works on the trail and off it — at Victory Bicycle Studio, it's one of the more complete packages we carry at this price point, especially with the dropper post already installed.
What you get

Trek Marlin+ 6 Mountain E-Bike
Frequently Asked Questions
How is the bike packaged and how long does delivery take?
All bikes are securely packaged to ensure that damage doesn't occur during shipping. All parts of the bike are padded and if needed, zip tied to minimize or eliminate movement inside the box. Once a bike is handed to the shipping company (usually Fedex or UPS), depending on your location, delivery will range from 1 day to 8 days. If you do choose the option for Professional Assembly or White Glove Delivery, this can add anywhere from 2 days to 5 days to the lead time.
Can I finance the purchase of my new bike?
Yes. Simply select the Shop Pay Installments option which will allow you to buy now and pay later. Shop Pay Installments is powered by Affirm. If you would like to determine your spending limit, simply download the Shop app or the Affirm app on your smartphone and after you create an account on one of these apps, the app will let you know what is your spending limit.
Can I return the bike if it doesn't suit my needs?
Our return process is as follows. The customer is responsible for the return label ($150). Once the returned bike arrives at our warehouse, our team will inspect it and make sure it is in new condition and undamaged. Once we verify, we will process the return and issue a refund to the original payment method on file. To clarify the amount refunded, it would just be the amount of the bike (and tax if applicable) less the $150 shipping label that we provided, but the original shipping is not refunded. So if the original bike cost $4,500 and shipping was $150 (so you paid $4,650), you would be refunded $4,350 (the $4,500 less $150 for the return label) assuming the bike was returned in new and un-used condition and within the 30 day return period.
What does the warranty of my new bike or product cover and what is the warranty period?
Depending on the bike or any product, different companies have different warranty policies. If you do ever have an issue with your bike or any product, simply email us at online@victorybicyclestudio.com and we will assist with any warranty issues and clarify the warranty for the affected product.
Can I have my bike serviced at any bike shop?
Typically, to avoid any issues with your warranty, you should bring your bike to a certified mechanic or bike store for that bike (i.e. if you have a Trek bicycle, you should bring the bike to be serviced to a local bike store that is an authorized Trek dealer). If you need assistance, simply email us at online@victorybicyclestudio.com and we can direct you to a certified dealer of your bike.
Do you ship bikes internationally?
We unfortunately do not ship bikes outside of the 48 contiguous states of the United States. We do recommend for international customers to open (or use a current account) account with a freight forwarding company. If you use a freight forwarding company located in the U.S., make sure to put your billing address for a dedicated credit card as the same address as the freight forwarder so that you don't have any credit card or payment method issues).
Once you do this, simply place an order with us and we can ship to the U.S. address as long as the credit card doesn't get rejected. Once the freight forwarder has the box/order/shipment, you would instruct them to then ship to you in your home country and they would charge you their own shipping charge to ship to your international address.
Do you offer free shipping?
We do offer free shipping on non-bike orders over $100. We do not offer free shipping for bicycles unless it is a one time promotion. Generally, bike shipping will cost $150 and that covers just the shipping of the bike with no assembly. If you were to bring that bike to your local mechanic or bike store, you would pay them their assembly fee. If you choose our Professional Assembly option for $200, our service technicians would assemble the bike before shipping and then re-pack the bike safely for transit. When you receive the bike you would attach the front wheel, attach the seatpost/saddle, and raise the handlebars and clamp them. Those three items do have to be detached to minimize or eliminate the chance of damage in transit.
How much does shipping cost?
For orders of parts, accessories, apparel, etc. on orders under $100, shipping is a flat rate of $9.99. Regular bike shipping without assembly is $150, bike shipping with Professional Assembly is an additional $200 (so $350 in total which includes the $150 of regular shipping). Our White Glove Delivery option is $699 and that will cover the assembly of the bike and our White Glove Delivery partner delivering your dream bike to your front door, ready to ride!
How can I track my order?
When you place your online order, you will receive an instantaneous email update with your order number and order details, and shortly after, you will receive a follow up order email with the tracking number for your order. If you still need assistance with your order, feel free to email us at online@victorybicyclestudio.com and we will respond asap.
What happens if my package arrives damaged?
If your package arrives damaged, email online@victorybicyclestudio.com with pictures of all angles of the box and pictures of the damaged product and we will work with you to either send a new replacement asap and coordinate return (or re-imburse you for labor or costs incurred to fix the issue at your local bike store).
Are pedals included with the bike?
If you do not see pedals in the bullet point product specs on the product page, the bike does not come equipped with pedals. Many manufacturers do not spec bikes with pedals, so they are often purchased separately.
If I only pay the $150 for bike shipping, can I assemble the bike on my own?
Victory Bicycle Studio highly recommends that you bring your bike to your local certified bike store for the brand of the bike that you purchased. If you do attempt to assemble the bike and damage occurs, this may result in your warranty not being honored. For that reason, we do highly recommend to select our Professional Assembly option for $299.
