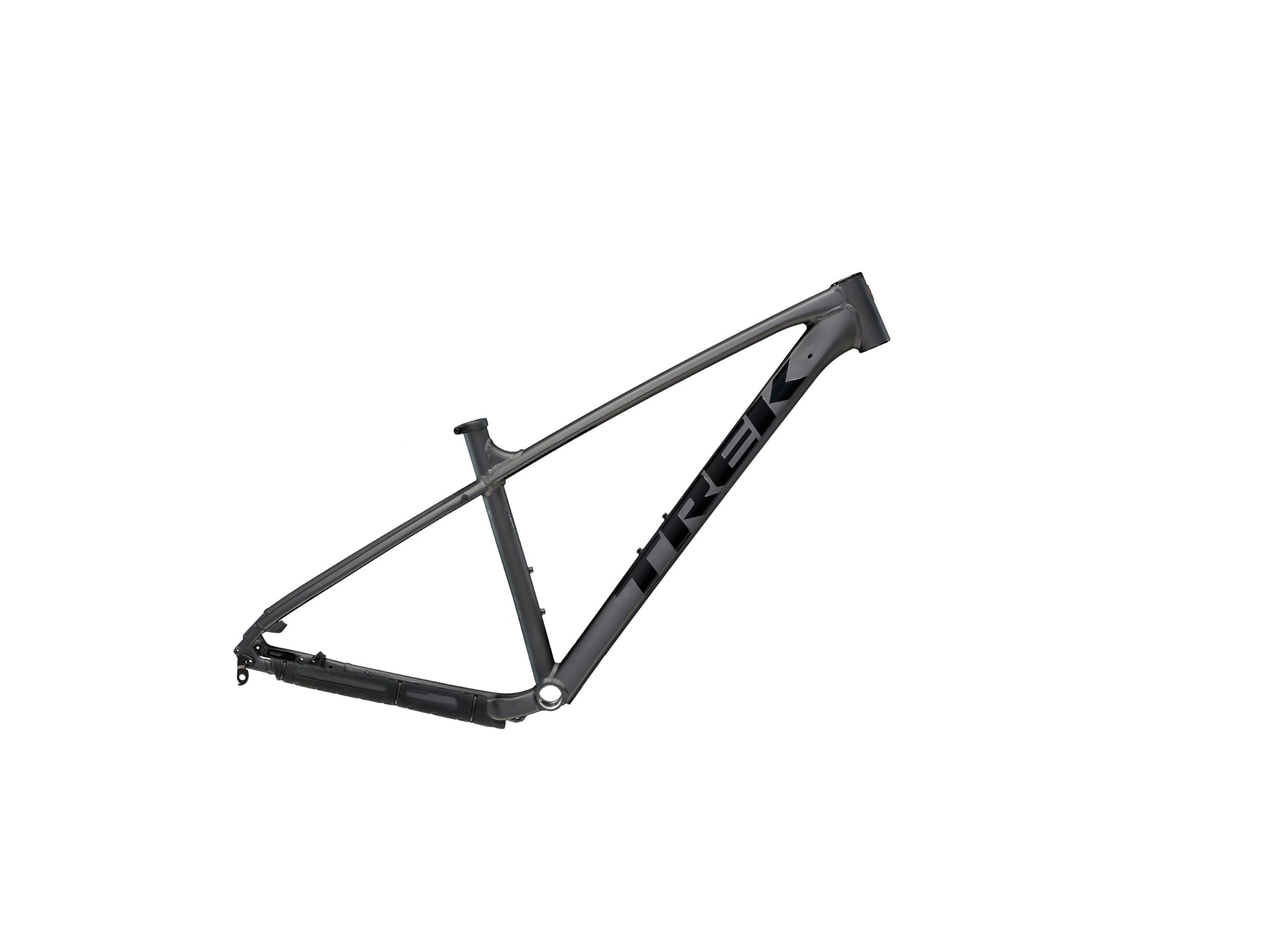

Trek Marlin Gen 3 Frameset

The Trek Marlin Gen 3 Frameset is a lightweight Alpha Silver Aluminum mountain bike frame built on updated geometry that's more capable and trail-confident than its predecessors. With a longer reach, slacker head angle, steeper effective seat tube angle, and a ThruSkew rear axle — a stronger, more precisely aligned retention system than traditional quick release — this frameset gives entry-to-intermediate mountain bikers a solid foundation to build on.

Internal routing for both the rear derailleur and a dropper post is built in, so upgrading the build over time is clean and easy. Fender mounts allow this to double as a capable commuter. The geometry scales intelligently across sizes: XXS and XS frames use a curved top tube for a lower standover height to help smaller riders mount and dismount more easily. The frame runs a 135x5mm ThruSkew axle standard — important to note when selecting rear wheels.

Who It's For

• Riders building their first capable trail mountain bike on a budget-conscious platform
• Smaller riders (XXS/XS) who need lower standover height alongside modern trail geometry
• Builders who want dropper post routing already in the frame for future upgrades
• Not ideal for: aggressive trail or enduro riding, riders who need Boost hub spacing, those building a suspension-focused setup

What to Look For

• Axle standard: 135x5mm ThruSkew rear — stronger than QR but not standard Boost; wheels must match this specific standard
• Wheel sizing: Frame is offered in multiple sizes with appropriate wheel sizing per size; XXS uses 26", sizes increase proportionally up to 29"
• Headset: Semi-integrated 1-1/8" — straightforward and widely serviceable
• Dropper post routing: Internal routing is pre-built into the frame for a future dropper upgrade

Key Features

Frame — Alpha Silver Aluminum: Trek's low-emission aluminum with updated trail geometry — longer reach, slacker head angle, steeper seat tube. Internal routing for derailleur and dropper post. Fender and kickstand mounts. XXS/XS sizes include curved top tube for lower standover.

Fork — Not Included: Frame-only sale; plan for a fork that matches the 135mm or Boost front hub spacing and geometry target of your build.

Compatibility — 135x5mm ThruSkew: ThruSkew rear axle is stronger and more precisely aligned than QR but uses a 135mm OLD — not interchangeable with Boost 148mm hubs. Rear wheel selection is critical.

Routing & Mounts: Internal rear derailleur and dropper post routing. Rack, fender, and kickstand mounts. Semi-integrated 1-1/8" headset.

Rider Intent Summary

• Biggest strengths: Updated trail geometry, internal dropper routing, ThruSkew rear axle, fender and rack mounts, curved top tube on smaller sizes for better fit
• Tradeoffs: 135mm ThruSkew limits hub selection vs. Boost 148; entry-level aluminum construction; no suspension rear travel
• What makes it different: The ThruSkew axle is a meaningful step up from traditional QR on a budget frame — it's more secure, more precise, and more durable without moving to full Boost spacing

Victory's Take

At Victory Bicycle Studio, the Marlin Gen 3 Frameset is a solid starting point for newer mountain bikers who want modern geometry and the ability to grow their build over time — the built-in dropper routing and fender mounts give this more long-term utility than most entry-level alloy hardtail frames.
