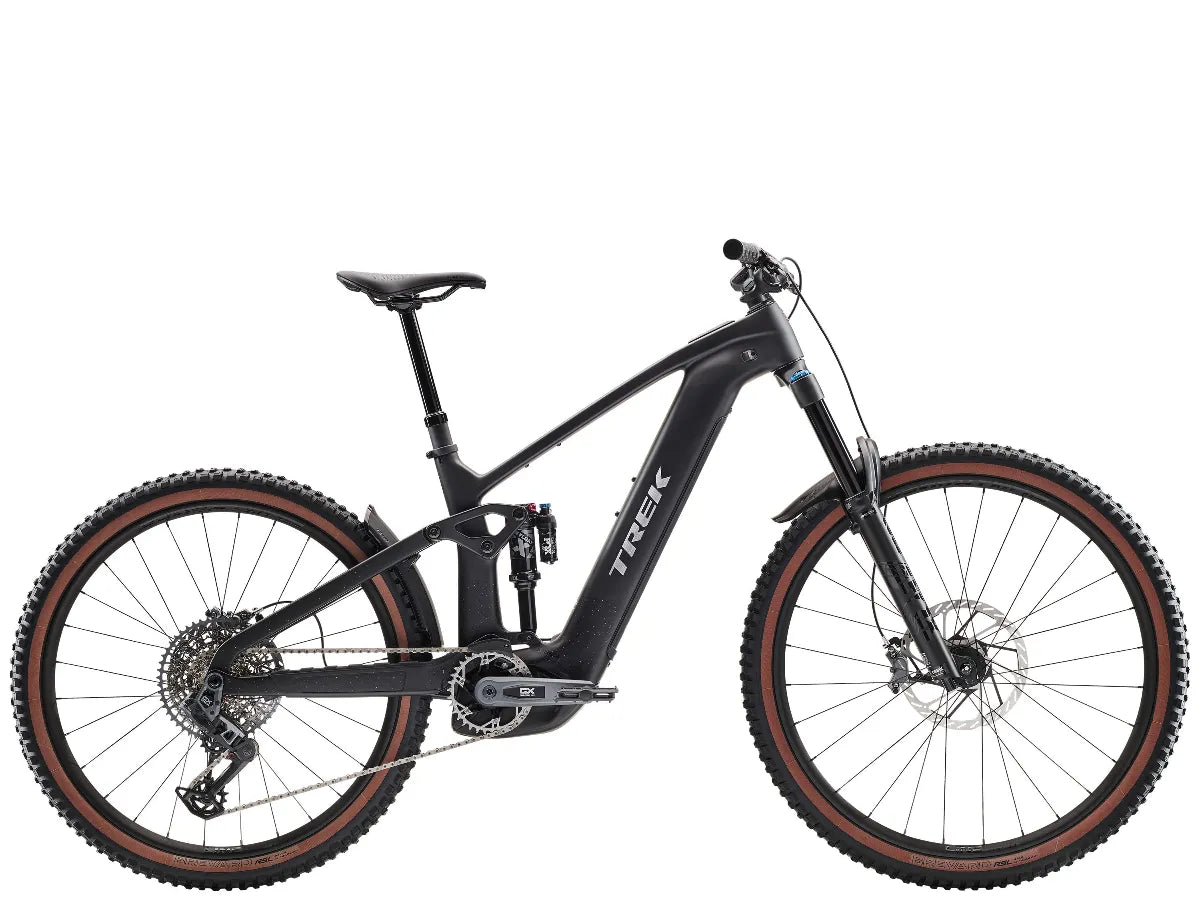

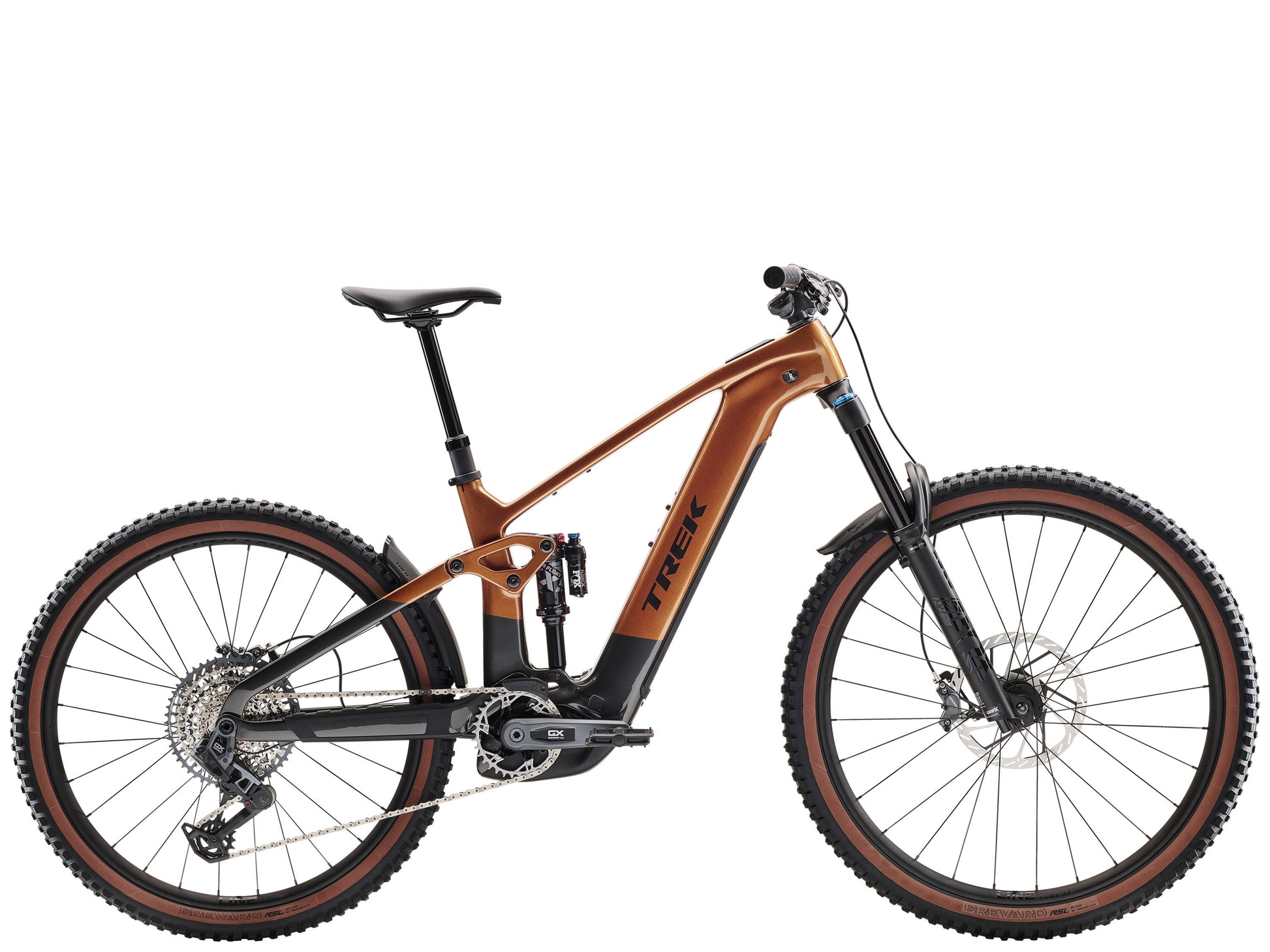

About The Trek Rail+ 9.8 GX AXS T-Type Gen 5 Mountain E-Bike
The Trek Rail+ 9.8 GX AXS T-Type Gen 5 upgrades the Rail+ carbon lineup with Fox Performance Elite Float 38 fork (160mm, FLOAT air spring, GRIP3 damper) and Fox Performance Elite Float X shock (205x65mm), paired with SRAM GX Eagle AXS T-Type wireless 12-speed drivetrain on the OCLV Mountain Carbon frame. The Bosch Performance Line CX motor (85Nm, tunable to 100Nm/750W) and 800Wh RIB 2.0 removable battery power the platform. All Rail+ Gen 5 carbon models run 27.5" wheels front and rear. The 800Wh battery supports PowerMore range extender. The Fox Performance Elite GRIP3 damper provides more tuning range than the RockShox Motion Control damper on the 9.7, with independent compression adjustment.
SRAM Maven Bronze 4-piston hydraulic brakes with 203mm front and rear 6-bolt rotors provide stopping power. SRAM GX Eagle AXS T-Type rear derailleur, SRAM AXS pod shifter, SRAM Eagle XS-1275 T-Type 10-52 cassette, and SRAM GX Eagle T-Type chain. Bontrager Kovee RSL OCLV Carbon cranks at 165mm. Bontrager SE6 Team Issue 27.5x2.6" tubeless-ready tires front and rear. A Bontrager Line Dropper post and alloy handlebar complete the cockpit. The GX Eagle AXS wireless drivetrain is the key step up from the Rail+ 9.7's mechanical SLX/XT.
Who It's For
- Rail+ riders who want wireless SRAM GX Eagle AXS T-Type shifting and Fox Performance Elite suspension on the OCLV Carbon platform
- Those who are already in the SRAM AXS wireless ecosystem and want wireless shifting without spending to SRAM X0 on the Rail+ 9.9
- Riders who value Fox's suspension tuning character and GRIP3 damper adjustability over RockShox alternatives at the same tier
- Those who want Maven Bronze 4-piston braking quality with wireless drivetrain integration in the Rail+ lineup
What to Look For
- Fox Performance Elite vs. Fox Factory: Performance Elite uses the GRIP3 damper which provides compression and rebound adjustment; Factory uses GRIP X2 which adds independent high-speed and low-speed compression control — Factory is the deeper-tuning option on the Rail+ 9.9
- SRAM GX Eagle AXS vs. X0 Eagle AXS: GX AXS is one tier below X0 in the T-Type wireless lineup — both shift wirelessly and use T-Type chain retention; X0 uses lighter materials and refined internals
- Maven Bronze vs. Maven Silver: Both are 4-piston; Maven Silver is the next tier up on the Rail+ 9.9 — Maven Bronze provides strong modulation and is appropriate for the 9.8's riding intent
Key Features
Frame — OCLV Mountain Carbon: RIB 2.0 removable battery, Mino Link geometry adjustment, adjustable leverage rate, ABP, UDH, 160mm rear travel.
Motor/Battery — Bosch Performance Line CX: 85Nm (tunable to 100Nm/750W via eBike Flow app). Bosch PowerTube 800Wh RIB 2.0. Bosch Kiox 400C display.
Drivetrain — SRAM GX Eagle AXS T-Type wireless 12-speed: GX Eagle AXS rear derailleur, SRAM AXS pod, SRAM Eagle XS-1275 T-Type 10-52 cassette, SRAM GX Eagle T-Type chain. Bontrager Kovee RSL OCLV Carbon cranks, 165mm, 34T steel chainring.
Brakes — SRAM Maven Bronze 4-piston hydraulic disc: 203mm 6-bolt rotors front and rear.
Rider Intent Summary
- Biggest strengths: Fox Performance Elite Float 38 with GRIP3 damper; Fox Performance Elite Float X shock; SRAM GX Eagle AXS T-Type wireless shifting; SRAM Maven Bronze 4-piston brakes; OCLV Carbon cranks; Bosch CX 85Nm motor; 800Wh battery
- Tradeoffs: Fox Performance Elite vs. Factory on Rail+ 9.9; GX AXS vs. X0 AXS; cable dropper vs. wireless Reverb AXS on Rail+ 9.9; alloy handlebar vs. carbon on Rail+ 9.9
- What makes it different: The Rail+ 9.8 is the only model in the lineup combining Fox Performance Elite suspension with SRAM GX Eagle AXS T-Type wireless drivetrain — the wireless shifting and Fox suspension step up from the 9.7 without reaching the 9.9's top-spec pricing
Victory's Take
At Victory Bicycle Studio, the Rail+ 9.8 GX AXS is a well-rounded build for the rider who wants wireless drivetrain and Fox suspension on the Rail+ carbon platform — GX AXS wireless shifting and Maven Bronze brakes are strong performers at this tier.
What you get

Trek Rail+ 9.8 GX AXS T-Type Gen 5 Mountain E-Bike
