About The Trek Rail+ 9.9 X0 AXS T-Type Gen 5 Mountain E-Bike

The Trek Rail+ 9.9 X0 AXS T-Type Gen 5 is the top-spec build in the Rail+ lineup — OCLV Mountain Carbon frame, RockShox ZEB Ultimate fork (160mm, DebonAir spring, Charger 3.1 RC2 damper), RockShox Super Deluxe Ultimate RC2T shock (205x65mm), SRAM X0 Eagle AXS T-Type wireless 12-speed drivetrain, and Bontrager Line Pro 30 OCLV Carbon wheels. The Bosch Performance Line CX motor (85Nm, tunable to 100Nm/750W via eBike Flow app) and 800Wh RIB 2.0 removable battery power the platform. All Rail+ 9.9 models run 27.5" wheels front and rear. A RockShox Reverb AXS wireless dropper post (100mm travel) integrates into the SRAM AXS ecosystem. Tires are Bontrager Brevard RSL SE 27.5x2.50" triple compound aramid bead.

The RockShox ZEB Ultimate's Charger 3.1 RC2 damper provides independent high-speed and low-speed compression and rebound adjustment — the highest level of tuning available in RockShox's fork lineup. The Super Deluxe Ultimate RC2T shock provides equivalent rear damper quality. SRAM Maven Silver 4-piston hydraulic brakes with 200mm front and 220mm rear HS2 6-bolt rotors. SRAM X0 cranks at 160mm, SRAM Eagle XS-1295 T-Type 10-52 cassette, and SRAM X0 Eagle T-Type chain. A Bontrager Line Pro OCLV Carbon handlebar (780mm) and Race Face Turbine R stem complete the cockpit.

Who It's For

  • Enduro riders who want the complete top-spec Rail+ build: RockShox ZEB Ultimate damper quality, SRAM X0 AXS wireless drivetrain, carbon wheels, wireless dropper, and Bosch CX 100Nm (tunable)
  • SRAM AXS ecosystem riders who want full wireless integration — shifting and dropper post — on the Rail+ platform
  • Riders who want the ZEB Ultimate's Charger 3.1 RC2 damper's tuning depth and RockShox's top-tier suspension quality on the Rail+ carbon platform
  • Those who prioritize OCLV Carbon wheel weight savings and unsprung weight reduction on an enduro e-MTB

What to Look For

  • RockShox ZEB Ultimate vs. Fox Performance Elite Float 38 (Rail+ 9.8): Both are high-quality 160mm forks; ZEB Ultimate uses the Charger 3.1 RC2 damper with independent HSC/LSC adjustment; Fox Performance Elite uses GRIP3 with compression/rebound — personal preference and ecosystem loyalty drive this choice more than objective performance at this tier
  • SRAM X0 vs. GX Eagle AXS T-Type: X0 uses lighter, more refined materials at the next tier up from GX — the T-Type chain retention and clutch are shared across both
  • Reverb AXS wireless dropper: Integrates with SRAM AXS pod for dropper control without a separate lever; requires its own battery (charges via magnetic USB); 100mm travel on this spec

Key Features

Frame — OCLV Mountain Carbon: RIB 2.0 removable battery, Mino Link geometry adjustment, adjustable leverage rate, ABP, UDH, 160mm rear travel.

Motor/Battery — Bosch Performance Line CX: 85Nm (tunable to 100Nm/750W via eBike Flow app). Bosch PowerTube 800Wh RIB 2.0. Bosch Kiox 400C display.

Drivetrain — SRAM X0 Eagle AXS T-Type wireless 12-speed: X0 Eagle AXS rear derailleur, SRAM AXS pod, SRAM Eagle XS-1295 T-Type 10-52 cassette, SRAM X0 Eagle T-Type chain. SRAM X0 Eagle cranks, 160mm, 34T steel chainring.

Brakes — SRAM Maven Silver 4-piston hydraulic disc: 200mm front, 220mm rear HS2 6-bolt rotors.

Rider Intent Summary

  • Biggest strengths: RockShox ZEB Ultimate with Charger 3.1 RC2 damper; Super Deluxe Ultimate RC2T shock; SRAM X0 Eagle AXS T-Type wireless drivetrain; RockShox Reverb AXS wireless dropper; Bontrager Line Pro 30 OCLV Carbon wheels; Maven Silver 4-piston brakes; OCLV Carbon frame; Bosch CX 85/100Nm motor; 800Wh battery
  • Tradeoffs: Multiple wireless component batteries to maintain; 100mm dropper travel is conservative for the platform; 27.5" wheel spec limits rollover advantage vs. mixed-wheel platforms
  • What makes it different: The only Rail+ build with RockShox's Charger 3.1 RC2 damper, SRAM X0 AXS, carbon wheels, and wireless dropper together — the complete, top-specification Bosch CX enduro e-MTB in the Rail+ lineup

Victory's Take

At Victory Bicycle Studio, the Rail+ 9.9 is the Rail+ we'd point a serious enduro rider toward when they want the complete build without compromise — the ZEB Ultimate's tuning depth, X0 AXS wireless integration, and carbon wheels make this the definitive Rail+ package.

What you get

  • Frame - OCLV Mountain Carbon, 160mm travel, 27.5" wheels
  • Motor - Bosch Performance Line CX, 85Nm Smart System
  • Battery - 800Wh RIB 2.0 removable
  • Drivetrain - SRAM X0 Eagle AXS T-Type wireless 12-speed
  • Wheels - Bontrager Line Pro 30 OCLV Carbon

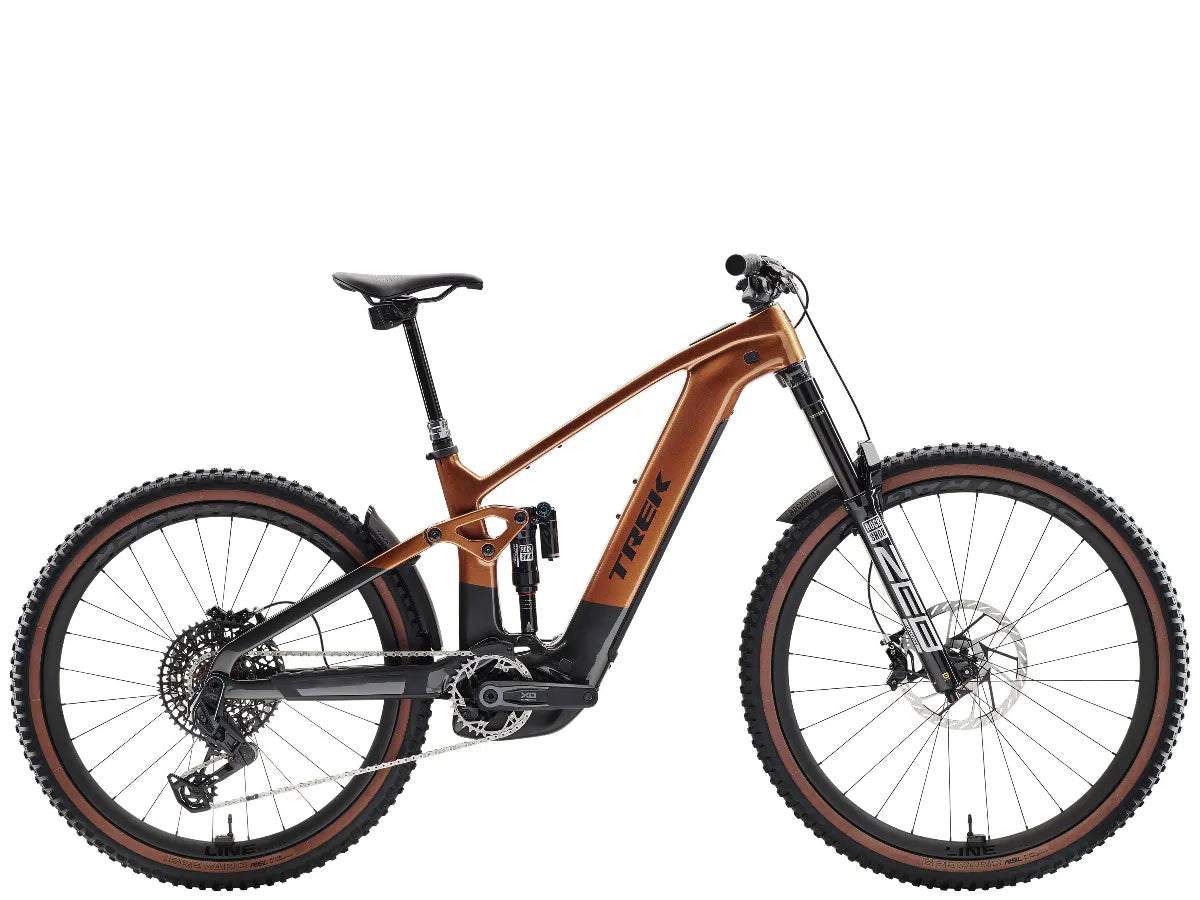

Rail+ 9.9 XO AXS US S Pennyflake

Trek

Trek Rail+ 9.9 X0 AXS T-Type Gen 5 Mountain E-Bike

Regular price $12,299.99 USD
Sale price $12,299.99 USD Regular price $12,299.99 USD

Specifications

Frameset
Frame

OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9mm seat tube, ABP, UDH, Boost148, 12mm thru axle, 160mm travel

Fork

RockShox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 160mm travel

Rear Shock

RockShox Super Deluxe Ultimate RC2T, 205x65mm

Weight

M - 23.98 kg / 52.87 lbs (with TLR sealant, no tubes)

Wheels
Front Wheel

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle

- Size: S - 27.5"

- Size: M, L, XL - 29"

Rear Wheel

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12mm thru axle, 27.5"

Tire (Front)

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi

- Size: S - 27.5x2.50"

- Size: M, L, XL - 29x2.50"

Tire (Rear)

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5x2.50"

Max Tire Size

Frame: 27.5x2.60", Fork: see manufacturer

Drivetrain and Brakes
Shifter

SRAM AXS pod

Rear Derailleur

SRAM X0 Eagle AXS, T-Type

Crank

SRAM X0 Eagle, 160mm length

Chainring

SRAM T-Type, 34T, steel

Cassette

SRAM Eagle XS-1295, T-Type, 10-52, 12 speed

Chain

SRAM X0 Eagle, T-Type, 12 speed

Brake

SRAM Maven Silver, 4-piston hydraulic disc

Brake Rotor

SRAM HS2, 6-bolt (front: 220mm, rear: 200mm)

Cockpit
Saddle

Verse Short Comp, steel rails, 145mm width

Seatpost

RockShox Reverb AXS, wireless, 34.9mm

- Size: S - 100mm travel, 340mm length

- Size: M, L, XL - 170mm travel, 480mm length

Handlebar

Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise, 780mm width

Grips

Bontrager XR Trail Elite, nylon lock-on

Stem

Bontrager Line Pro, 35mm, Blendr compatible, 0 degree, 45mm length

Additional Information
Motor

Bosch Performance Line CX, smart system

Battery

Bosch PowerTube 800Wh, smart system

Charger

Bosch standard 4A charger, smart system

Controller

Bosch Kiox 400C with mini remote

E-bike Class

Class 1
