About The Trek Service Electric Mountain E-Bike

The Trek Service Electric is a purpose-built electric all-terrain bike (E-ATB) designed for riders who need a rugged, load-capable platform that performs equally on trail and urban terrain. The Alpha Platinum Aluminum frame integrates the battery cleanly and supports a MIK-compatible rear rack and full fender mounts — giving it utility credentials that typical mountain e-bikes lack. An SR Suntour XCR 34 air fork with 100mm of travel and 27.5x2.40" tubeless-ready tires handle rough surfaces and trail conditions, while the upright geometry and integrated accessories make it practical for daily service use.

The drivetrain is Shimano CUES 10-speed LINKGLIDE, an e-bike-optimized groupset with extended chain and cassette life under motor torque loads. Stopping power comes from Shimano MT4100/MT420 4-piston hydraulic disc brakes with a 203mm front rotor and 180mm rear — sized appropriately for a loaded, trail-capable platform. An integrated Supernova lighting system (front and rear) draws directly from the main battery, eliminating the need for separate USB-charged lights. The Service Electric sits at the crossover between cross-country mountain e-bike and utility commuter — suited for riders who need both.

Who It's For

  • Service professionals, fleet operators, or active commuters who need a trail-capable e-bike with cargo rack and integrated lighting
  • Riders who want a single bike that handles mixed terrain — trail, gravel, and road — with utility features already built in
  • Those who value 4-piston brakes, a suspension fork, and wide-volume tires on a rack-equipped platform
  • Riders looking for a pure trail e-bike without utility accessories — dedicated mountain e-bikes like the Rail+ or Fuel+ are better suited to that mission

What to Look For

  • E-ATB category: Trek classifies the Service Electric as an Electric All-Terrain Bike — it bridges mountain and utility use rather than optimizing for either exclusively
  • 27.5" wheel size: Lower standover and more tire volume than 29" for stability under load; a practical trade-off for a bike used in service or cargo applications
  • Supernova integrated lighting: Draws from the main battery — meaningfully brighter and more reliable than clip-on USB lights, and nothing extra to charge

Key Features

Frame — Alpha Platinum Aluminum: Integrated battery, MIK-compatible rear rack, fender mounts, internal cable routing. Designed to carry load and handle trail conditions in the same platform.

Fork — SR Suntour XCR 34 Air: 100mm travel, air spring, lockout. Handles trail surfaces and rough road conditions under load without the weight of a full trail fork.

Drivetrain — Shimano CUES 10-speed LINKGLIDE: E-bike-optimized groupset with significantly extended chain and cassette life compared to conventional mountain drivetrains under motor torque.

Brakes — Shimano MT4100/MT420 4-piston hydraulic disc: 203mm front, 180mm rear rotors. Four-piston calipers provide strong, consistent stopping whether the bike is loaded or unloaded.

Rider Intent Summary

  • Biggest strengths: Trail-capable suspension and tires combined with MIK rack, integrated Supernova lighting, and 4-piston brakes — a utility-equipped E-ATB that doesn't require adding accessories after purchase
  • Tradeoffs: The utility-focused spec means it's not optimized for pure trail performance; dedicated trail e-bikes will outperform it on technical terrain
  • What makes it different: An integrated Supernova lighting system and MIK rack on a suspension-equipped E-ATB platform is an unusual combination — the Service Electric is built for riders who need genuine all-terrain capability and day-one utility without compromise

Victory's Take

At Victory Bicycle Studio, the Service Electric is the right answer when someone needs a capable off-road e-bike that also functions as a daily commuter or service vehicle — the integrated lights and rack remove the usual aftermarket accessory hassle, and the trail-spec brakes and fork mean it earns its keep on rough terrain too.

What you get

  • Frame - Alpha Platinum Aluminum, integrated lighting + MIK rack
  • Motor - Bosch Performance Line Speed, 250W, Class 3
  • Battery - 600Wh integrated, 28 mph assist
  • Drivetrain - Shimano CUES 10-speed LINKGLIDE
  • Brakes - Shimano 4-piston hydraulic disc

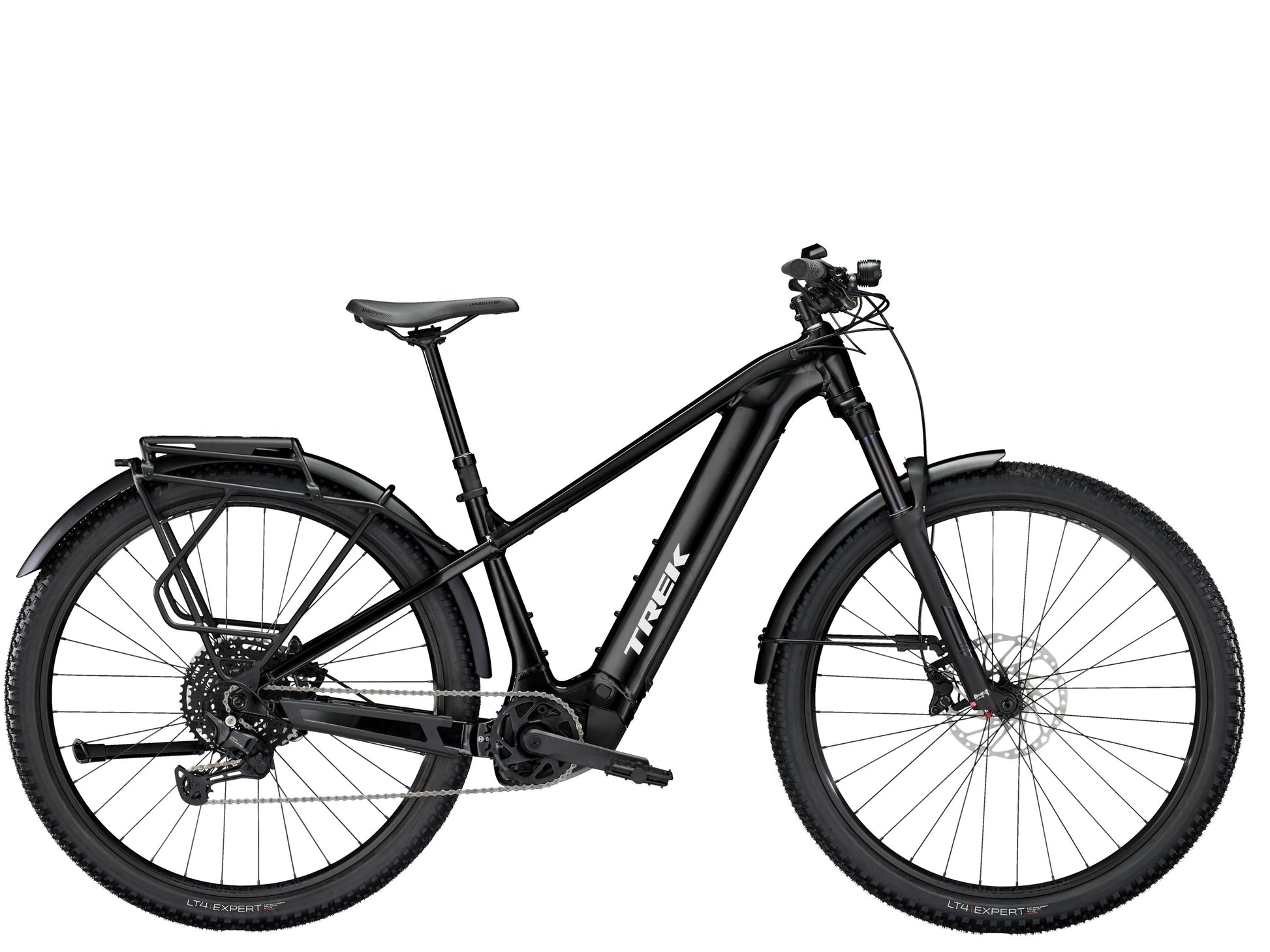

Service Electric S Trek Black

Trek

Trek Service Electric Mountain E-Bike

Regular price $4,999.99 USD
Sale price $4,999.99 USD Regular price $4,999.99 USD

Specifications

Frameset
Frame

Alpha Platinum Aluminum, integrated battery, MIK-compatible rear rack, fender mounts, internal cable routing, upright urban geometry

Fork

SR Suntour XCR 34 air fork, 100mm travel

Drivetrain and Brakes
Motor

Bosch Performance Line Speed, 250W continuous, 28 mph Class 3 assist

Battery

Bosch 600Wh integrated

Display

Bosch Kiox

Drivetrain

Shimano CUES 10-speed LINKGLIDE — extended chain and cassette life under motor torque

Brakes

Shimano MT4100/MT420 4-piston hydraulic disc, 203mm front, 180mm rear

Wheels
Tires

27.5x2.40in tubeless-ready

Additional Information
Lighting

Supernova integrated front and rear lighting system (powered by main battery)

Rack

MIK-compatible rear rack (integrated)

Class

Class 3 (28 mph assist)
