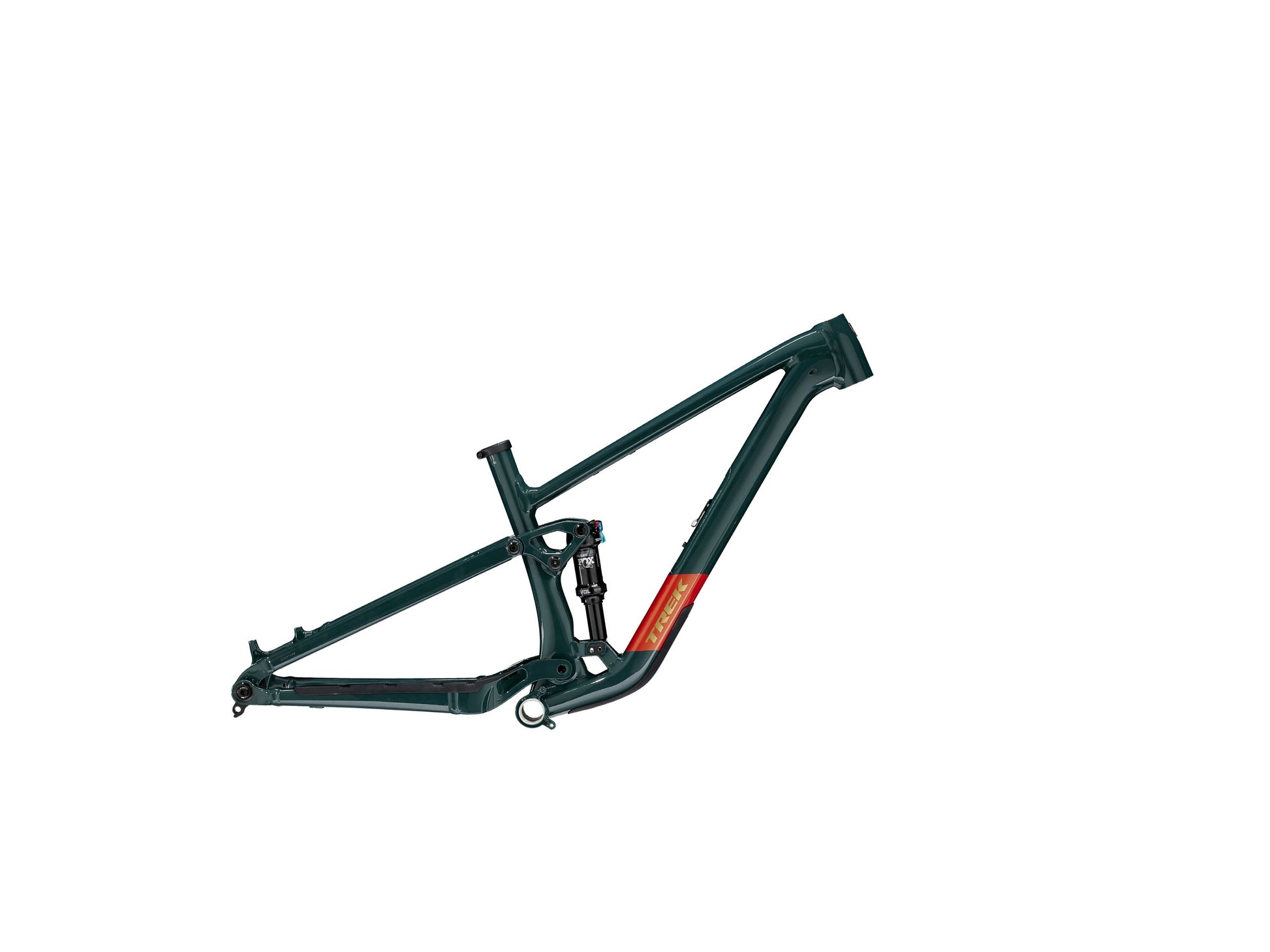

About The Trek Top Fuel AL Frameset Gen 4
The Trek Top Fuel AL Frameset Gen 4 is a trail and XC full-suspension frame built from Alpha Platinum Aluminum with 120mm of rear travel (compatible with up to 130mm with shock swap). The Top Fuel occupies the space between XC race efficiency and trail capability — it climbs with less penalty than a 140mm+ trail bike and descends with more composure than a hardtail. The 4-way Mino Link gives this frame a meaningful geometry range: low/high and flip-chip combinations let the rider adjust geometry for XC or trail use.
The Fox Performance Float DPS shock (185x50mm) with 2-position damper is included. ABP (Active Braking Pivot) keeps the suspension active under braking without brake-induced lockout. Internal guided routing for both dropper post and drivetrain is built in, along with downtube guard and alloy rocker link. The frame is designed for 29er wheels standard but supports a mixed-wheel (MX) configuration for riders who want a 27.5" rear wheel. Boost148, 12mm thru axle, and internal storage are all present. Head angle of 65.9° reflects the trail-leaning intent of this platform.
Who It's For
- Trail riders who want efficient climbing and confident descending in the 120mm travel range without paying for carbon
- XC enthusiasts who want more descending capability than a race hardtail without giving up pedaling efficiency
- Riders who want 4-way Mino Link geometry flexibility to tune the bike for different riding conditions
- Not ideal for: dedicated XC racers who want the lightest possible weight, or riders who regularly ride terrain that demands more than 120mm travel
What to Look For
- Shock: Fox Performance Float DPS 2-position damper (185x50mm) included — confirm shock travel matches your intended fork and geometry setting
- 4-way Mino Link: Four geometry positions — high/low on each of two flip positions; understand the geometry table before the build to select the starting position
- Wheel size: Full 29" or MX (29/27.5) compatible — confirm wheel size preference before speccing fork and wheels
- Travel range: 120mm standard, up to 130mm with shock swap — confirm fork travel matches shock selection
Key Features
Frame — Alpha Platinum Aluminum, 120mm Travel: Trail-XC geometry (65.9° head angle), 4-way Mino Link geometry adjust, ABP, Boost148, internal guided routing for dropper and drivetrain, downtube guard, alloy rocker link, internal storage. Full 29" or MX wheel compatible.
Fork — Not Included: Fox Performance Float DPS shock (185x50mm, 2-position) included. Source a 120–130mm travel fork matched to 29" or MX wheel size.
Compatibility — Boost148 / 12mm Thru Axle / ABP: Boost148 rear spacing, 12mm thru axle, ABP for braking-independent suspension. Internal guided routing for dropper and 1x drivetrain. 4-way Mino Link adjustable geometry.
Routing & Mounts: Internal guided routing for derailleur and dropper post. Downtube guard included. Internal frame storage. No ISCG mount.
Rider Intent Summary
- Biggest strengths: 120mm trail-XC platform, 4-way Mino Link geometry flexibility, Fox Float DPS shock included, ABP, MX wheel compatibility, internal storage, aluminum value
- Tradeoffs: Aluminum weight vs. Top Fuel C; 120mm travel requires discipline-specific trail use — not for riding rowdy enduro terrain; 4-way Mino Link adds setup complexity
- What makes it different: The 4-way Mino Link is the Top Fuel's standout feature — more geometry adjustability than most frames in this travel category, allowing meaningful changes to head angle and BB height for different terrain or riding styles
Victory's Take
At Victory Bicycle Studio, the Top Fuel AL Gen 4 is a frame we recommend to riders who spend more time on trail climbs than lift-accessed descents and want a suspension platform that rewards efficient pedaling without making descents a white-knuckle experience.
What you get

Trek Top Fuel AL Frameset Gen 4
