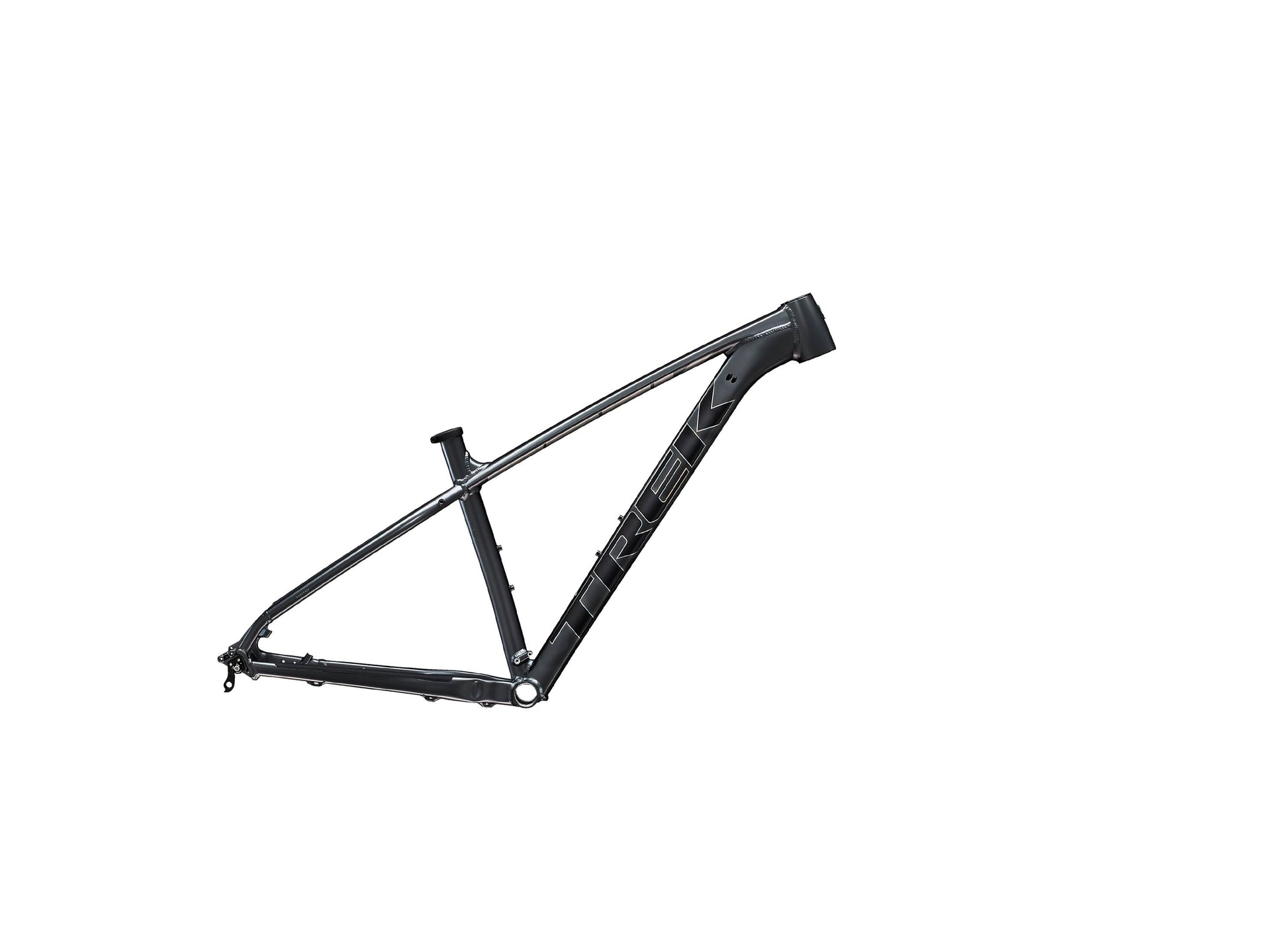

Trek X-Caliber Mountain Bike Frameset

The Trek X-Caliber Frameset is an XC hardtail built from Alpha Gold Aluminum — Trek's entry-level aluminum grade — designed to build an accessible, capable cross-country hardtail at a price that lets more riders get onto the trail. The 69.5° head angle and internal routing for derailleur and dropper reflect a genuine XC intent: this is not a trail bike, but it is not a department-store hardtail either. It is a real mountain bike frame with the geometry and features to support a complete, ride-ready build.

The X-Caliber uses a Boost141 5mm quick-release rear axle — not a standard Boost148 thru axle. This is an important compatibility note: hub and axle selection must match the Boost141 QR standard, which is less common than either standard 135mm QR or Boost148 thru axle. Rack and kickstand mounts are included, signaling that this frame has utility use in mind alongside trail riding. The semi-integrated loose ball bearing headset (1-1/8" top, 1.5" bottom) accepts tapered fork standards. A 36.4mm bolt-on seat collar is included.

Who It's For

• Riders building their first real XC hardtail at an accessible price point
• Commuters and trail riders who want rack and kickstand mounts alongside trail geometry
• Buyers who want internal dropper post routing on a budget-friendly hardtail frame
• Not ideal for: technical trail riding, Boost148 thru axle wheel builds, or riders expecting a trail geometry head angle

What to Look For

• Axle standard — Boost141 QR: This is NOT standard Boost148 thru axle and NOT standard 135mm QR. Verify that hubs, wheels, and any chainline components are specifically Boost141 compatible before purchasing
• Head angle: 69.5° — more upright than a trail bike; XC geometry that climbs efficiently but is not tuned for aggressive descending
• Rack and kickstand mounts: Included — useful for commuting or light touring builds in addition to trail use
• Alpha Gold Aluminum: Entry-level aluminum grade — heavier than Alpha Platinum or carbon, but durable and an appropriate choice at this price point

Key Features

Frame — Alpha Gold Aluminum, XC Hardtail: Entry-level aluminum construction with XC geometry (69.5° head angle), internal routing for derailleur and dropper post, rack mounts, kickstand mount, tapered headtube. 36.4mm bolt-on seat collar.

Fork — Not Included: Semi-integrated loose ball bearing headset (1-1/8" top, 1.5" bottom) accepts a tapered XC fork. Source a 100mm XC fork matched to the frame geometry.

Compatibility — Boost141 5mm QR / Tapered Headtube: Boost141 QR rear axle — not Boost148 thru axle. This is a key compatibility constraint. Verify hub and wheel compatibility before any component selection. Tapered headtube for current fork standards.

Routing & Mounts: Internal routing for derailleur cable and dropper post. Rack mounts (front and rear). Kickstand mount. No ISCG mount.

Rider Intent Summary

• Biggest strengths: Accessible XC hardtail price point, internal dropper routing, rack and kickstand mounts, tapered headtube, genuine trail-capable geometry
• Tradeoffs: Boost141 QR is a niche axle standard — more constrained wheel and hub selection than standard QR or Boost148 thru axle; Alpha Gold aluminum is heavier than higher-grade options
• What makes it different: The X-Caliber is Trek's entry point for XC hardtail building — it includes features (internal dropper routing, rack mounts, tapered headtube) that are often absent from frames at this price tier

Victory's Take

At Victory Bicycle Studio, the X-Caliber is the frame we point first-time mountain bike builders toward when budget is a real constraint — it's a legitimate starting point, and the internal dropper routing means you won't have to replace the frame when you decide to add a dropper post later.
