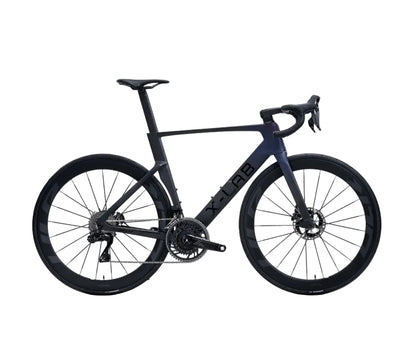

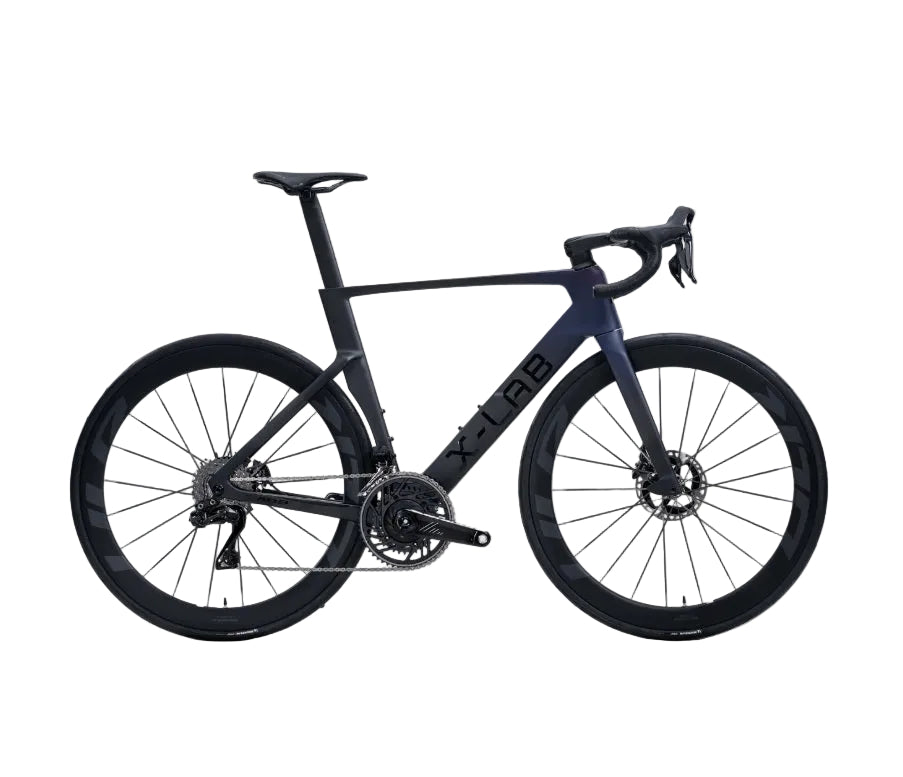

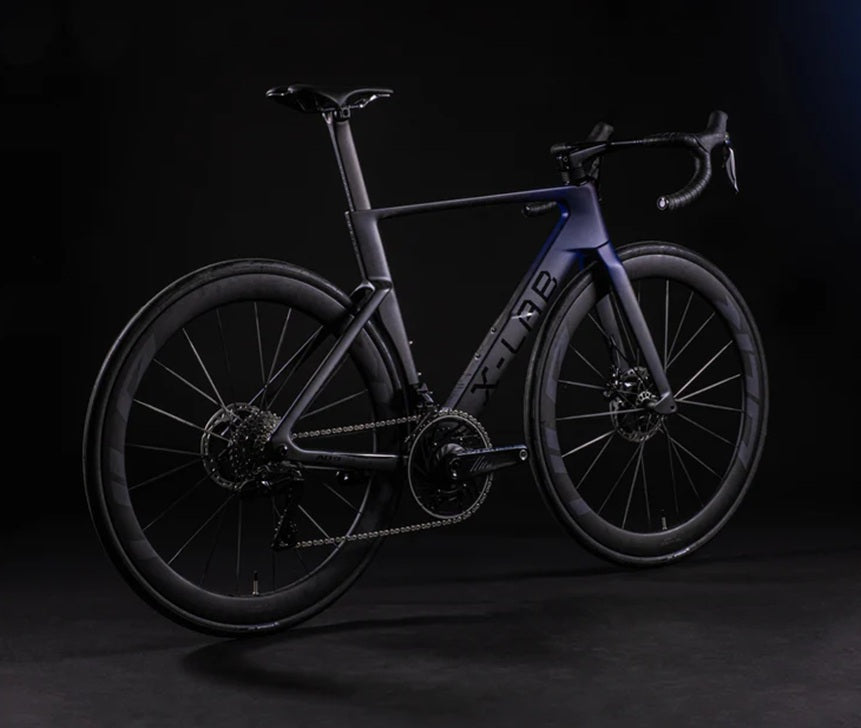

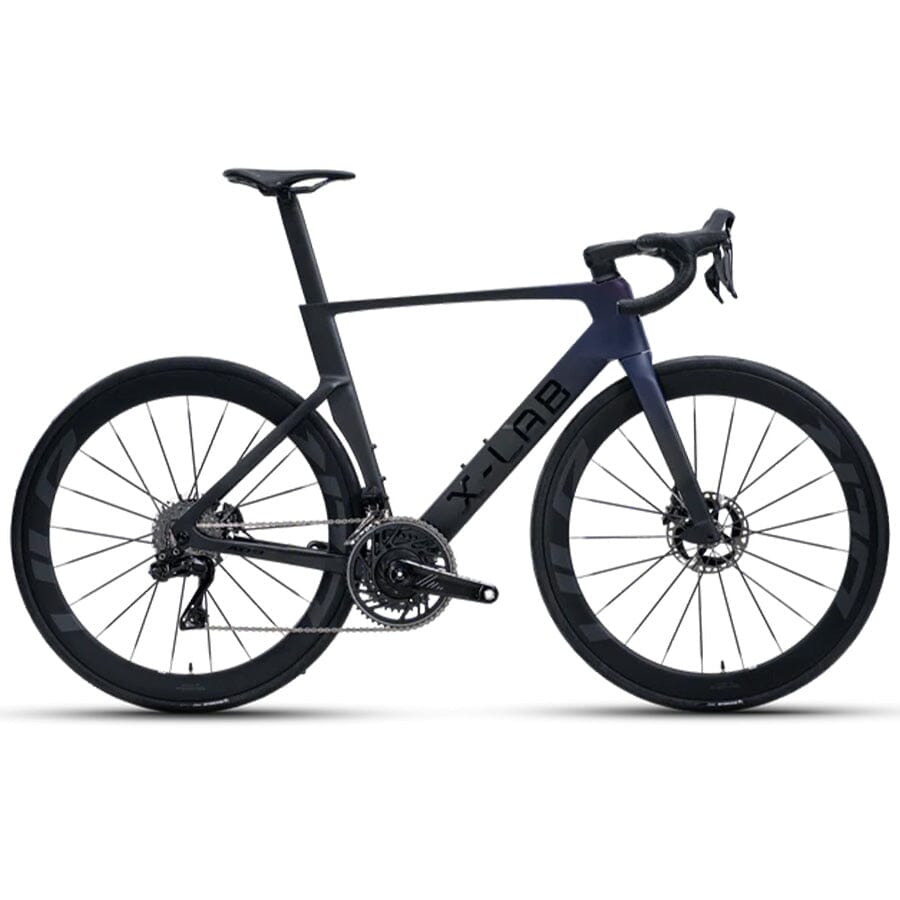

About The X-Lab AD9 Carbon Shimano Dura Ace Di2 Road Bike

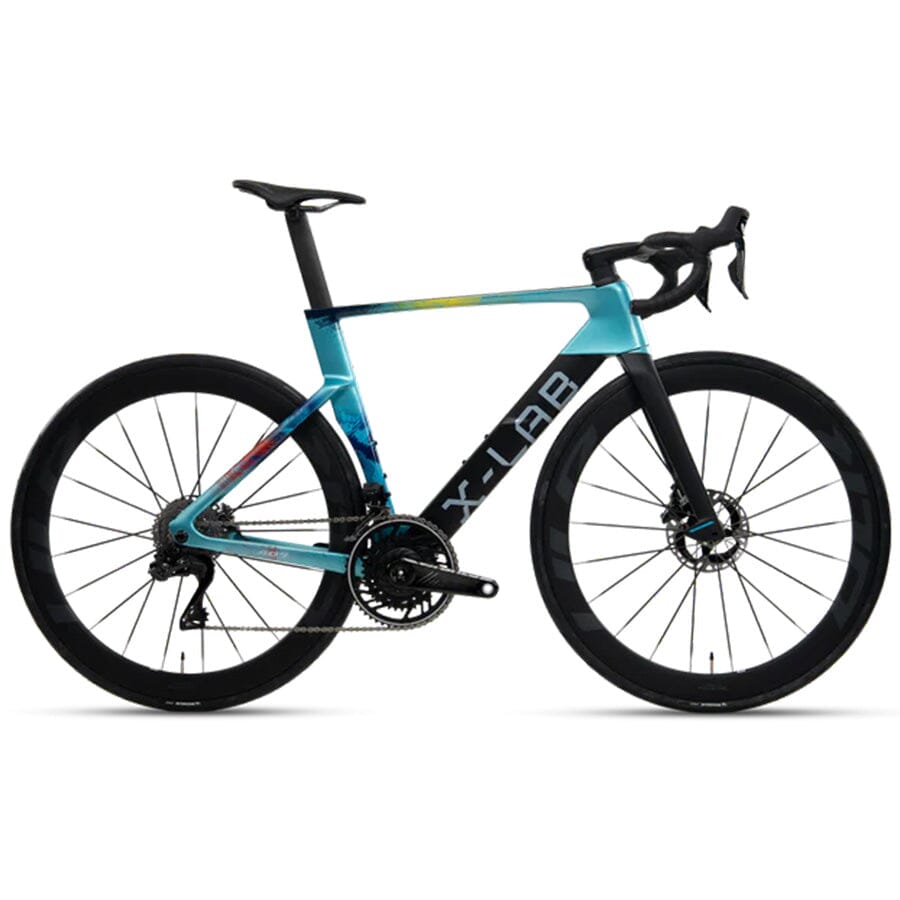

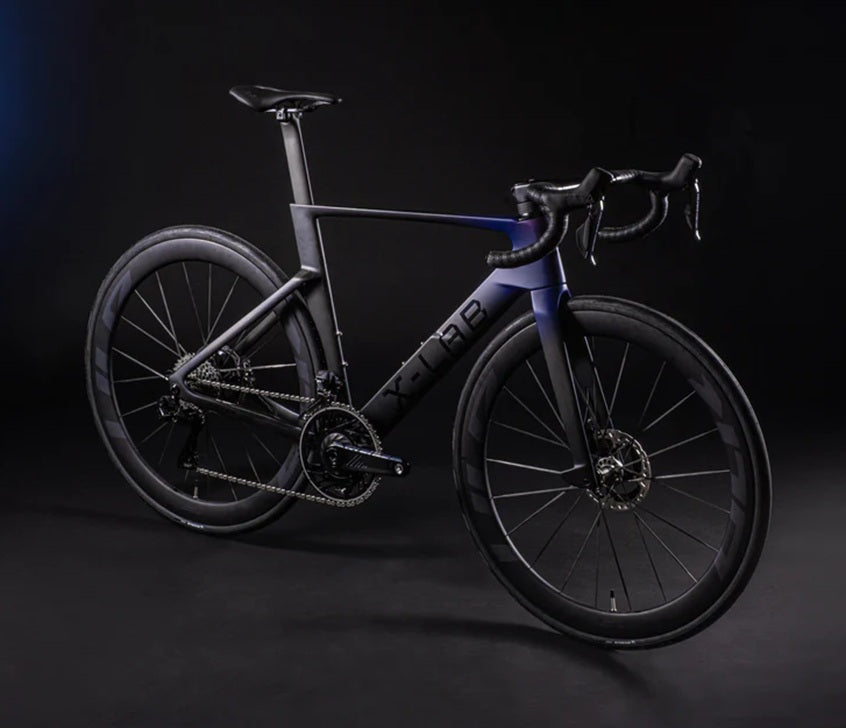

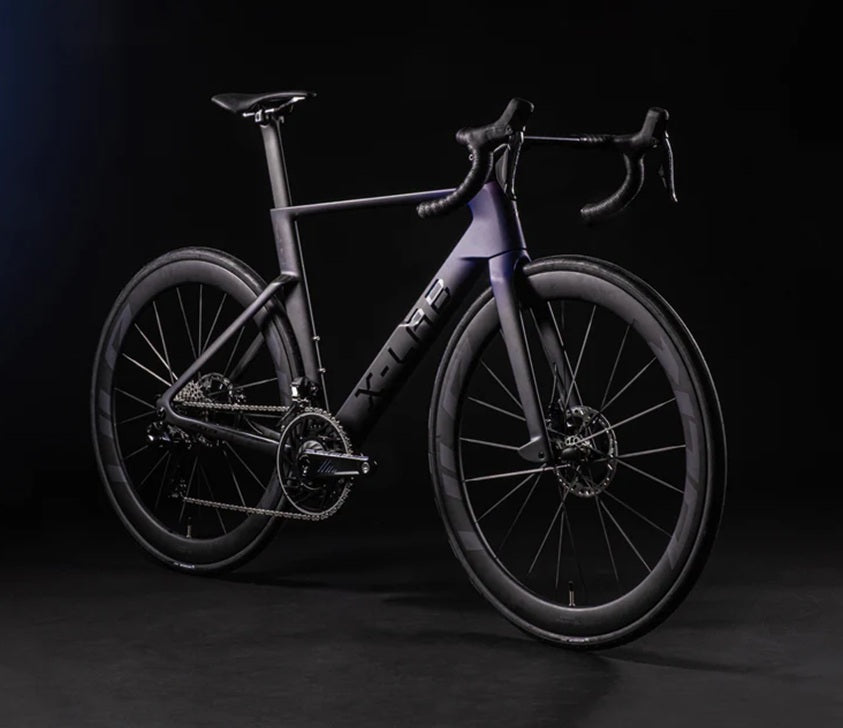

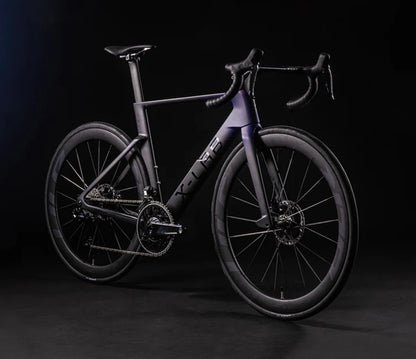

The X-Lab XDS AD9 Carbon Shimano Dura Ace Di2 Road Bike is X-Lab’s aero race bike, and the brand calls it the fastest road bike in its lineup. It is the official race bike of the XDS Astana WorldTour Team. X-Lab shaped every tube profile, surface transition and structural element using computational fluid dynamics (CFD) and wind-tunnel testing to reduce drag. It suits road racing, fast group rides and hard solo efforts where holding high speed on flat and rolling roads matters most.

Most aero road bikes need upgrades before they’re race-ready. This one comes with a Branta carbon crankset that has a built-in power meter and Apple Find My anti-theft technology. It also includes Branta C50 ULR carbon wheels with carbon spokes and ceramic bearings, plus a full Shimano Dura-Ace Di2 electronic groupset. It weighs 6.82 kg (15.03 lbs) in size L and records power data from your first ride.

Who It’s For

  • Road racers and fast group riders who want an aero frame proven at the WorldTour level

  • Riders who train with power and want a power meter included in the build

  • Riders who spend most of their time on paved roads at high speed

  • Consider a different bike if you want tires wider than 32C, prefer a more upright endurance position, or expect to change your cockpit setup often

What to Look For

  • Get fitted first. The Branta integrated carbon bar/stem combines the stem and bars in one piece. That means you can’t change stem length or bar width separately, so confirm your cockpit sizes during a professional fit before you order.

  • Check the gearing. A 52-36T crankset with an 11-34T cassette gives you a tall top gear for racing speeds and a 36x34 low gear for steep climbs.

  • Know the tire limits. It ships with Michelin Pro 5 700x28C tires and fits up to 32C. That’s enough extra volume for comfort on rough pavement, but this isn’t a gravel bike.

Key Features

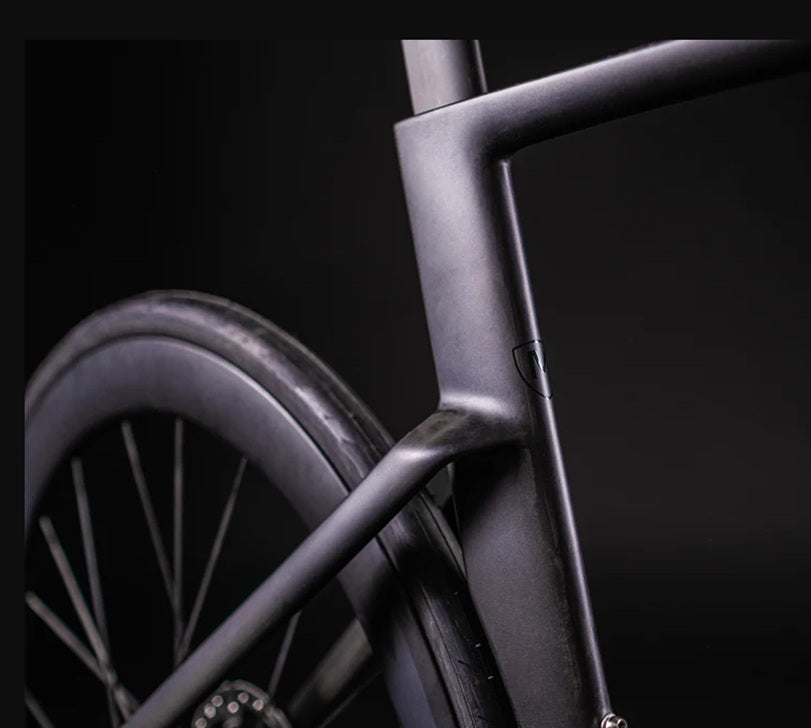

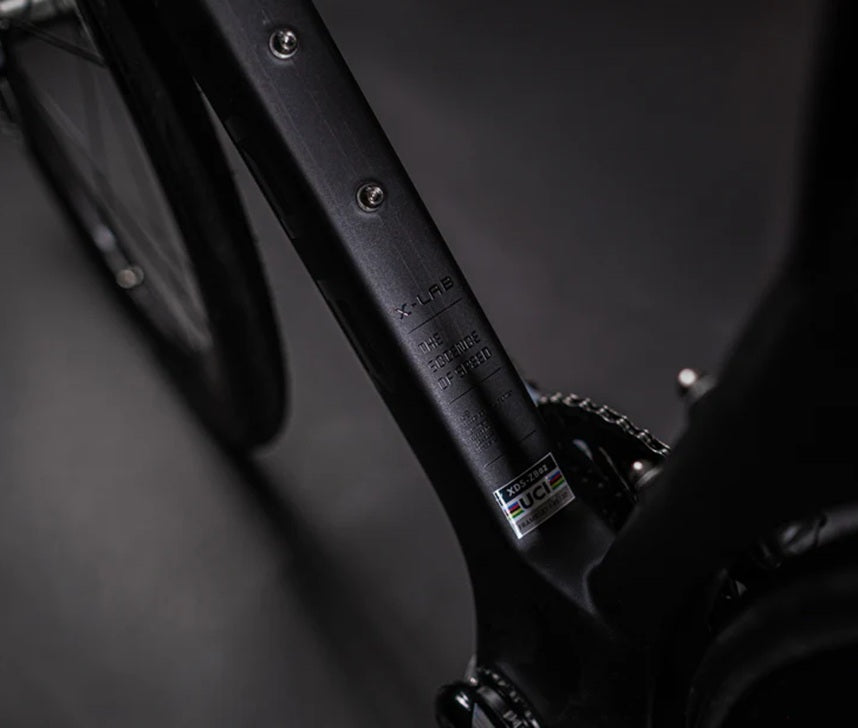

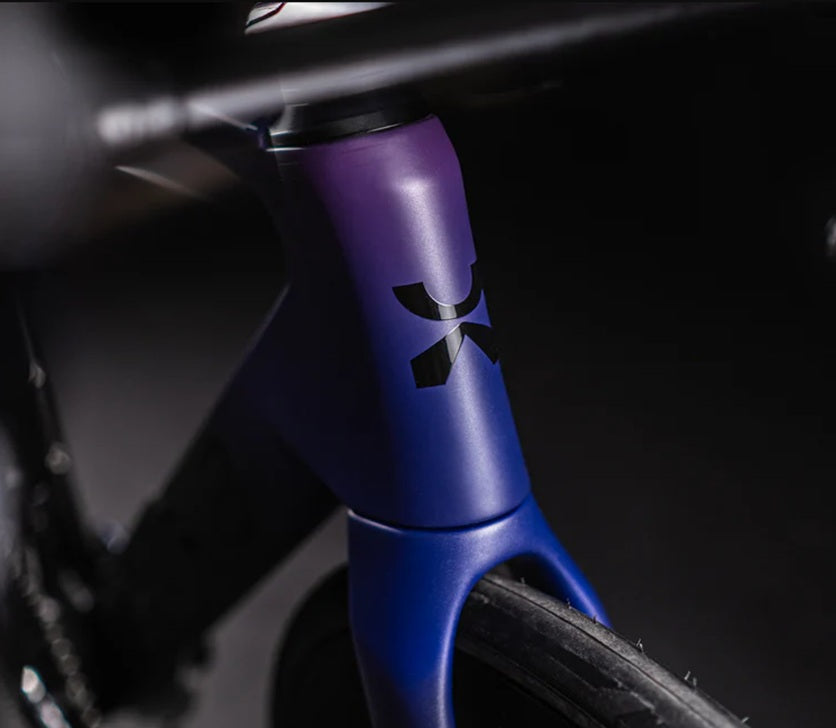

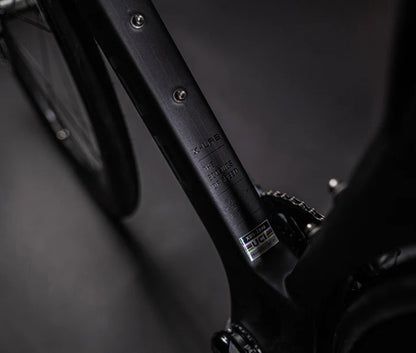

Frame and fork: Both the frame and fork use Toray T-1100 carbon, which X-Lab chose for high strength at low weight. The fork uses a 100x12mm thru-axle, and the seatpost has an aero profile. The frame is UDH compatible (Universal Derailleur Hanger), so a replacement hanger is easy to find if you ever bend one.

Groupset and shifting: The Shimano Dura-Ace Di2 RD-R9250 rear derailleur, FD-R9250 front derailleur and ST-R9270 shifters all shift electronically. You get quick, consistent shifts under load, and there are no shift cables to stretch or adjust. The CS-R9200 cassette and CN-M9100 chain complete the drivetrain.

Crankset and bottom bracket: The Branta carbon power meter crankset turns on a 29mm alloy spindle in a T47 threaded bottom bracket. Threaded bottom brackets are generally easier to service than press-fit designs. With Apple Find My built into the crankset, you can track the bike through Apple’s Find My network if it goes missing.

Braking: Dura-Ace BR-R9270 disc brakes use SM-MT900 rotors, 160mm front and 140mm rear. The larger front rotor sits where most of your stopping force goes when braking hard at speed.

Wheels and tires: The Branta C50 ULR wheelset uses carbon rims and carbon spokes to keep weight down, and its ceramic bearings reduce rolling friction. The Michelin Pro 5 28C tires roll fast while giving more comfort than narrower race tires.

Rider Intent Summary

  • Biggest strengths: a frame developed in the wind tunnel, Dura-Ace Di2 shifting, a built-in power meter and a light 6.82 kg weight

  • Tradeoffs: the integrated cockpit is harder to adjust for fit, 32C maximum tire clearance limits where you can ride, and the position is built for racing rather than all-day comfort

  • What makes it different: it’s a WorldTour team race bike that comes with power measurement and anti-theft tracking in the crankset

Victory’s Take

At Victory Bicycle Studio, we see the AD9 as a race bike that arrives complete: power meter, Dura-Ace Di2 and carbon wheels, with nothing you’ll want to upgrade. Because the cockpit is one integrated piece, we strongly recommend a professional fit before you order.

What you get

  • Frame - XDS Carbon Frame, Toray T-1100, UDH Compatible
  • Fork - XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle
  • Component Groupset - Shimano Dura-Ace Di2, 12-speed
  • Wheels - Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings
X-Lab AD9 Carbon Shimano Dura Ace Di2 Road Bike

XDS

X-Lab AD9 Carbon Shimano Dura Ace Di2 Road Bike

Regular price $7,999.00 USD
Sale price $7,999.00 USD Regular price $7,999.00 USD

Specifications

Frameset
Frame

XDS Carbon Frame, Toray T-1100, UDH Compatible

Fork

XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle

Wheels
Wheelset

Branta C50 ULR

- Material - Carbon

- Bearings - Ceramic

- Tire Compatibility - Tubeless ready, clincher

- Brake Compatibility - Centerlock

- Hub Spacig - 12x100mm / front, 12x142mm / rear

Tires

Michelin Pro 5, 700x28c

Drivetrain and Brakes
Rear Derailleur

Shimano Dura-Ace RD-R9250 Di2

Front Derailleur

Shimano Dura-Ace FD-R9250 Di2

Crankset

Branta Carbon Power Meter Crankset, 52/36T

Cassette

Shimano Dura-Ace CS-R9200, 11-34T

Brakes

Shimano Dura-Ace BR-R9270

Cockpit
Handlebars

Branta Carbon Integrated handlebar and stem

**Specifications subject to change without notice
