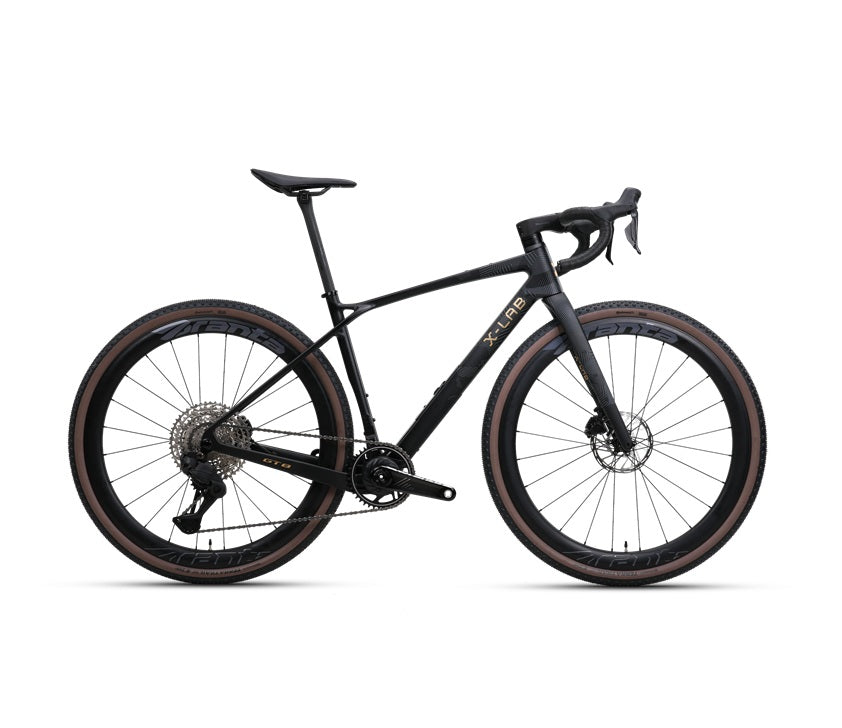

About The X-Lab XDS GT8 Carbon Shimano GRX Di2 Gravel Bike

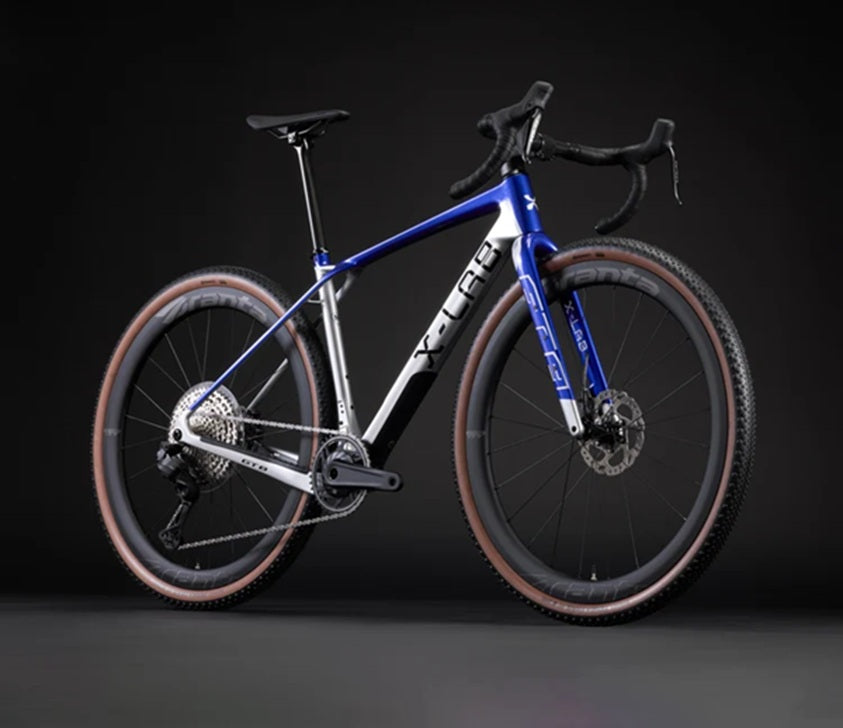

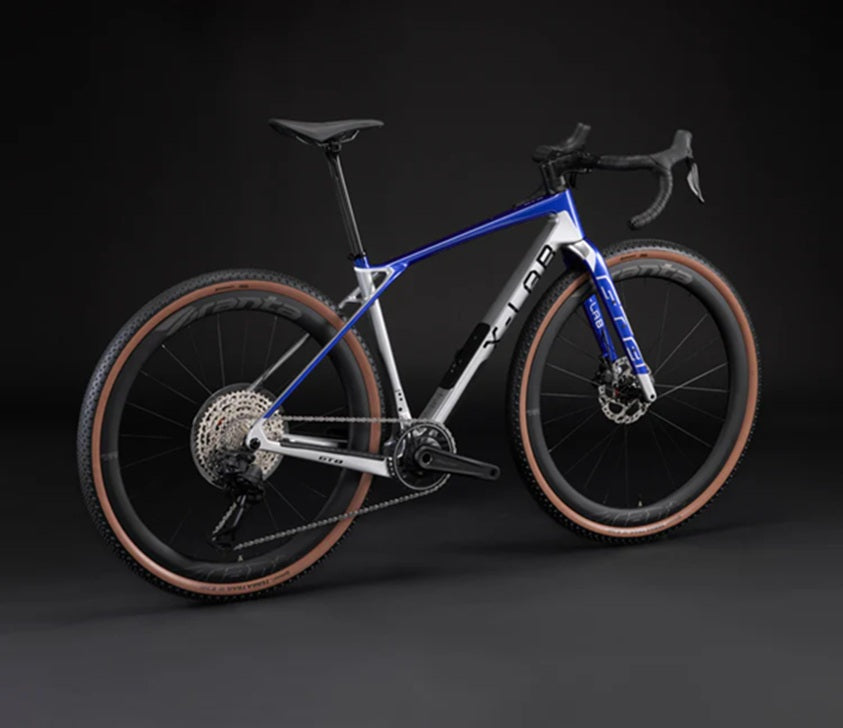

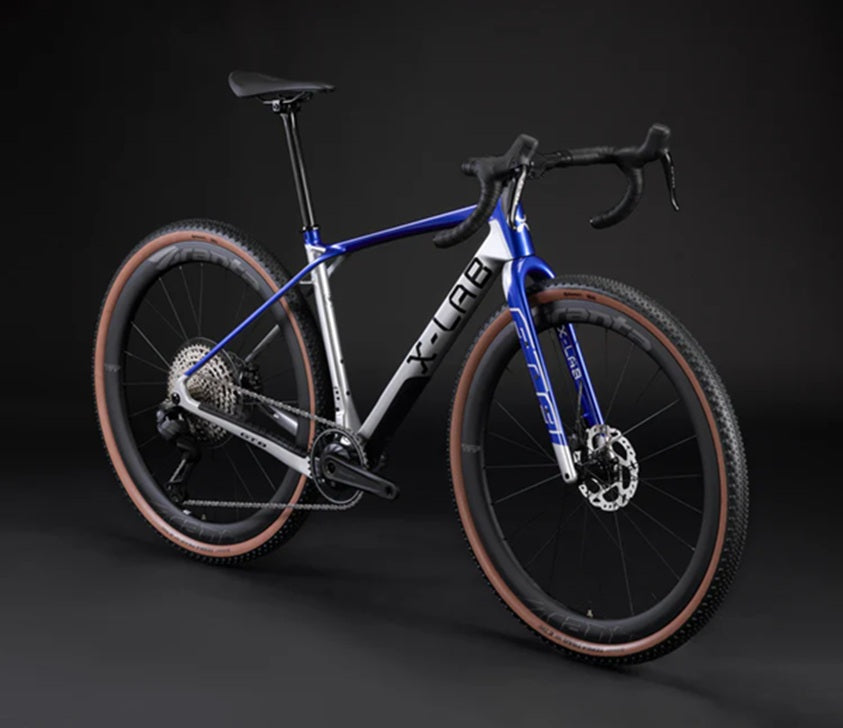

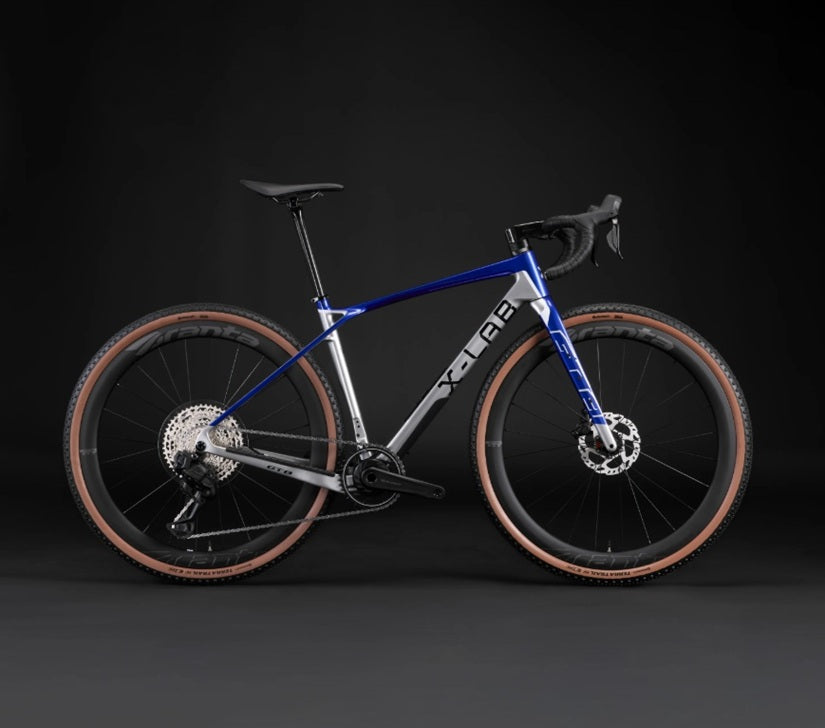

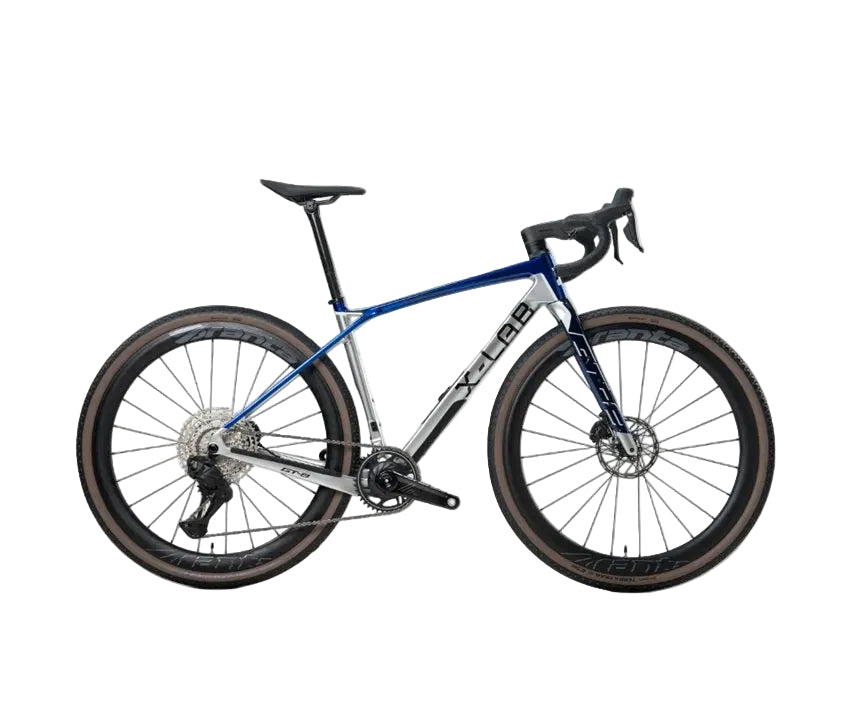

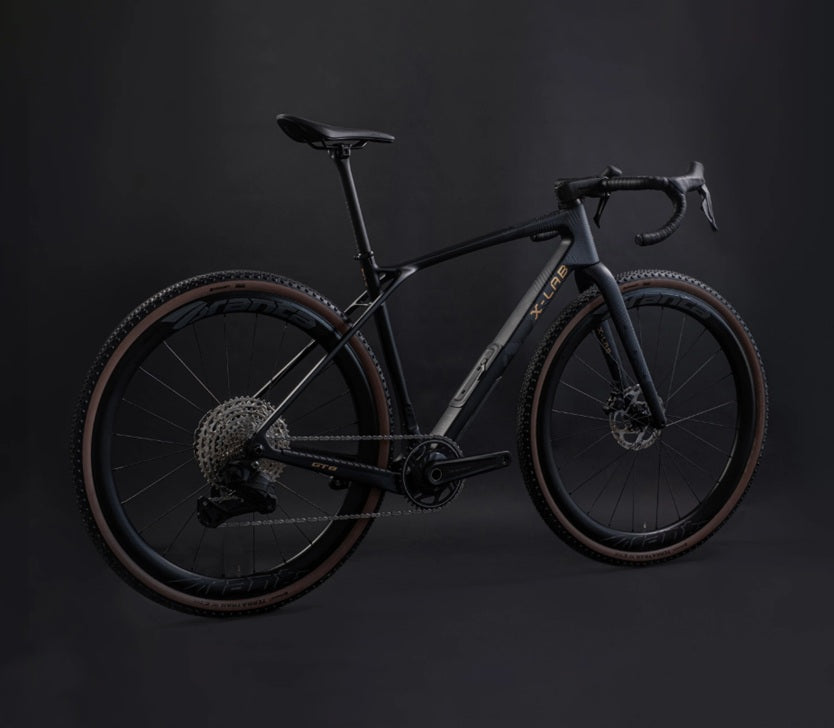

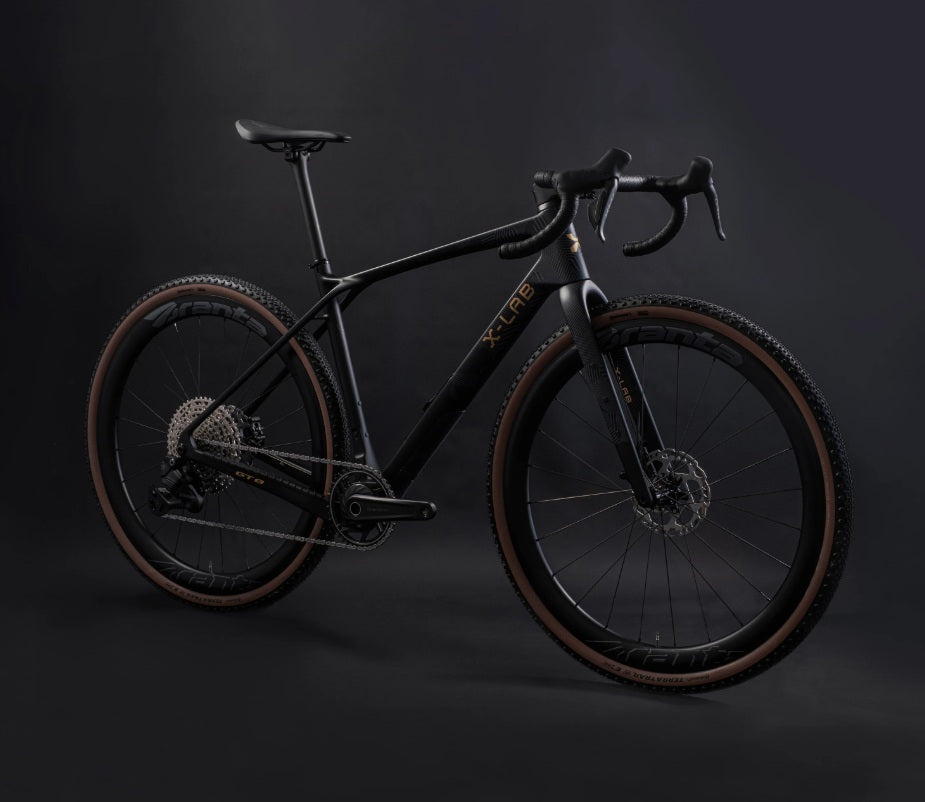

The X-Lab XDS GT8 is X-Lab's first gravel bike, pairing a full carbon frame and fork (Toray T-800) with a Shimano GRX Di2 1x electronic groupset. It's built for long, mixed-surface rides that move between pavement, dirt, and rougher trail sections, where wide gearing and stable handling matter more than shaving grams. At 8.78 kg / 19.31 lbs (size M), it carries a full power meter crank and a wide-range cassette without landing in heavyweight territory.

What separates the GT8 from most bikes in its category is its component spec: a Branta alloy crankset with an integrated power meter and Apple Find My anti-theft tracking, matched to a mountain-bike-derived Shimano CS-M6100-12 cassette spanning 10-51T. That range, combined with 700x45C Continental Terra Trail tires and clearance up to 55C, gives the GT8 climbing gears and tire options wider than many gravel-specific setups built around narrower, road-derived cassettes.

Who It's For

  • Riders who want electronic shifting and a built-in power meter without adding components separately

  • Riders tackling steep or sustained climbs who want the security of a 10-51T range

  • Riders who want room to run wider tires (up to 55C) on rougher or loose surfaces

  • Riders who prefer a narrower-range, road-oriented gravel setup or a carbon (rather than alloy) crankset should look at a different build

What to Look For

  • Drivetrain range: the 1x GRX Di2 setup with a 10-51T cassette trades top-end gearing for climbing range — confirm that tradeoff fits your terrain

  • Tire clearance: stock 700x45C tires with room up to 55C leaves space to size up for rougher routes

  • Frame compatibility: the UDH-compatible frame affects long-term derailleur hanger replacement and future drivetrain compatibility

Key Features

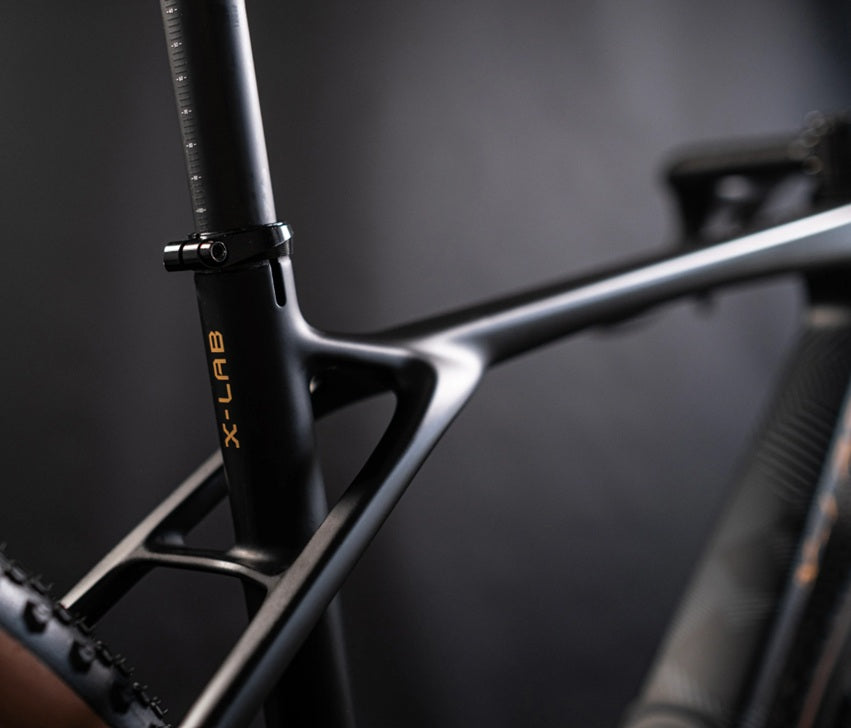

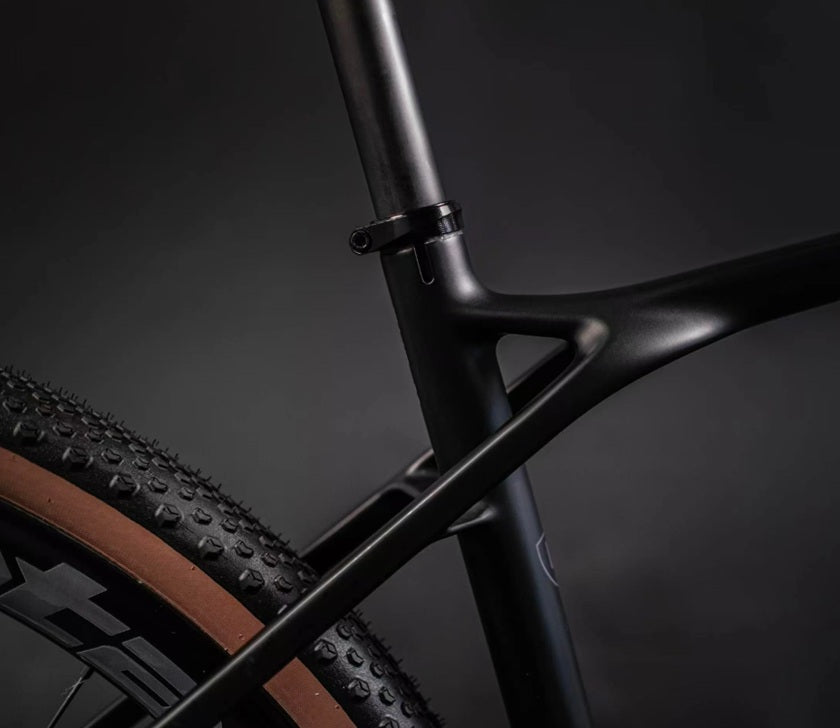

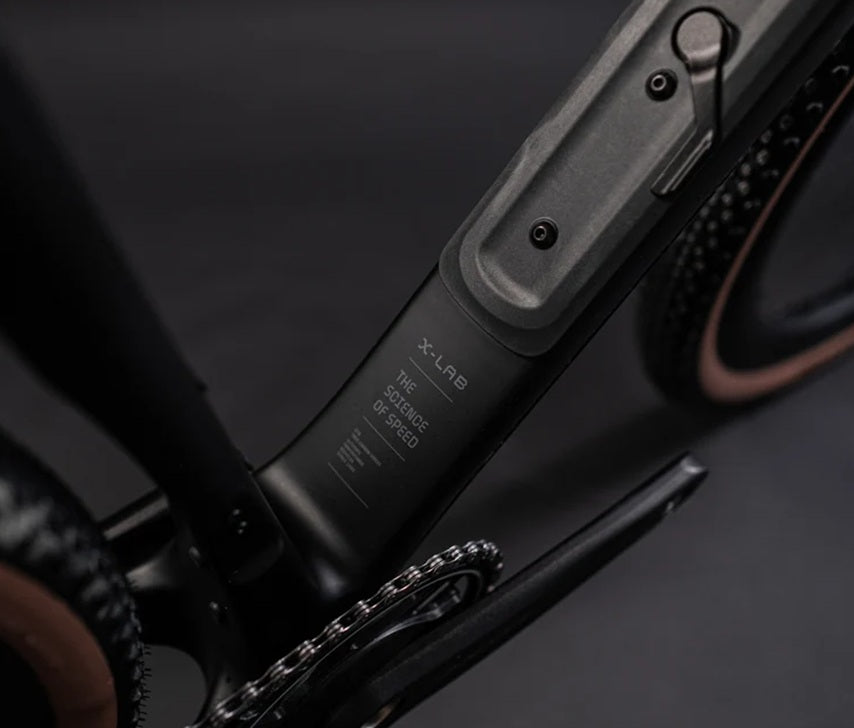

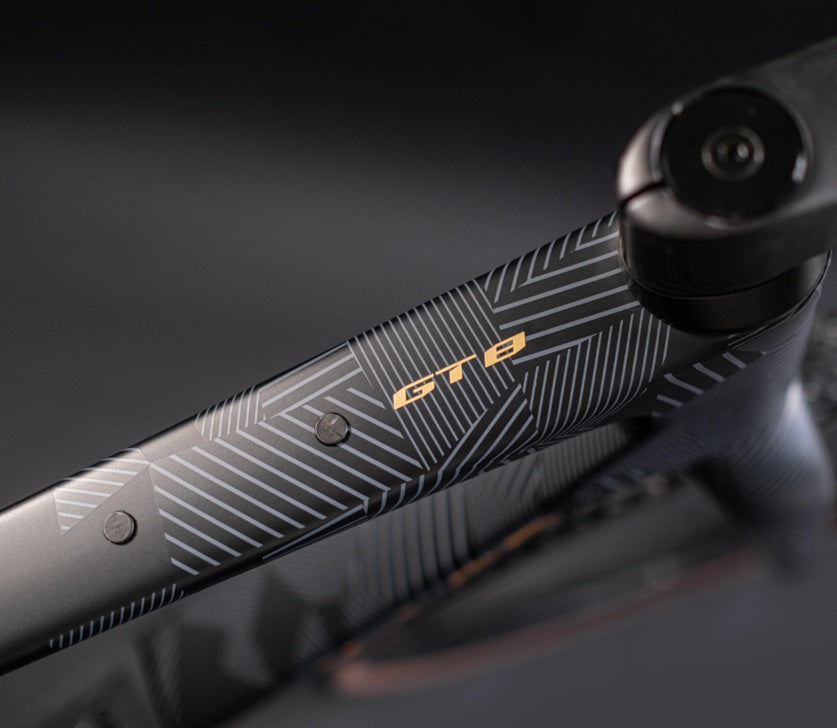

Frame & fork: The XDS carbon frame and fork are built from Toray T-800 carbon, with a UDH-compatible hanger and a 100x12mm thru-axle fork — details that matter for long-term hanger durability and replacement.

Groupset: Shimano GRX Di2 (RD-RX717 derailleur, ST-RX717 shifters) delivers electronic 1x shifting, paired with the wide-range CS-M6100-12 10-51T cassette for climbing gears beyond most gravel-specific cassettes.

Brakes: Shimano GRX BR-RX715 hydraulic disc brakes with SM-CL700 160mm rotors front and rear provide consistent stopping power in wet or muddy conditions.

Wheels & tires: The Branta C45 carbon gravel wheelset with stainless steel spokes is paired with Continental Terra Trail 700x45C tires, with clearance up to 55C for wider tire options.

Standout technology: The Branta alloy crankset (40T, narrow-wide) builds a power meter and Apple Find My anti-theft tracking directly into the crank arm.

Finishing kit: Branta carbon stem and handlebar, an XDS 27.2mm carbon seatpost, and a Fizik Terra Argo X7 saddle round out the build.

Rider Intent Summary

  • Biggest strengths: wide-range 1x Di2 drivetrain, integrated power meter, and generous tire clearance (up to 55C)

  • Tradeoffs: an alloy (not carbon) crankset, and a mountain-bike-derived cassette rather than a dedicated gravel-range cassette

  • What makes it different: a built-in power meter with Apple Find My anti-theft tracking — a combination not common at this component tier

Victory's Take

At Victory Bicycle Studio, we see the GT8 as a strong fit for riders who want electronic shifting and ride data built in from day one rather than added later. The 10-51T range and 55C tire clearance make it a versatile choice for riders who split time between smooth gravel and rougher, steeper terrain.

What you get

  • Frame - XDS Carbon Frame, Toray T-800, UDH Compatible
  • Fork - XDS Carbon Fork, Toray T-800, 100x12mm Thru-Axle
  • Wheels - Branta C45 Gravel Carbon Wheelset, Stainless Steel Spokes
  • Components - Shimano GRX Di2 and Branta
X-Lab XDS GT8 Carbon Shimano GRX Di2 Gravel Bike

XDS

X-Lab XDS GT8 Carbon Shimano GRX Di2 Gravel Bike

Regular price $3,199.00 USD
Sale price $3,199.00 USD Regular price

features

  • Branta C45 Gravel Carbon Wheelset

    The Branta C45 Gravel Carbon Wheelset is the
    carbon wheelset used on most XDS GTD Gravel Bikes.
    Equipped with 700x45c tires and capability to go as wide
    as 700x55c, these wheels will provide the stability and
    durability that you need to churn out those long miles.

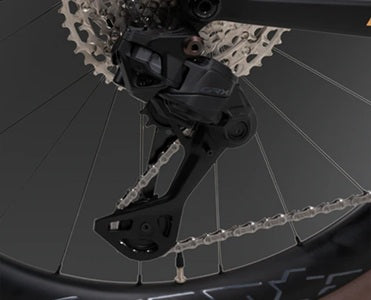

  • Shimano GRX 717 Di2 Groupset

    The Shimano GRX 717 Di2 Groupset is a great choice
    for riders who want a gravel focused groupset that provides
    fast electronic shifting without compromising durability that
    you may encounter on tough terrain.

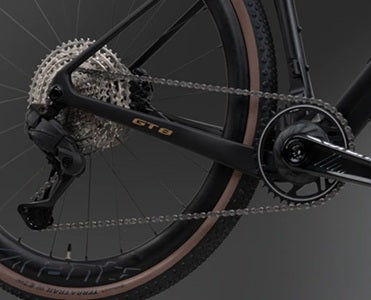

  • Branta Alloy Crankset with Power Meter

    The Branta alloy crankset with power meter is an integrated dual-sided power meter that will measure power from both your right and left leg so you can analyze your training data in an effort to improve future performance.

Specifications

Frameset
Frame

XDS Carbon Frame, Toray T-800, UDH Compatible

Fork

XDS Carbon Fork, Toray T-800, 100x12mm Thru-Axle

Wheels
Wheelset

Branta C45 Gravel Carbon Wheelset, Stainless Steel Spokes

Tires

Continental Terra Trail, 700x45c

Drivetrain and Brakes
Rear Derailleur

Shimano GRX, RD-RX717 Di2

Brakes

Shimano GRX, BR-RX715

Crankset

Branta Alloy Power Meter Crankset

- 40T

- Narrow-wide Teeth

- 24mm Steel Spindle

- Apple Find My Anti-Theft Technology

Cassette

Shimano CS-M6100-12, 10-51T

Cockpit
Handlebars

Branta Gravel Carbon Handlebar

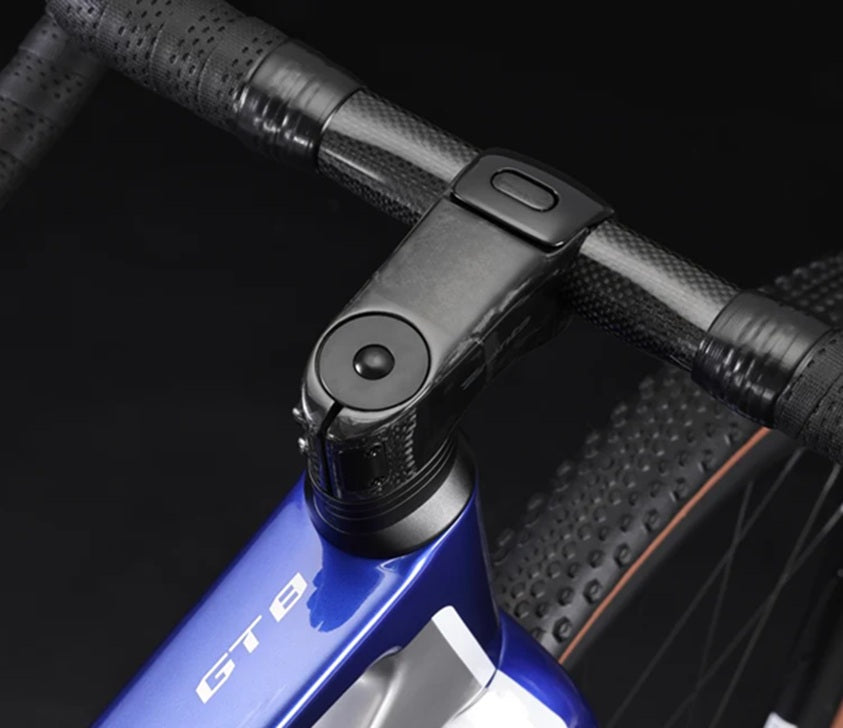

Stem

Branta Carbon Stem

Seatpost

XDS Carbon 27.2mm

Saddle

Fizik Terra Argo X7, s-alloy rails

**Specifications subject to change without notice
