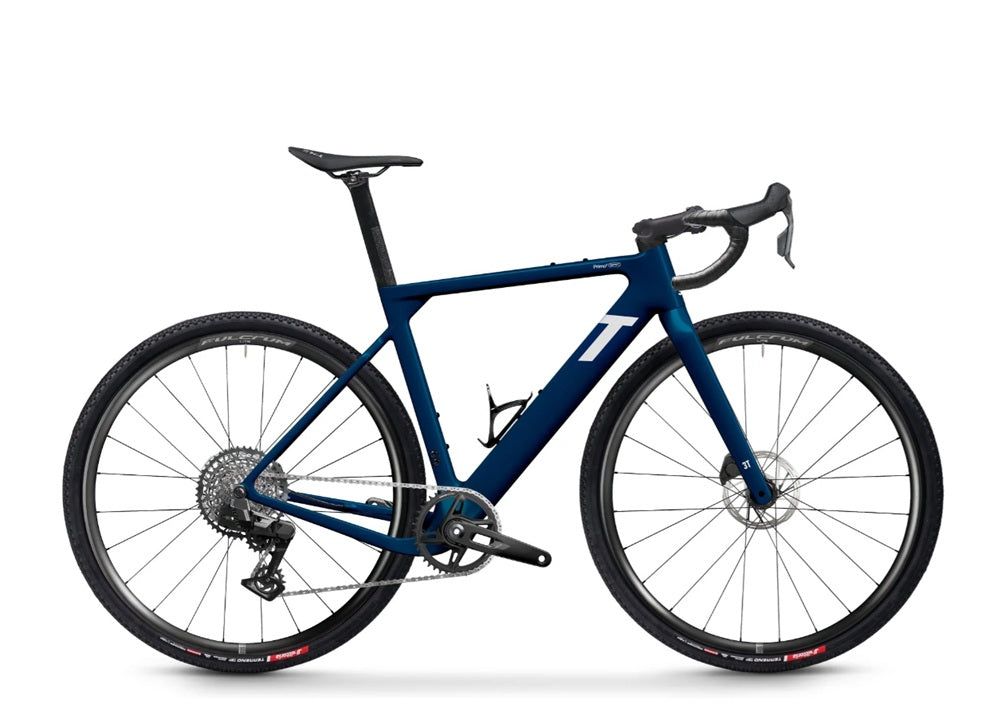

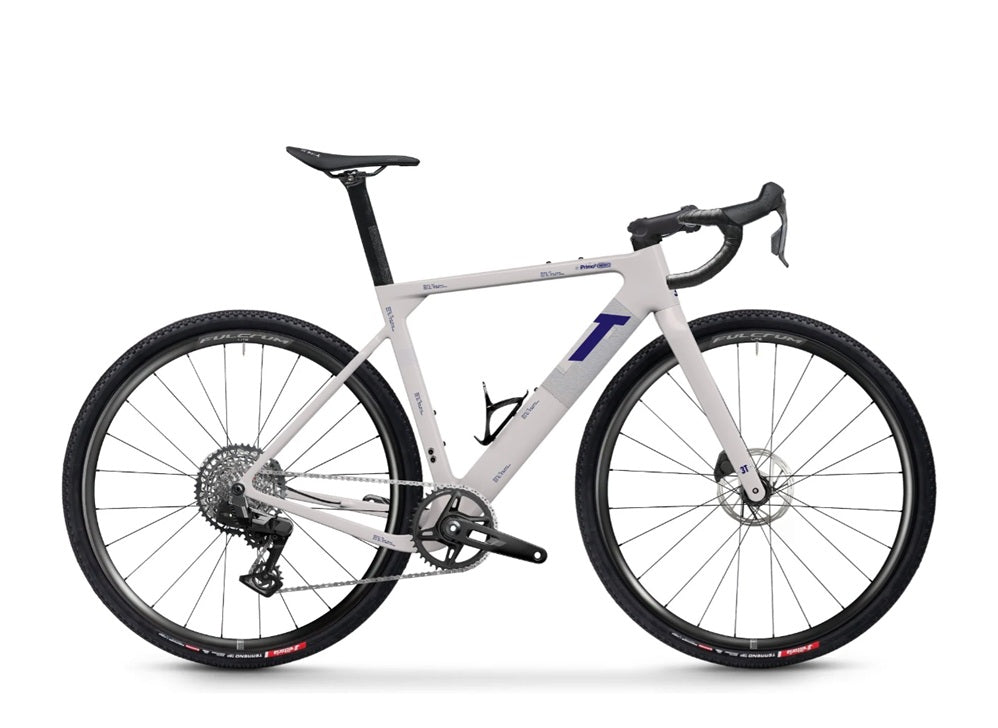

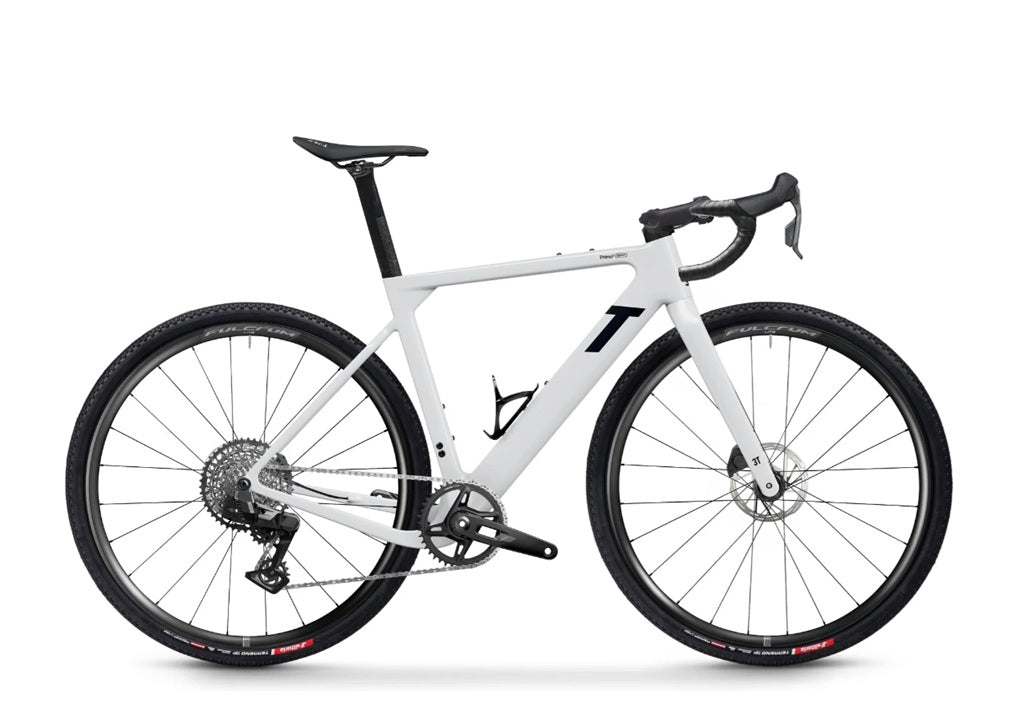

About The 3T PRIMO² WPNT Carbon Sram Rival XPLR 13-Speed Gravel Bike With Fulcrum Lite Wheels

The 3T PRIMO² WPNT Carbon SRAM Rival XPLR 13-Speed Gravel Bike is an aero gravel bike for riders who spend most of their time at speed. On tarmac, hardpack and smoother gravel, air resistance matters more than it does on slow climbs. 3T designed the carbon frame and fork around tire sizes it actually measured on the bike, not the sizes printed on the sidewall. It tested aerodynamics at the 30 mph road standard and at 20 mph (32 km/h), a speed closer to real gravel riding. Some of that testing used knobby tires and bikes caked in mud.

This complete build pairs the frame with SRAM Rival XPLR AXS E1 13-speed wireless shifting, hydraulic disc brakes and Fulcrum Lite GR wheels on 40mm Vittoria Terreno T50 tires. As part of 3T's WPNT custom paint program, the frame is painted in-house at 3T's factory in Presezzo, Italy. It clears tires up to 700×46mm or 27.5×51mm (2.0"), so it also works as a fast road bike on narrower tires.

Who It's For

  • Gravel racers and fast group riders who hold high speeds on mixed surfaces

  • Riders who want one bike for road and gravel and are happy to change tires instead of bikes

  • Riders who want wireless 1x electronic shifting with a wide-range 13-speed cassette

  • Consider a different bike if you mostly ride slow, technical terrain, where aero shaping helps less

What to Look For

  • Fit and cockpit: Bar width is set by size (40cm on S/M, 42cm on L/XL). Stems run 80–110mm and cranks 165–172.5mm. The cables route through the cockpit, so changing it later takes more work. It's worth settling your fit before you buy.

  • Gearing: The 40T chainring and 10–46T cassette cover a wide range with one chainring. Riders who want smaller jumps between gears should know the frame also takes 2x groupsets.

  • Tire plans: It comes with 40mm tires. There's room for up to 46mm on 700c wheels, with 4mm of clearance kept around the tire.

Key Features

Sqaero frame and fork. The 50×75mm down tube has a squared-off aero shape called Sqaero. It guides air around a wide front tire and adds stiffness, without the drag a full-length airfoil would create. The same shape carries through the head tube, fork legs, seatpost and seat stays. Bottles on the down tube sit out of the airflow, and 3T recommends the lower mount when you run one bottle. A dropped drive-side chainstay frees up room for the tire and crank. The frame is made from unidirectional pre-preg carbon in a high-modulus/high-strength blend.

Integration and serviceability. 3T's semi-integrated cable routing runs through the Fango Primo2 fork, the APTO stem with its spacer kit, and the Aeroghiaia Integrale LTD handlebar. The threaded bottom bracket has no alloy inserts bonded into the carbon, which avoids extra weight, complexity and the risk of the insert coming loose. The UDH rear dropout (Universal Derailleur Hanger) is designed for clean, precise shifting.

Groupset. SRAM Rival XPLR AXS E1 shifts wirelessly across 13 speeds. It uses a Max 46T rear derailleur and a Rival E1 XPLR WIDE crankset. The 1x setup has no front derailleur to adjust or maintain.

Braking. SRAM Rival E1 hydraulic disc brakes with 160mm rotors give consistent control on descents and loose surfaces.

Wheels and tires. Fulcrum Lite GR 700c wheels with 12mm thru-axles carry Vittoria Terreno T50 Mixed 700×40 tires, a mixed-surface tread that suits the bike's pace. A Fizik Vento Argo X5 140mm saddle and 3T Prendo Speed bar tape finish the build.

Rider Intent Summary

  • Biggest strengths: Aero frame tested at gravel speeds, wireless 13-speed shifting, and generous clearance for road and gravel tires

  • Tradeoffs: 1x gearing has bigger jumps between gears than 2x, and the integrated cockpit makes fit changes more involved

  • What makes it different: A frame designed around measured tire dimensions, with paint applied in Italy

Victory's Take

At Victory Bicycle Studio, we see the PRIMO² as the gravel bike for riders who care about speed on mixed surfaces. We recommend starting with a fit session so the integrated cockpit is right from day one.

What you get

  • Frame - 3T Primo2 semi-integrale (UDH)
  • Fork - Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
  • Wheels - Fulcrum Lite GR 700c Aluminum Wheelset
  • Component Groupset - Sram Rival XPLR 13-Speed
3T PRIMO² WPNT Carbon Sram Rival XPLR 13-Speed Gravel Bike With Fulcrum Lite Wheels

3T

3T PRIMO² WPNT Carbon Sram Rival XPLR 13-Speed Gravel Bike With Fulcrum Lite Wheels

Regular price $4,249.99 USD
Sale price $4,249.99 USD Regular price

features

  • Sqaero Fork Legs

    Sqaero fork airfoil, perfect to guide the airflow around the front wheel and boost fork stiffness.

  • Tire Clearance

    Fits up to 700 x 46mm tires and even 27.5”x51mm (2.0”), while keeping 4mm between any frame part and tire.

  • UDH Compatible

    Engineered for optimal shifting performance.

Specifications

Frameset
Frame

3T Primo2 semi-integrale (UDH)

Fork

Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup

Wheels
Wheelset

Fulcrum Lite GR 700c

- Aluminum

- Rim Depth - 24mm front / 24mm rear

- Clincher and tubeless ready

- Spoke Count - 24 front / 24 rear

Tires

Vittoria Terreno T50 Mixed Gravel Endurace, 700×40c

Drivetrain and Brakes
Rear Derailleur

Sram Rival XPLR AXS E1, Max 46T

Cassette

Sram Rival XG 1351 E1 XPLR, 10-46T

Crankset

Sram Rival E1 XPLR WIDE, 40T

- S: 165 mm

- M: 170 mm

- L&XL: 172,5 mm)

Brakes

Sram Rival E1, hydraulic disc

Cockpit
Handlebars

3T Aeroghiaia Integrale LTD, 31.8mm, carbon, 78mm reach

Saddle

Fizik VENTO ARGO X5 140 mm

**Specifications subject to change without notice

***3T high quality bikes are made to order and have lead times ranging from 4 to 6 weeks
