About The Factor Elara Carbon Sram Force XPLR Gravel Bike with Black Inc Sixty Four Wheelset

The Factor Elara is a full carbon gravel race bike built for the fastest end of competitive gravel: the UCI Gravel World Series, the Gravel Earth Series, and World Championship-level racing. This build pairs the frame with a SRAM Force XPLR 13-speed groupset, including an integrated power meter, and a Black Inc SIXTY FOUR carbon wheelset. The frame holds up to 57mm tire clearance in 1x configuration at true race geometry, which Factor identifies as an industry first; running a 2x drivetrain reduces rear clearance to 47mm.

Factor engineered the Elara's geometry, stiffness, and tire capacity as one system rather than as separate targets. In size medium, a 71.5° head tube angle, 73.0° seat tube angle, and 80mm bottom bracket drop produce quick, stable handling without sacrificing an aggressive race position, and CFD modeling plus wind tunnel testing show a 5–8% lower drag coefficient than Factor's own OSTRO Gravel when both are fitted with 47mm tires. Construction centers on a T47A threaded bottom bracket, a 12x142mm thru-axle with UDH compatibility, and a raw frame weight target under 1,100g, built for riders chasing road-race speed over unpredictable ground.

Who It's For

  • Competitive gravel racers targeting UCI Gravel World Series, Gravel Earth Series, or comparable high-speed events

  • Riders who want 1x drivetrain simplicity without giving up tire clearance up to 57mm

  • Riders who want an aggressive, race-oriented fit rather than an all-day touring position

  • Multi-day bikepackers should look at Factor's Sarana (built for endurance) or Aluto (built for mixed-terrain versatility) instead

What to Look For

  • Drivetrain choice affects clearance: 1x holds the full 57mm, 2x drops rear clearance to 47mm — settle this before ordering

  • Tire width matters for the aero numbers: the wind tunnel data is based on 45–50mm tires, matched to the wheelset's 30mm internal rim width

  • Future drivetrain flexibility: the Black Inc SIXTY FOUR wheelset supports Shimano HG 11/12-speed, SRAM XDR 12/13-speed, Campagnolo N3W 9-13-speed, and Shimano Micro Spline 12-speed cassettes

Key Features

Frame and fork: The full carbon frame and fork are both designed and engineered by Factor, with fiber schedules tuned separately at the bottom bracket junction, downtube, and fork crown for torsional stiffness and impact control. The fork uses a 1½"–1½" tapered steerer with a 12x100mm thru-axle.

Groupset and shifting: SRAM Force XPLR 13-speed handles shifting with a 44T chainring and 10-46T cassette, and includes an integrated power meter for tracking output during training and racing.

Braking: 160mm rotors on a flat mount, Center Lock disc interface.

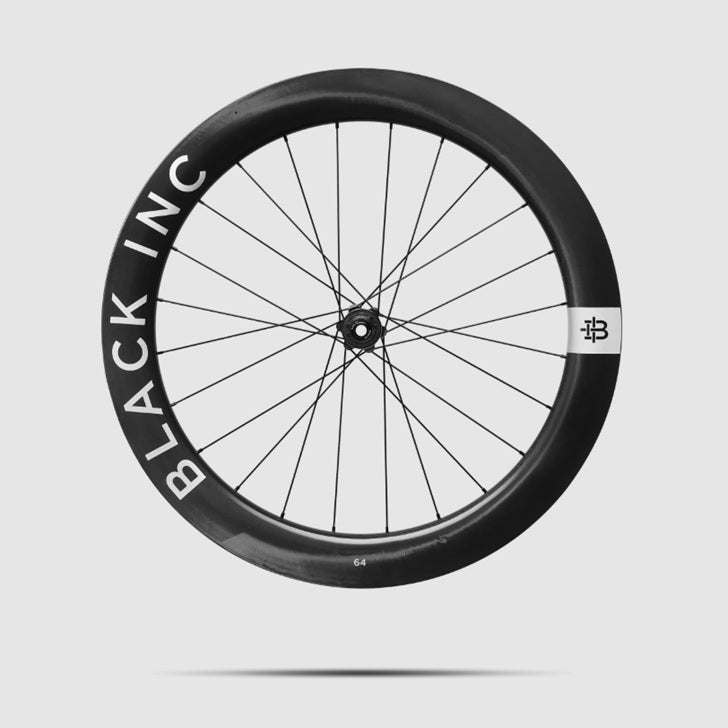

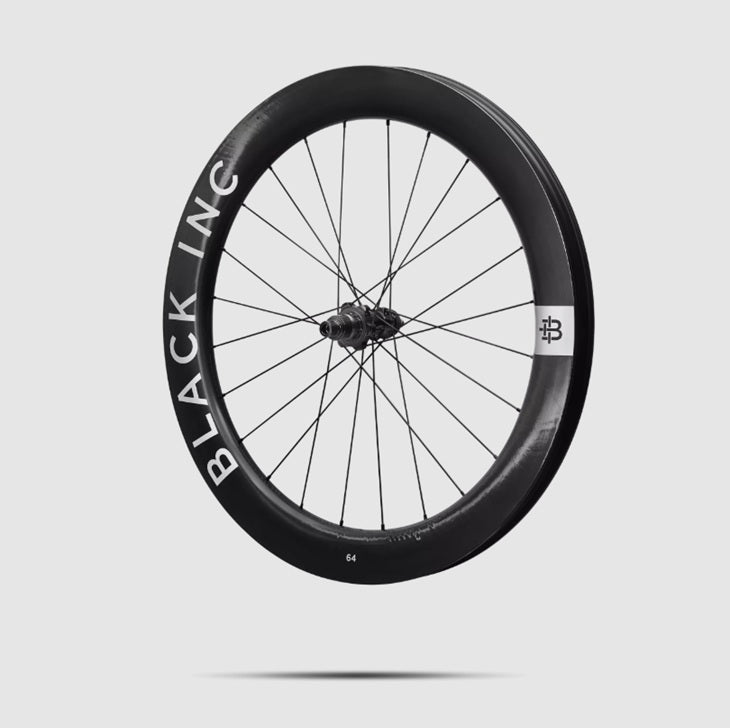

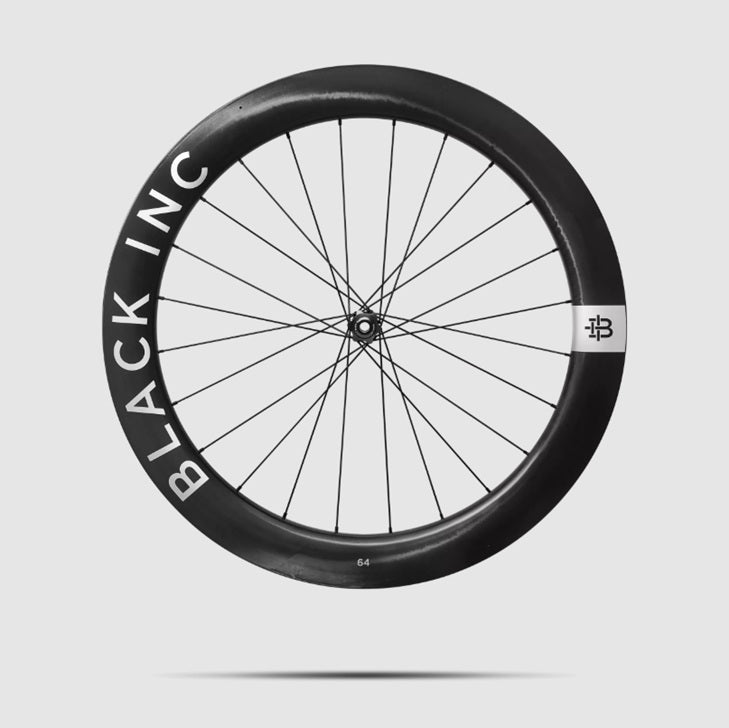

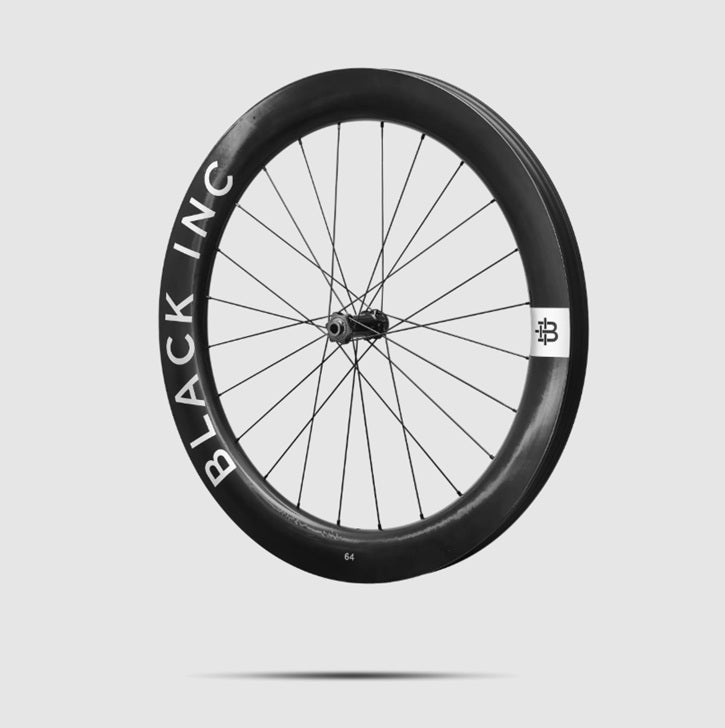

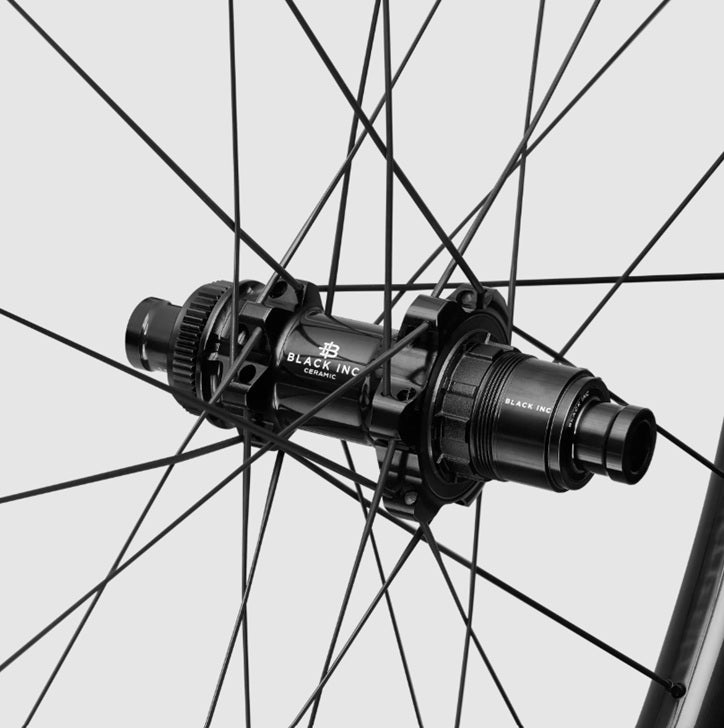

Wheels and tires: The Black Inc SIXTY FOUR wheelset brings a 64mm rim depth, 30mm internal / 40.25mm external width, and ceramic bearings, at 1,620g total (720g front, 900g rear). It's tubeless and clincher compatible and rated Category 2 for off-road riding and jumps under 12 inches.

Standout details: A Factor aero-profile carbon seatpost with an integrated clamp is available in 0mm and 20mm offset, and the wheelset ships with tubeless valves, tape, Presta valve extensions, and a valve core removal tool.

Rider Intent Summary

  • Biggest strengths: full 57mm tire clearance in 1x, a wind-tunnel-validated aero advantage over Factor's own OSTRO Gravel, and a race-specific power meter groupset out of the box
  • Tradeoffs: switching to a 2x drivetrain cuts rear tire clearance to 47mm, and the geometry is built for racing rather than loaded touring
  • What makes it different: it's purpose-built as Factor's race-speed model, alongside the Aluto (race balance) and Sarana (race endurance), rather than trying to cover every kind of gravel riding

Victory's Take

We see the Elara as a bike for riders who already know they're racing gravel, not exploring whether they want to — the 57mm 1x clearance and aero data solve a real problem for that rider. At Victory Bicycle Studio, we'd talk through drivetrain and tire width with you before you order, since both decisions change the numbers this bike is built around.

What you get

  • Frame - Factor Elara full carbon gravel race frame
  • Fork - Factor Elara full carbon, Factor-engineered
  • Component Groupset - Sram Force XPLR 13-Speed with Power Meter
  • Wheelset - Black Inc Sixty Four Carbon Wheels
Factor Elara Carbon Sram Force XPLR Gravel Bike with Black Inc Sixty Four Wheelset

Factor

Factor Elara Carbon Sram Force XPLR Gravel Bike with Black Inc Sixty Four Wheelset

Regular price $10,699.00 USD
Sale price $10,699.00 USD Regular price

Specifications

Frameset
Frame

Factor Elara full carbon gravel race frame

- Stack - 576mm

- Head Tube Angle - 71.5°

- Seat Tube Angle - 73.0°

- BB Drop - 80mm

- Chainstay Length - 423mm

Fork

Factor Elara full carbon, Factor-engineered

- Standard 1 1/2"–1 1/2" tapered steerer

Wheels
Wheelset

Black Inc Sixty Four Carbon

- Inner Rim Width - 30mm

- Max Tire Width - 700x57mm

- Rim Finish - Glossy clearcoat

- Tire Compatibility - Tubeless and Clincher, inner tube compatible

- Brake Interface - Centerlock disc

- Hub Spacing - Front: 100mm / Rear: 142mm

Max Tire Clearance

700x57mm

Drivetrain and Brakes
Rear Derailleur

Sram Force XPLR AXS Full Mount, 13-speed

Cassette

Sram Force XPLR XG-1371, 13-Speed, 10-46T

Crankset

Sram Force XPLR 13-Speed, 44T

Brakes

Sram Force, hydraulic disc

Cockpit
Handlebars

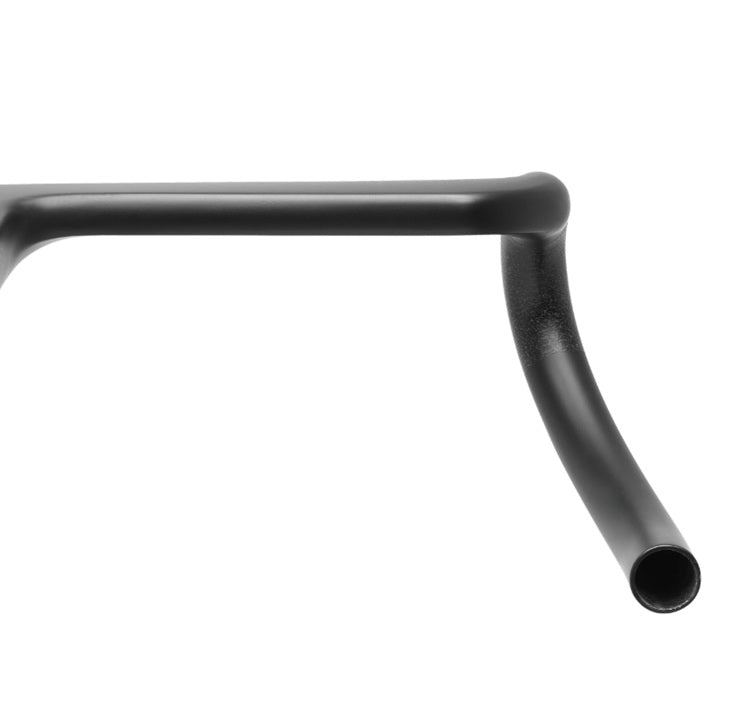

Black Inc Aero Gravel Bar (integrated with stem) AB07, 75mm reach

**Specifications subject to change without notice

*Images of bikes are solely for the purpose of displaying the color. Some bike images may show a different component group. The component group on this bike is the Sram Force XPLR 13-Speed Groupset with Power Meter
