About The FELT NEXAR Race Carbon 105 Di2 12 Speed Disc Road Bike

The FELT NEXAR Race is an aero carbon road bike built around a UD carbon frame and a 1-piece integrated carbon cockpit — both engineered as part of the bike's aerodynamic system rather than independent components. FELT designed the NEXAR around three simultaneous constraints: drag, weight, and fit. At 7.96 kg with a 105 Di2 build, it lands in competitive territory for an aero platform at this price.

This build runs a full Shimano 105 Di2 12-speed electronic groupset — FC-R7100 crankset, FD-R7150 front derailleur, RD-R7150 rear derailleur, and ST-R7170 levers. The 52/36T chainrings and 11-34T cassette cover a wide range suited to both flat course speed and moderate climbing. Vision SC45 i23 carbon wheels and Continental Grand Prix 5000 S TR 700x28c tires round out a build set up for performance riding in mixed conditions.

Who It's For

  • Riders entering an aero carbon platform who want electronic shifting without paying for Ultegra or Dura-Ace
  • Cyclists targeting gran fondos, fast group rides, or criteriums where aerodynamics are a real factor
  • Riders who have dialed in their position and want a clean, integrated cockpit setup
  • Consider a different bike if: you're still adjusting your fit — the integrated cockpit limits adjustability and requires position commitment before purchase

What to Look For

  • Fit before you buy. The FELT Road 1-Piece Integrated Carbon Cockpit is specific to the NEXAR platform. Reach and bar width must be confirmed with a professional fit — there is limited room to adjust after the fact.
  • Di2 vs. mechanical. This build is fully electronic. If you're new to Di2, expect a short adjustment period and a different maintenance routine including battery charging.

Key Features

Frame — UD Carbon with Integrated Cockpit: FELT's UD carbon is their benchmark construction standard across the NEXAR line. The 1-piece integrated cockpit and dedicated carbon seatpost are designed as part of the frame's aero system — the integration is what makes the drag numbers meaningful, and also what makes fit precision non-negotiable.

Groupset — Shimano 105 Di2 12-Speed: FC-R7100 crankset with 52/36T rings, RD-R7150 rear derailleur, FD-R7150 front derailleur, and ST-R7170 levers. Consistent electronic precision regardless of load or cadence, with no cables to stretch or tension to chase.

Wheels — Vision SC45 i23 Carbon: A 45mm carbon clincher with 23mm internal width, matched well to the 28c Continental Grand Prix tires this bike ships with. The internal width supports a stable tire profile and modern wide-tire aero performance.

Brakes — Shimano 105 Hydraulic Disc: Consistent modulation in wet and dry conditions, removing the variability of rim brake performance on mixed-weather training days and events.

Rider Intent Summary

  • Biggest strengths: Full 105 Di2 electronic shifting on a purpose-built aero carbon platform with an integrated cockpit and seatpost at a mid-range price
  • Tradeoffs: Integrated cockpit requires fit commitment before purchase; 7.96 kg is solid but not optimized for climbing-priority use
  • What makes it different: FELT engineered the NEXAR around aero, weight, and fit simultaneously — not a bike that sacrificed two to maximize one

Victory's Take

At Victory Bicycle Studio, we recommend getting a professional fit before pulling the trigger on the NEXAR — the integrated cockpit is a genuine performance advantage, but only if your position is confirmed first.

What you get

  • Frame - Felt NEXAR- UD CARBON STD FRAME
  • Fork - Felt NEXAR – UD CARBON FORK
  • Component Group - Shimano 105 Di2 12 Speed
  • Wheelset - VISION SC45 i23 Carbon Wheelset
  • Tires - CONTINENTAL GRAND PRIX 5000 S TR, 700x28c
  • Cockpit (Handlebars and Stem ) - FELT ROAD 1 PIECE INTEGRATED COCKPIT

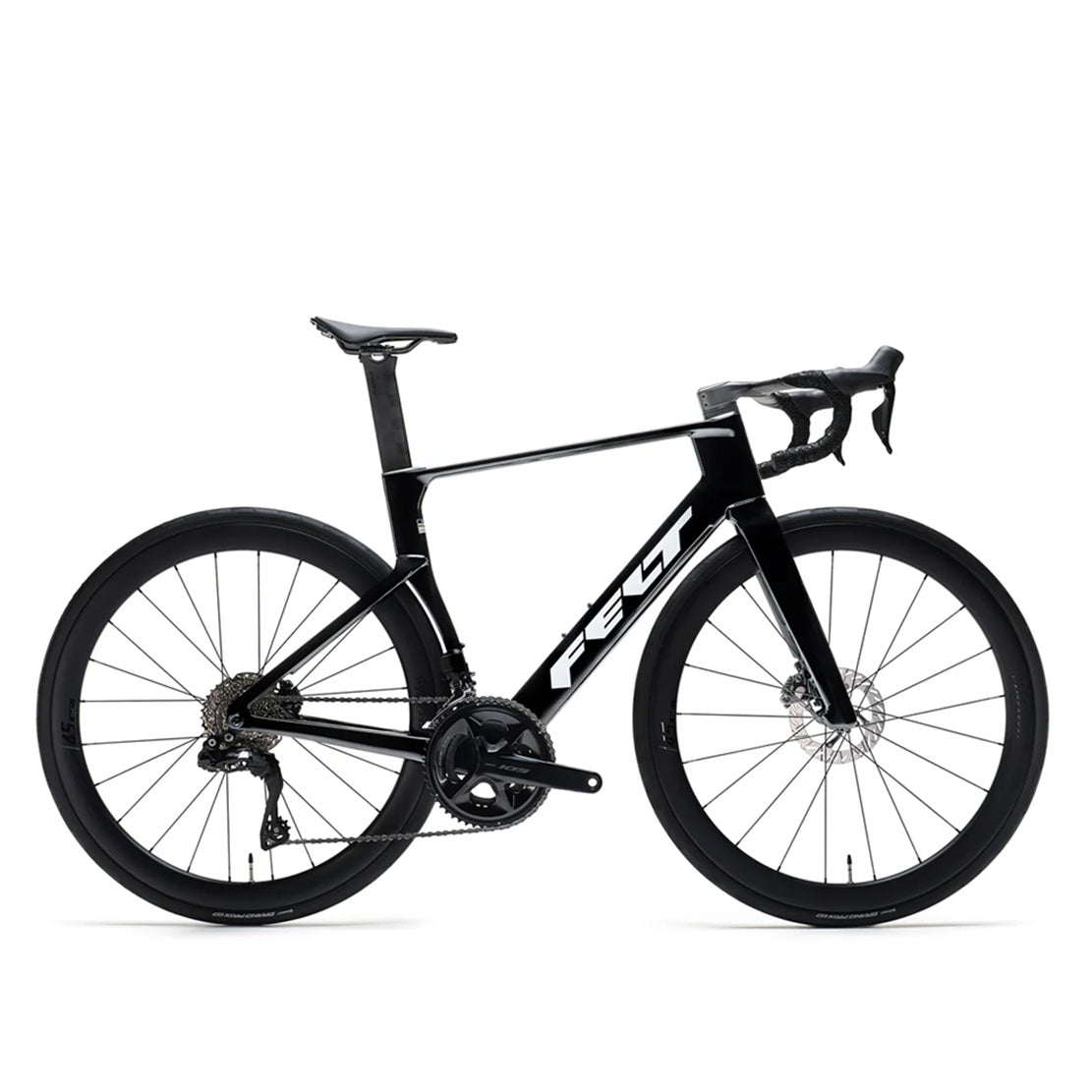

felt nexar race carbon 105 di2 12 speed road bike right side view

Felt

FELT NEXAR Race Carbon 105 Di2 12 Speed Disc Road Bike

Regular price $5,999.00 USD
Sale price $5,999.00 USD Regular price $5,999.00 USD

Specifications

Frameset
Frame

NEXAR UD Carbon STD Frame

Fork

NEXAR UD Carbon Fork

Drivetrain and Brakes
Rear Derailleur

Shimano 105 Di2, RD-R7150, 2x12-speed

Front Derailleur

Shimano 105 Di2, FD-R7150

Cassette

Shimano 105, CS-R7100, 11-34T

Chain

Shimano, CN-M7100, HG 12-speed

Crankset

Shimano 105, FC-R7100, 52/36T

Shift Lever

Shimano 105 Di2, ST-R7170

Bottom Bracket

Shimano, BBR60

Wheels
Wheelset

Vision SC45 i23 Carbon Wheelset

Tires

Continental Grand Prix 5000 S TR, 700x28c

Cockpit
Cockpit

Felt NEXAR Road 1-Piece Integrated Cockpit

- 45 / 48: 360/400x90 Carbon

- 51 / 54 / 56: 380/420x100 Carbon

- 58 / 61: 400/440x110 Carbon

Saddle

Prologo Nago R4 PAS 137

Seat Post

45 / 48 / 51: Felt NEXAR Dedicated SP, 250mm Carbon

- 54 / 56 / 58 / 61: Felt NEXAR Dedicated SP, 330mm Carbon

Additional Information
Bike Weight (based on Size M)

7.963kg (17.55lbs)

Permissible Total Weight

120kg (265lbs)

**Specifications subject to change without notice
