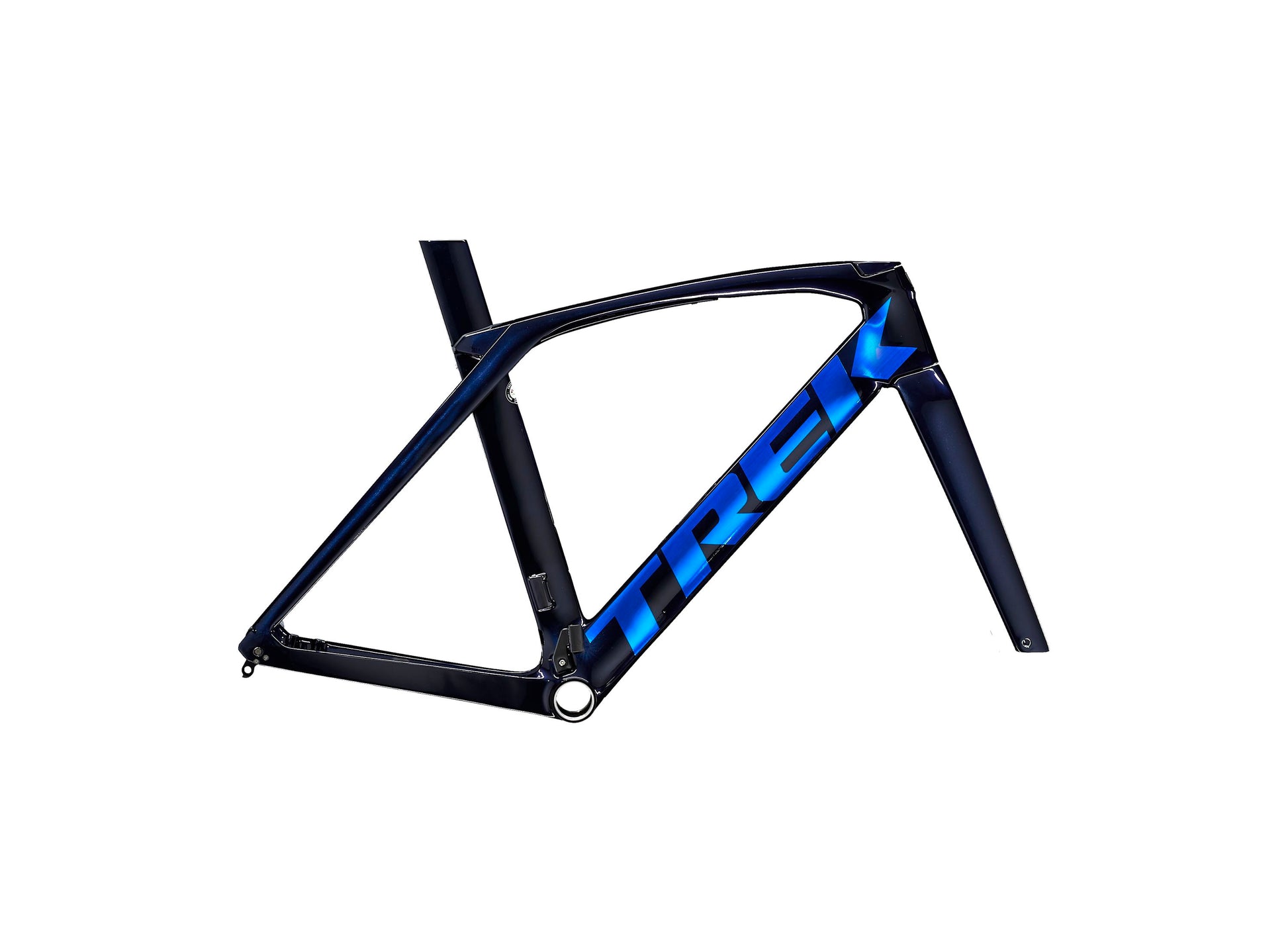

About The Trek Madone SL Disc Frameset Gen 6 Carbon Road Bike
The Trek Madone SL Disc Frameset is an aerodynamic road racing frame built on Trek's 500 Series OCLV Carbon with the KVF (Kammtail Virtual Foil) tube profile — the same proprietary tube shape developed in the wind tunnel to reduce drag across the full frame. This is a frame-only purchase for riders who want to build a custom aero race bike on their own terms, speccing drivetrain, wheels, and cockpit to suit their exact setup.
The defining feature is adjustable top tube IsoSpeed, a compliance system in which the seat tube rotates independently from the top-tube-to-seatstay junction, tunable via an elastomer to match rider preference for road feel versus stiffness. Disc brake mounting (flat mount), a T47 threaded bottom bracket shell, and full internal cable routing round out a platform purpose-built for a clean, aggressive build.
Who It's For
- Riders who want a custom-built aero road bike and prefer sourcing their own groupset, wheels, and components
- Experienced builders comfortable speccing a full drivetrain to a frameset
- Riders seeking Madone-level aerodynamics at a lower entry point than a complete bike
- Available in a single size (47cm) and one color — riders who need a different fit should consider a complete Madone build or other frameset offerings
What to Look For
- 47cm fits smaller riders — review Trek's geometry chart carefully; stack, reach, and standover figures are published for this size only
- Mechanical front derailleurs require a full-housing stop (e.g., Shimano toggle-type) due to the internal cable routing design — verify compatibility before speccing a build
- Seatpost sold separately in two lengths and two offsets; factor this into your build budget and fit plan
Key Features
500 Series OCLV Carbon with KVF Tube Shape. The frame uses Trek's 500 Series OCLV (Optimum Compaction Low Void) Carbon, a layup process that minimizes voids in the laminate for consistent strength-to-weight performance. Every tube follows the KVF (Kammtail Virtual Foil) profile — a truncated teardrop shape that reduces aerodynamic drag while staying within UCI-legal widths.
Adjustable Top Tube IsoSpeed. IsoSpeed decouples the seat tube from the top-tube-to-seatstay junction, allowing vertical flex without affecting lateral pedaling stiffness. The adjustable version adds an elastomer-damped tuning mechanism so riders can dial compliance up or down to match different road conditions or personal preference — a feature rarely found on aero framesets.
Disc Brakes and Thru-Axle Platform. Flat mount disc tabs front and rear, paired with a 12x100mm front and 142x12mm rear thru-axle via Bontrager Switch hardware, deliver consistent braking and a stiff, precise wheel interface. The disc platform also opens up tire clearance beyond what rim brake designs allow.
Full Internal Cable Routing. All housing runs invisibly through the frame and matching KVF full carbon fork. The fork includes carbon dropouts and a tapered carbon steerer. Note: mechanical front derailleurs must use a full-housing-stop system for compatibility with this routing design.
Rider Intent Summary
- Biggest strengths: Wind-tunnel-developed KVF aero tube shape, tunable IsoSpeed compliance system, flat mount disc brakes, clean internal routing throughout
- Tradeoffs: Single size and color only; seatpost sold separately; mechanical FD compatibility is not universal with internal routing
- What makes it different: Adjustable IsoSpeed is specific to this frameset — the ability to tune vertical compliance on an aero frame is uncommon at this price point
Victory's Take
At Victory Bicycle Studio, we see this frameset as a compelling entry into Madone-level aerodynamics for the rider who wants to build something specific rather than buy off the floor. The adjustable IsoSpeed tuning system is a genuine differentiator — it gives this frame a versatility most dedicated aero designs simply don't offer.
What you get

Trek Madone SL Disc Frameset Gen 6 Carbon Road Bike
