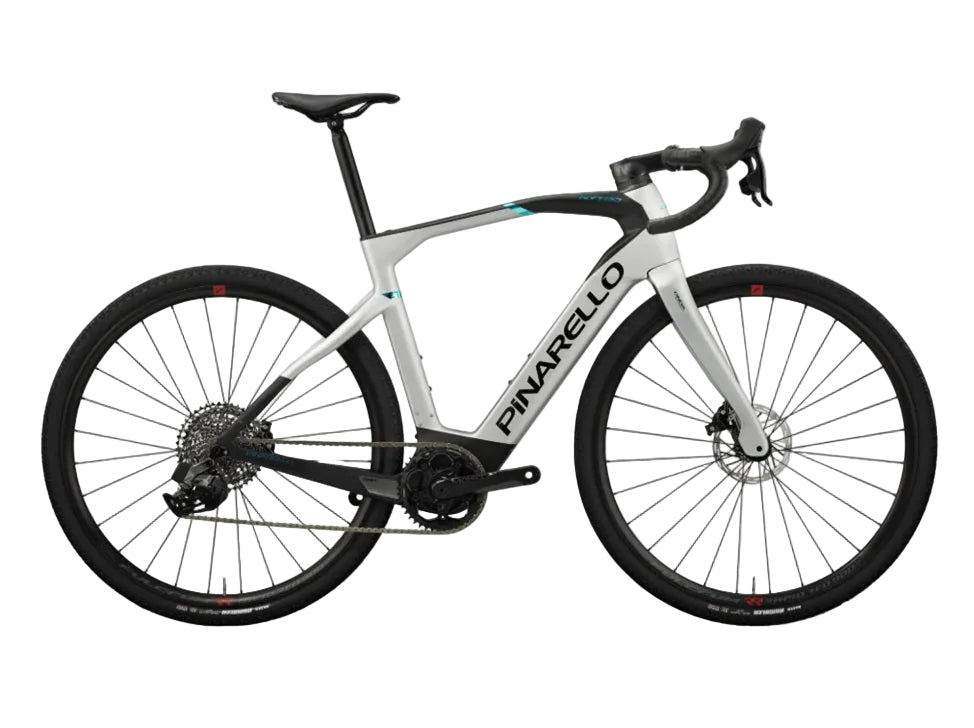

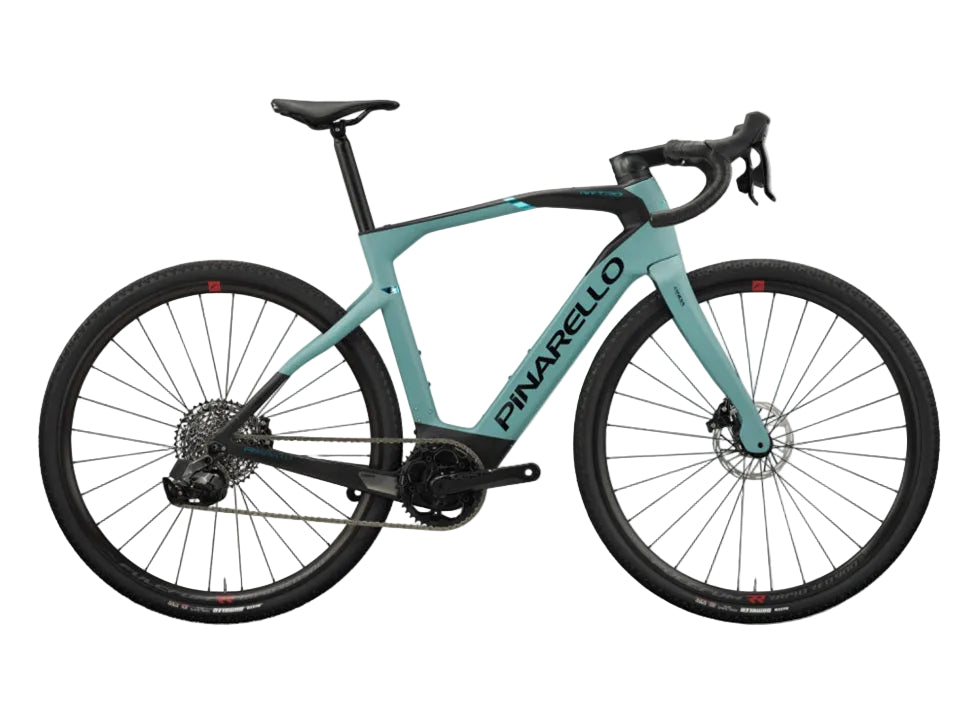

About The Pinarello MY24 Nytro E5 Carbon Sram Rival Gravel E-Bike

The Pinarello MY24 Nytro E5 SRAM Rival is a carbon gravel e-bike built for long-distance, mixed-terrain riding with pedal-assist support. It pairs a TorayCa T700 UD carbon frame with a TQ-HPR50 drive unit and a 360Wh integrated battery, keeping the assist system compact rather than building around a large, heavy battery pack. SRAM Rival eTap AXS 12-speed electronic shifting handles gear changes wirelessly, and SRAM Rival hydraulic disc brakes (160mm front, 140mm rear) provide the stopping power.

What makes the frame distinct is Pinarello's asymmetric frame design, which compensates for chain pull loading only the drivetrain side of the bike — a detail carried over from Pinarello's road engineering, not gravel-specific marketing. The Nytro Onda carbon fork, a Pinarello shape used since 2000, is tuned for precise steering and reduced lateral and longitudinal shock, while the T700UD carbon layup is designed to damp road and trail vibration. Maxxis Rambler 700x40c tires and tool-free 12x100/142mm thru-axles round out a build suited to gravel roads, fire roads, and long adventure rides rather than technical singletrack.

Who It's For

  • Gravel and adventure riders who want pedal-assist range for long days without the weight of a full-power e-bike battery system

  • Riders who want SRAM Rival AXS wireless shifting and hydraulic disc brakes on an e-gravel platform

  • Riders prioritizing a carbon frame tuned for vibration damping on rough surfaces

  • Riders who need maximum motor range or power output may want to compare against e-gravel bikes built around larger battery packs

What to Look For

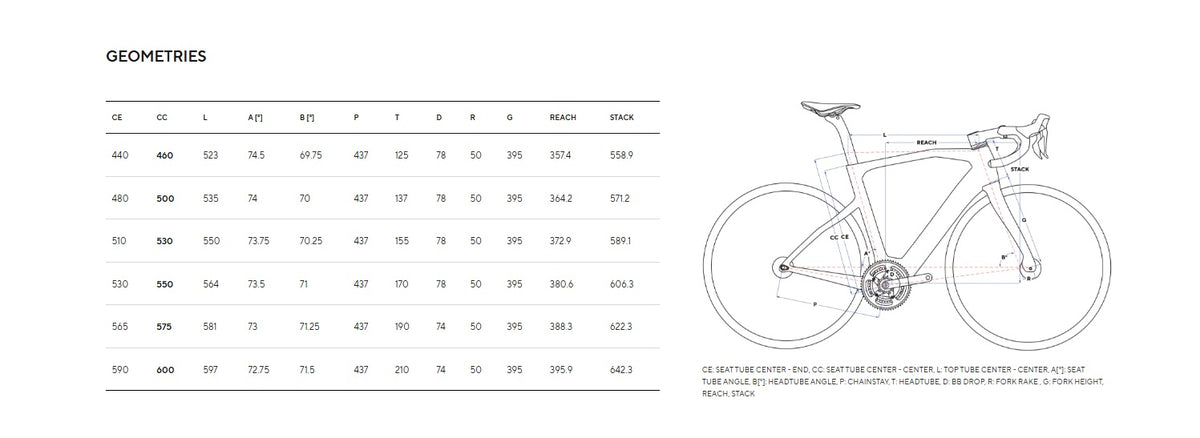

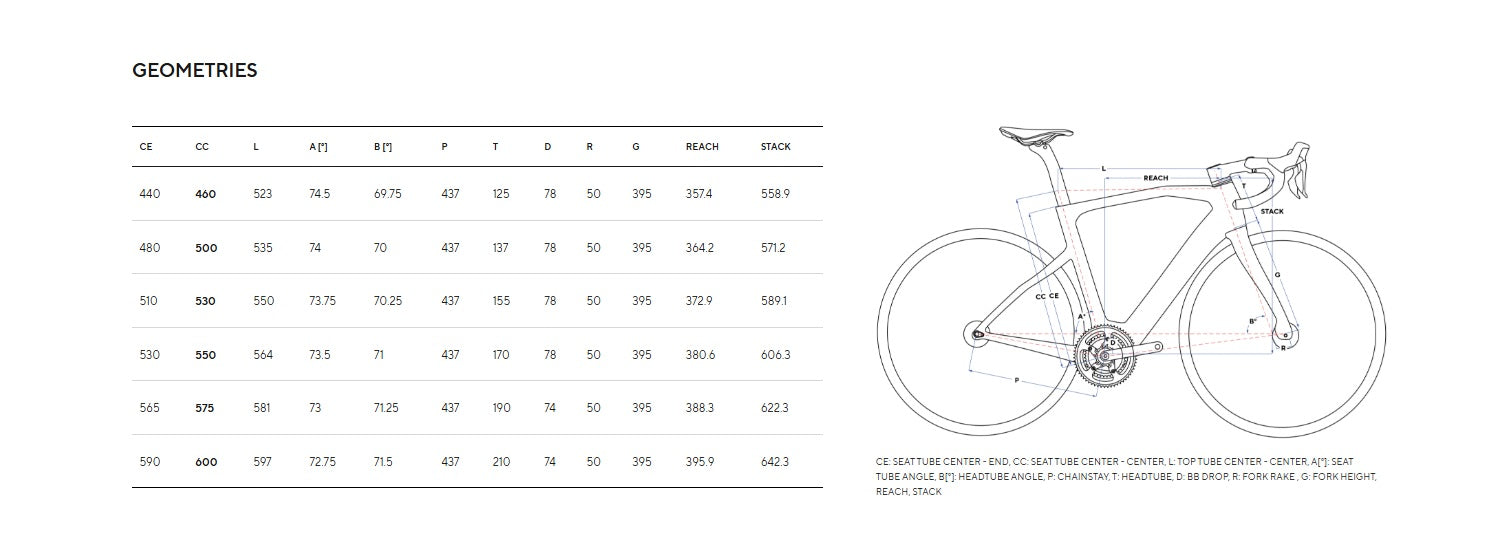

  • Frame size and bike fit — reach and stack change how the Onda fork's steering feel translates on rough terrain

  • Tire and axle compatibility — confirm the 700x40c Maxxis Rambler tread suits your terrain, and note the tool-free 12x100/142 thru-axle standard

  • Motor and battery format — the TQ-HPR50 pairs with a 360Wh integrated (not swappable) battery; weigh that against your typical ride distance

Key Features

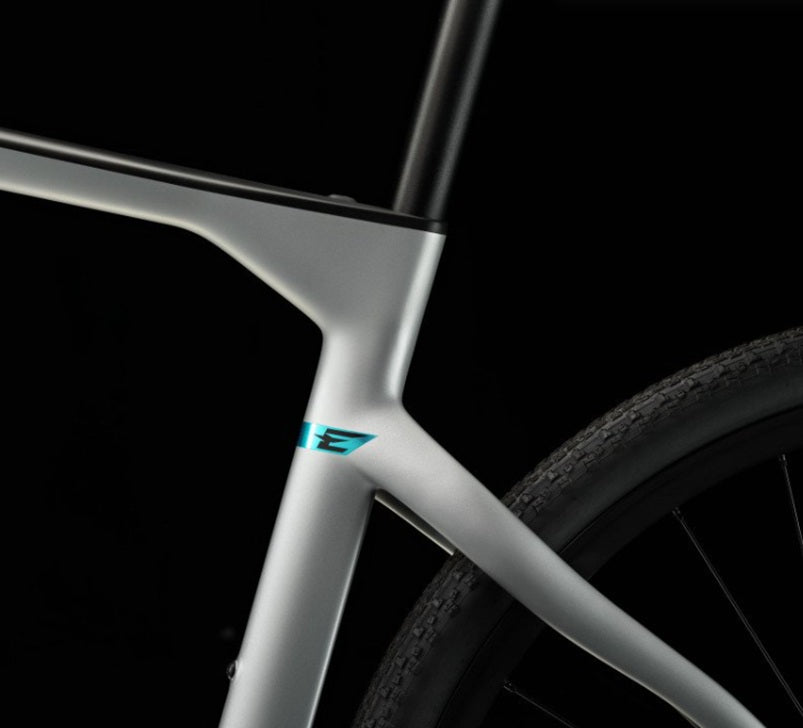

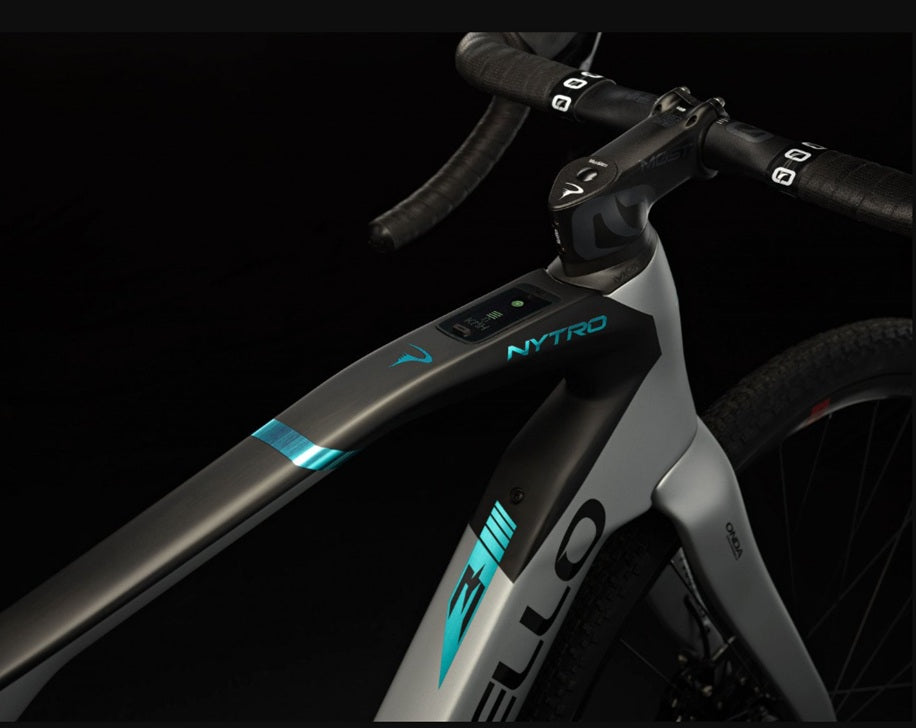

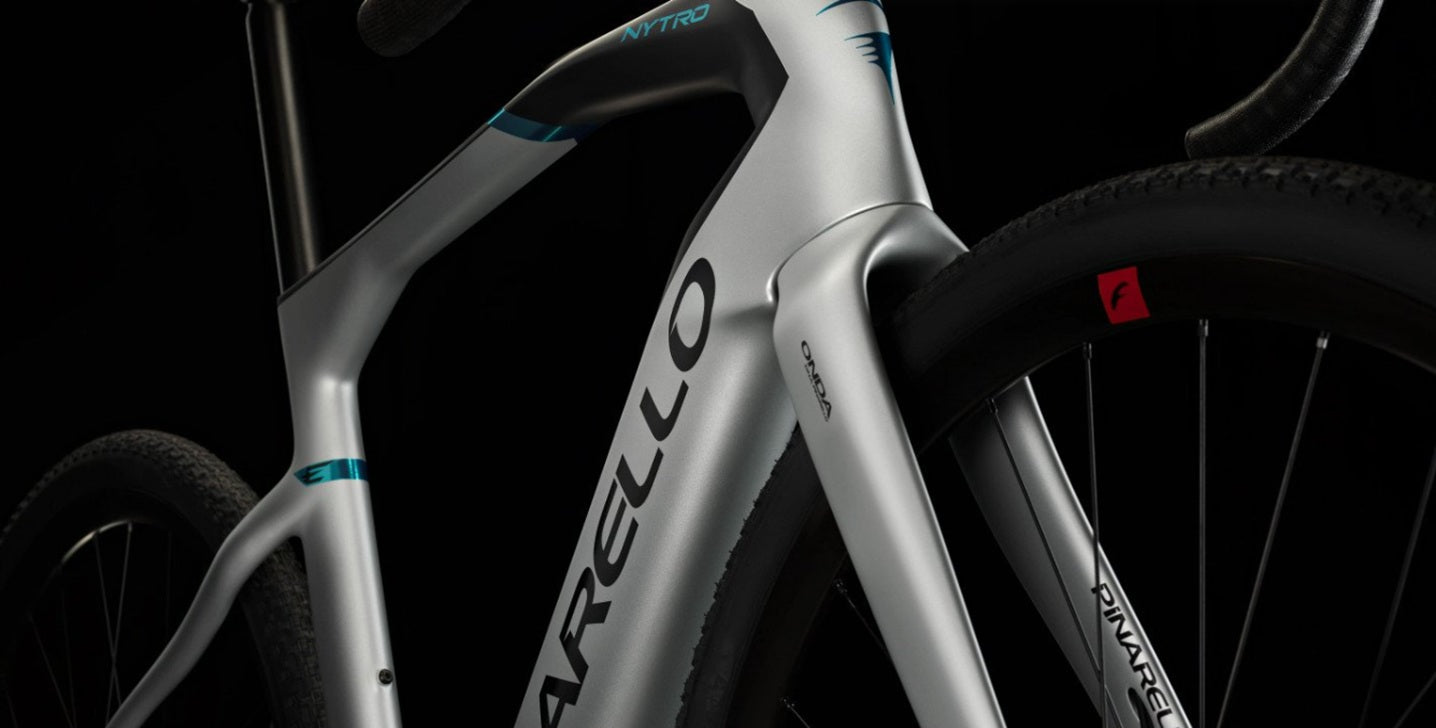

Frame and Fork: The TorayCa T700 UD carbon frame uses Pinarello's asymmetric construction to balance the one-sided pull of the chain, while the Nytro Onda carbon fork with ForkFlap and a tapered head tube is shaped for steering precision and shock reduction. TiCR cable routing keeps housing integrated through the frame and cockpit.

Motor: The TQ-HPR50 drive unit uses TQ's Harmonic Pin Ring (HPR) transmission, drawing on the company's motor engineering background in robotics and aerospace drive systems. It pairs with a 360Wh integrated battery and a display compatible with ANT+ bike computers, so riders can track output on their own head unit.

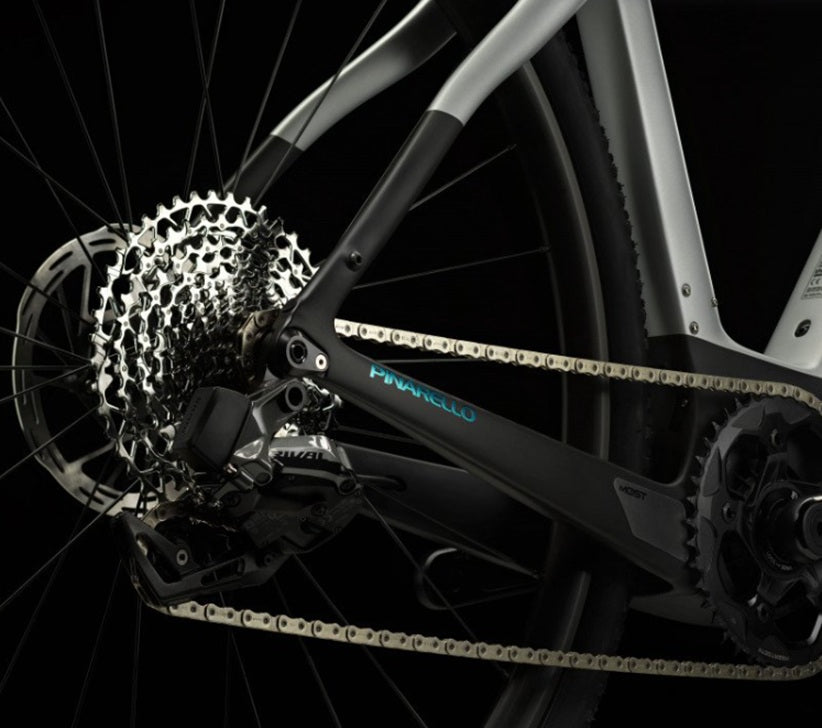

Drivetrain and Brakes: SRAM Rival eTap AXS 12-speed shifts electronically and wirelessly across the crankset, derailleur, cassette, and chain. SRAM Rival brakes use a 2-piston caliper at both wheels, with a 160mm front rotor and 140mm rear rotor.

Wheels, Tires, and Cockpit: Maxxis Rambler 700x40c tires mount on Pinarello's tool-free thru-axle system (12x100 front, 12x142 rear), with a MOST Jaguar GR handlebar and MOST Tiger Aero stem using TiCR cable routing.

Rider Intent Summary

  • Biggest strengths: Carbon gravel frame with Pinarello's Onda fork and asymmetric design, SRAM Rival AXS wireless 12-speed shifting, and a compact TQ-HPR50 motor system

  • Tradeoffs: The 360Wh battery is integrated rather than swappable, and the motor system is proportioned around lighter, more compact assist rather than maximum output

  • What makes it different: Combines Pinarello's road-derived frame engineering (Onda fork, asymmetric frame) with a lightweight e-gravel motor platform, rather than adapting an existing gravel frame around a heavier motor system

Victory's Take

We see the Nytro E5 as a bike for riders who want Pinarello's frame engineering and SRAM Rival AXS shifting in a gravel e-bike that doesn't feel built around its battery. At Victory Bicycle Studio, we'd want to get you properly fit before settling on frame size, since the Onda fork's handling character shows up most once fit is dialed in.

What you get

  • Frame - TorayCa T700 UD, TiCR™ Cable Routing
  • Fork - Nytro Onda carbon fork with forkflap™, tapered head tube
  • Component Groupset - Sram Rival eTap AXS 12-Speed
Pinarello MY24 Nytro E5 Carbon Sram Rival Gravel E-Bike

Pinarello

Pinarello MY24 Nytro E5 Carbon Sram Rival Gravel E-Bike

Regular price $5,500.00 USD
Sale price $5,500.00 USD Regular price

Specifications

Frameset
Frame

TorayCa T700 UD, TiCR™ Cable Routing

Fork

Nytro Onda carbon fork with forkflap™, tapered head tube

Wheels
Wheelset

Fulcrum Rapid Red 900, TLR, Centerlock, 12x100, 12x142

Tires

Maxxis Rambler, 700x40c

Drivetrain and Brakes
Rear Derailleur

Sram Rival eTap AXS XPLR

Cassette

Sram Rival eTap AXS XPLR, 10-44T

Crankset

Sram Rival eTap AXS XPLR 1X

Brakes

Sram Rival eTap AXS XPLR, hydraulic disc

Cockpit
Handlebars

MOST Jaguar GR TiCR Alu

Stem

MOST Tiger Aero Alu TiCR

**Specifications subject to change without notice
