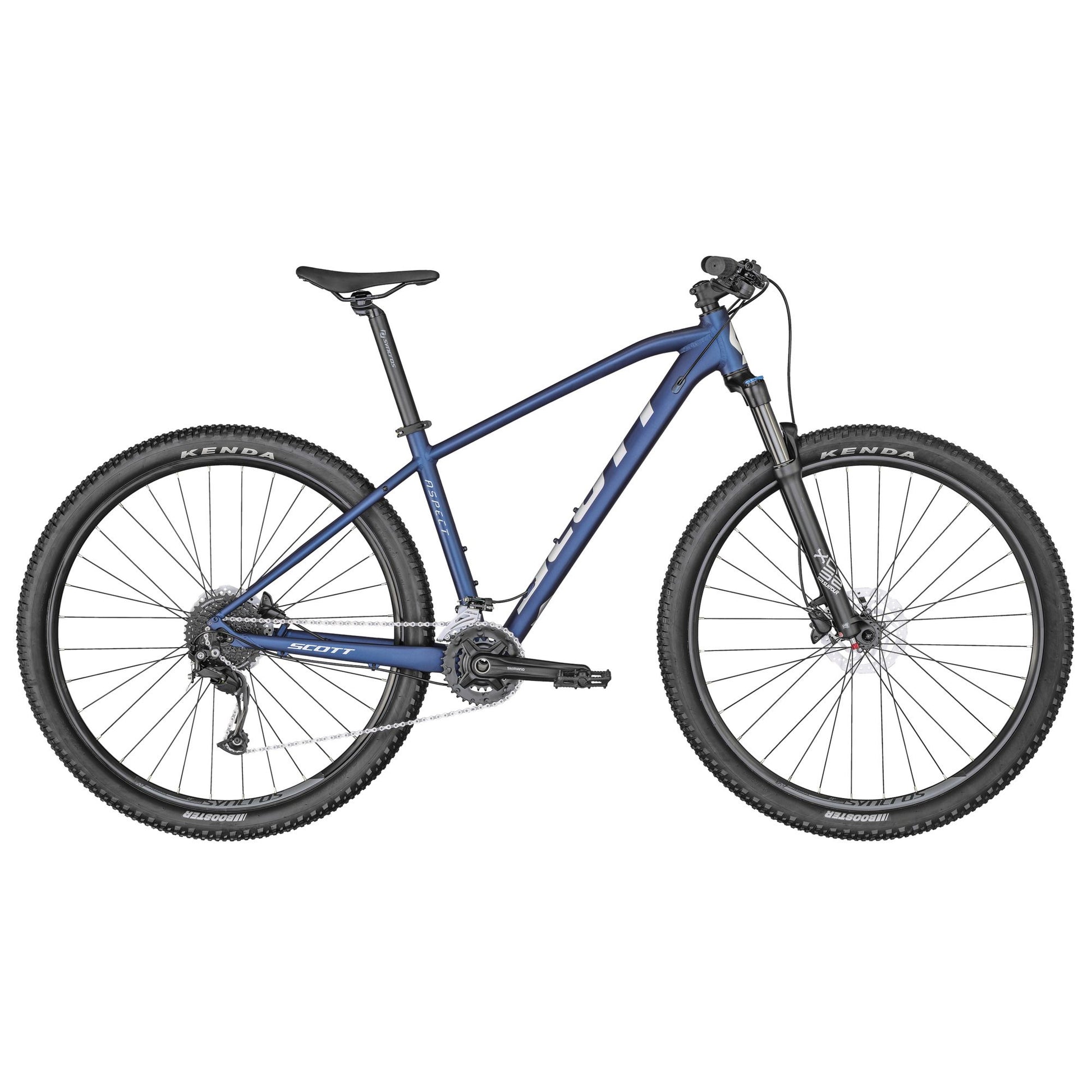

About The Scott Aspect 940 Aluminum 9 Speed Hardtail Mountain Bike

The Scott Aspect 940 sits one step above the entry-level Aspect 950 in Scott's hardtail lineup, distinguished primarily by its upgraded fork and Shimano Alivio drivetrain. The Suntour XCR32/X1-LO-R fork adds rebound adjustment on top of hydraulic lockout, giving riders more control over how the fork responds to trail hits — a meaningful difference from fixed-rebound forks for riders spending longer time on trail. The 6061 alloy frame shares the Aspect 900 series platform with custom butted tubing, BSA73 threaded bottom bracket, and internal cable routing with a replaceable derailleur hanger. Geometry remains XC-oriented — stable and predictable on natural trails and rolling singletrack.

The drivetrain steps up to Shimano Alivio RD-M3100 with a Shimano FC-MT2102 crankset (36x22T) and Shimano CS-HG200-9 11-36T cassette — a noticeable improvement over the Altus-equipped 950 in shift feel and long-term durability. Braking uses Shimano MT200 hydraulic disc brakes with SM-RT10 160mm rotors, a meaningful upgrade from Tektro to Shimano hydraulic. Wheels are Syncros X-20 Disc 32h alloy rims on Kenda Booster 29x2.4 30TPI tires with Shimano HB TX505 hubs. Total weight is approximately 31.2 lbs.

Who It's For

  • Riders who want a step up from base-level components with better fork tuneability and Shimano hydraulic brakes
  • Trail riders who spend meaningful time on natural singletrack and need a more dialed brake and fork setup
  • Cyclists who want Shimano hydraulic disc braking across the bike rather than Tektro
  • Riders progressing beyond pure beginner terrain who plan to develop trail skills
  • Not ideal for: riders planning on technical enduro or aggressive trail riding — this is an XC geometry hardtail

What to Look For

  • Fork rebound: The XCR32 rebound adjuster lets you tune how fast the fork returns after compression — set it slower for rough trail, faster for smoother terrain. This is absent on the 950.
  • Drivetrain: Alivio shifts and wears better than Altus — a practical upgrade if you plan to put real miles on the bike.
  • Shimano vs. Tektro brakes: The Shimano MT200 hydraulic system offers slightly better modulation and wider pad availability than the Tektro units on the 950.

Key Features

Frame: Aspect 6061 alloy with custom butted tubing, BSA73 threaded bottom bracket, internal cable routing, and replaceable derailleur hanger. Butted tubing removes weight in the low-stress mid-span of each tube while maintaining material at the weld zones.

Groupset: Shimano Alivio RD-M3100 rear derailleur, Shimano FD-M3120 front derailleur, Shimano FC-MT2102 36x22T crankset, Shimano SL-M3100 shifters, Shimano CS-HG200-9 11-36T cassette, KMC X9 chain. Alivio is a proven workhorse groupset at the mid-entry tier.

Brakes: Shimano MT200 hydraulic disc with SM-RT10 CL 160mm rotors front and rear. Shimano's MT200 is widely serviced and pads are readily available — an important practical consideration for a trail bike.

Wheels: Syncros X-20 Disc 32h alloy rims with Shimano HB TX505 hubs and Kenda Booster 29x2.4 30TPI tires. The Shimano hub upgrade over the Formula hubs on the 950 improves long-term bearing serviceability.

Rider Intent Summary

  • Biggest strengths: Shimano hydraulic disc brakes, rebound-adjustable fork, and Alivio drivetrain represent a meaningful upgrade tier above the 950 for a modest price difference
  • Tradeoffs: XC geometry and 100mm travel limit capability on more aggressive terrain; 30TPI tire casing is entry-level
  • What makes it different: The XCR32 fork's rebound adjustment is the key differentiator from the 950 — it is the first tuning parameter most progressing riders want to learn to set

Victory's Take

At Victory Bicycle Studio, we often steer riders who are serious about trail development toward the Aspect 940 over the 950 — the fork rebound adjustment and Shimano hydraulic brakes are both things you will notice and use as your skills grow.

What you get

  • Frame - Aspect 900-700 series
  • Fork - Suntour XCR32/X1-LO-R
  • Groupset - Shimano 9 Speed (Mechanical)
  • Wheels - Syncros X-20 Disc 32H / black
  • Tires - Kenda Booster 2.4" / 30TPI
Scott Aspect 940 Aluminum 9 Speed Hardtail Mountain Bike

Scott

Scott Aspect 940 Aluminum 9 Speed Hardtail Mountain Bike

Regular price $899.99 USD
Sale price $899.99 USD Regular price $899.99 USD

Specifications

Frameset
Frame

Aspect 900-700 series

- Alloy 6061 Custom Butted Tubing BSA73

- Internal Cable Routing

- Replaceable hanger

Fork

Suntour XCR32/X1-LO-R Hyd. Lockout / Reb. Adj. 100mm travel

Headset

Syncros OE Press Fit / 1 1/8" OD 50mm / ID 44mm

Wheels
Rims

Syncros X-20 Disc 32H / black

Front Hub

Shimano HB TX505

Rear Hub

Shimano FH-TX5058

Spokes

14 G / stainless / black

Tires

Kenda Booster 2.4" / 30TPI

Drivetrain and Brakes
Rear Derailleur

Shimano Alivio RD-M3100 9 Speed

Front Derailleur

Shimano FD-M3120 Side Swing / 31.8mm

Shifters

Shimano SL-M3100 R-fire plus / 2 way release w/gear indicator

Crankset

Shimano FC-MT2102 2-piece Design / 36X22

Bottom Bracket Set

Shimano BB-MT500 Hollowtech II / threaded

Chain

KMC X9

Cassette

Shimano CS-HG200-9 / 11-36T

Brakes

Shimano MT200 / Hydr. Disc Brakes

Cockpit
Handlebars

Syncros 3.0 / 720mm black

- 31.8mm

- 12mm rise

- 9° BS Syncros Pro Grip

Stem

Syncros 3.0 / 7° / Black

Seat Post

Syncros 3.0 31.6mm / 350mm / Black

Saddle

Syncros 3.0

Additional Information
Bike Weight

14.15kg / 31.2lb

Max. Allowable Weight

128kg / 282lb

*Specifications subject to change without notice
