About The SRAM Force AXS XPLR 1x 12/13-Speed 42T DUB Crankset

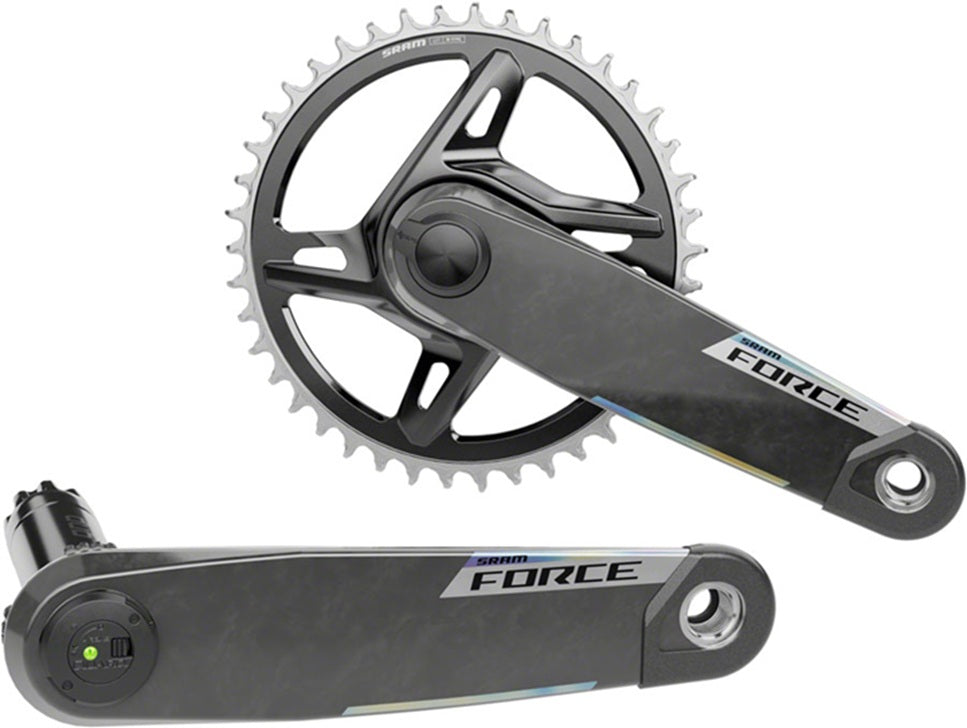

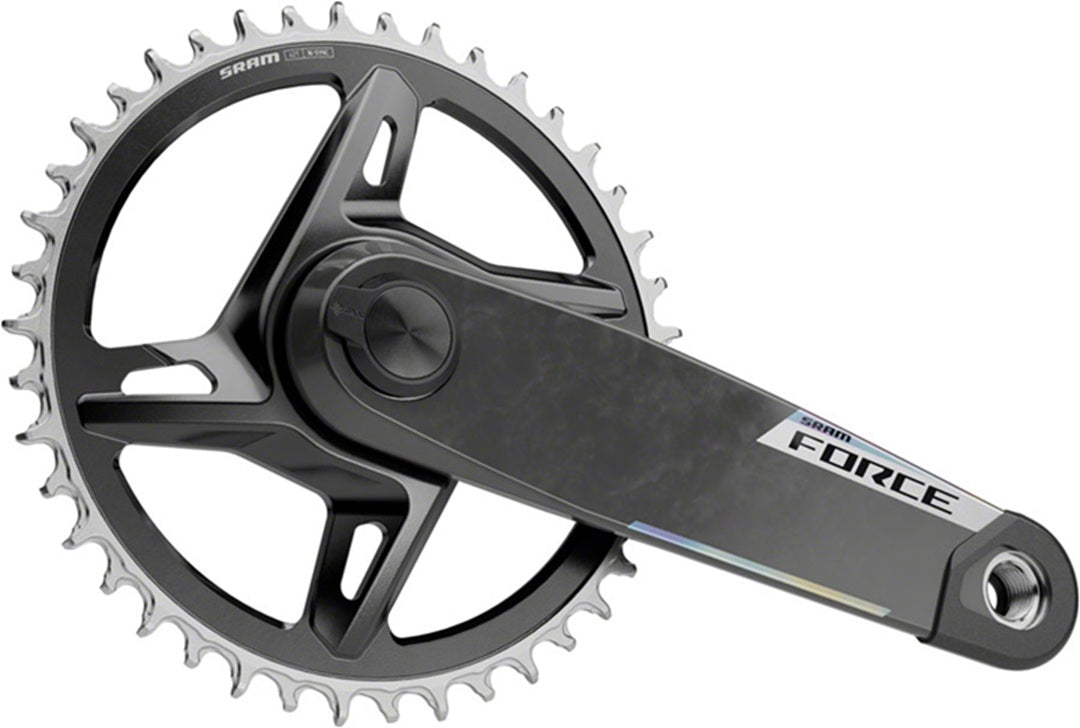

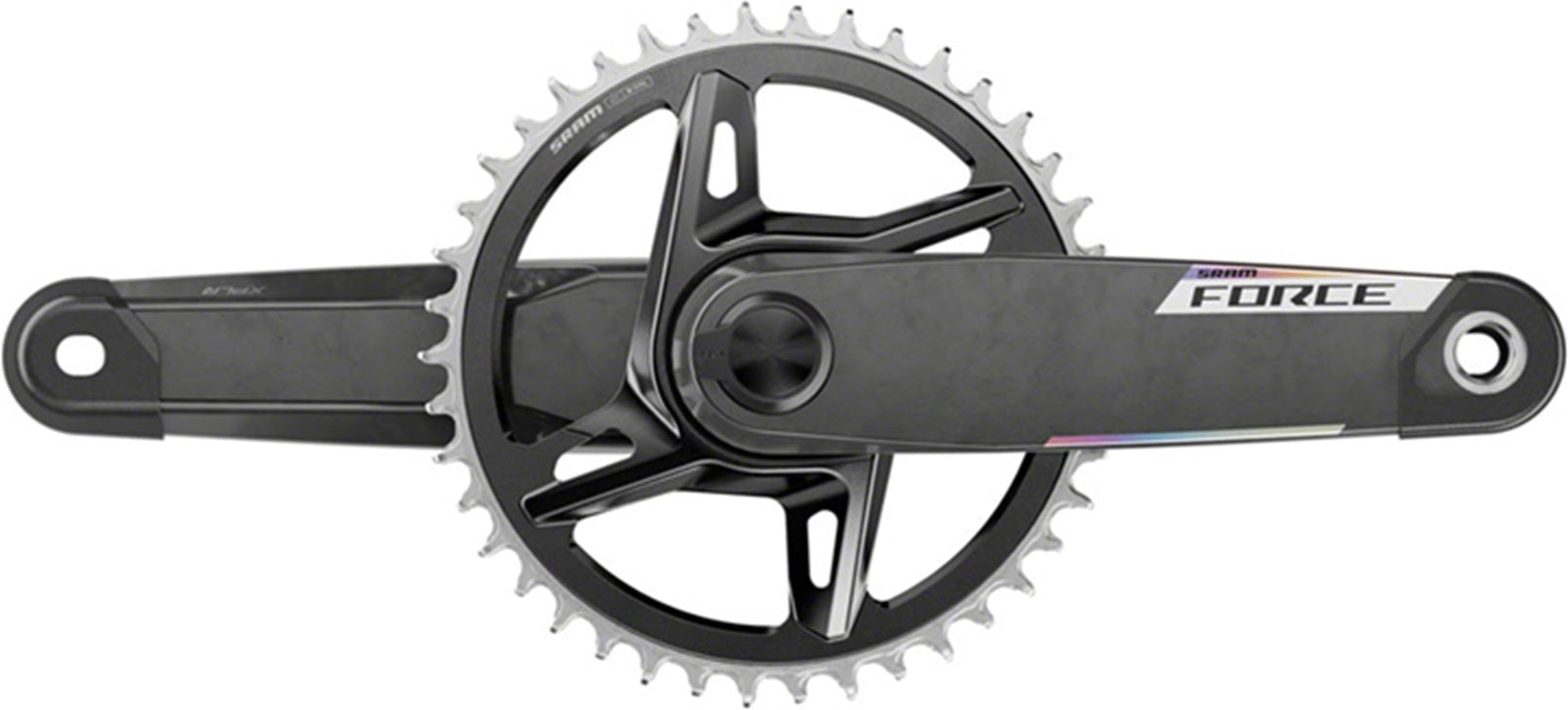

The SRAM Force AXS XPLR crankset is a 1x crankset with a 42T X-Sync aluminum direct mount chainring on carbon arms, built for road and gravel bikes running 12- or 13-speed drivetrains. It uses a SRAM DUB spindle, and the bottom bracket is sold separately.
Crank lengths offered are 160, 165, 172.5 and 175mm. The 42T ring is the gearing anchor here: it sets your top-end and climbing range together with your cassette, so it's worth choosing deliberately rather than by default.
Who It's For
- Gravel and road riders building or upgrading a 1x bike with a SRAM DUB bottom bracket
- Riders on 12- or 13-speed SRAM drivetrains who want a 42T single ring
- Bikes with 135/142mm road disc rear hub spacing
- Consider a different crank if you run a 2x drivetrain, need a 170mm arm, or your frame uses a non-DUB bottom bracket standard
What to Look For
- Spindle interface: SRAM DUB. You need a DUB bottom bracket for your frame's shell; none is included.
- Hub spacing: listed for 135/142mm road disc hubs, with chainstays both under and over 415mm.
- Crank length: 160, 165, 172.5 or 175mm. There is no 170mm option on this listing.
Key Features
Carbon fiber crank arms keep weight down at the part of the bike you spin thousands of times per ride, while staying stiff enough to put effort into the drivetrain rather than into flex.
The SRAM DUB spindle runs in a DUB bottom bracket, sold separately. Ordering the correct DUB bottom bracket for your frame's shell at the same time is the single most important step in avoiding a return.
The chainring is a 42T X-Sync aluminum direct mount ring on SRAM's 8-bolt direct mount interface. Its wide-tooth, narrow-tooth profile is designed to hold the chain on a 1x setup over rough roads without a front derailleur.
Length choice matters for fit: 160 and 165mm suit shorter riders or those reducing hip angle, while 172.5 and 175mm suit longer legs. If you have had a bike fit, use the crank length from that fit.
Rider Intent Summary
- Biggest strengths: Light carbon arms, a chain-retaining 42T X-Sync ring and a DUB spindle in one package for 12- or 13-speed 1x road and gravel bikes.
- Tradeoffs: Bottom bracket is not included, the ring size is fixed at 42T on this listing, and there is no 170mm length.
- What makes it different: It pairs a gravel-ready single ring with road-oriented 135/142mm disc hub spacing, so it suits fast mixed-surface builds rather than wide mountain spacing.
Victory's Take
We like the 42T Force XPLR crank for riders who want one clean 1x setup across pavement and gravel. Victory Bicycle Studio can confirm your DUB bottom bracket and crank length before it ships so the install goes right the first time.
Specifications
- Brand: SRAM
- Model: Force AXS XPLR
- Chainrings: 1x, chain-retaining single
- Chainring: 42T X-Sync aluminum
- Chainring mount: Direct Mount SRAM 8-Bolt
- Drivetrain speeds: 12, 13
- Spindle interface: SRAM DUB
- Hub compatibility: 135/142mm road disc hubs (chainstays under and over 415mm)
- Crank lengths: 160, 165, 172.5, 175mm
- Arm material: Carbon fiber
- Color: Carbon
- Pedal thread: 9/16"
- Intended use: Road, gravel
- Bottom bracket: Not included
What you get

SRAM Force AXS XPLR 1x 12/13-Speed 42T DUB Crankset
