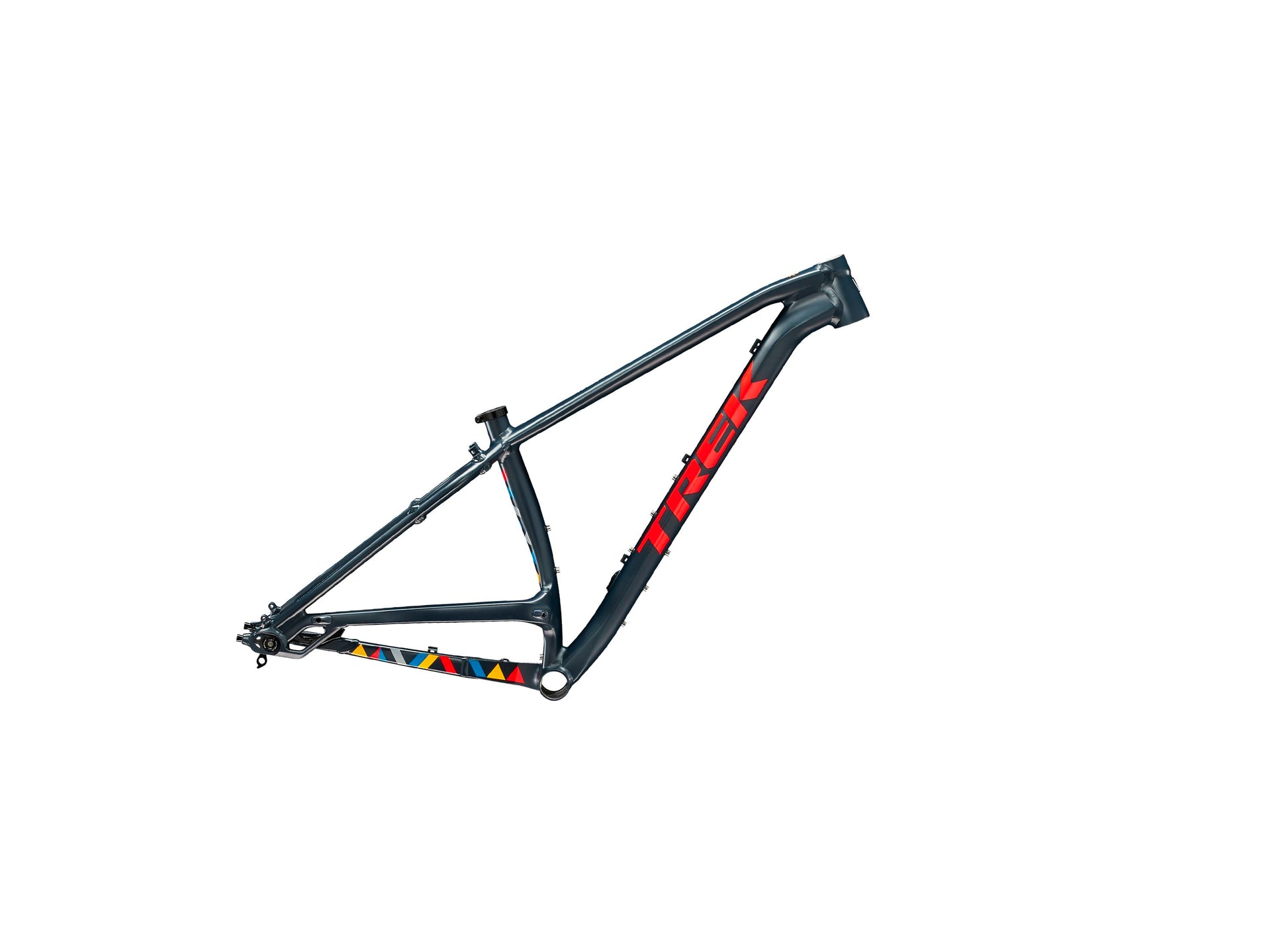

Trek 1120 Frameset

The Trek 1120 Frameset is a purpose-built bikepacking platform constructed from Alpha Platinum Aluminum — now made with low-emission, renewable-energy aluminum — designed to carry serious loads across serious terrain. With horizontal sliding dropouts, 29+ tire clearance, internal routing for both derailleur and dropper post, and a proprietary rack mount system, this is a frame built from the ground up for multi-day backcountry expeditions.

The 1120's Boost148 thru-axle rear end and tapered head tube give it trail-bike handling even when unloaded, and the sliding dropouts allow easy singlespeed conversion — a practical failsafe when you're days from civilization. Geometry runs on the longer, more stable side, with a 70.3° head angle and 116.6mm wheelbase (XL) that tracks confidently with weight on board.

Who It's For

• Riders planning multi-day backcountry bikepacking routes requiring high gear capacity
• Adventure cyclists who want a frame that can run 29+ tires for added flotation and volume
• Builders who want singlespeed simplicity as a backup option on remote routes
• Not ideal for: weight-weenie XC builds, riders who don't need rack or load-carrying infrastructure

What to Look For

• Fork compatibility: Frame-only — you'll need to source a fork; spec a rigid or suspension fork rated for 29+ clearance and load-carrying mounts if matching the frame's intent
• Rack system: The 1120 uses Trek's proprietary rack mount system; the 1120 rack and harness are sold separately and designed specifically for this frame
• Drivetrain: Sliding dropouts support singlespeed or geared setups; plan your chainline accordingly
• Headset: FSA Integrated with 1-1/8" top and 1.5" bottom — tapered steerer forks required

Key Features

Frame — Alpha Platinum Aluminum: Built with Trek's low-emission aluminum, this is a stout, trail-tested construction with a tapered head tube, internal cable and dropper routing, and the structural integrity needed to handle loaded touring. Horizontal sliding dropouts add geometry tunability and singlespeed versatility.

Compatibility — Boost148 / 29+: The rear end runs 148mm Boost spacing with a 12mm thru axle, and the frame is sized for 29+ tires. Plan wheels and drivetrain around these specs — standard 142mm hubs will not fit.

Routing & Mounts: Internal derailleur and dropper post routing keeps lines clean and protected. Proprietary rack mounts front and rear support Trek's 1120 rack system, which handles 8L rear bags and additional front loads. Additional accessory mounts are spread throughout the frame for cages, bags, and gear.

Geometry — Expedition-biased: The 70.3° head angle and longer wheelbase prioritize straight-line stability and load management over quick handling — the right tradeoff for a loaded expedition bike.

Rider Intent Summary

• Biggest strengths: Unmatched load-carrying infrastructure, 29+ tire clearance, singlespeed convertibility, trail-bike handling when unloaded
• Tradeoffs: Frame-only purchase requires sourcing fork separately; proprietary rack system means aftermarket options are limited; not optimized for performance XC or road use
• What makes it different: The horizontal sliding dropout and integrated rack mount system are rare at any price — this is a complete bikepacking platform, not just a frame with bottle mounts bolted on

Victory's Take

At Victory Bicycle Studio, we think the 1120 Frameset is one of the most thoughtfully engineered expedition platforms available — if you're planning a serious multi-day route and want a build that can handle it from day one, this is a strong place to start the conversation.
