About The Trek Checkpoint ALR 3 Gen 3 Gravel Bike

The Trek Checkpoint ALR 3 Gen 3 is an aluminum gravel bike designed to go anywhere without demanding a premium budget. Its 300 Series Alpha Aluminum frame pairs with a full carbon fork for meaningful road vibration reduction, and Gravel Endurance geometry — shared with the more expensive carbon Checkpoint SL — puts you in a comfortable, upright position for long days on rough roads. Clearance for tires up to 50mm wide gives you room to run something chunky when the surface demands it, and suspension fork and dropper post compatibility makes the platform genuinely upgradeable over time.

The drivetrain is a 10-speed Shimano CUES U6000 setup with a LINKGLIDE cassette (11-48) — designed for durability and low maintenance rather than light weight, which suits the bike's adventure-first character. Braking is handled by Tektro mechanical disc brakes, a compromise at this price point but reliable for everyday gravel riding. Frame mounts are extensive: rack and fender mounts front and rear, integrated frame bag attachment points, and Adventure Bag compatibility make this a capable bikepacking platform well above its price class.

Who It's For

  • New gravel riders who want a solid, versatile platform without overspending on a first bike
  • Commuters and utility cyclists who need fender and rack mounts alongside off-road capability
  • Adventure cyclists on a budget who plan to do light bikepacking on gravel and mixed terrain
  • Riders wanting wireless electronics, carbon wheels, or hydraulic brakes should step up to the ALR 4 or ALR 5

What to Look For

  • Mechanical vs. hydraulic brakes: The ALR 3 uses Tektro mechanical disc brakes — adequate for most conditions but require more frequent adjustment than hydraulic systems
  • 10-speed gearing: CUES LINKGLIDE is durable and low-maintenance but not the widest cassette selection; the ALR 4 and 5 offer 11-speed options with hydraulic brakes
  • Upgrade path: The frame's suspension fork and dropper post compatibility means you can meaningfully improve capability down the road without replacing the whole bike

Key Features

Frame and Fork: 300 Series Alpha Aluminum frame with internal cable routing, T47 threaded bottom bracket, UDH, rack and fender mounts, and integrated frame bag mounts. The Trek Checkpoint full carbon fork reduces vibration at the front end and adds rack and fender mounts of its own. Gravel Endurance geometry runs a higher stack and shorter reach for a more comfortable, upright position.

Drivetrain: Shimano CUES U6000 10-speed with a LINKGLIDE 11-48 cassette and 40T chainring. LINKGLIDE technology reduces chain, cassette, and chainring wear — a practical advantage for a bike that may spend time in wet or dirty conditions.

Brakes: Tektro C550 mechanical disc brakes with 160mm centerlock rotors. Performance is adequate for gravel riding and significantly better than rim brakes; upgrading to hydraulic levers later is possible but requires cable-to-hydraulic conversion.

Wheels and Tires: Bontrager Paradigm 23 tubeless-ready rims with 700x42mm Bontrager Girona Pro tires. The tubeless-ready setup allows future conversion without replacing the wheels, improving puncture resistance and enabling lower tire pressures for more comfort on rough surfaces.

Rider Intent Summary

  • Biggest strengths: Gravel Endurance geometry and extensive mount options deliver a capable, versatile platform at an accessible price
  • Tradeoffs: Mechanical disc brakes and 10-speed gearing are the most notable compromises versus the ALR 4 and ALR 5
  • What makes it different: LINKGLIDE drivetrain durability and suspension/dropper compatibility set the ALR 3 apart from other entry-level gravel bikes — it's built to grow with the rider

Victory's Take

The Checkpoint ALR 3 is where we'd point someone who wants a real gravel bike but isn't ready to commit four figures to a first-time purchase — the frame is the same platform as the more expensive ALR builds, and the geometry gets it right. At Victory Bicycle Studio, we think the upgrade path here is genuinely useful: hydraulic brakes and a dropper post go a long way on this frame.

What you get

  • Frame - 300 Series Alpha Aluminum, Gravel Endurance geometry
  • Fork - Checkpoint full carbon, rack + fender mounts
  • Drivetrain - Shimano CUES U6000 10-speed LINKGLIDE
  • Brakes - Tektro C550 mechanical disc, 160mm
  • Tires - 700x42mm Bontrager Girona Pro

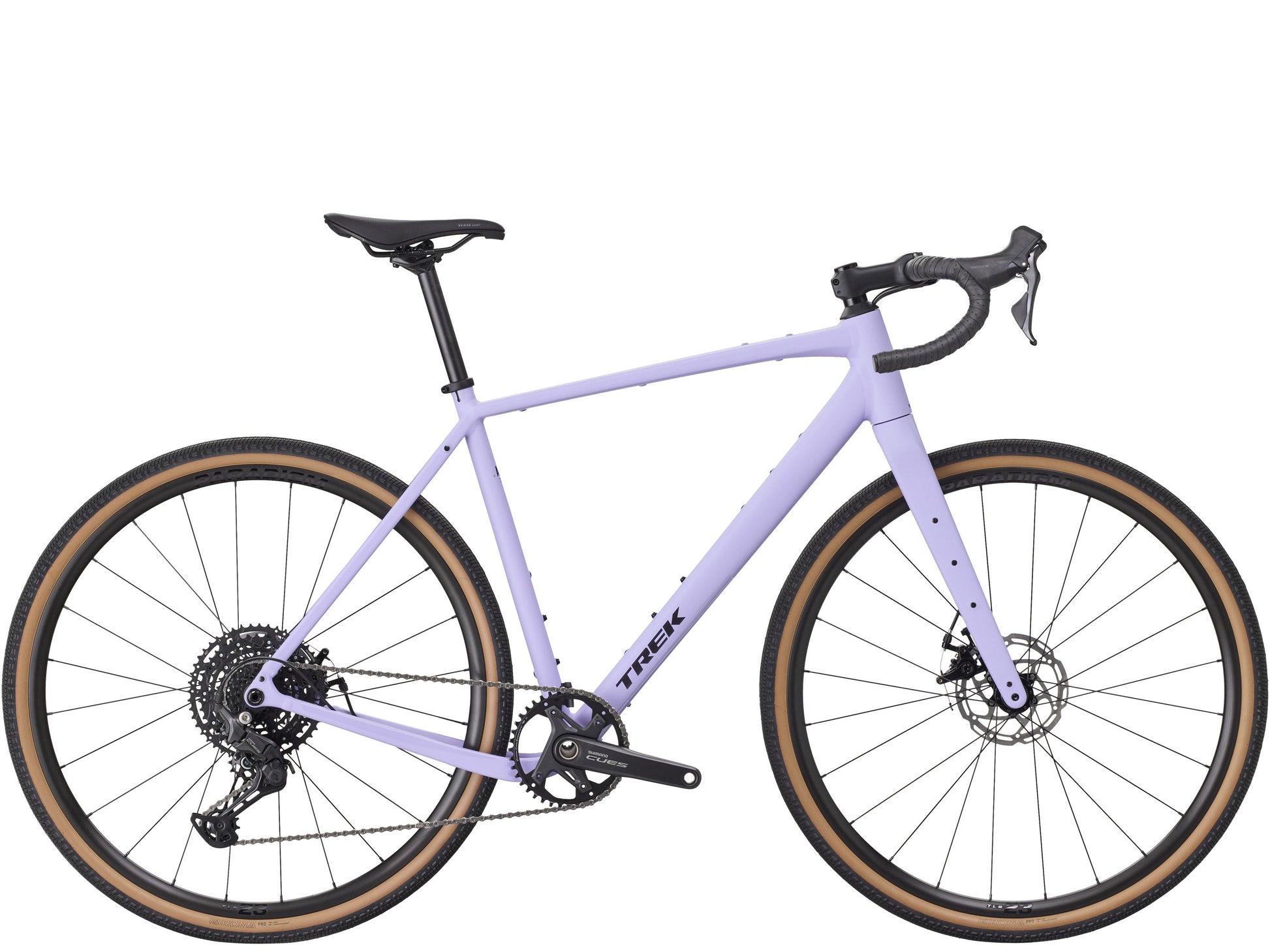

Checkpoint ALR 3 M Matte Lavender Haze

Trek

Trek Checkpoint ALR 3 Gen 3 Gravel Bike

Regular price $1,599.99 USD
Sale price $1,599.99 USD Regular price $1,599.99 USD

Specifications

Frameset
Frame

300 Series Alpha Aluminum, internal cable routing, 3S chain keeper, T47 BB, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle

Fork

Trek Checkpoint full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Wheels
Front Hub

Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Rear Hub

Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Rim

Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width

Tire

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Max Tire Size

50mm without fenders, 42mm with fenders

Drivetrain and Brakes
Shifter

Shimano CUES STU303010R, 10 speed (right only, 1x)

Rear Derailleur

Shimano CUES U6000 GS

Crank

Shimano CUES FCU60301, 40T ring

- Size: XS, S - 165mm

- Size: M, ML - 170mm

- Size: L, XL - 172.5mm

Bottom Bracket

Praxis, T47 threaded, internal bearing

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed

Chain

Shimano LG500, 9/10/11 speed

Brake

Tektro C550 mechanical disc, dual piston, flat mount

Brake Rotor

Tektro, centerlock, 160mm (180mm front max)

Cockpit
Saddle

Bontrager Verse Short Comp, steel rails, 145mm width

Seatpost

Bontrager alloy, 27.2mm, 12mm offset, 330mm length

Handlebar

Bontrager Elite Gravel, alloy

- Size: XS, S - 40cm

- Size: M, ML - 42cm

- Size: L - 44cm

- Size: XL - 46cm

Stem

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree

- Size: XS - 70mm

- Size: S, M - 80mm

- Size: ML, L - 90mm

- Size: XL - 100mm

Additional Information
Weight

ML - 10.41 kg / 22.96 lbs (with TLR sealant, no tubes)

Weight Limit

275 lbs (125 kg)
