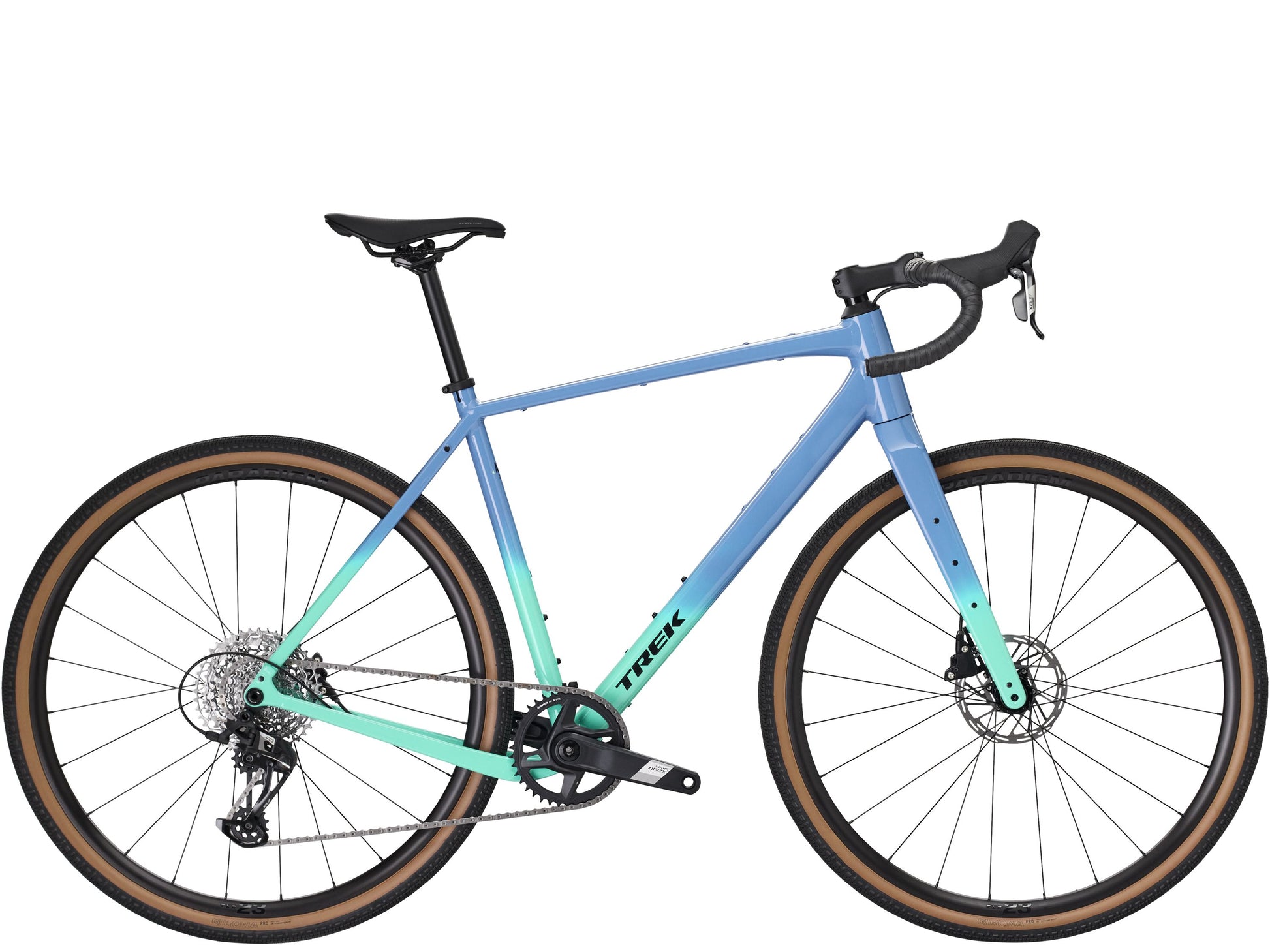

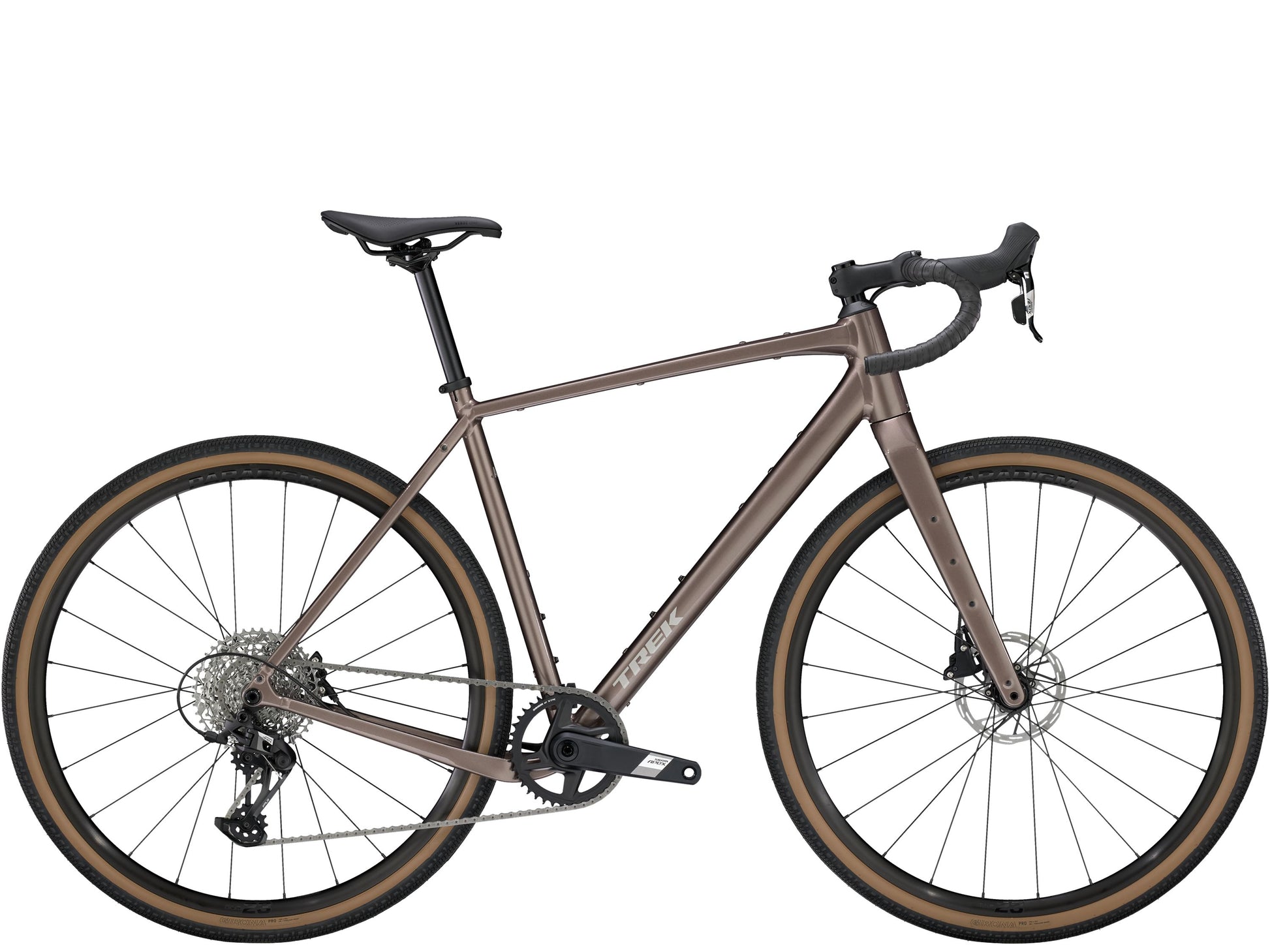

About The Trek Checkpoint ALR 5 Gen 3 Gravel Bike
The Trek Checkpoint ALR 5 Gen 3 is the top aluminum build in the Checkpoint ALR lineup, pairing the same 300 Series Alpha Aluminum frame and carbon fork as the rest of the ALR family with a 12-speed SRAM Apex XPLR drivetrain and hydraulic disc brakes. Gravel Endurance geometry puts you in a stable, upright position for long days on mixed surfaces, and clearance for tires up to 50mm wide (as measured) gives you room to run a chunkier tire when conditions call for it. Like all Checkpoint ALR models, it's built with suspension fork and dropper post compatibility for riders who want to add capability over time.
The SRAM Apex XPLR drivetrain is a 12-speed, single-ring gravel-specific setup — the 11-44 XPLR cassette is narrower range than the CUES setups on the ALR 3 and 4, prioritizing closer gear spacing and smoother shifting feel over maximum spread. This suits riders who spend more time on gravel roads than steep climbs with heavy loads. SRAM Apex hydraulic disc brakes complete the package, bringing the stopping performance in line with what the carbon Checkpoint SL models offer at a higher price point.
Who It's For
- Riders who want the best aluminum Checkpoint build available with SRAM Apex components and 12-speed precision
- Gravel enthusiasts who prefer SRAM's ecosystem and want XPLR-specific components tuned for gravel drivetrains
- Cyclists moving up from the ALR 3 or 4 who want tighter gear spacing and a cleaner drivetrain setup
- Riders wanting wireless electronics or carbon wheels should step up to the Checkpoint SL 5 AXS or higher
What to Look For
- Cassette range: The XPLR 11-44 cassette is more road-oriented than the wide-range CUES 11-50 on the ALR 4 — better for moderate terrain, less optimal for long loaded climbs
- SRAM vs. Shimano: If you're already in the SRAM ecosystem or planning to upgrade to AXS components later, the ALR 5's SRAM Apex base is a natural starting point
- Frame upgrade potential: Suspension fork and dropper post compatibility mean you can meaningfully evolve this build without changing the frame
Key Features
Frame and Fork: 300 Series Alpha Aluminum frame with internal cable routing, T47, UDH, rack and fender mounts, and integrated frame bag mounts. Trek Checkpoint full carbon fork with its own rack and fender mounts. Gravel Endurance geometry — higher stack, shorter reach — shared with the carbon Checkpoint SL platform.
Drivetrain: SRAM Apex 12-speed shifters drive an Apex XPLR rear derailleur across a 11-44 XPLR cassette. The 40T DUB Wide crank keeps the system simple and efficient. XPLR-specific components are optimized for 1x gravel use and compatible with future AXS electronic upgrades.
Brakes: SRAM Apex D1 hydraulic disc brakes with 160mm SRAM Paceline centerlock rotors front and rear. Consistent and powerful hydraulic performance with good modulation for gravel and light off-road use.
Wheels and Tires: Bontrager Paradigm 23 tubeless-ready rims with 700x42mm Bontrager Girona Pro tires. Tubeless-ready out of the box for easy sealant conversion, enabling lower pressures and improved flat resistance.
Rider Intent Summary
- Biggest strengths: The SRAM Apex XPLR 12-speed drivetrain and hydraulic brakes deliver the best-shifting and best-stopping aluminum Checkpoint build available
- Tradeoffs: Narrower cassette range than the ALR 4 makes it less ideal for very loaded bikepacking or steep climbing; aluminum frame is heavier than carbon
- What makes it different: XPLR-specific 12-speed gearing in the aluminum Checkpoint lineup bridges the gap to the carbon SL models without requiring a carbon frame budget
Victory's Take
The Checkpoint ALR 5 is a well-sorted gravel bike that we'd recommend to riders who want to spend their money on quality components rather than frame material — the SRAM Apex XPLR setup is a step up in feel and shifting performance that you notice immediately. At Victory Bicycle Studio, it's a bike we're happy to put miles on ourselves.
What you get

Trek Checkpoint ALR 5 Gen 3 Gravel Bike
