About The Trek Domane+ ALR 5

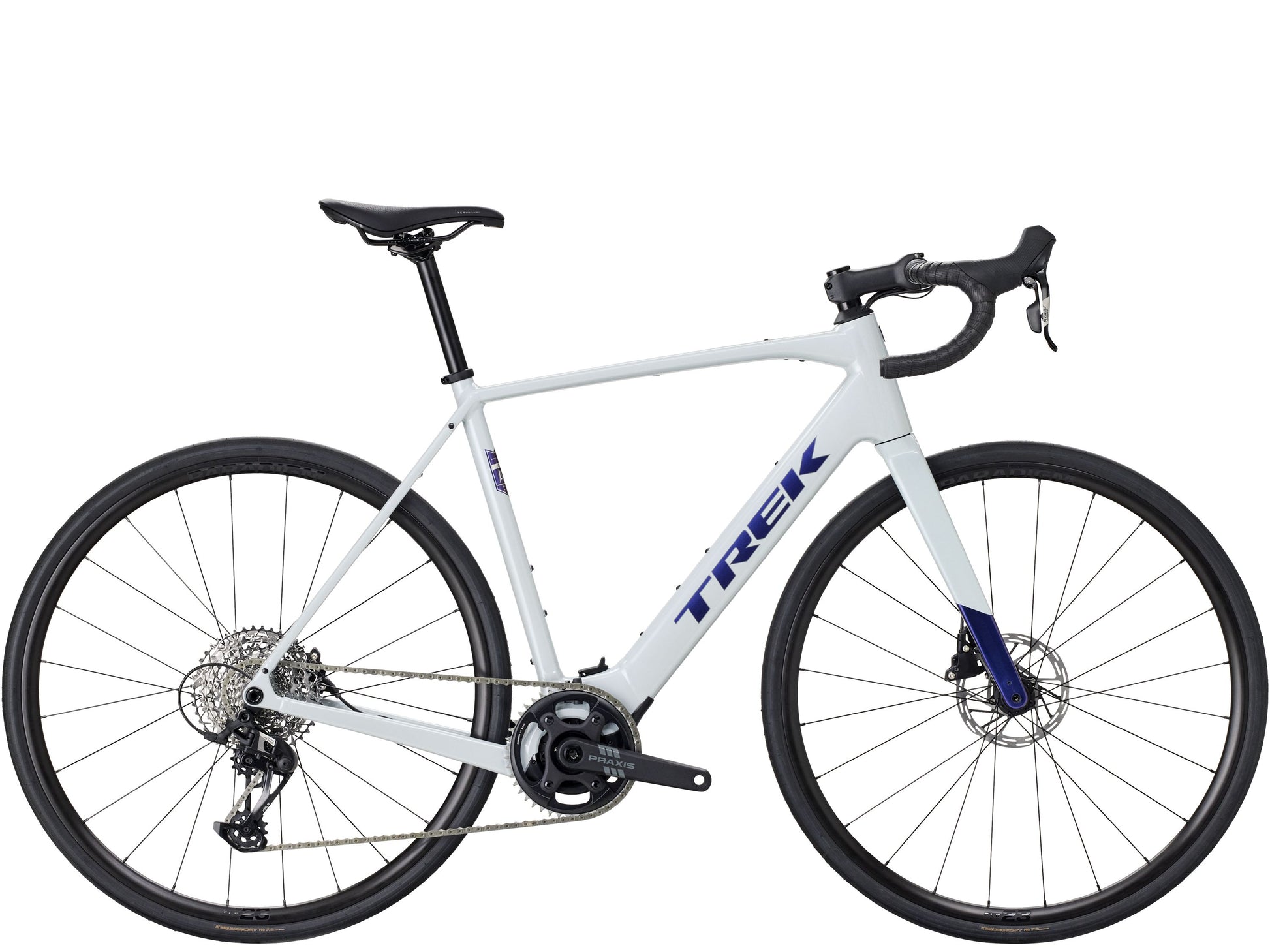

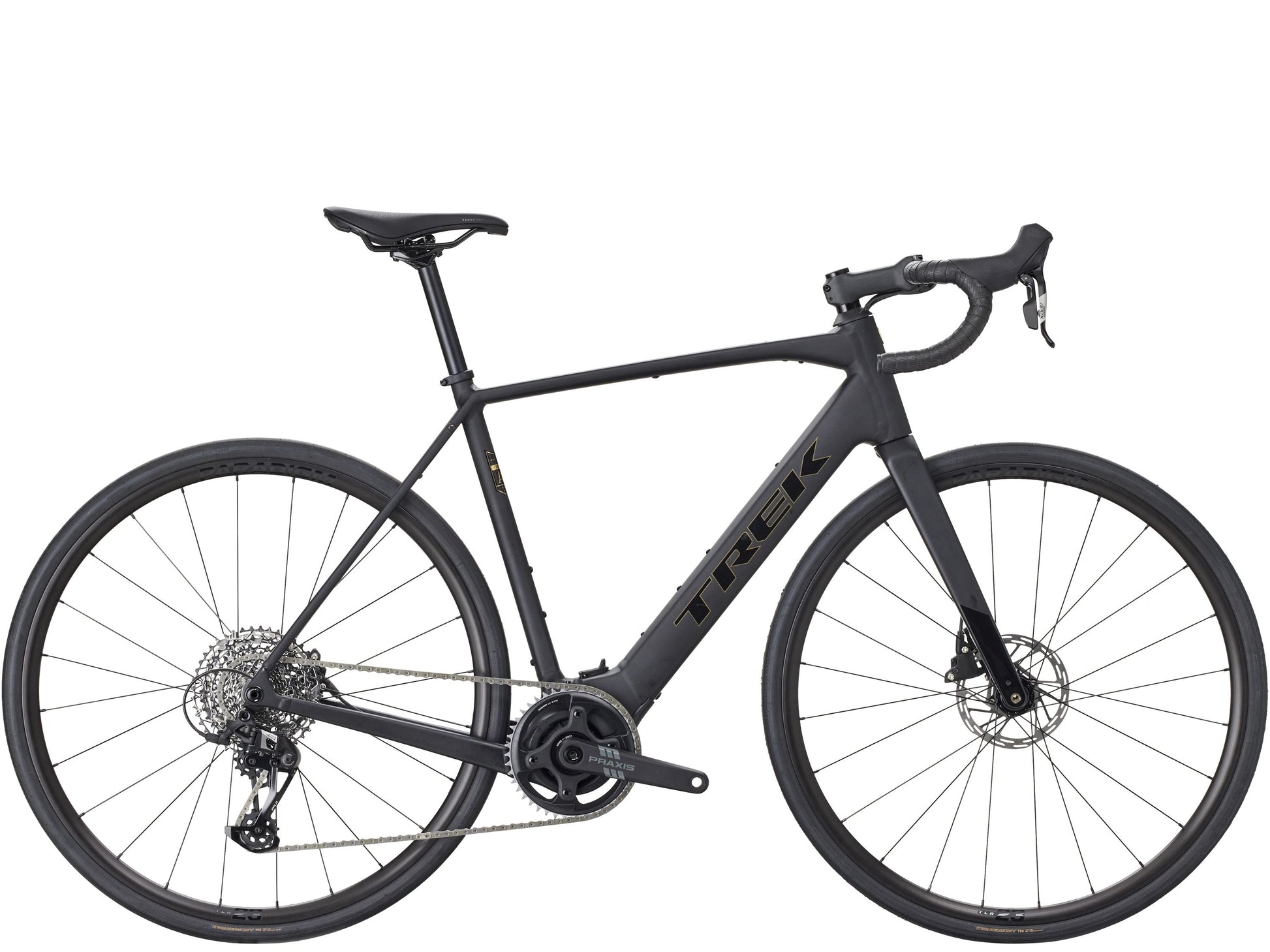

The Trek Domane+ ALR 5 is an electric road bike built on a 300 Series Alpha Aluminum frame with a carbon fork, designed to ride like a Domane endurance bike while carrying a TQ-HPR60 mid-drive motor producing 60 Nm of torque and a 360Wh integrated battery. The TQ system is one of the lightest and quietest mid-drive motors on the market — it uses a harmonic pin ring design that produces remarkably natural power delivery, making the assist feel less mechanical than most competitors. At 31.73 lbs, this is a road e-bike that doesn't ride like a heavy commuter.
The Domane+ ALR 5 is built around a SRAM Apex XPLR 1x12 drivetrain with an 11-44T cassette and clearance for tires up to 40mm — a road bike that can genuinely handle gravel, chip seal, and mixed-surface routes. Bontrager Paradigm 23 tubeless-ready wheels and 700x32mm Bontrager Kwaremont Pro TLR tires provide the starting point; riders can go wider for rougher terrain within the clearance window. SRAM Apex D1 hydraulic disc brakes with flat mount calipers handle stopping. The bike is UL 2849 certified for electrical safety, a meaningful credential for a Class 3 system that assists to 28 mph.
Who It's For
- Road and all-road cyclists who want electric assist without sacrificing a road-bike riding experience
- Endurance riders tackling long routes where conserving energy matters
- Riders who want to extend range or keep pace with faster training partners
- Commuters with a road cycling background who want speed (Class 3, up to 28 mph)
- Not the right fit for off-road mountain biking, riders seeking maximum battery range (360Wh is moderate), or those wanting a traditional road-bike aesthetic
What to Look For
- TQ motor character: The TQ-HPR60 is distinctly different from Bosch or Shimano systems — it's lighter, quieter, and provides assist that feels closer to natural pedaling. Riders who've tried other e-bikes may be surprised by how unobtrusive it is.
- Battery size: At 360Wh, the battery is smaller than most e-bikes. This is a weight and integration tradeoff. In Eco mode on rolling terrain, 50–60 miles is realistic; in higher assist on steep routes, range will be shorter.
- Tire clearance: Maximum tire clearance is 40mm without fenders, 35mm with. The bike ships on 32mm tires, leaving meaningful room for wider setups.
Key Features
Frame & Fork: 300 Series Alpha Aluminum frame with integrated TQ drive system, hidden fender mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, and UDH hanger. The carbon fork is a spec highlight that reduces road vibration and weight at the front end.
Motor & Assist System: The TQ-HPR60 produces 250W continuous (350W peak) and 60 Nm of torque. It assists to 28 mph (Class 3) and connects via Bluetooth and ANT+ to a color LED display. The harmonic pin ring mechanism operates with minimal noise and provides smooth, linear power response across the pedaling range.
Battery: The 360Wh TQ battery is fully integrated into the frame. It charges via a 2A TQ charger. The smaller capacity is intentional — it keeps the bike light and the frame profile clean. Range extension is not supported, so route planning matters more than on higher-capacity systems.
Drivetrain: SRAM Apex XPLR AXS 1x12 with an 11-44T SRAM XPLR PG-1231 cassette and Praxis alloy cranks. The wide cassette range handles both the motor-assisted high-speed pedaling and the unassisted low-speed climbing that happens when the battery runs low.
Brakes: SRAM Apex D1 hydraulic disc with flat mount calipers and 160mm SRAM Paceline centerlock rotors front and rear. Flat mount is standard on modern road bikes and provides a cleaner integration with the frame.
Rider Intent Summary
- Biggest strengths: TQ motor's natural, quiet power delivery; road-bike weight at under 32 lbs; all-road tire clearance to 40mm; carbon fork
- Tradeoffs: 360Wh battery limits range compared to most e-bikes; Class 3 restricts some path access; no range extender option
- What makes it different: The TQ-HPR60 motor is the defining spec — no other system at this price delivers assist this quietly or naturally, and the combination with a carbon fork and sub-32 lb weight is uncommon in the aluminum e-road segment
Victory's Take
We've ridden the Domane+ ALR 5 and the TQ motor genuinely changes the experience — at Victory Bicycle Studio, we recommend it to road cyclists who want assist that doesn't feel like cheating, on a bike that still rewards good pedaling technique.
What you get

Trek Domane+ ALR 5
