About The Trek Madone SL 7 Gen 8 Carbon 12 Speed Ultegra Di2 Road Bike

The Madone SL 7 Gen 8 is Trek's 500 Series OCLV Carbon aero road bike, built around Shimano Ultegra Di2 12-speed electronic shifting and Bontrager Aeolus Pro 51 OCLV Carbon wheels. At 17.4 lbs (size ML with tubes and sealant), it occupies the performance tier of Trek's Gen 8 Madone platform — a platform that retired both the Madone and Émonda lines in favor of a single aero-optimized frame that also addresses climbing weight.

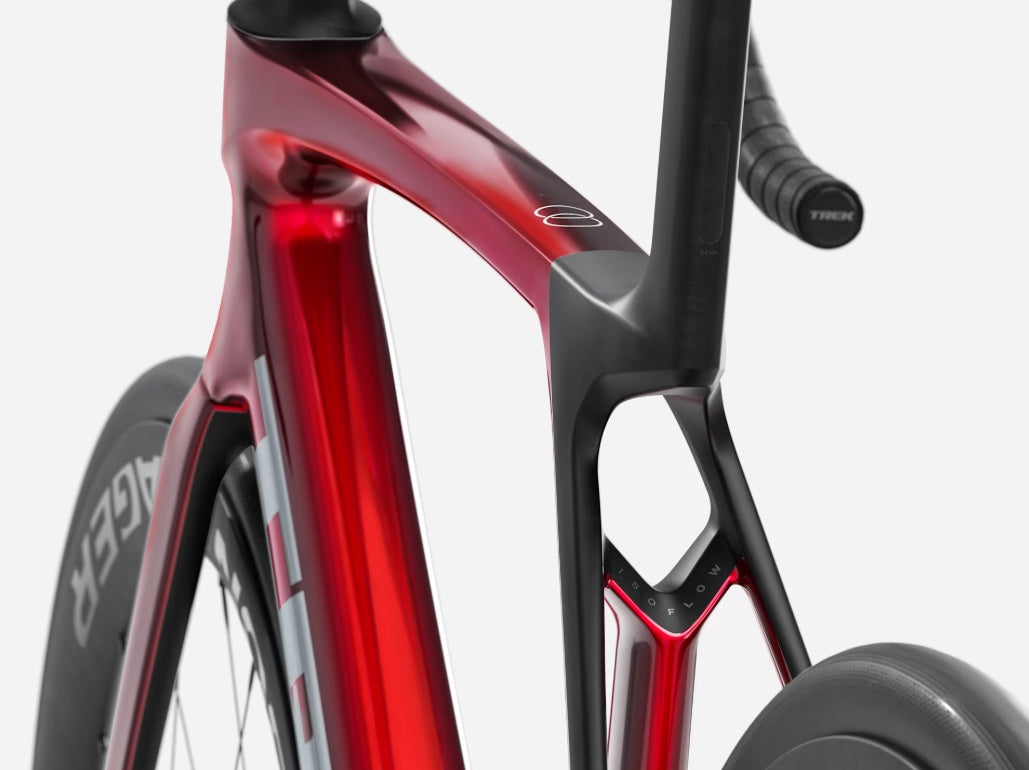

The frame's two signature technologies are Full System Foil tube shaping, which runs aero profiles through every tube section, and the IsoFlow seat tube, a structural cutout behind the seat tube that flexes to absorb road vibration while simultaneously reducing aerodynamic drag. The RCS Headset System allows stack height adjustment without swapping stems, and the T47 threaded bottom bracket shell improves serviceability without sacrificing the aero shell design. Internal cable routing is fully electronic-compatible, with a removable aero chainkeeper included.

Who It's For

  • Riders targeting fast group rides, gran fondos, or criteriums who want electronic shifting without spending into the SL 8 / Dura-Ace tier
  • Those upgrading from aluminum or entry carbon who want a meaningful jump in wheel depth and drivetrain refinement
  • Riders who fit between 44mm and 56mm tire clearance needs — the Madone maxes out at 32c
  • Not ideal for: gravel, rough roads, or riders who prioritize compliance over aerodynamics — consider the Domane SL instead

What to Look For

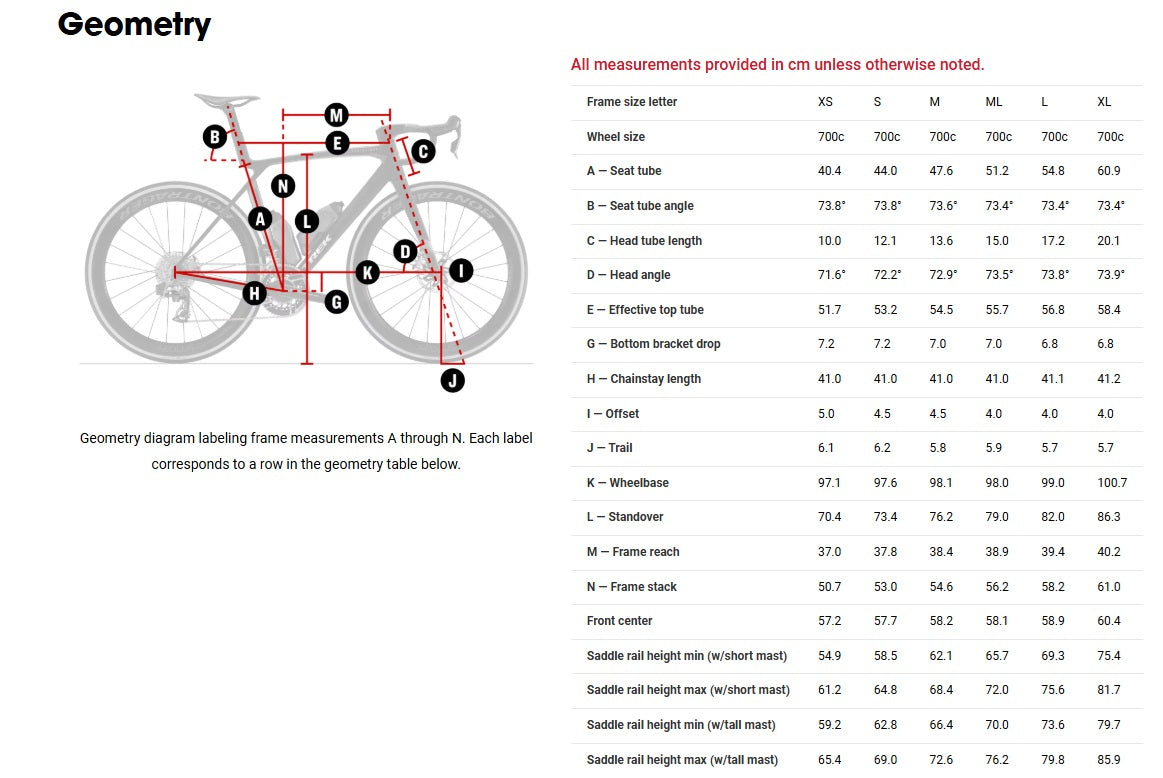

  • Fit and stack: The Madone SL 7 runs an aggressive road geometry; get a professional bike fit before purchasing, especially if you're coming from a more relaxed endurance position
  • Wheel upgrade ceiling: The Aeolus Pro 51 wheels are a strong spec at this price; riders who race may want to compare against the RSL Aeolus 51 or 62 available through Trek's build options

Key Features

Frame — 500 Series OCLV Carbon: The 500 Series layup sits below the RSL (700 Series) grade used on the SL 8, but delivers the full Gen 8 Madone geometry and aerodynamic tube shaping. The IsoFlow seat tube cutout is structural — it's not a cosmetic slot; it allows rear-end compliance that a rigid seat tube cannot. T47 threaded BB eliminates creaking common in press-fit systems.

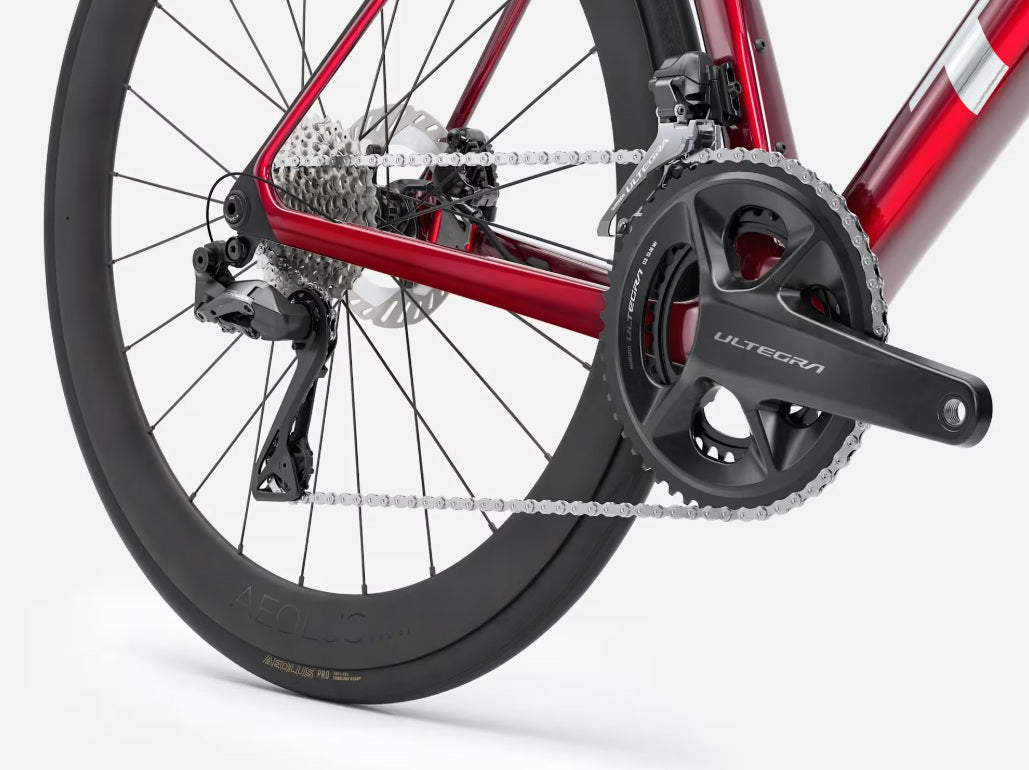

Groupset — Shimano Ultegra Di2 R8100: The R8150 rear derailleur shifts 12-speed wirelessly, with a 34T max cog for real climbing range on a 50/34T crankset. Shimano's electronic system is consistent and low-maintenance, making it a practical choice for riders who train year-round. Crankarm length is size-specific (165mm to 175mm depending on frame size).

Brakes — Shimano Ultegra Hydraulic Disc: Shimano CL800 centerlock rotors at 160mm front and rear provide linear modulation. Hydraulic disc on a carbon aero road bike means consistent braking performance regardless of weather or rim heat buildup.

Wheels — Bontrager Aeolus Pro 51 OCLV Carbon: Fifty-one millimeter carbon clincher rims in a Tubeless Ready configuration. The 51mm depth balances aerodynamic benefit with crosswind handling at most road speeds. Paired with Bontrager R3 Hard-Case Lite 700x28mm tires at 170 tpi — puncture-resistant and tubeless-ready out of the box.

Rider Intent Summary

  • Biggest strengths: Full-system aero carbon frame with IsoFlow compliance, electronic Di2 shifting, and deep carbon wheels — all at the Ultegra price tier
  • Tradeoffs: 32c max tire clearance limits road surface versatility; 500 Series carbon is heavier than the RSL layup used on the SL 8
  • What makes it different: The IsoFlow seat tube is unique to the Gen 8 Madone platform — no other production aero road frame uses a structural seat tube cutout for both compliance and aerodynamics simultaneously

Victory's Take

At Victory Bicycle Studio, we recommend pairing the Madone SL 7 with a professional fit before delivery — the aggressive geometry is a strength on the bike but only translates to power on the road if you're set up correctly.

What you get

  • Frame - 500 Series OCLV Carbon, Full System Foil
  • Fork - Madone Gen 8 full carbon, tapered carbon steerer
  • Groupset - Shimano Ultegra Di2 R8100 2x12
  • Brakes - Shimano Ultegra Hydraulic Disc, CL800 160mm
  • Wheels - Bontrager Aeolus Pro 51 OCLV Carbon, Tubeless Ready

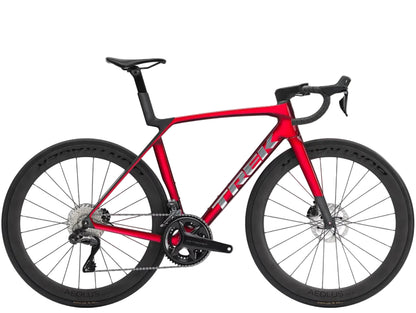

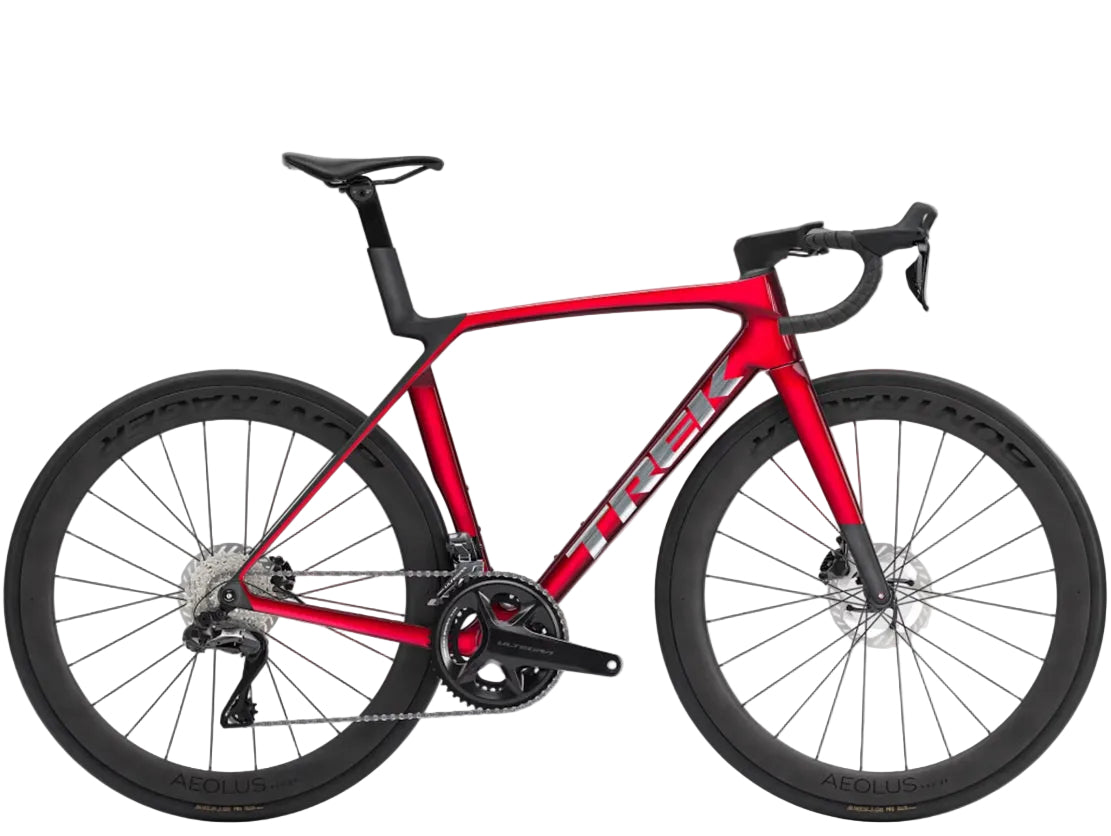

trek madone sl 7 gen 8 carbon 12 speed road bike - main side profile image

Trek

Trek Madone SL 7 Gen 8 Carbon 12 Speed Ultegra Di2 Road Bike

Regular price $6,599.99 USD
Sale price $6,599.99 USD Regular price $6,599.99 USD

Specifications

Frameset
Frame

500 Series OCLV Carbon

- Full System Foil tube shaping

- IsoFlow seat tube

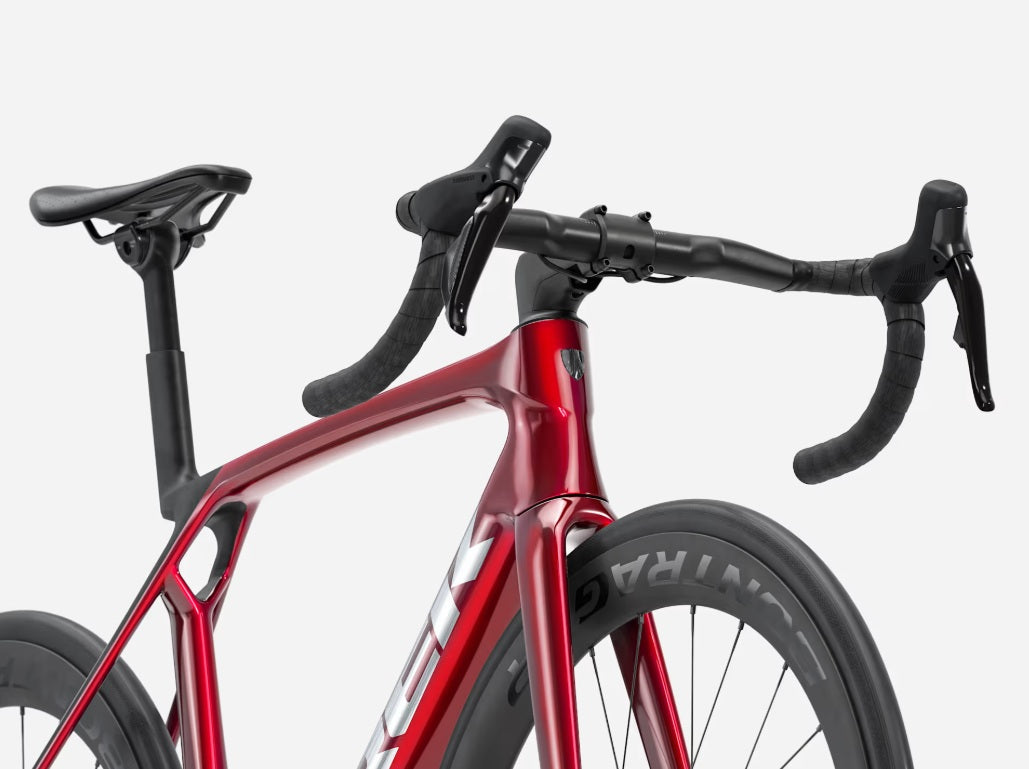

- RCS Headset System

- Electronic or mechanical routing

- Removable aero chainkeeper

- T47 BB

- Flat mount disc

- UDH

- 142x12mm thru axle

Fork

Madone Gen 8 full carbon, tapered carbon steerer

- Internal brake routing

- Flat mount disc

- 12x100mm chamfered thru axle

Wheels
Front Wheel

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle

Rear Wheel

Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle

Front Skewer

Bontrager Switch chamfered thru axle

Rear Skewer

Bontrager Switch chamfered thru axle, removable lever

Tires

Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120tpi, 700x28mm

Tire Part

Bontrager TLR sealant, 6oz

Max Tire Size

700x32mm

Drivetrain and Brakes
Shifters

Shimano Ultegra R8170 Di2, 12 speed

Front Derailleur

Shimano Ultegra R8150 Di2, braze-on, down swing

Rear Derailleur

Shimano Ultegra R8150 Di2, 34T max cog

Crankset

Shimano Ultegra

- Size: XS, S - Shimano Ultegra R8100, 50/34, 165mm length

- Size: M, ML - Shimano Ultegra R8100, 50/34, 170mm length

- Size: L, XL - Shimano Ultegra R8100, 50/34, 172.5mm length

Bottom Bracket

Praxis, T47 threaded, internal bearing

Cassette

Shimano Ultegra R8101, 11-34, 12 speed

Chain

Shimano Ultegra/XT M8100

Max Chainring Size

1x: 54T, 2x: 56/43

Brakes

Shimano Ultegra R8170 hydraulic disc, flat mount

Brake Rotors

Shimano RT-CL800, centerlock, 160mm

Cockpit

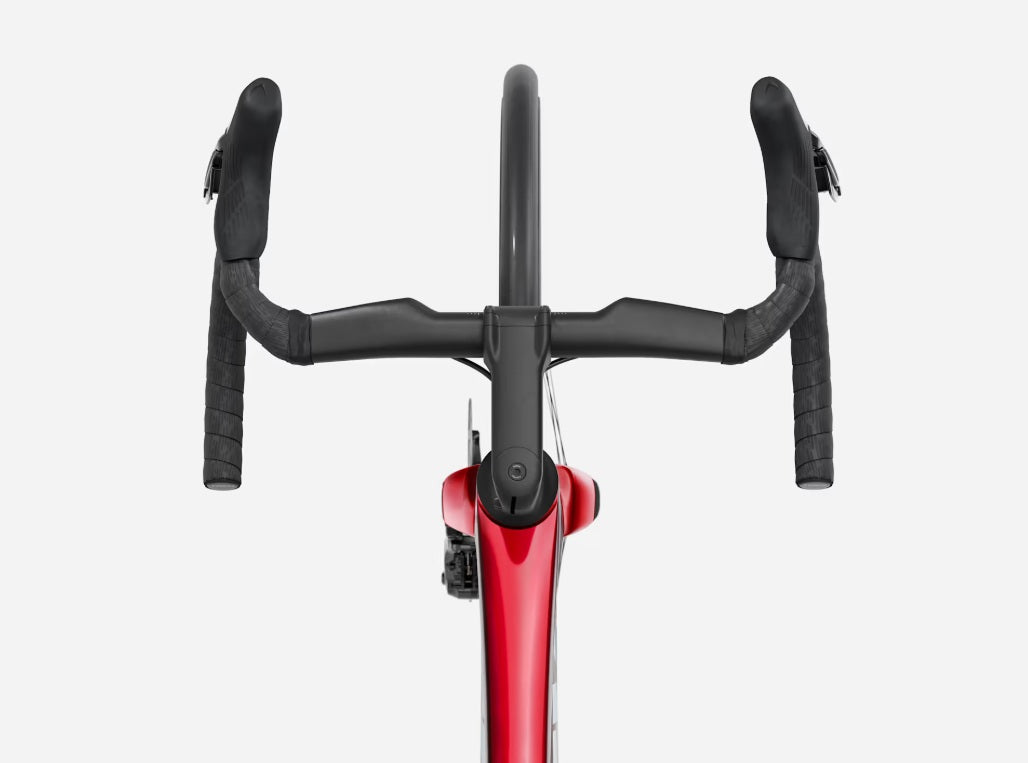

Handlebars

Bontrager Aeolus Comp 5, alloy, 31.8mm, 80mm reach, 124mm drop

Handlebar Tape

Trek EcoTack

Stem

Trek RCS Pro, 31.8mm, -7 degree

Saddle

Bontrager Aeolus Comp, steel rails, 145mm width

Seat Post

Bontrager Comp, alloy, 27.2mm, 0mm offset

**Specifications subject to change without notice
